DHP106095S-620MHF

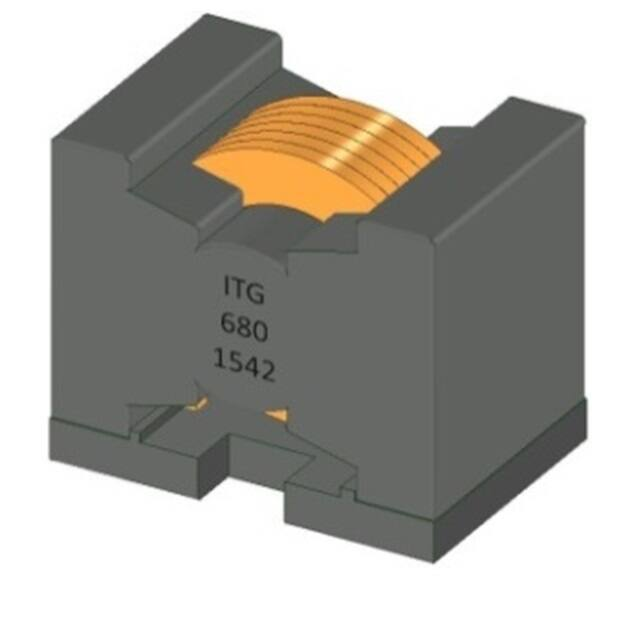

DHP106095S Series 1. Features of DHP106095S Series: • • • • • • • Ferrite based DIP Inductor with lower core loss. Inductance range: 3.3uH up to 100.0uH Custom values are welcomed. High current output chokes, with up to 89.00 Amp with approx. 30% roll off. Flat wire winding provides extremely low DC and AC resistance. Vertical mounting provides small footprint. Operating Temperature Range -55˚to 130˚C. RoHS and HF Compliance. 2. Electrical Characteristics of DHP106095S Series: ITG Part Number DHP106095S-3R3MHF DHP106095S-4R7MHF DHP106095S-6R8MHF DHP106095S-8R2MHF DHP106095S-100MHF DHP106095S-120MHF DHP106095S-150MHF DHP106095S-180MHF DHP106095S-220MHF DHP106095S-330MHF DHP106095S-390MHF DHP106095S-470MHF DHP106095S-500MHF DHP106095S-560MHF DHP106095S-620MHF DHP106095S-680MHF DHP106095S-860MHF DHP106095S-101MHF OCL 1 (uH) ±20% 3.30 4.70 6.80 8.20 10.00 12.00 15.00 19.00 24.00 33.00 39.00 44.00 50.00 56.00 62.00 68.00 86.00 100.00 DCR (mΩ) ±10% 2.20 2.20 2.20 2.20 2.90 2.90 3.20 4.20 5.90 8.60 8.60 11.20 11.20 14.70 14.70 14.70 14.70 15.50 Isat1 2 (A) @25℃ 85.00 60.50 42.00 36.00 31.00 28.50 25.50 22.50 20.50 17.50 15.50 15.00 14.00 13.50 12.50 11.00 9.00 7.80 Isat2 3 (A) @25℃ 87.00 63.00 45.00 38.50 33.00 31.00 27.50 24.90 22.30 19.00 17.50 16.80 15.50 14.80 13.40 12.30 9.70 8.60 Isat3 4 (A) @25℃ 89.00 65.00 46.00 39.40 34.10 32.00 28.10 25.60 23.00 19.80 18.10 17.40 16.20 15.20 14.00 12.90 10.50 8.90 Irms 5 (A) @25℃ 31.00 31.00 31.00 31.00 26.80 26.80 25.50 22.00 19.00 15.60 15.60 13.70 13.70 12.00 12.00 12.00 12.00 11.50 3. Mechanical Dimension of DHP106095S Series (Unit in mm): Marking : ITG: Company Name xxx is inductance value in uH YYWW is Date Code ITG xxx YYWW Front View E1 B A D E2 Glue F 11.3 1.3 Side View 4.5 Fig 1 Bottom View 6.7 6.7 6.7 C G 11.3 11.3 1.0 4.5 0.7 Fig 2 Suggested Pad Layout 4.5 Fig 3 Dim. G (mm) ± 0.10 0.80 0.80 0.80 0.80 0.70 0.70 0.70 0.60 0.50 0.40 0.40 0.35 0.35 0.30 0.30 0.30 0.30 0.30 PCB Layout Fig. 1 1 1 1 2 2 2 2 2 3 3 3 3 3 3 3 3 3 Type Dimensions A 27.8 (Max.) B 18.4 (Max.) C 3.5 ± 0.5 D 24.1 Max. E1 11.3 ± 0.5 E2 6.7 ± 0.5 F 3.8 ± 0.5 G See Table Notes: 1. Open Circuit Inductance(OCL) and L@Irms and L@Isat are measured at: 300KHz, 0.1V (Ta=25℃). 2. Isat1 : DC current that causes inductance to drop 10%(Typ.) from OCL (Ta=25℃). 3. Isat2 : DC current that causes inductance to drop 20%(Typ.) from OCL (Ta=25℃). 4. Isat3 : DC current that causes inductance to drop 30%(Typ.) from OCL (Ta=25℃). 5. Irms : DC current for temperature rise of 40℃(Typ.) without core loss. Derating is necessary for AC currents, PCB pad layout, trace thickness and width, air-flow and proximity of other heat generating components will affect the temperature rise. It is recommended the part temperature should not exceed 130°C under worst case operating conditions verified in the end application. ● ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision C: November 24, 2020 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. DHP106095S Series 4. Inductance Characteristics of DHP106095S Series (Inductance vs. DC Current vs. Temperature): DHP106095S-4R7MHF 6.0 100 3.2 80 4.8 80 2.4 60 3.6 60 1.6 40 2.4 40 0.8 20 1.2 20 0 0.0 0.0 0 10 20 30 40 50 60 70 80 90 0 0 10 20 30 40 50 60 62 64 66 DC Bias(A) DC Bias(A) DHP106095S-8R2MHF 100 10.0 100 6.4 80 8.0 80 4.8 60 6.0 60 3.2 40 4.0 40 1.6 20 2.0 20 0 0.0 0.0 10 20 30 40 45 L(uH) 50 0 0 10 DC Bias(A) 20 30 40 45 50 DC Bias(A) DHP106095S-100MHF DHP106095S-120MHF 12.0 80 12.0 80 9.0 60 9.0 60 6.0 40 6.0 40 3.0 20 3.0 20 0.0 0 0.0 5 10 15 20 25 30 35 40 DC Bias(A) △T(℃) 100 L(uH) 15.0 △T(℃) 100 L(uH) 15.0 0 ● △T(℃) 8.0 △T(℃) L(uH) DHP106095S-6R8MHF 0 △T(℃) 100 L(uH) 4.0 △T(℃) L(uH) DHP106095S-3R3MHF 0 0 5 10 15 20 25 30 35 DC Bias(A) ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision C: November 24, 2020 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. DHP106095S Series 4. Inductance Characteristics of DHP106095S Series (Inductance vs. DC Current vs. Temperature): DHP106095S-150MHF DHP106095S-180MHF 16.0 80 17.6 80 12.0 60 13.2 60 8.0 40 8.8 40 4.0 20 4.4 20 0.0 0 0.0 0 5 10 15 20 25 0 0 30 5 10 15 20 25 27 30 DC Bias(A) DC Bias(A) DHP106095S-220MHF DHP106095S-330MHF 24.0 80 32.0 80 18.0 60 24.0 60 12.0 40 16.0 40 6.0 20 8.0 20 0.0 0 0.0 5 10 15 20 DC Bias(A) 0 0 25 △T(℃) 100 L(uH) 40.0 △T(℃) 100 L(uH) 30.0 0 5 10 15 20 22 DC Bias(A) DHP106094S-390MHF DHP106095S-470MHF 36.0 80 44.0 80 27.0 60 33.0 60 18.0 40 22.0 40 9.0 20 11.0 20 0.0 0 0.0 4 8 12 16 18 DC Bias(A) 20 △T(℃) 100 L(uH) 55.0 △T(℃) 100 L(uH) 45.0 0 ● △T(℃) 100 L(uH) 22.0 △T(℃) 100 L(uH) 20.0 0 0 4 8 12 16 18 DC Bias(A) ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision C: November 24, 2020 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. DHP106095S Series 4. Inductance Characteristics of DHP106095S Series (Inductance vs. DC Current vs. Temperature): DHP106095S-500MHF DHP106095S-560MHF 44.0 80 52.0 80 33.0 60 39.0 60 22.0 40 26.0 40 11.0 20 13.0 20 0.0 0 0.0 0 3 6 0 0 9 12 15 16 17 18 3 6 DC Bias(A) 9 12 15 16 17 DC Bias(A) DHP106095S-620MHF DHP106095S-680MHF 56.0 80 60.0 80 42.0 60 45.0 60 28.0 40 30.0 40 14.0 20 15.0 20 0.0 0 0.0 2 4 6 0 0 8 10 12 14 16 △T(℃) 100 L(uH) 75.0 △T(℃) 100 L(uH) 70.0 0 2 4 DC Bias(A) 6 8 10 12 14 DC Bias(A) DHP106095S-860MHF DHP106095S-101MHF 100 72.0 80 80.0 80 54.0 60 60.0 60 36.0 40 40.0 40 18.0 20 20.0 20 0.0 0 0.0 2 4 6 8 10 DC Bias(A) 12 L(uH) △T(℃) 100.0 △T(℃) 100 L(uH) 90.0 0 ● △T(℃) 100 L(uH) 65.0 △T(℃) 100 L(uH) 55.0 0 0 2 4 6 8 10 12 14 DC Bias(A) ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision C: November 24, 2020 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase.
