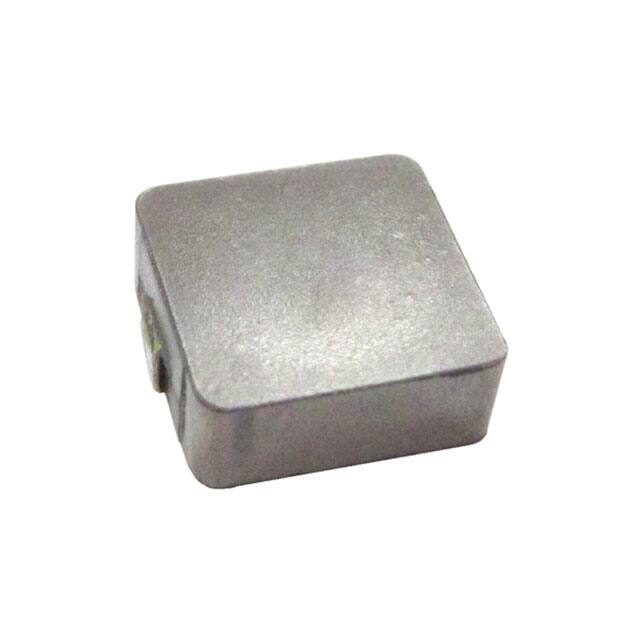

BMCA00060630100MD1

Molding Power Inductors – BMCx Series Series BMCx Series BMCx series is designed for low profile type with low RDC and ultra large current. Its molded magnetic shielded type is suitable for high-density mounting and ultra low buzz noise. Soldering conditions can be easily confirmed when mounting onto the board. This series also provides customers with embossed carrier type packaging for automatic mounting machine. Features Applications  RoHS, Halogen Free and REACH Compliance  High rated current  Ultra low buzz noise     Laptops and PCs Switchs and servers Base stations DC/DC converters Product Identification Shape and Dimensions Recommended Pattern Dimensions in mm Dimensions in mm TYPE A B C D F TYPE A B C BMCA00050512 5.2±0.2 5.4±0.35 1.2Max 2.0±0.3 1.0±0.3 BMCA00050512 2.5 4.1 1.9 BMCA00060630 6.6±0.2 6.95±0.35 2.8±0.2 3.0±0.3 1.6±0.5 BMCA00060630 3.5 6.05 2.35 BMCA00101040 4.0 9.5 3.5 2.5±0.5 BMCA00101040 10.2±0.3 11.6Max 3.8±0.2 2.5±0.5 3.0±0.5 Molding Power Inductors – BMCx Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC(mΩ) Max(Typ.) Isat(A) Max(Typ.) Irms(A) Max(Typ.) Marking. BMCA000505124R7MB1 4.7 20 100 165(150) 4.6(5.4) 2(2.3) 4R7 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 20% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Molding Power Inductors – BMCx Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) BMCA00060630R10MD1 0.10 20 BMCA00060630R22MD1 0.22 BMCA00060630R33MD1 Test RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. Marking. 100 1.7 60 32.5 R10 20 100 2.8 40 23.0 R22 0.33 20 100 3.9 30 20.0 R33 BMCA00060630R47MD1 0.47 20 100 4.2 26 17.5 R47 BMCA00060630R68MD1 0.68 20 100 5.5 25 15.5 R68 BMCA00060630R82MD1 0.82 20 100 8.0 24 13.0 R82 BMCA000606301R0MD1 1.0 20 100 10 22 11.0 1R0 BMCA000606301R5MD1 1.5 20 100 15 18 9.0 1R5 BMCA000606302R2MD1 2.2 20 100 20 14 8.0 2R2 BMCA000606303R3MD1 3.3 20 100 30 13.5 6.0 3R3 BMCA000606304R7MD1 4.7 20 100 40 10.0 5.5 4R7 BMCA000606306R8MD1 6.8 20 100 60 8.0 4.5 6R8 BMCA00060630100MD1 10 20 100 102 7.0 3.0 100 Frequency (kHz) Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 20% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100KHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Inductance v.s DC Current Tem perature Change v.s DC Current 10 130 110 100 8 100 ΔT( ℃ ) 7 L(uH) 1R5 1R0 4R7 3R3 2R2 R82 100 R68 6R8 R47 120 9 6 6R8 5 4 R22 R10 90 80 70 60 50 4R7 40 3 3R3 2R2 2 1 30 1R5 1R0 R82 20 R68 R47 R22 10 R10 0 0 0 10 20 30 DC Current (A) 40 50 60 0 5 10 15 20 25 30 35 DC Current (A) 40 45 50 55 Molding Power Inductors – BMCx Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC(mΩ) Max(Typ) Isat (A)Typ. Irms (A)Typ. Marking BMCA001010401R0MD1 1.0 20 100 3.2(2.7) 36 18 1R0 BMCA001010401R5MD1 1.5 20 100 4.2(3.8) 33 16 1R5 BMCA001010402R2MA1 2.2 20 100 7(6.4) 27 12 2R2 BMCA001010403R3MA1 3.3 20 100 12(10) 23 10 3R3 BMCA001010404R7MA1 4.7 20 100 16.5(15) 17 9.5 4R7 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Irms：CHROMA 1810 Test Instruments：WK3260B Impedance / Material Analyzer Molding Power Inductors – BMCx Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL BMCA00050512 5.5 6.0 1.5 1.55 1.75 12 8 4 2 330 100 13 13.4 1000 BMCA00060630 6.9 7.6 3.4 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 BMCA00101040 10.6 11.7 4.25 1.55 1.75 24 16 4 2 330 100 13 24.4 500
