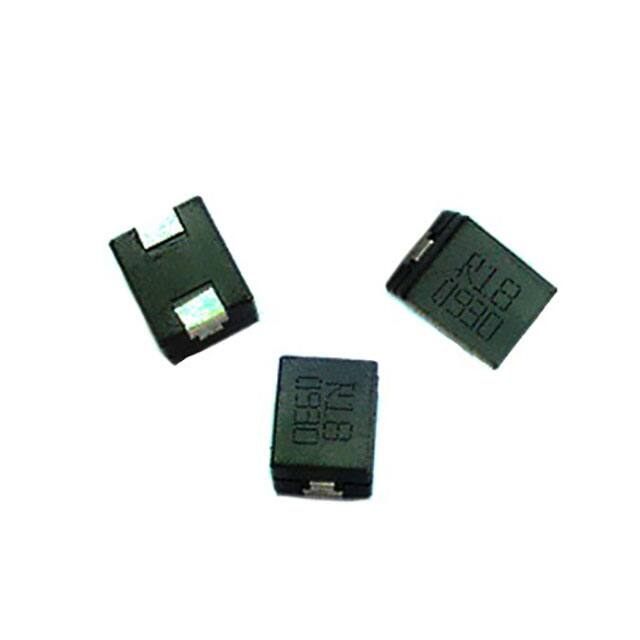

AH4724-R21KHF

AH4724 Series 1. Features of AH4724 Series: • • • • • • • • • Ferrite based SMD inductor with lower core loss. Inductance range: 180.0 nH to 365.0 nH , custom values are welcomed. High current output chokes up to 95.0 Amp with approx. 20% roll off. Low profile 6.0mm Max. height. 12.1 x 10.0 mm Foot Print. Ideal for Buck Converter, VRM & High Density Board Design. Operating frequency of up to 5.0MHz. Operating temperature range of -55°C to + 130°C. RoHS & HF compliant. T & R Qty’s: 500pcs, 13'' Reel. 2. Electrical Characteristics of AH4724 Series: OCL 1 DCR 3 Isat1 4 Isat2 4 Isat3 4 Irms 5 (nH) (mΩ) (A) (A) (A) (A) ± 10% or 15% ± 7.0% @25℃ @45℃ @100℃ @25℃ AH4724-R18KHF 180.00 ,10% 0.48 60.00 58.00 52.00 40.00 AH4724-R21KHF 215.00 ,10% 0.48 54.00 50.00 47.00 40.00 AH4724-R23KHF 230.00 ,10% 0.48 47.00 45.00 42.00 40.00 AH4724-R32KHF 325.00 ,10% 0.48 32.00 31.00 29.00 40.00 AH4724-R36LHF 365.00 ,15% 0.48 30.00 29.00 27.00 40.00 ITG Part Number 3. Mechanical Dimension of AH4724 Series: A B C D E F G Max. Max. Max. Max. Nom. Nom. Nom. 10.00 11.70 6.00 12.10 7.00 3.80 AH4724 RxxxHF ITGYYWW D B 2.30 6.0 A 4.5 C 3.2 a E G b F Suggested Pad Layout Part Marking: AH4724: Series Name Rxx x HF: Rxx is inductance value in uH(R:decimal point), x is Tolerance, HF is Halogen Free. ITGYYWW: ITG is Company Name , YYWW is Date Code. Notes: 1. Open Circuit Inductance (OCL) test condition: 500KHz,0.25Vrms,0Adc at 25Ԩ. 2. L @ Isat and L @ Irms Test condition: 500KHz,0.25Vrms (Ta=25Ԩ). 3. The nominal DCR is measured from point "a" to point"b",as shown above on the mechanical drawing (Ta=25Ԩ). 4. Isat1 , Isat2 & Isat3 : DC current that will cause inductance to drop approximately by 20%. 5. Irms: DC current for an approximate temperature rise of 40Ԩ without core loss. Derating is necessary for AC currents. PCB pad layout,trace thickness and width,air-flow and proximity of other heat generating components will affect the temperature rise. 6. It is recommended the part temperature not exceed 130°C under worst case operating conditions as verified in the end application. ● ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision E.0 : March 29 , 2018 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. AH4724 Series 4. Inductance Characteristics of AH4724 Series (Inductance vs Current): AH4724-R18KHF 190.0 25Ԩ L (nH) 152.0 114.0 45Ԩ 76.0 100Ԩ 38.0 0.0 0 5 10 15 20 25 30 35 40 Direct Current (A) 45 50 55 60 65 70 AH4724-R21KHF 220.0 25Ԩ L (nH) 176.0 132.0 45Ԩ 88.0 100Ԩ 44.0 0.0 0 5 10 15 20 25 30 35 Direct Current (A) 40 45 50 55 60 AH4724-R23KHF 230.0 25Ԩ L (nH) 184.0 138.0 45Ԩ 92.0 100Ԩ 46.0 0.0 0 5 10 15 20 25 30 35 Direct Current (A) 40 45 50 55 60 AH4724-R32KHF 320.0 L (nH) 256.0 25Ԩ 192.0 45Ԩ 128.0 100Ԩ 64.0 0.0 0 ● 5 10 15 20 25 Direct Current (A) 30 35 40 45 ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision E.0 : March 29 , 2018 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. AH4724 Series 4. Inductance Characteristics of AH4724 Series (Inductance vs Current): AH4724-R36LHF 375.0 L (nH) 300.0 25Ԩ 225.0 45Ԩ 150.0 100Ԩ 75.0 0.0 0 ● 3 6 9 12 15 18 21 Direct Current (A) 24 27 30 33 36 ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision E.0 : March 29 , 2018 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. AH4724 Series 6.PACKAGE SPECIFICATION.(UNIT:mm): (1).ENCAPSOLATION MODE: E1 P1 P2 ¦ D µ0 P0 T ¦ D µ1 F W B0 K0 (2).DIMENSION(mm): W A0 B0 User Direction of Feed A0 K0 P1 P0 P2 D0 D1 F E1 T 24.0+0.3/-0.1 10.2±0.1 12.3±0.10 6.20±0.10 16.0±0.10 4.00±0.10 2.00±0.10 1.50+0.10/-0 1.50+0.10/-0 11.5±0.10 1.75±0.10 0.40±0.05 (3).REEL SIZE: (4).PACKAGE MODE: (5).PACKAGING LIST: No. Packing Part Dimension (mm) Material Quantity 1 2 Reel Bag 330 450x360x0.075 Plastic Plastic 500Pcs/Reel 1Reel/Bag 3 Small Box 340X335X45 Paper 1Bag/Small Box 4 Middle Box 356X350X226 Paper 4Small Boxes/Middle Box 5 Outer Box 378X362X252 Paper 1Middle Box/Outer Box (6).WEIGHT: N.W: 2.95 g/pcs (APPROX), TOTAL 5.95 Kg(APPROX),G.W:TOTAL 8.90Kg (APPROX). (7).Storage conditions: -40Ԩ~85Ԩ ,75%RH (Max.). ● ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision E.0 : March 29 , 2018 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. AH4724 Series 7.RELIABILITY TEST: TEST ITEMS SPECIFICATIONS TEST METHOD AND REMARKS According to IEC68-2-20. 1. Soldering temperature:245±5Ԩ Solder ability The electrodes shall be at least 90% covered with new solder coating 2. Solder:99.3Sn/0.7Cu 3. Flux:Rosin 4. Immersion time:5±1Sec 1. Preheat temperature150Ԩ. 2. Preheat time:1min Soldering heat resistance 1. Appearance :no damage 2. 3. Solder temperature260±5Ԩ Inductance change:within±10%of initial value 4. Dipping time:10±1Sec 5. Measured at room temperature after placing for 24hours According to MIL-STD-202 Method 204. Vibration( OUT LAB) 1. Appearance:no damage 2. All Electrical and mechanical parameters within tolerance 1.Frequency:10 to 55Hz. 2.Amplitude:1.52mm 3.Direction and timeX Y and Z Direction for 2 hours each According to IEC68-2-1MethodCa: 1. Appearance: no damage 2. All Electrical and mechanical parameters Humidity resistance test within tolerance 1. Temp:40±2Ԩ 2. Humidity:90%-95%RH 3. Test time:500±2H 4. The component should be stabilized at normal condition for24 Hours before test According to IEC68-2-2. High temperature resistance test 1. Appearance: no damage 2. All Electrical and mechanical parameters within tolerance 1. 1. Temperature:85±3Ԩ 2. Test time:500+24H 3. The component should be stabilized at normal condition for 24hours before test According to IEC68-2-1 Method A(Ad). Low Temperature resistance test 1. Appearance: no damage 2. All Electrical and mechanical parameters within tolerance 1. Temperature:-40±3Ԩ 2. Test time:500+24H 3. The component should be stabilized at normal condition for 24hours before test According to IEC68-2-14 Method N(Nb). 1. High-temp:85±3duration:30min 2. room –temp:25±2ԨDuration3H 1. Appearance: no damage Temperature cycles test 2. All Electrical and mechanical parameters within tolerance 3. Low-temp:-40±3Duration30min 4. room-temp: 25±2ԨDuration3H 5. Number of cycle:10cycles 6. The component should be stabilized at normal condition for 24hours before test ● ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision E.0 : March 29 , 2018 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. AH4724 Series Soldering Reflow Chart Stage Precaution Recommended temperature profile Temperature profile can be referenced after confirming of adhesion , temperature of resistance to soldering heat , component size , soldering etc. sufficient . Reflow soldering Note: please refer to the latest IPC/JEDEC J-STD-020: “Moisture/Reflow Sensitivity Classification for Nonhermetic Solid State Surface Mount Devices" ● ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision E.0 : March 29 , 2018 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase.
