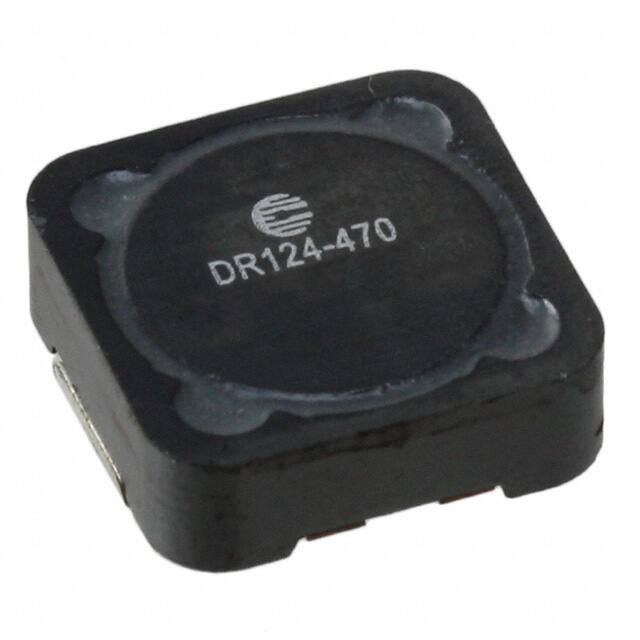

DR124-470-R

Technical Data 4141 Effective March 2019 Supersedes September 2017 DR124 High power density, high efficiency, low profile shielded drum core power inductors Applications • • • • • • • Notebook power LCD panels Desktop and servers DVD players and portable power devices DC-DC Converters Buck, boost, forward, and resonant converters Noise filtering and filter chokes Environmental Data Product features • • • • • • Low profile surface mount inductor 12.5 mm x 12.5 mm x 4.5 mm shielded drum core Inductance range from 0.47 µH to 1000 µH Current range from 0.44 A to 24.4 A Frequency range up to 1 MHz Ferrite core material • Storage temperature range (Component): -40 °C to +125 °C • Operating temperature range: -40 °C to +125 °C (ambient plus self-temperature rise) • Solder reflow temperature: J-STD-020 (latest revision) compliant HALOGEN Pb HF FREE Technical Data 4141 DR124 High power density, high efficiency, low profile shielded drum core power inductors Effective March 2019 Product specifications Part Number OCL1 μH±20% Irms2 (A) Isat3 (A) DR124-R47-R 0.47 0.42 16.0 24.40 2.2 2.7 17.51 DR124-1R0-R 1.0 0.83 13.9 18.00 3.00 3.6 12.50 DR124-1R5-R 1.5 1.37 11.1 14.00 4.75 5.7 9.73 DR124-2R2-R 2.2 2.04 9.1 11.45 5.92 7.1 7.96 DR124-3R9-R 3.9 3.80 7.0 8.40 12.50 15.0 5.84 DR124-4R7-R 4.7 4.88 6.5 7.65 13.50 16.2 5.15 DR124-6R8-R 6.8 6.10 5.6 6.47 18.06 21.7 4.61 DR124-8R2-R 8.2 7.45 5.2 6.22 21.67 26.0 4.17 DR124-100-R 10 8.94 4.5 5.80 23.33 28.0 3.81 DR124-120-R 12 11.5 4.1 4.96 31.67 38.0 3.50 DR124-150-R 15 14.2 3.6 4.62 37.30 44.8 3.02 DR124-180-R 18 16.2 3.4 4.32 46.97 56.4 2.82 DR124-220-R 22 20.7 3.2 3.83 53.99 64.8 2.50 DR124-270-R 27 25.7 2.8 3.44 66.67 80.0 2.24 DR124-330-R 33 31.2 2.6 3.12 80.83 97.0 2.04 DR124-390-R 39 37.3 2.3 2.85 110.00 132.0 1.86 DR124-470-R 47 44.0 2.2 2.63 124.66 149.6 1.72 DR124-560-R 56 54.9 2.0 2.35 144.32 173.2 1.54 DR124-680-R 68 67.1 1.8 2.13 183.33 220.0 1.39 DR124-820-R 82 80.5 1.7 1.94 212.72 255.3 1.27 DR124-101-R 100 95.1 1.5 1.79 256.67 308.0 1.17 DR124-121-R 120 111 1.3 1.65 311.18 373.4 1.08 DR124-151-R 150 146 1.3 1.44 371.02 445.2 0.94 DR124-181-R 180 179 1.1 1.30 501.66 602.0 0.87 DR124-221-R 220 216 1.0 1.15 558.00 669.6 0.77 DR124-271-R 270 256 0.88 1.09 725.00 870.0 0.71 DR124-331-R 330 327 0.83 0.92 825.00 990.0 0.63 DR124-471-R 470 460 0.68 0.74 1242.50 1491.0 0.53 DR124-681-R 680 669 0.56 0.65 1845.83 2215.0 0.45 DR124-821-R 820 825 0.53 0.62 2109.17 2351.0 0.40 DR124-102-R 1000 998 0.44 0.53 2898.00 3477.00 0.37 1. Open Circuit Inductance Test Parameters: 100 kHz, 0.25 V, 0.0 Adc. 2. Irms: DC current for an approximate ∆T of 40 °C without core loss. Derating is necessary for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the temperature rise. It is recommended that the temperature of the part not exceed +125 °C under worst case operating conditions verified in the end application. 3. Isat Amps peak for approximately 25% rolloff (@ +25 °C). 2 www.eaton.com/electronics DCR mΩ @20°C Typ DCR mΩ @ +20°C Max Rated Inductance (μH) K-factor4 4. K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K*L*∆I, Bp-p (mT), K: (K factor from table), L: (Inductance in μH), ∆I (Peak to peak ripple current in Amps). 5. Part Number Definition: DR124-xxx-R - DR124 = Product code and size; -xxx = Inductance value in uH; - R = decimal point; If no R is present, third character = # of zeros. - “-R” suffix = RoHS compliant DR124 High power density, high efficiency, low profile shielded drum core power inductors Technical Data 4141 Effective March 2019 Dimensions- mm FRONT VIEW BOTTOM VIEW TOP VIEW RECOMMENDED PCB LAYOUT SCHEMATIC 2.05 Typ. 13.8 5.00 1 Typ 2 4.5 Max 12.50 Max 1 1 12.50 Max DR124-### wwllyy R 2 5.50 2 10 3.85 wwlly = Date code, R = Revision level. Dimensions are in millimeters. Do not route traces or vias underneath the inductor. Packaging- mm 1.5 dia +0.1/-0.0 1.5 dia min A 1.75 4.0 12.6 Bo 11 DR124-### wwllyy R Ao=13.2 mm Bo=13.2 mm A1=10mm B1=10 mm Ko=5.2 mm B1 A1 Ao Ko 16.0 SECTION A-A 24.0 A User direction of feed Parts packaged on 13" Diameter reel, 750 parts per reel. Temperature rise vs. total loss 120 Temperature Rise (°C) 100 80 60 40 20 0 0 0.4 0.8 1.2 1.6 2 Total Pow er Loss (W) www.eaton.com/electronics 3 Technical Data 4141 DR124 High power density, high efficiency, low profile shielded drum core power inductors Effective March 2019 Core loss vs. Bp-p 100 1 MHz 10 500 kHz 100 kHz 1 Core Loss (W) 300 kHz 200 kHz 0.1 0.01 0.001 0.0001 1 10 100 1000 Bp-p (m T) Inductance characteristics OCL vs. Isat 120.0 100.0 -40 °C % OCL 80.0 +25 °C 60.0 +85 °C 40.0 20.0 0.0 0.0 20.0 40.0 60.0 % Isat 4 www.eaton.com/electronics 80.0 100.0 120.0 DR124 High power density, high efficiency, low profile shielded drum core power inductors Technical Data 4141 Effective March 2019  Solder reflow profile TP TC -5°C tP Max. Ramp Up Rate = 3°C/s Max. Ramp Down Rate = 6°C/s Temperature TL Preheat A T smax t Table 1 - Standard SnPb Solder (Tc) Package Thickness Volume mm3
