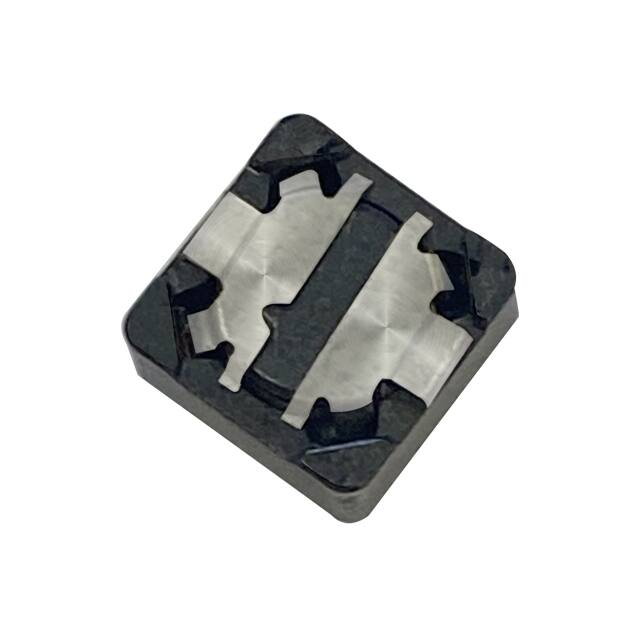

MSCDRI-127-101K-RU

SCOPE： This specification applies to the Pb Free high current type SMD inductors for MSCDRI-127-SERIES PRODUCT INDENTIFICATION MSCDRI - 127 - 100 M ① ② ③ ④ ① Product Code ② Dimensions Code ③ Inductance Code ④ Tolerance Code (1) SHAPES AND DIMENSIONS A: 12.0±0.5 mm B: 12.0±0.5 mm C: 8.0 Max. mm (2) ELECTRICAL SPECIFICATIONS SEE TABLE 1 TEST INSTRUMENTS L : HP 4284A PRECISION LCR METER (or equivalent) RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent) (3) CHARACTERISTICS (3)-1 Ambient temperature ……......... ＋60℃ Max. (3)-2 Operate temperature range ...... －40℃～＋125℃ (Including self temp. rise) (3)-3 Storage temperature range ...... －40℃～＋125℃ M AG.LAYERS MSCDRI-127-SERIES Page 1/8 TABLE 1 MAGLAYERS Inductance Percent Test Resistance Rated DC Current PT/NO. L(μH) Tolerance Frequency RDC(Ω)Max. IDC(A) MSCDRI-127-1R0□ 1.0 N 100kHz/0.25V 7.0m 9.80 1R0 MSCDRI-127-1R2□ 1.2 N 100kHz/0.25V 7.0m 9.80 1R2 MSCDRI-127-2R2□ 2.2 M,N 100kHz/0.25V 11.5m 8.00 2R2 MSCDRI-127-2R4□ 2.4 M,N 100kHz/0.25V 11.5m 8.00 2R4 MSCDRI-127-2R5□ 2.5 M,N 100kHz/0.25V 11.5m 8.00 2R5 MSCDRI-127-3R5□ 3.5 M,N 100kHz/0.25V 13.5m 7.50 3R5 MSCDRI-127-4R7□ 4.7 M,N 100kHz/0.25V 15.8m 6.80 4R7 MSCDRI-127-6R1□ 6.1 M,N 100kHz/0.25V 17.6m 6.60 6R1 MSCDRI-127-6R4□ 6.4 M,N 100kHz/0.25V 19.0m 6.30 6R4 MSCDRI-127-6R8□ 6.8 M,N 100kHz/0.25V 19.0m 6.30 6R8 7R6 Marking MSCDRI-127-7R6□ 7.6 M,N 100kHz/0.25V 20.0m 5.90 MSCDRI-127-100□ 10 M,N 100kHz/0.25V 21.6m 5.40 100 MSCDRI-127-120□ 12 M,N 100kHz/0.25V 24.3m 4.90 120 MSCDRI-127-150□ 15 M,N 100kHz/0.25V 27.0m 4.50 150 MSCDRI-127-180□ 18 M,N 100kHz/0.25V 39.2m 3.90 180 MSCDRI-127-220□ 22 M,N 100kHz/0.25V 43.2m 3.60 220 MSCDRI-127-270□ 27 M,N 100kHz/0.25V 45.9m 3.40 270 MSCDRI-127-330□ 33 M,N 100kHz/0.25V 64.8m 3.00 330 MSCDRI-127-390□ 39 M,N 100kHz/0.25V 72.9m 2.75 390 MSCDRI-127-470□ 47 M,N 100kHz/0.25V 0.10 2.50 470 560 MSCDRI-127-560□ 56 M,N 100kHz/0.25V 0.11 2.35 MSCDRI-127-680□ 68 M,N 100kHz/0.25V 0.14 2.10 680 MSCDRI-127-750□ 75 M,N 100kHz/0.25V 0.15 2.00 750 MSCDRI-127-820□ 82 M,N 100kHz/0.25V 0.16 1.95 820 MSCDRI-127-101□ 100 K,M 100kHz/0.25V 0.22 1.70 101 MSCDRI-127-121□ 120 K,M 100kHz/0.25V 0.25 1.60 121 MSCDRI-127-151□ 150 K,M 100kHz/0.25V 0.28 1.42 151 MSCDRI-127-181□ 180 K,M 100kHz/0.25V 0.35 1.30 181 MSCDRI-127-221□ 220 K,M 100kHz/0.25V 0.39 1.16 221 MSCDRI-127-271□ 270 K,M 100kHz/0.25V 0.56 1.06 271 331 MSCDRI-127-331□ 330 K,M 100kHz/0.25V 0.64 0.95 MSCDRI-127-391□ 390 K,M 100kHz/0.25V 0.70 0.88 391 MSCDRI-127-471□ 470 K,M 100kHz/0.25V 0.98 0.79 471 MSCDRI-127-561□ 560 K,M 100kHz/0.25V 1.07 0.73 561 MSCDRI-127-681□ 680 K,M 100kHz/0.25V 1.46 0.67 681 MSCDRI-127-821□ 820 K,M 100kHz/0.25V 1.64 0.60 821 MSCDRI-127-102□ 1000 K,M 100kHz/0.25V 1.82 0.55 102 MSCDRI-127-152□ 1500 K,M 10kHz/0.25V 2.48 0.45 152 ※ □ specify the inductance tolerance,K(±10%),M(±20%),N(±30%) ※IDC : Based on inductance change (△L/Lo： ≦ drop 10%) and @ambient temperature 25℃ Based on temperature rise (△T： 40℃ TYP.) M A G .L A Y E R S MSCDRI-127-SERIES Page-2/8 (4) RELIABILITY TEST METHOD MECHANICAL TEST ITEM Substrate bending SPECIFICATION △L/Lo≦±5% TEST DETAILS The sample shall be soldered onto the printed circuit board in figure 1 and a load applied unitil the figure in the arrow There shall be direction is made approximately 3mm.(keep time 30 seconds) no mechanical PCB dimension shall the page 7/9 damage or elec- F(Pressurization) trical damege. PRESSURE ROD figure-1 Vibration △L/Lo≦±5% The sample shall be soldered onto the printed circuit board and when a vibration having an amplitude of 1.52mm Solderability There shall be and a frequency of from 10 to 55Hz/1 minute repeated should no mechanical be applied to the 3 directions (X,Y,Z) for 2 hours each. damage. (A total of 6 hours) New solder Flux (rosin, isopropyl alcohol{JIS-K-1522}) shall be coated More than 90% over the whole of the sample before hard, the sample shall then be preheated for about 2 minutes in a temperature of 130～150℃ and after it has been immersed to a depth 0.5mm below for 3±0.2 seconds fully in molten solder M705 with a temperature of 245±5℃. More than 90% of the electrode sections shall be couered with new solder smoothly when the sample is taken out of the solder bath. MAG.LAYERS MSCDRI-127-SERIES Page-3/8 MECHANICAL TEST ITEM SPECIFICATION There shall be Soldering heat no damage or (reflow soldering) problems. Temperature profile of reflow soldering Sodering temperature (℃) Resistance to soldering (Peak temperature 260±3℃ 10 sec 300 250 200 150 30 sec Min Pre-heating 100 (230+0 ℃) Slow cooling (Stored at room temperature) 150 ~ 180℃ 50 2 min 10 sec. 2 min. or more The specimen shall be passed through the reflow oven with the condition shown in the above profile for 1 time. The specimen shall be stored at standard atmospheric conditions for 1 hour, after which the measurement shall be made. ELECTRICAL TEST ITEM SPECIFICATION TEST DETAILS Insulation There shall be DC 100V voltage shall be applied across this sample of top resistance no other surface and the terminal. damage or The insulation resistance shall be more than 1 × 108 Ω. problems. Dielectric There shall be AC 100V voltage shall be applied for 1 minute acrosset the top withstand no other surface and the terminal of this sample voltage damage or problems. Temperature △L/L20℃≦±10% The test shall be performed after the sample has stabilized in characteristics 0～2000 ppm/℃ an ambient temperature of -20 to +85℃,and the value calculated based on the value applicable in a normal temperature and narmal humidity shall be △L/L20℃≦±10%. M AG .LAYERS MSCDRI-127-SERIES Page-4/8 ENVIROMENT CHARACTERISTICS TEST ITEM High temperature SPECIFICATION △L/Lo≦±5% storage The sample shall be left for 96±4 hours in an atmospere with a temperature of 85±2℃ and a normal humidity. Low temperature There shall be Upon completion of the measurement shall be made after the no mechanical sample has been left in a normal temperature and normal damage. humidity for 1 hour. △L/Lo≦±5% The sample shall be left for 96±4 hours in an atmosphere with storage a temperature of -25±3℃. Change of There shall be Upon completion of the test, the measurement shall be made no mechanical after the sample has been left in a normal temperature and damage. normal humidity for 1 hour. △L/Lo≦±5% The sample shall be subject to 5 continuos cycles, such as shown temperature in the table 2 below and then it shall be subjected to standard There shall be atmospheric conditions for 1 hour, after which measurement no other dama- shall be made. ge of problems table 2 Temperature 1 －25±3℃ Duration 30 min. (Themostat No.1) 2 Standard No.1→No.2 atmospheric 3 85±2℃ 30 min. (Themostat No.2) 4 Standard No.2→No.1 atmospheric Moisture storage △L/Lo≦±5% The sample shall be left for 96±4 hours in a temperature of 40±2℃ and a humidity(RH) of 90～95%. There shall be Upon completion of the test, the measurement shall be made no mechanical after the sample has been left in a normal temperature and damage. normal humidity more than 1 hour. Test conditions： The sample shall be reflow soldered onto the printed circuit board in every test. MAG.LAYERS MSCDRI-127-SERIES Page-5/8 (5) LAND DIMENSION (Ref.) PCB: GLASS EPOXY t＝1.6mm (5)-1 LAND PATTERN DIMENSIONS (STANDARD PATTERN) Unit:mm 12.6 7.0 2.8 5.4 (5)-2 SUBSTRATE BENDING TEST BENDING TEST BOARD MAG.LAYERS MSCDRI-127-SERIES Page-6/8 (6) PACKAGING (6)-1 CARRIER TAPE DIMENSIONS (mm) (6)-2 TAPING DIMENSIONS (mm) Unreeling Direction MAG.LAYERS MSCDRI-127-SERIES Page-7/8 (6)-3 REEL DIMENSIONS (mm) (6)-4 QUANTITY 500pcs/Reel The products are packaged so that no damage will be sustained. MAG.LAYERS MSCDRI-127-SERIES Page-8/8
