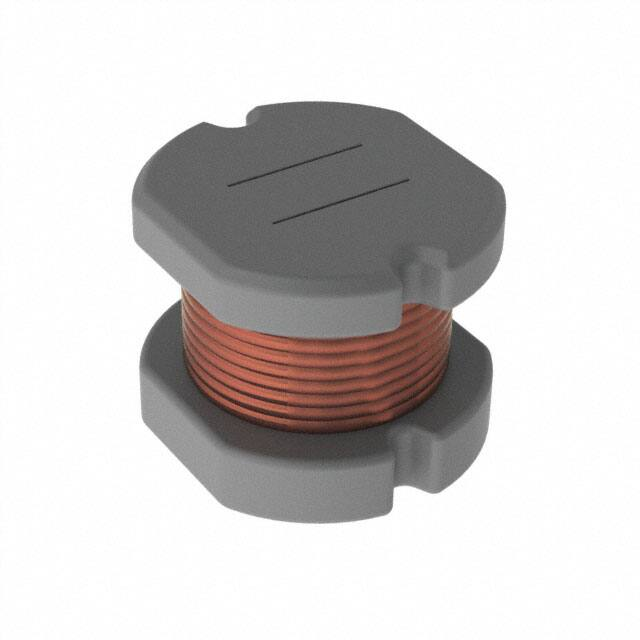

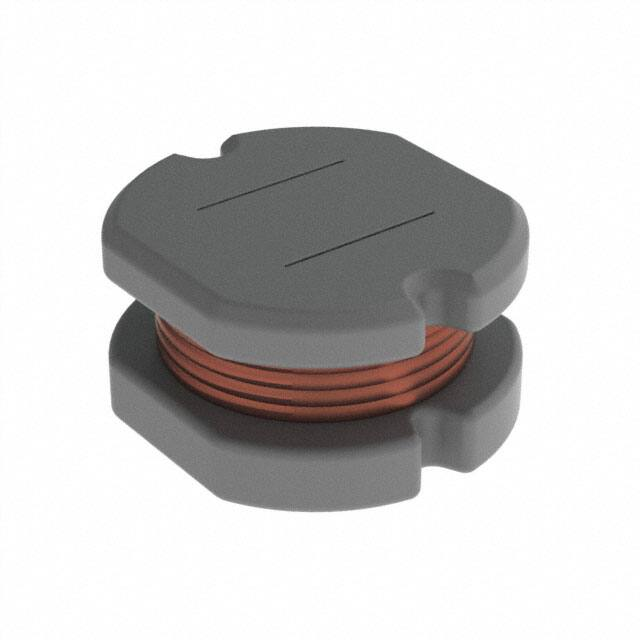

BPSD00060545101K00

SMD Unshielded Power Inductors - BPSD Series BPSD Series Features Applications  RoHS, Halogen Free and REACH Compliance  Unshielded power inductor  Various package size and wide inductance range  Graphic cards  DC/DC converters Product Identification Shape and Dimensions Recommended Pattern A B PAD LAYOUT Dimensions in mm Dimensions in mm TYPE A B C D Dim A B BPSD00030315 3.3±0.3 3.0±0.3 1.5±0.3 1.0 BPSD00030315 4.5 1.0 BPSD00030321 3.3±0.3 3.0±0.3 2.1±0.3 1.0 BPSD00030321 4.5 1.0 BPSD00050432 4.5±0.3 4.0±0.3 3.2±0.3 1.2 BPSD00050432 5.5 1.2 BPSD00060525 5.8±0.3 5.2±0.3 2.5±0.3 2.0 BPSD00060525 6.8 2.0 BPSD00060530 5.8±0.3 5.2±0.3 3±0.3 2.0 BPSD00060530 6.8 2.0 BPSD00060545 5.8±0.3 5.2±0.3 4.5±0.4 1.3 BPSD00060545 6.8 1.3 BPSD00080735 7.8±0.3 7.0±0.3 3.5±0.3 2.1 BPSD00080735 8.8 2.1 BPSD00080750 7.8±0.3 7.0±0.3 5.0±0.3 2.1 BPSD00080750 8.8 2.1 BPSD00109040 10.0±0.3 9.0±0.3 4.0±0.5 2.1 BPSD00109040 11 2.1 BPSD00100954 10.0±0.4 9.0±0.4 5.4±0.4 2.1 BPSD00100954 11 2.1 BPSD00100965 10.0±0.4 9.0±0.4 6.5±0.4 2.1 BPSD00100965 11 2.1 SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω) (A) BPSD000303152R2□00 2.2 20 1 MHz,1 V 0.10±30% 0.79 CC BPSD000303153R3□00 3.3 20 1 MHz,1 V 0.11±30% 0.73 DD BPSD000303154R7□00 4.7 20 1 MHz,1 V 0.15±30% 0.65 EH BPSD000303155R6□00 5.6 20 1 MHz,1 V 0.15±30% 0.6 FG BPSD000303156R8□00 6.8 20 1 MHz,1 V 0.20±30% 0.77 GI BPSD00030315100□00 10 20 1 MHz,1 V 0.30±30% 0.45 KA BPSD00030315150□00 15 20 1 MHz,1 V 0.58±30% 0.3 MA BPSD00030315220□00 22 10,20 1 MHz,1 V 0.71±30% 0.25 LA BPSD00030315330□00 33 20 1 MHz,1 V 1.10±30% 0.2 NA BPSD00030315390□00 39 20 1 MHz,1 V 1.30±30% 0.17 PA BPSD00030315470□00 47 20 1 MHz,1 V 1.30±30% 0.17 OA BPSD00030315680□00 68 20 1 MHz,1 V 2.20±30% 0.13 VA BPSD00030315101□00 100 20 1 MHz,1 V 3.50±30% 0.1 KB BPSD00030315221□00 220 20 1 MHz,1 V 10.92Max 0.07 LB Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD00030321R82□00 0.82 30 7.96 MHz,1 V 0.06 2.2 AX BPSD000303211R0□00 1 20 7.96 MHz,1 V 0.07 2.08 BA BPSD000303211R2□00 1.2 20 7.96 MHz,1 V 0.08 2 BC BPSD000303211R4□00 1.4 20 7.96 MHz,1 V 0.09 1.86 BE BPSD000303211R5□00 1.5 20 7.96 MHz,1 V 0.11 1.8 BF BPSD000303211R8□00 1.8 20 7.96 MHz,1 V 0.11 1.8 BI BPSD000303212R2□00 2.2 20 7.96 MHz,1 V 0.13 1.39 CC BPSD000303212R7□00 2.7 20 7.96 MHz,1 V 0.14 1.32 CH BPSD000303213R3□00 3.3 10,20 7.96 MHz,1 V 0.17 1.25 DD BPSD000303213R9□00 3.9 20 7.96 MHz,1 V 0.19 1.2 DJ BPSD000303214R7□00 4.7 20 7.96 MHz,1 V 0.21 1.13 EH BPSD000303215R6□00 5.6 20 7.96 MHz,1 V 0.22 0.91 FG BPSD000303216R8□00 6.8 20 7.96 MHz,1 V 0.25 0.85 GI BPSD000303217R0□00 7 20 7.96 MHz,1 V 0.28 0.82 HA BPSD000303218R2□00 8.2 20 7.96 MHz,1 V 0.28 0.82 IC BPSD00030321100□00 10 10,20 2.52 MHz,1 V 0.32 0.74 KA BPSD00030321120□00 12 20 2.52 MHz,1 V 0.35 0.64 QA BPSD00030321150□00 15 20 2.52 MHz,1 V 0.4 0.6 MA BPSD00030321180□00 18 20 2.52 MHz,1 V 0.48 0.54 RA BPSD00030321220□00 22 10,20 2.52 MHz,1 V 0.58 0.5 LA BPSD00030321270□00 27 20 2.52 MHz,1 V 0.65 0.43 SA BPSD00030321330□00 33 20 2.52 MHz,1 V 0.8 0.4 NA BPSD00030321390□00 39 20 2.52 MHz,1 V 0.9 0.37 PA BPSD00030321470□00 47 20 2.52 MHz,1 V 1.19 0.36 OA BPSD00030321500□00 50 20 2.52 MHz,1 V 1.22 0.33 TA BPSD00030321560□00 56 20 2.52 MHz,1 V 1.27 0.31 UA BPSD00030321680□00 68 10,20 2.52 MHz,1 V 1.73 0.3 VA BPSD00030321750□00 75 20 2.52 MHz,1 V 1.9 0.29 WA Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20% , T=±30%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD00030321820□00 82 10,20 2.52 MHz,1 V 1.99 0.28 XA BPSD00030321101□00 100 10,20 1 kHz,1 V 2.52 0.25 KB BPSD00030321121□00 120 10,20 1 kHz,1 V 2.9 0.2 QB BPSD00030321151□00 150 20 1 kHz,1 V 3.36 0.19 MB BPSD00030321181□00 180 20 1 kHz,1 V 5.1 0.17 RB BPSD00030321221□00 220 10,20 1 kHz,1 V 5.8 0.16 LB BPSD00030321271□00 270 10,20 1 kHz,1 V 7.8 0.14 SB Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20% , T=±30%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD00050432R15□00 0.15 30 7.96 MHz,1 V 0.0085 7.5 R15 BPSD000504321R0□00 1.0 10,20 7.96 MHz,1 V 0.033 3.8 1R0 BPSD000504321R2□00 1.2 20 7.96 MHz,1 V 0.035 3.5 1R2 BPSD000504321R4□00 1.4 20 7.96 MHz,1 V 0.038 3.3 1R4 BPSD000504321R8□00 1.8 10,20 7.96 MHz,1 V 0.042 2.91 1R8 BPSD000504322R2□00 2.2 10,20 7.96 MHz,1 V 0.047 2.6 2R2 BPSD000504322R7□00 2.7 20 7.96 MHz,1 V 0.052 2.43 2R7 BPSD000504323R3□00 3.3 10,20 7.96 MHz,1 V 0.058 2.15 3R3 BPSD000504323R9□00 3.9 20 7.96 MHz,1 V 0.076 1.98 3R9 BPSD000504324R7□00 4.7 10,20 7.96 MHz,1 V 0.094 1.7 4R7 BPSD000504325R6□00 5.6 10,20 7.96 MHz,1 V 0.101 1.6 5R6 BPSD000504326R2□00 6.2 20 7.96 MHz,1 V 0.11 1.5 6R2 BPSD000504326R8□00 6.8 10,20 7.96 MHz,1 V 0.117 1.41 6R8 BPSD000504328R2□00 8.2 10,20 7.96 MHz,1 V 0.132 1.26 8R2 BPSD00050432100□00 10 10,20 2.52 MHz,1 V 0.182 1.15 100 BPSD00050432120□00 12 20 2.52 MHz,1 V 0.21 1.05 120 BPSD00050432150□00 15 10,20 2.52 MHz,1 V 0.235 0.92 150 BPSD00050432180□00 18 20 2.52 MHz,1 V 0.338 0.84 180 BPSD00050432220□00 22 10,20 2.52 MHz,1 V 0.378 0.76 220 BPSD00050432270□00 27 10,20 2.52 MHz,1 V 0.522 0.71 270 BPSD00050432330□00 33 10,20 2.52 MHz,1 V 0.54 0.64 330 BPSD00050432390□00 39 10,20 2.52 MHz,1 V 0.587 0.59 390 BPSD00050432470□00 47 10,20 2.52 MHz,1 V 0.844 0.54 470 BPSD00050432560□00 56 10,20 2.52 MHz,1 V 0.937 0.5 560 BPSD00050432680□00 68 10,20 2.52 MHz,1 V 1.117 0.46 680 BPSD00050432101□00 100 10,20 1kHz,1 V 2 0.4 101 BPSD00050432121□00 120 10,20 1kHz,1 V 1.8 0.38 121 BPSD00050432151□00 150 10,20 1kHz,1 V 2.8 0.3 151 BPSD00050432181□00 180 10,20 1kHz,1 V 3.2 0.25 181 BPSD0005043221□00 220 10,20 1kHz,1 V 4 0.15 221 BPSD00050432331□00 330 10,20 1kHz,1 V 5.85 0.21 331 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20% , T=±30%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD000605251R0□00 1 20 7.96 MHz,1 V 0.03 4.5 1R0 BPSD000605251R4□00 1.4 20 7.96 MHz,1 V 0.04 4 1R4 BPSD000605251R8□00 1.8 20 7.96 MHz,1 V 0.05 3.3 1R8 BPSD000605252R2□00 2.2 20 7.96 MHz,1 V 0.06 2.94 2R2 BPSD000605252R7□00 2.7 20 7.96 MHz,1 V 0.07 2.5 2R7 BPSD000605253R3□00 3.3 20 7.96 MHz,1 V 0.08 2.35 3R3 BPSD000605253R9□00 3.9 20 7.96 MHz,1 V 0.09 2.2 3R9 BPSD000605254R7□00 4.7 10,20 7.96 MHz,1 V 0.14 2 4R7 BPSD000605255R6□00 5.6 20 7.96 MHz,1 V 0.15 1.8 5R6 BPSD000605256R8□00 6.8 20 7.96 MHz,1 V 0.16 1.7 6R8 BPSD000605258R2□00 8.2 20 7.96 MHz,1 V 0.17 1.4 8R2 BPSD00060525100□00 10 10,20 2.52 MHz,1 V 0.18 1.2 100 BPSD00060525120□00 12 20 2.52 MHz,1 V 0.2 1.18 120 BPSD00060525150□00 15 20 2.52 MHz,1 V 0.22 1.15 150 BPSD00060525180□00 18 20 2.52 MHz,1 V 0.25 1.1 180 BPSD00060525220□00 22 10,20 2.52 MHz,1 V 0.35 1 220 BPSD00060525270□00 27 20 2.52 MHz,1 V 0.45 0.86 270 BPSD00060525330□00 33 10,20 2.52 MHz,1 V 0.56 0.76 330 BPSD00060525390□00 39 10,20 2.52 MHz,1 V 0.69 0.75 390 BPSD00060525470□00 47 10,20 2.52 MHz,1 V 0.72 0.73 470 BPSD00060525560□00 56 10,20 2.52 MHz,1 V 0.84 0.55 560 BPSD00060525680□00 68 10,20 2.52 MHz,1 V 0.9 0.52 680 BPSD00060525820□00 82 10,20 2.52 MHz,1 V 1.2 0.5 820 BPSD00060525101□00 100 10,20 1 kHz,1 V 1.3 0.4 101 BPSD00060525121□00 120 10,20 1 kHz,1 V 1.38 0.36 121 BPSD00060525151□00 150 10,20 1 kHz,1 V 1.81 0.3 151 BPSD00060525181□00 180 10,20 1 kHz,1 V 1.95 0.26 181 BPSD00060525221□00 220 10,20 1 kHz,1 V 3 0.25 221 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD00060525271□00 270 10,20 1 kHz,1 V 3.2 0.21 271 BPSD00060525331□00 330 10,20 1 kHz,1 V 3.82 0.18 331 BPSD00060525391□00 390 10,20 1 kHz,1 V 4.68 0.16 391 BPSD00060525471□00 470 10,20 1 kHz,1 V 5.1 0.15 471 BPSD00060525561□00 560 10,20 1 kHz,1 V 8.5 0.14 561 BPSD00060525681□00 680 10,20 1 kHz,1 V 10 0.13 681 BPSD00060525821□00 820 10,20 1 kHz,1 V 12 0.07 821 BPSD00060525102□00 1000 10,20 1 kHz,1 V 18 0.05 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD000605301R0□00 1.0 20 7.96 MHz,1 V 0.03 4.5 1R0 BPSD000605301R2□00 1.2 20 7.96 MHz,1 V 0.03 4.2 1R2 BPSD000605301R5□00 1.5 20 7.96 MHz,1 V 0.03 4.1 1R5 BPSD000605301R8□00 1.8 10,20 7.96 MHz,1 V 0.03 3.7 1R8 BPSD000605302R0□00 2 20 7.96 MHz,1 V 0.03 3.6 2R0 BPSD000605302R2□00 2.2 20 7.96 MHz,1 V 0.03 3.5 2R2 BPSD000605302R7□00 2.7 20 7.96 MHz,1 V 0.04 3.2 2R7 BPSD000605303R3□00 3.3 10,20 7.96 MHz,1 V 0.05 2.8 3R3 BPSD000605303R9□00 3.9 20 7.96 MHz,1 V 0.06 2.6 3R9 BPSD000605304R7□00 4.7 10,20 7.96 MHz,1 V 0.07 2.5 4R7 BPSD000605305R6□00 5.6 20 7.96 MHz,1 V 0.08 2.4 5R6 BPSD000605306R8□00 6.8 20 7.96 MHz,1 V 0.09 2.2 6R8 BPSD000605308R2□00 8.2 20 7.96 MHz,1 V 0.1 2 8R2 BPSD00060530100□00 10 10,20 2.52 MHz,1 V 0.12 1.8 100 BPSD00060530120□00 12 10,20 2.52 MHz,1 V 0.13 1.75 120 BPSD00060530150□00 15 10,20 2.52 MHz,1 V 0.15 1.7 150 BPSD00060530180□00 18 10,20 2.52 MHz,1 V 0.22 1.6 180 BPSD00060530220□00 22 10,20 2.52 MHz,1 V 0.22 1.5 220 BPSD00060530270□00 27 20 2.52 MHz,1 V 0.26 1.4 270 BPSD00060530330□00 33 10,20 2.52 MHz,1 V 0.33 1.1 330 BPSD00060530390□00 39 10,20 2.52 MHz,1 V 0.42 1 390 BPSD00060530470□00 47 10,20 2.52 MHz,1 V 0.5 0.9 470 BPSD00060530560□00 56 10,20 2.52 MHz,1 V 0.55 0.85 560 BPSD00060530680□00 68 10,20 2.52 MHz,1 V 0.65 0.8 680 BPSD00060530820□00 82 10,20 2.52 MHz,1 V 0.8 0.65 820 BPSD00060530101□00 100 10,20 1 kHz,1 V 0.9 0.6 101 BPSD00060530121□00 120 10,20 1 kHz,1 V 1 0.58 121 BPSD00060530151□00 150 10,20 1 kHz,1 V 1.3 0.43 151 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD00060530181□00 180 10,20 1 kHz,1 V 1.5 0.41 181 BPSD00060530221□00 220 10,20 1 kHz,1 V 2 0.38 221 BPSD00060530271□00 270 10,20 1 kHz,1 V 2.5 0.35 271 BPSD00060530331□00 330 10,20 1 kHz,1 V 3.2 0.28 331 BPSD00060530391□00 390 10,20 1 kHz,1 V 3.5 0.26 391 BPSD00060530471□00 470 10,20 1 kHz,1 V 4.2 0.2 471 BPSD00060530561□00 560 10,20 1 kHz,1 V 4.5 0.19 561 BPSD00060530681□00 680 10,20 1 kHz,1 V 6.5 0.18 681 BPSD00060530821□00 820 10,20 1 kHz,1 V 7.5 0.15 821 BPSD00060530102□00 1000 10,20 1 kHz,1 V 8 0.13 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD000605451R8□00 1.8 20 7.96 MHz,1 V 0.02 3.5 1R8 BPSD000605452R2□00 2.2 20 7.96 MHz,1 V 0.023 3.2 2R2 BPSD000605453R3□00 3.3 10,20 7.96 MHz,1 V 0.0314 2.59 3R3 BPSD000605453R5□00 3.5 20 7.96 MHz,1 V 0.03 2.4 3R5 BPSD000605454R7□00 4.7 10,20 7.96 MHz,1 V 0.0372 2.3 4R7 BPSD000605456R8□00 6.8 20 7.96 MHz,1 V 0.057 1.8 6R8 BPSD000605458R2□00 8.2 20 7.96 MHz,1 V 0.0594 1.7 8R2 BPSD00060545100□00 10 10,20 2.52 MHz,1 V 0.1 1.44 100 BPSD00060545120□00 12 20 2.52 MHz,1 V 0.12 1.4 120 BPSD00060545150□00 15 10,20 2.52 MHz,1 V 0.14 1.3 150 BPSD00060545180□00 18 20 2.52 MHz,1 V 0.15 1.23 180 BPSD00060545220□00 22 20 2.52 MHz,1 V 0.18 1.11 220 BPSD00060545270□00 27 20 2.52 MHz,1 V 0.2 0.97 270 BPSD00060545330□00 33 10,20 2.52 MHz,1 V 0.23 0.88 330 BPSD00060545390□00 39 10,20 2.52 MHz,1 V 0.32 0.8 390 BPSD00060545470□00 47 10,20 2.52 MHz,1 V 0.37 0.72 470 BPSD00060545560□00 56 10,20 2.52 MHz,1 V 0.42 0.68 560 BPSD00060545680□00 68 10,20 2.52 MHz,1 V 0.46 0.61 680 BPSD00060545820□00 82 10,20 2.52 MHz,1 V 0.6 0.58 820 BPSD00060545101□00 100 10,20 1 kHz,1 V 0.7 0.52 101 BPSD00060545121□00 120 10,20 1 kHz,1 V 0.93 0.48 121 BPSD00060545151□00 150 10,20 1 kHz,1 V 1.1 0.4 151 BPSD00060545181□00 180 10,20 1 kHz,1 V 1.38 0.38 181 BPSD00060545221□00 220 10,20 1 kHz,1 V 1.57 0.35 221 BPSD00060545271□00 270 10,20 1 kHz,1 V 1.85 0.29 271 BPSD00060545331□00 330 10,20 1 kHz,1 V 2 0.28 331 BPSD00060545391□00 390 10,20 1 kHz,1 V 2.6 0.26 391 BPSD00060545471□00 470 10,20 1 kHz,1 V 3 0.12 471 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD00060545561□00 560 10,20 1 kHz,1 V 4.19 0.1 561 BPSD00060545681□00 680 10,20 1 kHz,1 V 4.44 0.08 681 BPSD00060545821□00 820 10,20 1 kHz,1 V 5.12 0.05 821 BPSD00060545102□00 1000 10,20 1 kHz,1 V 10 0.03 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD000807352R2□00 2.2 20 7.96 MHz,1 V 0.03 3.2 2R2 BPSD000807354R7□00 4.7 20 2.52 MHz,1 V 0.04 1.6 4R7 BPSD00080735100□00 10 20 2.52 MHz,1 V 0.08 1.44 100 BPSD00080735120□00 12 10,20 2.52 MHz,1 V 0.09 1.39 120 BPSD00080735150□00 15 10,20 2.52 MHz,1 V 0.1 1.24 150 BPSD00080735180□00 18 20 2.52 MHz,1 V 0.11 1.12 180 BPSD00080735220□00 22 20 2.52 MHz,1 V 0.13 1.07 220 BPSD00080735270□00 27 20 2.52 MHz,1 V 0.15 0.94 270 BPSD00080735330□00 33 10,20 2.52 MHz,1 V 0.17 0.85 330 BPSD00080735390□00 39 10,20 2.52 MHz,1 V 0.22 0.74 390 BPSD00080735470□00 47 10,20 2.52 MHz,1 V 0.25 0.68 470 BPSD00080735560□00 56 10,20 2.52 MHz,1 V 0.28 0.64 560 BPSD00080735680□00 68 10,20 2.52 MHz,1 V 0.33 0.59 680 BPSD00080735820□00 82 10,20 2.52 MHz,1 V 0.41 0.54 820 BPSD00080735101□00 100 10,20 1 kHz,1 V 0.48 0.51 101 BPSD00080735121□00 120 10,20 1 kHz,1 V 0.54 0.49 121 BPSD00080735151□00 150 10,20 1 kHz,1 V 0.75 0.4 151 BPSD00080735181□00 180 10,20 1 kHz,1 V 1.02 0.36 181 BPSD00080735221□00 220 10,20 1 kHz,1 V 1.2 0.31 221 BPSD00080735271□00 270 10,20 1 kHz,1 V 1.31 0.29 271 BPSD00080735331□00 330 10,20 1 kHz,1 V 1.5 0.28 331 BPSD00080735561□00 560 10,20 1 kHz,1 V 2.5 0.14 561 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD000807501R4□00 1.4 20 7.96 MHz,1 V 0.02 3.7 1R4 BPSD000807501R5□00 1.5 20 7.96 MHz,1 V 0.02 3.7 1R5 BPSD000807501R8□00 1.8 20 7.96 MHz,1 V 0.02 3.7 1R8 BPSD000807502R2□00 2.2 20 7.96 MHz,1 V 0.02 3.7 2R2 BPSD000807502R7□00 2.7 20 7.96 MHz,1 V 0.02 3.7 2R7 BPSD000807503R0□00 3 20 7.96 MHz,1 V 0.025 3.7 3R0 BPSD000807503R3□00 3.3 20 7.96 MHz,1 V 0.03 3.7 3R3 BPSD000807503R6□00 3.6 20 7.96 MHz,1 V 0.03 3.7 3R6 BPSD000807503R9□00 3.9 20 7.96 MHz,1 V 0.03 3.7 3R9 BPSD000807504R7□00 4.7 10,20 7.96 MHz,1 V 0.04 3.5 4R7 BPSD000807505R6□00 5.6 20 7.96 MHz,1 V 0.04 3.3 5R6 BPSD000807506R8□00 6.8 20 7.96 MHz,1 V 0.04 3.1 6R8 BPSD000807508R2□00 8.2 20 7.96 MHz,1 V 0.05 2.7 8R2 BPSD00080750100□00 10 10,20 2.52 MHz,1 V 0.07 2.3 100 BPSD00080750120□00 12 20 2.52 MHz,1 V 0.08 2 120 BPSD00080750150□00 15 10,20 2.52 MHz,1 V 0.09 1.8 150 BPSD00080750180□00 18 20 2.52 MHz,1 V 0.1 1.6 180 BPSD00080750220□00 22 10,20 2.52 MHz,1 V 0.11 1.5 220 BPSD00080750270□00 27 20 2.52 MHz,1 V 0.12 1.3 270 BPSD00080750330□00 33 10,20 2.52 MHz,1 V 0.13 1.2 330 BPSD00080750390□00 39 10,20 2.52 MHz,1 V 0.16 1.1 390 BPSD00080750470□00 47 10,20 2.52 MHz,1 V 0.18 1.1 470 BPSD00080750560□00 56 10,20 2.52 MHz,1 V 0.24 0.94 560 BPSD00080750680□00 68 10,20 2.52 MHz,1 V 0.28 0.85 680 BPSD00080750820□00 82 10,20 2.52 MHz,1 V 0.37 0.78 820 BPSD00080750101□00 100 10,20 1 kHz,1 V 0.43 0.72 101 BPSD00080750121□00 120 10,20 1 kHz,1 V 0.47 0.66 121 BPSD00080750151□00 150 10,20 1 kHz,1 V 0.64 0.58 151 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD00080750181□00 180 10,20 1 kHz,1 V 0.71 0.51 181 BPSD00080750221□00 220 10,20 1 kHz,1 V 0.96 0.49 221 BPSD00080750271□00 270 10,20 1 kHz,1 V 1.11 0.42 271 BPSD00080750331□00 330 10,20 1 kHz,1 V 1.26 0.4 331 BPSD00080750391□00 390 10,20 1 kHz,1 V 1.77 0.36 391 BPSD00080750471□00 470 10,20 1 kHz,1 V 1.96 0.34 471 BPSD00080750561□00 560 10,20 1 kHz,1 V 2.41 0.32 561 BPSD00080750681□00 680 10,20 1 kHz,1 V 2.5 0.29 681 BPSD00080750102□00 1000 10,20 1 kHz,1 V 2.8 0.19 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD001009403R3□00 3.3 20 7.96 MHz,1 V 0.022 4.5 3R3 BPSD001009403R8□00 3.8 20 7.96 MHz,1 V 0.022 4.2 3R8 BPSD001009406R8□00 6.8 20 7.96 MHz,1 V 0.04 3 6R8 BPSD00100940100□00 10 20 2.52 MHz,1 V 0.05 2.38 100 BPSD00100940120□00 12 20 2.52 MHz,1 V 0.06 2.13 120 BPSD00100940150□00 15 10,20 2.52 MHz,1 V 0.07 1.87 150 BPSD00100940180□00 18 20 2.52 MHz,1 V 0.08 1.73 180 BPSD00100940220□00 22 10,20 2.52 MHz,1 V 0.09 1.6 220 BPSD00100940270□00 27 20 2.52 MHz,1 V 0.1 1.44 270 BPSD00100940330□00 33 10,20 2.52 MHz,1 V 0.12 1.26 330 BPSD00100940390□00 39 10,20 2.52 MHz,1 V 0.15 1.2 390 BPSD00100940470□00 47 10,20 2.52 MHz,1 V 0.17 1.1 470 BPSD00100940560□00 56 10,20 2.52 MHz,1 V 0.2 1.01 560 BPSD00100940680□00 68 10,20 2.52 MHz,1 V 0.22 0.91 680 BPSD00100940820□00 82 10,20 2.52 MHz,1 V 0.3 0.85 820 BPSD00100940101□00 100 10,20 1 kHz,1 V 0.34 0.74 101 BPSD00100940121□00 120 10,20 1 kHz,1 V 0.4 0.69 121 BPSD00100940151□00 150 10,20 1 kHz,1 V 0.54 0.61 151 BPSD00100940181□00 180 10,20 1 kHz,1 V 0.62 0.56 181 BPSD00100940221□00 220 10,20 1 kHz,1 V 0.72 0.53 221 BPSD00100940271□00 270 10,20 1 kHz,1 V 0.95 0.45 271 BPSD00100940331□00 330 10,20 1 kHz,1 V 1.1 0.42 331 BPSD00100940391□00 390 10,20 1 kHz,1 V 1.24 0.38 391 BPSD00100940471□00 470 10,20 1 kHz,1 V 1.53 0.35 471 BPSD00100940561□00 560 10,20 1 kHz,1 V 1.9 0.32 561 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD001009543R3□00 3.3 20 7.96 MHz,1 V 0.038 2.8 3R3 BPSD001009544R7□00 4.7 20 7.96 MHz,1 V 0.04 2.6 4R7 BPSD001009545R6□00 5.6 20 7.96 MHz,1 V 0.037 4.5 5R6 BPSD001009546R8□00 6.8 20 7.96 MHz,1 V 0.037 4.33 6R8 BPSD001009548R2□00 8.2 20 7.96 MHz,1 V 0.05 3.5 8R2 BPSD00100954100□00 10 10,20 2.52 MHz,1 V 0.06 2.6 100 BPSD00100954120□00 12 20 2.52 MHz,1 V 0.07 2.45 120 BPSD00100954150□00 15 10,20 2.52 MHz,1 V 0.08 2.27 150 BPSD00100954180□00 18 20 2.52 MHz,1 V 0.09 2.15 180 BPSD00100954220□00 22 10,20 2.52 MHz,1 V 0.1 1.95 220 BPSD00100954270□00 27 10,20 2.52 MHz,1 V 0.11 1.76 270 BPSD00100954330□00 33 10,20 2.52 MHz,1 V 0.12 1.5 330 BPSD00100954390□00 39 10,20 2.52 MHz,1 V 0.14 1.37 390 BPSD00100954470□00 47 10,20 2.52 MHz,1 V 0.17 1.28 470 BPSD00100954560□00 56 10,20 2.52 MHz,1 V 0.19 1.17 560 BPSD00100954680□00 68 10,20 2.52 MHz,1 V 0.22 1.11 680 BPSD00100954820□00 82 10,20 2.52 MHz,1 V 0.25 1 820 BPSD00100954101□00 100 10,20 1 kHz,1 V 0.35 0.97 101 BPSD00100954121□00 120 10,20 1 kHz,1 V 0.4 0.89 121 BPSD00100954151□00 150 10,20 1 kHz,1 V 0.47 0.78 151 BPSD00100954181□00 180 10,20 1 kHz,1 V 0.63 0.72 181 BPSD00100954221□00 220 10,20 1 kHz,1 V 0.73 0.66 221 BPSD00100954271□00 270 10,20 1 kHz,1 V 0.97 0.57 271 BPSD00100954331□00 330 10,20 1 kHz,1 V 1.15 0.52 331 BPSD00100954391□00 390 10,20 1 kHz,1 V 1.3 0.48 391 BPSD00100954471□00 470 10,20 1 kHz,1 V 1.48 0.42 471 BPSD00100954561□00 560 10,20 1 kHz,1 V 1.9 0.33 561 BPSD00100954681□00 680 10,20 1 kHz,1 V 2.25 0.28 681 BPSD00100954821□00 820 10,20 1 kHz,1 V 2.55 0.24 821 BPSD00100954102□00 1000 10,20 1 kHz,1 V 3.1 0.2 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSD Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω)Max (A) BPSD00100965220□00 22 10,20 2.52 MHz,1 V 0.08 3.8 220 BPSD00100965471□00 470 10,20 1 kHz,1 V 1.421 0.82 471 BPSD00100965102□00 1000 10,20 1 kHz,1 V 2.9 0.6 102 BPSD00100965122□00 1200 10,20 1 kHz,1 V 3.5 0.5 122 BPSD00100965152□00 1500 10,20 1 kHz,1 V 3.8 0.6 152 BPSD00100965202□00 2000 10,20 1 kHz,1 V 6.6 0.4 202 BPSD00100965222□00 2200 10,20 1 kHz,1 V 6 0.4 222 BPSD00100965602□00 6000 10,20 1 kHz,1 V 14 0.27 602 BPSD00100965822□00 8200 10,20 1 kHz,1 V 50 0.2 822 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20%  Operating temperature range－40℃～105℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) SRF：HP4286A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Unshielded Power Inductors - BPSD Series Test Instruments：HP4294A Impedance / Material Analyzer BPSD00050432 BPSD00060545 BPSD00080735 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - BPSD Series Test Instruments：HP4294A Impedance / Material Analyzer BPSD00080750 BPSD00100940 BPSD00100954 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - BPSD Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE K0 D E W P P0 P2 A B C D PCS / REEL BPSD00030315 1.80 1.55 1.75 12 8 4 2 330 100 13 13.4 3000 BPSD00030321 2.50 1.55 1.75 12 8 4 2 330 100 13 13.4 3000 BPSD00050432 3.55 1.55 1.75 12 8 4 2 330 100 13 13.4 2000 BPSD00060525 3.30 1.50 1.75 16 8 4 2 330 100 13 16.0 2000 BPSD00060530 3.30 1.50 1.75 16 8 4 2 330 100 13 16.0 2000 BPSD00060545 4.8 1.55 1.75 16 8 4 2 330 100 13 16.0 1500 BPSD00080735 3.8 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 BPSD00080750 5.2 1.55 1.75 16 12 4 2 330 100 13 16.0 700 BPSD00100940 4.5 1.55 1.75 24 12 4 2 330 100 13 24.4 700 BPSD00100954 5.8 1.55 1.75 24 12 4 2 330 100 13 24.4 700 BPSD00100965 7.0 1.55 1.75 24 12 4 2 330 100 13 24.4 500
