MCEP125SG1R0M

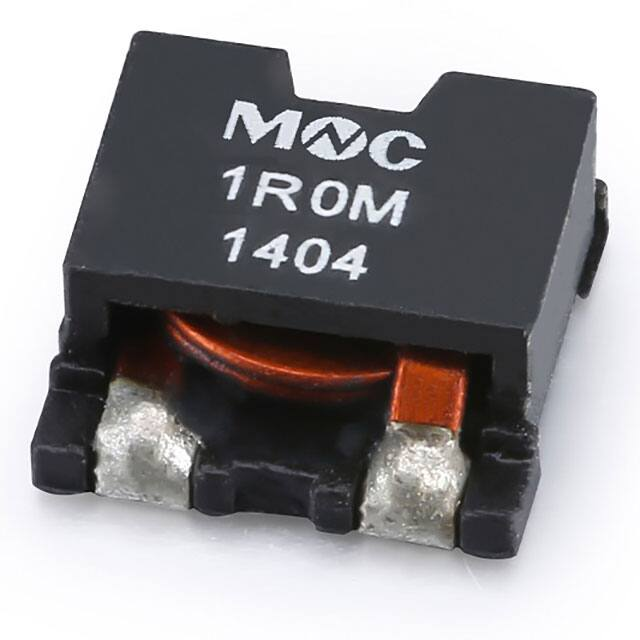

东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. Product Specification for Approval WE ARE PLEASED IN SUBMITTING OUR SAMPLES WITH SPECIFICATION TO YOU FOR APPROVAL. CUSTOMER : DESCRIPTION : POWER INDUCTOR MNC P/N : MCEP125SG1R0M VERSION : A0 CUSTOMER P/N : ISSUED DATE : PHOTO OF PRODUCT : WEIGHT : 2.75g : CHINA MADE IN : 2020/6/9 APPROVED BY MNC PREPARED BY CHECKED BY APPROVED BY Fanny Renbo Zhu Zhiliang Gong APPROVED BY CUSTOMER SIGNATURE OR STAMP 1. PLEASE SEND BACK US A COPY OF THE SPECIFICATION WITH YOUR STAMP OR SIGNATURE ONCE THE SAMPLES APPROVED. 2. IT WILL BE DEEMED THE SAMPLES TO BE APPROVED IF NO FEEDBACK. 东莞铭普光磁股份有限公司 TEL: +86-769-86921000 Add：Shipai Town, Dongguan City,Guangdong Province,China FAX: +86-769-81701563 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. HISTORY FOR REVISED SPECIFICATION Part No. MCEP125SG1R0M INDEX 1. INDEX--------------------------------------------------------------------------------------------------------------------------1 2. CHANGE RECORD------------------------------------------------------------------------------------------------------1 3. MECHANICAL-----------------------------------------------------------------------------------------------------2 4. SCHEMATIC------------------------------------------------------------------------------------------------------------------------------------3 5. PACKING--------------------------------------------------------------------------------------------------------------------------------------4 6. MATERIAL LIST-------------------------------------------------------------------------------------------------------5 7. RECOMMENDED SOLDERING PROFILE-------------------------------------------------------------------------6 CHANGE RECORD DESCRIPTION (Content or Reason For Change) REV. A0 Initial release DATE REVISOR 2020/6/9 Fanny -----------------------------------------------------------------------www.mnc-tek.com 1/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MCEP125SG1R0M A. MECHANICAL: （UNITS: mm） YY WW Week Year 1.Unless otherwise specifed all tolerances are: ±0.25mm 2.All pin length don't include tin icicles DIM A B C D E F G H I MILLIMETERS 12.7±0.5 12.5±0.5 5.50 Max 4.00 Typ 4.20 Typ 2.50 Typ 7.00 Typ 2.60 Typ 2.60 Typ -----------------------------------------------------------------------www.mnc-tek.com 2/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MCEP125SG1R0M B. SCHEMATIC : C. ELECTRICAL SPECIFICATION @25℃ ITEM SPECIFICATION TEST CONDITION TEST EQUIPMENT L：1-2 1.0uH ±20％ 100KHz,0.1V TH2819XB OR EQU. DC RESISTANCE: 1-2 Q:1-2 Isat:1-2 Irms:1-2 2.5mΩ Max 20Min L20A/L0A>70% 16.5A 25℃ 100KHz,0.1V 100KHz,0.1V 100KHz,0.1V TH2512B OR EQU. WK3260B OR EQU. WK3260B+3265B WK3260B+3265B OPERATING TEMPERATURE RANGE -40℃ to 125℃(Including self temperature rise) STORAGE TEMPERATURE RANGE -40℃ to 85℃ -----------------------------------------------------------------------www.mnc-tek.com 3/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MCEP125SG1R0M 1. PACKING: a. PACKAGING AS BELOW (ONLY FOR REFERENCE): 330 13 Carrier tape Cover tape Put the reel into the carton one reel b. Q'TY: c. LABEL: 450 pcs/reel 8 reel/carton 3600 pcs/carton REMARK: ABOVE PACKING IS FOR YOUR REFERENCE ONLY, WHICH MIGHT BE CHANGED WITHOUT NOTICE. -----------------------------------------------------------------------www.mnc-tek.com 4/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. MATERIAL LIST Part No. MCEP125SG1R0M BOM MATERIAL LIST NO. 1 2 3 4 ITEM CORE CASE MATERIAL RATING SUPPLIER OF MATERIAL UL ------ JIANUO N/A ------ TDG N/A PM 9630 150℃ SUMITOMO BAKELITE CO LTD OR EQU. E41429 SFT-EI/AIWJ 220℃ WELL ASCENT ELECTRONIC (GANZHOU) CO LTD E318511 @*xEI/AIW 220℃ ZHUHAI SUNTEK WIRE CO.,LTD OR EQU. E234867 6911 G2 150℃ MIANYANG WELLS N/A 150℃ DONGGUANG CHENGGE INSULATION MATERIALS CO., LTD N/A Mn-Zn Flat wire EPOXY HN72512VG 2089 HN72512VG HN72512VG HN72512VG -----------------------------------------------------------------------www.mnc-tek.com 5/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. RECOMMENDED SOLDERING PROFILE Part No. MCEP125SG1R0M 1. RECOMMENDED REFLOW SOLDERING PROFILE: TL = 217℃ Tp = 245℃ ts=60-120s Ts max=200℃ Ts min=150℃ tl=60-150s tp=20-40s T25℃ to peak=8min max Ramp up rate=3℃/s max Ramp down rate=6℃/s max *RoHS Compliant *Solder Paste SAC 305 Sn 96.5/Ag 3.0/Cu 0.5 *Silkscreen thickness: 0.15mm Min 2. MOISTURE SENSITIVE LEVEL: 2.1. Level: 1 2.2. Shelf Life: Unlimited 2.3. Storage Condition: ≦30℃/85% RH -----------------------------------------------------------------------www.mnc-tek.com 6/6 FORM-MT-0135REV.04
