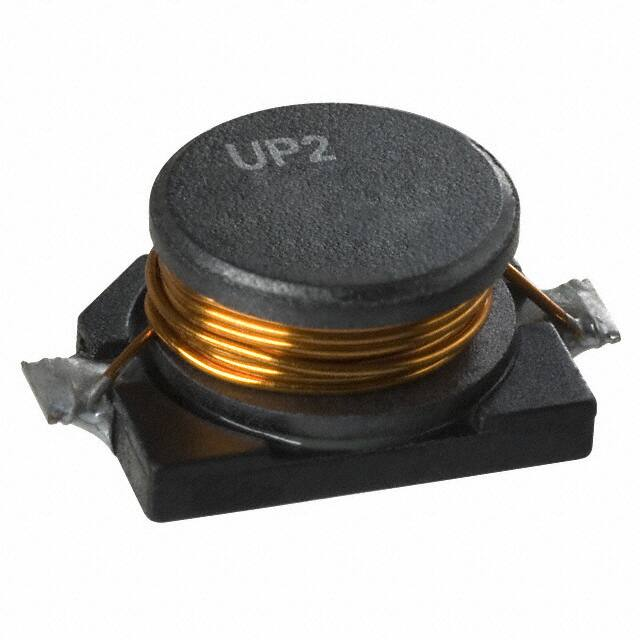

UP2-220-R

RECOMMENDED PCB PAD LAYOUT TOP VIEW SCHEMATIC FRONT VIEW Notes: Cooper Electronic Technologies 1) Tolerances +/- .005” unless otherwise specified. 2) Stamping: Stamp unit on top of core as shown Line 1 UP2 ; line 2 Inductance (per family table chart ). 3601 Quantum Boulevard, Boynton Beach FL. 33426 UnipAc 2 Data Sheet This Document Subject To Change Without Notice Uncontrolled Document SIZE A Drawing Number: Revision Level: J UP2 Inductor Line UniPac2 Family Table PN UP2-R47 UP2-1R0 UP2-1R5 UP2-2R2 UP2-3R3 UP2-4R7 UP2-6R8 UP2-8R2 UP2-100 UP2-150 UP2-220 UP2-330 UP2-470 UP2-680 UP2-820 UP2-101 UP2-151 UP2-221 UP2-331 UP2-471 Customer Information Rated OCL Inductance nominal +/-20% µH µH Note(1) .47 .595 1.0 1.00 1.5 1.46 2.2 2.39 3.3 3.3 4.7 4.77 6.8 6.63 8.2 8.71 10 9.73 15 15.43 22 22.50 33 33.13 47 48.65 68 68.17 82 85.60 100 102.60 150 152.70 220 230.00 330 338.00 471 471.8 I rms Amperes Note(2) 10.1 9.0 8.1 6.9 6.5 5.7 5.0 4.7 4.3 3.6 2.9 2.4 1.9 1.7 1.5 1.4 1.1 .93 .76 .55 Isat Amperes Note(3) DCR ohms (Ω) maximum. @ 20°C. 11.4 9.9 7.9 6.1 5.1 4.2 3.6 3.2 3.3 2.4 2.0 1.7 1.4 1.2 1.0 .95 .78 .62 .51 .44 .0049 .0081 .0103 .0115 .0138 .0173 .0230 .0245 .0299 .0449 .0644 .0989 .1461 .1898 .2473 .2772 .4244 .6360 .9775 1.31 Part number definition: First 3 characters = Product code and size. Last 3 characters = Inductance in µH. R=decimal point. If no R is present third character = # of zeros. THis Document Subject To Change Without Notice Uncontrolled Document Notes: Cooper Electronic Technologies (1) Test parameters: 0.250Vrms, 100KHz, and 0.0Adc. (2) Rms current for a ∆T of 40°C. at an ambient temeperature of 85°C.. (3) Peak current for approximateley a 10% rolloff. (4) Units supplied in tape and reel (600 units per 13” reel) packaging. EIA481 compliant. (5) OCL= Open circuit inductance . (6) Hipot: winding to core 300Vdc min. 3601 Quantum Boulevard,Boynton Boulevard,FL 33426 UniPAc 2 Data Sheet SIZE Drawing Number: A Revision Level: J UP2 Inductor Line
