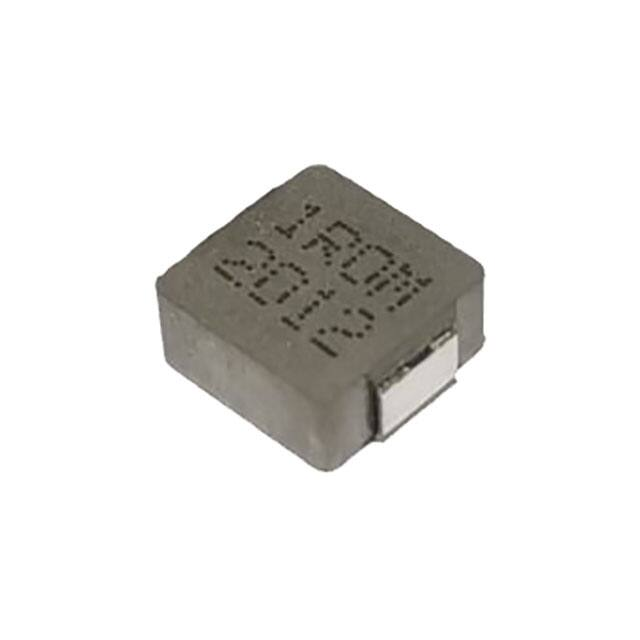

MHA0730NSG1R0M

Product Specification for Approval WE ARE PLEASED IN SUBMITTING OUR SAMPLES WITH SPECIFICATION TO YOU FOR APPROVAL. CUSTOMER : DESCRIPTION : POWER INDUCTOR MNC P/N : MHA0730NSG1R0M VERSION : A0 CUSTOMER P/N : ISSUED DATE : PHOTO OF PRODUCT : WEIGHT : 0.75g : CHINA MADE IN : 2020/4/25 APPROVED BY MNC PREPARED BY Fanny CHECKED BY Rongyin Chen APPROVED BY CUSTOMER APPROVED BY SIGNATURE OR STAMP Bill Ya 1. PLEASE SEND BACK US A COPY OF THE SPECIFICATION WITH YOUR STAMP OR SIGNATURE ONCE THE SAMPLES APPROVED. 2. IT WILL BE DEEMED THE SAMPLES TO BE APPROVED IF NO FEEDBACK. 东莞铭普光磁股份有限公司 TEL: +86-769-86921000 Add：Shipai Town, Dongguan City,Guangdong Province,China FAX: +86-769-81701563 HISTORY FOR REVISED SPECIFICATION Part No. MHA0730NSG1R0M INDEX 1. INDEX--------------------------------------------------------------------------------------------------------------------------1 2. CHANGE RECORD------------------------------------------------------------------------------------------------------1 3. MECHANICAL-----------------------------------------------------------------------------------------------------2 4. SCHEMATIC--------------------------------------------------------------------------------------------------------------------------------------3 5. PACKING--------------------------------------------------------------------------------------------------------------------------------------4 6. MATERIAL LIST-------------------------------------------------------------------------------------------------------5 7. RECOMMENDED SOLDERING PROFILE-------------------------------------------------------------------------6 CHANGE RECORD REV. A0 DESCRIPTION (Content or Reason For Change) INITIAL RELEASE DATE REVISOR 2020/4/25 Fanny --------------------------------------------------------------------www.mnc-tek.com 1/6 FORM-MT-0135REV.05 SPECIFICATION Part No. MHA0730NSG1R0M A.MECHANICAL DIMENSIONS(Unit:mm): --------------------------------------------------------------------www.mnc-tek.com 2/6 FORM-MT-0135REV.05 SPECIFICATION Part No. MHA0730NSG1R0M T UB E S T A R T B. SCHEMATIC : 1 2 TUBE START WINDING C. ELECTRICAL SPECIFICATION @25℃ ITEM SPECIFICATION TEST CONDITION TEST EQUIPMENT INDUCTANCE : 1-2 1.0uH ±20% 100KHz，0.25V TH3260B OR EQU. DC RESISTANCE : 1-2 7.5mΩ Max 25℃ TOS8020 OR EQU. Isat : 15.0A 100KHz，0.25V， WK3260B+WK3265B Irms : 10.0A 25℃ WK3260B+WK3265B OPERATING TEMPERATURE RANGE : (INCLUDING COIL' SELF TEMPERATURE RISE) -55℃ to 125℃ STORAGE TEMPERATURE RANGE : -55℃ to 125℃ REMARK: 1.The rated current as listed is either the saturation current or the heating current depending on which value is lower. 2.Saturation Current (Isat) is the current which causes the inductance to drop approximately 30% from the nominal inductance at 0ADC at the stated ambient temperature(25℃). 3.Heating Current (Irms) is the DC current which causes the part temperature to increase by approximately 40℃ . This current is determined by soldering the component on a typical application PCB, and then applying the currentto the device for 30 minutes. --------------------------------------------------------------------www.mnc-tek.com 3/6 FORM-MT-0135REV.05 W IND I N G PACKAGE Part No. MHA0730NSG1R0M 1. PACKING: a. PACKAGING AS BELOW (ONLY FOR REFERENCE): 330 13 Carrier tape Cover tape Put the reel into the carton one reel b. Q'TY: c. LABEL: 1500PCS/REEL 10REELS/CASE 15000PCS/CASE REMARK: ABOVE PACKING IS FOR YOUR REFERENCE ONLY, WHICH MIGHT BE CHANGED WITHOUT NOTICE. --------------------------------------------------------------------www.mnc-tek.com 4/6 FORM-MT-0135REV.05 MATERIAL LIST Part No. MHA0730NSG1R0M BOM MATERIAL LIST NO. ITEM MATERIAL RATING SUPPLIER OF MATERIAL UL 1 IRON BODY Alloy Magnetic Powder ------ ANTAI N/A WIRE AIW 220℃ PACIFIC E201757 WIRE AIW 220℃ ELEKTRISOLA E258243 3 TERMINALCLIP C1100 ------ MINGSCHIN N/A 4 BLACK INK LTS19 ------ JIZHOU N/A 2 HN72512VG --------------------------------------------------------------------www.mnc-tek.com 5/6 FORM-MT-0135REV.05 RECOMMENDED SOLDERING PROFILE Part No. MHA0730NSG1R0M 1. RECOMMENDED REFLOW SOLDERING PROFILE: Below content is only for your reference. T = 217℃ Tp = 250℃ ts=60-180s Ts max=200℃ Ts min=150℃ t L=60-150s tp=20-40s T25℃ to peak=8min max Ramp up rate=3℃/s max Ramp down rate=6℃/s max *RoHS Compliant *Solder Paste SAC 305 Sn 96.5/Ag 3.0/Cu 0.5 HN72512VG *Silkscreen thickness: 0.15mm Min 2. MOISTURE SENSITIVE LEVEL: 2.1. Level: 1 2.2. Shelf Life: Unlimited 2.3. Storage Condition: ≦30℃/85% RH --------------------------------------------------------------------www.mnc-tek.com 6/6 FORM-MT-0135REV.05
