MHW2618HBSG100K

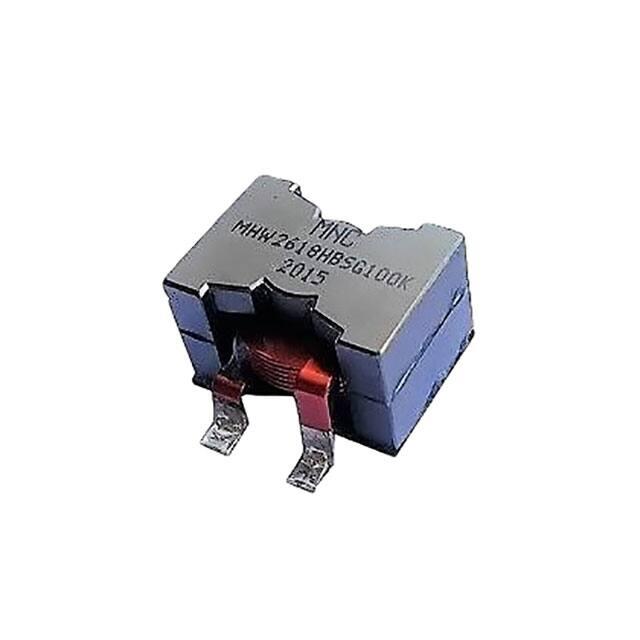

东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. Product Specification for Approval WE ARE PLEASED IN SUBMITTING OUR SAMPLES WITH SPECIFICATION TO YOU FOR APPROVAL. CUSTOMER : DESCRIPTION : PLANAR INDUCTOR MNC P/N : MHW2618HBSG100K VERSION : A0 CUSTOMER P/N : ISSUED DATE : PHOTO OF PRODUCT : WEIGHT : 35.8g : CHINA MADE IN : 2020/6/9 APPROVED BY MNC PREPARED BY CHECKED BY APPROVED BY Fanny Renbo Zhu Zhiliang Gong APPROVED BY CUSTOMER SIGNATURE OR STAMP 1. PLEASE SEND BACK US A COPY OF THE SPECIFICATION WITH YOUR STAMP OR SIGNATURE ONCE THE SAMPLES APPROVED. 2. IT WILL BE DEEMED THE SAMPLES TO BE APPROVED IF NO FEEDBACK. 东莞铭普光磁股份有限公司 TEL: +86-769-86921000 Add：Shipai Town, Dongguan City,Guangdong Province,China FAX: +86-769-81701563 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. HISTORY FOR REVISED SPECIFICATION Part No. MHW2618HBSG100K INDEX 1. INDEX--------------------------------------------------------------------------------------------------------------------------1 2. CHANGE RECORD------------------------------------------------------------------------------------------------------1 3. MECHANICAL-----------------------------------------------------------------------------------------------------2 4. SCHEMATIC------------------------------------------------------------------------------------------------------------------------------------3 5. PACKING--------------------------------------------------------------------------------------------------------------------------------------4 6. MATERIAL LIST-------------------------------------------------------------------------------------------------------5 7. RECOMMENDED SOLDERING PROFILE-------------------------------------------------------------------------6 CHANGE RECORD DESCRIPTION (Content or Reason For Change) REV. A0 Initial release DATE REVISOR 2020/6/9 Fanny -----------------------------------------------------------------------www.mnc-tek.com 1/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW2618HBSG100K A. MECHANICAL: （UNITS: mm） YY WW 1.Unless otherwise specifed all tolerances are: ±0.30mm Week 2.All pin length don't include tin icicles Year DIM A B C D E F G MILLIMETERS 27.90 Max 27.94 Max 17.78 Max 3.80 6.63±0.05 19.80 Max 3.8 Min -----------------------------------------------------------------------www.mnc-tek.com 2/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW2618HBSG100K B. SCHEMATIC : C. ELECTRICAL SPECIFICATION @25℃ ITEM SPECIFICATION TEST CONDITION TEST EQUIPMENT L：1-2 10uH±10% Isat:1-2 31.2A （L drop 20%MAX） AT 25 ℃ WK3260B+3265B Irms:1-2 28.0A AT 40 ℃ WK3260B+3265B DC RESISTANCE: 1-2 2.86mΩ Max 25℃ TH2512B OR EQU. HI-POT: Coil TO Core 200VDC 1mA,3S TH9201S OR EQU 500KHz,0.1V @25℃ WK3260B OR EQU. OPERATING TEMPERATURE RANGE-40℃ to 125℃(Including self temperature rise) STORAGE TEMPERATURE RANGE -40℃ to 125℃ -----------------------------------------------------------------------www.mnc-tek.com 3/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW2618HBSG100K 1. PACKING: a. PACKAGING AS BELOW (ONLY FOR REFERENCE): b. Q'TY: c. LABEL: 40pcs/Tray 9reel/carton 360 pcs/carton REMARK: ABOVE PACKING IS FOR YOUR REFERENCE ONLY, WHICH MIGHT BE CHANGED WITHOUT NOTICE. -----------------------------------------------------------------------www.mnc-tek.com 4/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. MATERIAL LIST Part No. MHW2618HBSG100K BOM MATERIAL LIST NO. ITEM MATERIAL RATING 1 CORE PQ26/16 JNP902/DMR 91 ------ JIANUO/ DMEGC OR EQU. 220℃ WELL ASCENT ELECTRONIC (GANZHOU) CO LTD E318511 *xEI/AIW 220℃ ZHUHAI SUNTEK WIRE CO., LTD. E234867 6911 G2 ------ MIANYANG WELLS ------ SUMITOMO BAKELITE CO.LTD HN72512VG SFT-EI/AIWJ 2 3 WIRE EPOXY SUPPLIER OF MATERIAL UL N/A HN72512V N/A HN72512V 4 BASE PM9630 E41429 HN72512VG HN72512V -----------------------------------------------------------------------www.mnc-tek.com 5/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. RECOMMENDED SOLDERING PROFILE Part No. MHW2618HBSG100K 1. RECOMMENDED REFLOW SOLDERING PROFILE: TL = 217℃ Tp = 245℃ Ts min=150℃ ts=60-120s Ts max=200℃ tl=60-150s tp=20-40s T25℃ to peak=8min max Ramp up rate=3℃/s max Ramp down rate=6℃/s max *RoHS Compliant *Solder Paste SAC 305 Sn 96.5/Ag 3.0/Cu 0.5 *Silkscreen thickness: 0.15mm Min 2. MOISTURE SENSITIVE LEVEL: 2.1. Level: 1 2.2. Shelf Life: Unlimited 2.3. Storage Condition: ≦30℃/85% RH -----------------------------------------------------------------------www.mnc-tek.com 6/6 FORM-MT-0135REV.04
