SM5018-R82MHF

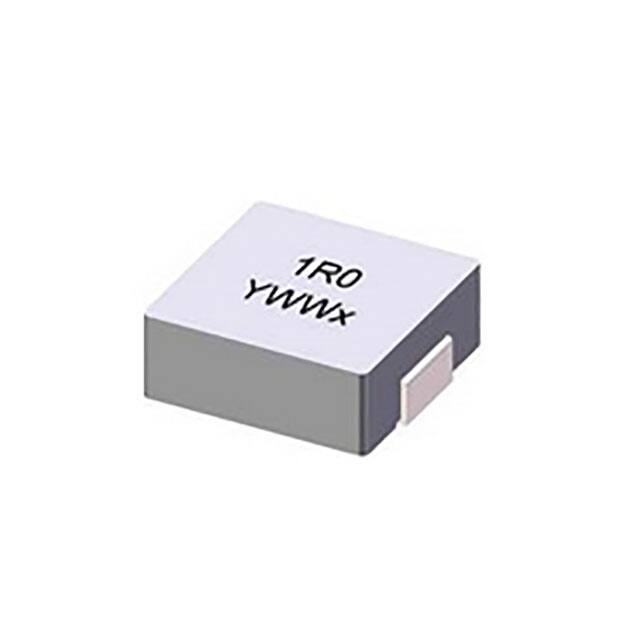

SM5018 Series RoHS COMPLIANT 1. Features: • 12,7x13.9mm foot Print, 5.0mm Max. height SMD Power Inductor for high frequency application. • Inductance range from 0.10uH to 15uH. • High saturation current characteristics by distributed gapped metal dust core. • Ideal for portable device, computers servers, storage device, workstations, VGA card, Telecommunication Equipment, voltageregulator modules & High Density DC to DC converter Board. • Working Frequency up to 5Mhz.  • Tape & Reel Quantity: 250 piece per 13 inches reel. • Operating Temperature Range -55°C to + 150°C. 2. Electrical Characteristics: 3. Mechanical Dimensions (unit: mm): ITG Part Number OCL Inductance (uH) ±20% DCR (mΩ) Typ. DCR (mΩ) Max. Irms (AMP) Isat (AMP) SM5018-R10MHF 0.10 0.50 0.60 55.0 118.0 SM5018-R22MHF 0.22 0.70 0.80 51.0 110.0 SM5018-R33MHF 0.33 1.00 1.10 42.0 80.0 SM5018-R47MHF 0.47 1.10 1.30 38.0 65.0 SM5018-R56MHF 0.56 1.27 1.50 36.0 55.0 SM5018-R68MHF 0.68 1.40 1.70 34.0 54.0 SM5018-R82MHF 0.82 1.90 2.30 31.0 53.0 SM5018-1R0MHF 1.00 2.10 2.50 29.0 50.0 SM5018-1R5MHF 1.50 3.40 4.10 23.0 48.0 SM5018-1R8MHF 1.80 4.10 4.90 19.0 40.0 SM5018-2R2MHF 2.20 4.60 5.50 20.0 32.0 SM5018-3R3MHF 3.30 7.69 9.20 15.0 32.0 SM5018-4R7MHF 4.70 12.49 15.00 12.0 27.0 SM5018-5R6MHF 5.60 13.75 16.50 11.50 22.0 SM5018-6R8MHF 6.80 15.40 18.50 11.0 21.0 SM5018-8R2MHF 8.20 18.89 22,50 9.5 18.0 SM5018-100MHF 10.00 21.40 25.50 9.0 16.0 SM5018-150MHF 15.00 27.50 33.00 8.0 14.0 A± 0.50 B± Max C Max D± 0.50 E± 0.30 13.20 12.90 5.00 3.50 2.30 Recommended  PCB Layout  (unit in mm) A = 4.95 B = 7.87 C = 13.90 Notes: 1) Open Circuit Inductance(OCL) and L@ Irms and L @Isat are measured at: 100KHz, 1.0V ;(Ta=25Ԩ). 2) Isat: DC current that causes inductance to drop approximately by 20% from OCL ;(Ta=25Ԩ). 3) Irms: DC current for an approximate temperature rise of 40Ԩ without core loss. Derating is necessary for AC currents, PCB pad layout, trace thickness and width, air-flow and proximity of other heat generating components will affect the temperature rise. It is recommended the part temperature not exceed 125°C under worst case operating conditions verified in the end application. 4) Inductance vs. DC Current vs. Temperature Curve, please see the next pages for more detail information. SM5018 Series RoHS COMPLIANT 4. Inductance vs. Current vs. Temperature SM5018-R22MHF SM5018-R10MHF 0.10 100 0.20 80 0.15 60 0.10 40 0.06 40 TEMP.Rise(℃) 60 TEMP.Rise(℃) INDUCTANCE uH 80 0.08 INDUCTANCE uH 0.25 100 0.12 0.04 0.05 20 20 0.02 INDUCTANCE uH INDUCTANCE uH TEMP.Rise(℃) 0.00 TEMP.Rise(℃) 0.00 0 0 20 40 60 80 0 0 20 40 60 100 80 100 DC CURRENT (A) DC CURRENT (A) SM5018-R33MHF SM5018-R47MHF 0.50 100 0.35 100 0.45 0.30 0.40 80 80 40 0.30 60 0.25 40 0.20 TEMP.Rise(℃) 0.15 TEMP.Rise(℃) 60 INDUCTANCE uH 0.35 0.20 0.15 0.10 INDUCTANCE uH TEMP.Rise(℃) 0.00 0 10 20 30 40 50 60 70 INDUCTANCE uH TEMP.Rise(℃) 0.05 0.00 0 20 0.10 20 0.05 0 0 80 10 20 30 40 50 60 DC CURRENT (A) DC CURRENT (A) SM5018-R56MHF SM5018-R68MHF 0.60 100 100 0.70 0.60 0.50 80 80 INDUCTANCE uH 40 0.20 TEMP.Rise(℃) 60 0.30 60 0.40 0.30 40 0.20 20 0.10 INDUCTANCE uH TEMP.Rise(℃) 0.00 10 20 30 DC CURRENT (A) 40 50 INDUCTANCE uH TEMP.Rise(℃) 0 0 20 0.10 0.00 0 0 10 20 30 DC CURRENT (A) 40 50 TEMP.Rise(℃) 0.50 0.40 INDUCTANCE uH INDUCTANCE uH 0.25 SM5018 Series RoHS COMPLIANT 4. Inductance vs. Current vs. Temperature SM5018-R82MHF SM5018-1R0MHF 100 0.90 100 1.2 0.80 1.0 80 0.70 40 0.30 TEMP.Rise(℃) 0.40 INDUCTANCE uH 0.8 60 0.50 TEMP.Rise(℃) INDUCTANCE uH 0.60 80 60 0.6 40 0.4 0.20 20 20 0.2 INDUCTANCE uH 0.10 INDUCTANCE uH TEMP.Rise(℃) TEMP.Rise(℃) 0.00 0 0 10 20 30 40 0.0 50 0 0 DC CURRENT (A) 5 10 15 20 25 30 35 40 45 50 DC CURRENT (A) SM5018-1R8MHF SM5018-1R5MHF 1.6 100 2.5 100 80 2.0 80 1.5 60 1.0 40 40 0.6 INDUCTANCE uH 60 0.8 TEMP.Rise(℃) 1.0 0.4 20 0.5 INDUCTANCE uH TEMP.Rise(℃) 0.2 0.0 20 INDUCTANCE uH TEMP.Rise(℃) 0 0 5 10 15 20 25 30 35 40 0.0 45 0 0 DC CURRENT (A) 10 20 30 40 DC CURRENT (A) SM5018-2R2MHF SM5018-3R3MHF 2.5 100 2.0 80 100 3.5 3.0 80 1.0 40 60 2.0 1.5 40 1.0 0.5 20 INDUCTANCE uH 20 0.5 INDUCTANCE uH TEMP.Rise(℃) TEMP.Rise(℃) 0.0 0 0 5 10 15 20 DC CURRENT (A) 25 30 35 0.0 0 0 5 10 15 20 DC CURRENT (A) 25 30 35 TEMP.Rise(℃) 60 INDUCTANCE uH 1.5 TEMP.Rise(℃) 2.5 INDUCTANCE uH INDUCTANCE uH 1.2 TEMP.Rise(℃) 1.4 SM5018 Series RoHS COMPLIANT 4. Inductance vs. Current vs. Temperature SM5018-4R7MHF SM5018-5R6MHF 5.0 6.0 100 100 4.5 5.0 4.0 3.5 2.5 2.0 40 60 3.0 40 TEMP.Rise(℃) 60 3.0 INDUCTANCE uH 4.0 TEMP.Rise(℃) INDUCTANCE uH 80 80 2.0 1.5 1.0 20 20 1.0 INDUCTANCE uH TEMP.Rise(℃) INDUCTANCE uH 0.5 TEMP.Rise(℃) 0.0 0.0 0 0 5 10 15 20 0 0 25 5 10 15 20 DC CURRENT (A) DC CURRENT (A) SM5018-8R2MHF SM5018-6R8MHF 9.0 100 8.0 100 8.0 7.0 80 80 7.0 6.0 40 3.0 60 5.0 4.0 40 TEMP.Rise(℃) 4.0 INDUCTANCE uH 60 TEMP.Rise(℃) INDUCTANCE uH 6.0 5.0 3.0 2.0 2.0 20 INDUCTANCE uH TEMP.Rise(℃) 1.0 0.0 0.0 0 0 5 10 15 20 INDUCTANCE uH TEMP.Rise(℃) 1.0 0 0 20 2 4 6 8 10 12 14 16 18 DC CURRENT (A) DC CURRENT (A) SM5018-100MHF SM5018-150MHF 100 12.0 16 100 90 14 10.0 80 80 12 40 4.0 INDUCTANCE (μH) 6.0 TEMP.Rise(℃) INDUCTANCE uH 60 10 60 8 50 40 6 30 20 2.0 INDUCTANCE uH 0.0 0 2 4 6 8 DC CURRENT (A) 10 12 14 20 INDUCTANCE (μH) 2 TEMP.Rise(℃) 0 4 16 10 Temp rise(℃) 0 0 0 2 4 6 8 DC current (A) 10 12 14 16 Temp rise(℃) 70 8.0
