725-076-560-201

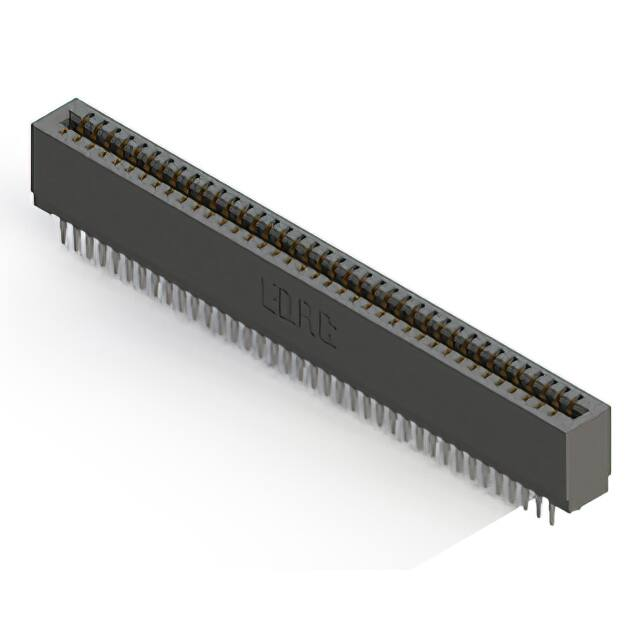

ISSUE NUMBER THIS IS A C.A.D. GENERATED DRAWING DO NOT MAKE MANUAL REVISIONS TO MASTER. Contact Information 560-P.C. Tail, Make Before Break(MBB) - Tail LG.=.190(4.83) .100" (2.54mm) Contact Spacing x .200" (5.08mm) Row Spacing ORIGINAL 1 4.060 103.12 3.900 99.06 Card Slot Accepts .054 (1.37) to .070 (1.78) Thick P.C. Board 0.350 8.89 0.550 13.97 0.100 2.54 0.420 10.67 Card Slot A A 0.300 7.62 SECTION A-A 725 Series Ultra-Mate Card Edge Connector - Press Fit Part Number: 725-076-560-201 EDAC INC TORONTO, ONTARIO CANADA YOUR CONNECTION TO QUALITY & SERVICE THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDAC INC.,AND SHALL NOT BE REPRODUCED,OR COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. ACAD REFERENCE NO. DRAWN: J.LEE 725-ENG MASTER DATE: AUG31/09 CHECKED: DATE: SCALE: SHEET 1 DRAWING NUMBER 725-ENG MASTER OF 1 ISSUE 1
