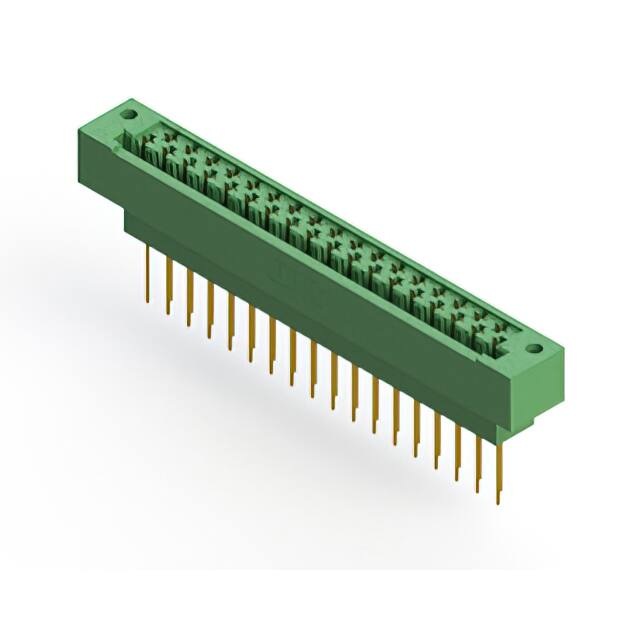

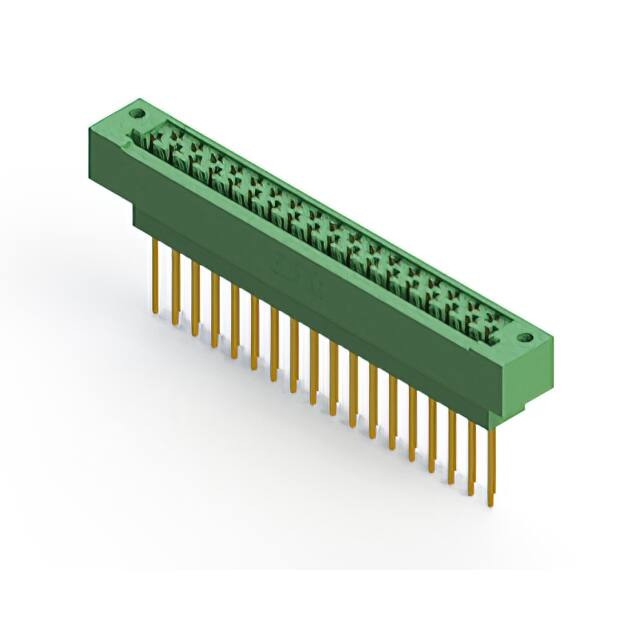

415-035-541-122

ISSUE NUMBER 1 ORIGINAL 8.26 0.325 11.51 0.453 THIS IS A C.A.D. GENERATED DRAWING DO NOT MAKE MANUAL REVISIONS TO MASTER. 13.49 0.531 20.32 0.800 8.81 0.347 106.83 4.206 7.47 0.294 NOTES: MATERIAL: HOUSING: DIALLYL PTHYHALATE, UL94V-0 CONTACT MATERIAL: COPPER ALLOY CONTACT PLATING: GOLD PLATING OVER NICKEL INSERTION FORCE: 6 TO 16 Oz (0.56 TO 4.45N) PER CONTACT WITHDRAWAL FORCE: 6 TO 16 Oz (0.56 TO 4.45N) PER CONTACT 99.92 3.934 3.18 0.125 9.53 0.375 94.49 3.720 OPERATING TEMPERATURE: -65 C ~ 125 C CURRENT RATING: 10A PER CONTACT CONTACT RESISTANCE: 10mΩ MAX. INSULATOR RESISTANCE: 5000MΩ min. DIELECTRIC WITHSTANDING VOLTAGE: 2000V AC rms AT SEA LEVEL 2.54 0.100 CONTACT TYPE: 541-Wire Wrap .026x.024(0.66x0.61) - Tail LG.=.620(15.75) SW REFERENCE NO.: 415 & 438 SERIES CARD EDGE W.T DRAWN: CHECKED: COMPLIANT THIS SERIES FULLY CONFORMS TO EDAC INC THE EUROPEAN UNION DIRECTIVES TORONTO, ONTARIO CANADA 2011/65/EU FOR RoHS COMPLIANCY. YOUR CONNECTION TO QUALITY & SERVICE THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDAC INC.,AND SHALL NOT BE REPRODUCED,OR COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. SCALE: 1:1 415 ASSEMBLY DATE: AUG. 01/2018 DATE: SHEET 1 OF 1 DRAWING NUMBER: 415-035-541-122 ISSUE PART NUMBER: 415-035-541-122 1
