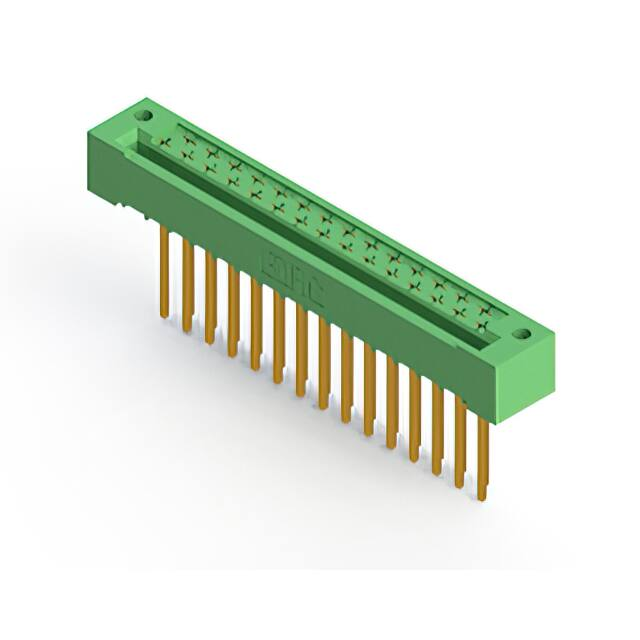

408-029-542-122

.128 3.25 .079 2.01 .125 3.18 ISSUE NUMBER THIS IS A C.A.D. GENERATED DRAWING DO NOT MAKE MANUAL REVISIONS TO MASTER. Contact Code 542-Wire Wrap .060x.025(1.52x0.64) - Tail LG.=.965(24.51) 3.606 91.59 ORIGINAL 1 .163 4.14 3.334 84.68 .163 4.14 3.120 79.25 .531 13.49 .065 1.65 Card Slot Accepts Up to .070 (1.78) Thick Board .100 2.54 .200 5.08 .325 8.26 Card Slot .453 11.51 .041 1.04 .125 3.18 See Accompanying Pages for: • Features and Specifications 408/424 Series High Reliability Interlock Connector PART NUMBER: 408-029-542-122 EDAC INC TORONTO, ONTARIO CANADA YOUR CONNECTION TO QUALITY & SERVICE THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDAC INC.,AND SHALL NOT BE REPRODUCED,OR COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. ACAD REFERENCE NO. J.LEE DRAWN: DATE: CHECKED: SCALE: 408-ENG-MASTER DATE: SEPT. 16/09 NTS DRAWING NUMBER 408-ENG-MASTER SHEET 1 OF 1 ISSUE 1
