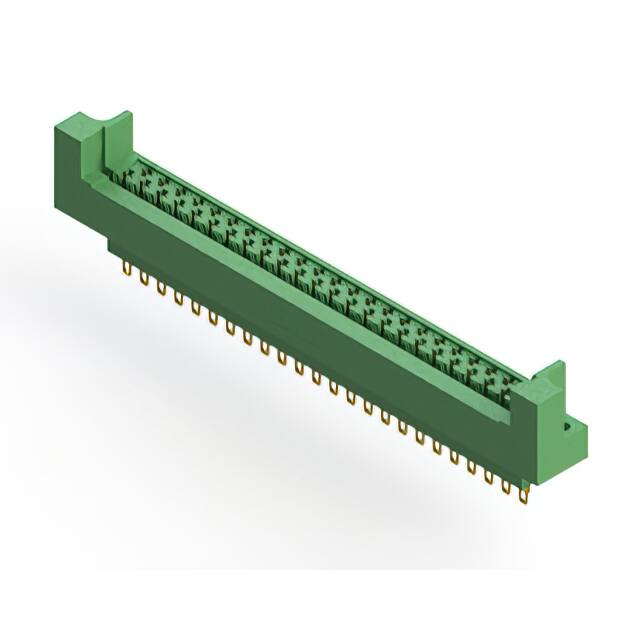

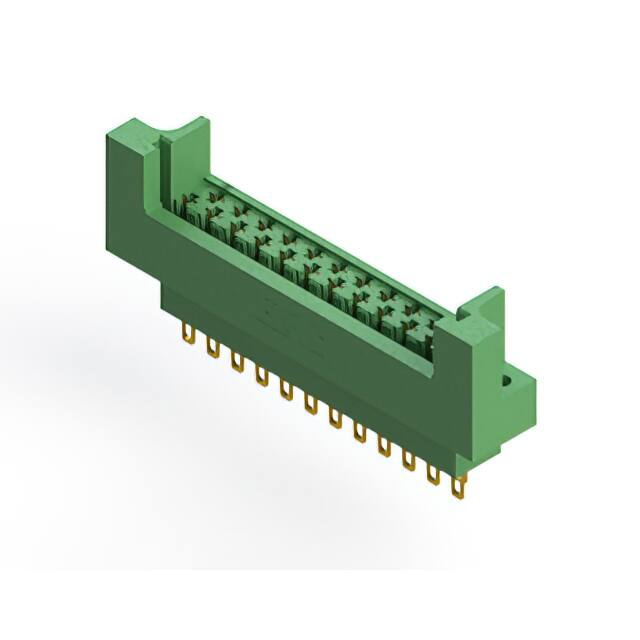

415-047-500-212

ISSUE NUMBER THIS IS A C.A.D. GENERATED DRAWING DO NOT MAKE MANUAL REVISIONS TO MASTER. 10.19 0.401 8.26 0.325 8.81 0.347 9.53 0.375 NOTES: MATERIAL: HOUSING: DIALLYL PTHYHALATE, UL94V-0 CONTACT MATERIAL: COPPER ALLOY CONTACT PLATING: GOLD PLATING OVER NICKEL INSERTION FORCE: 6 TO 16 Oz (0.56 TO 4.45N) PER CONTACT WITHDRAWAL FORCE: 6 TO 16 Oz (0.56 TO 4.45N) PER CONTACT 135.94 5.352 127.76 5.030 3.18 0.125 15.09 0.594 8.26 0.325 20.96 0.825 29.77 1.172 20.32 0.800 11.51 0.453 142.75 5.620 1 ORIGINAL OPERATING TEMPERATURE: -65 C ~ 125 C CURRENT RATING: 10A PER CONTACT CONTACT RESISTANCE: 10mΩ MAX. INSULATOR RESISTANCE: 5000MΩ min. DIELECTRIC WITHSTANDING VOLTAGE: 2000V AC rms AT SEA LEVEL 2.54 0.100 CONTACT TYPE: 500-Wire Hole .115x.025(2.92x0.64) - Tail LG.=.326(8.28) SW REFERENCE NO.: 415 & 438 SERIES CARD EDGE W.T DRAWN: CHECKED: COMPLIANT THIS SERIES FULLY CONFORMS TO EDAC INC THE EUROPEAN UNION DIRECTIVES TORONTO, ONTARIO CANADA 2011/65/EU FOR RoHS COMPLIANCY. YOUR CONNECTION TO QUALITY & SERVICE THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDAC INC.,AND SHALL NOT BE REPRODUCED,OR COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. SCALE: 1:1 415 ASSEMBLY DATE: AUG. 01/2018 DATE: SHEET 1 OF 1 DRAWING NUMBER: 415-047-500-212 ISSUE PART NUMBER: 415-047-500-212 1
