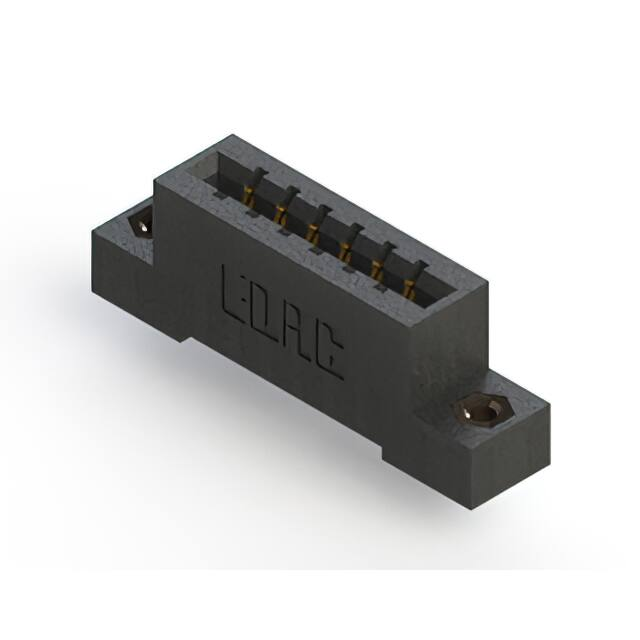

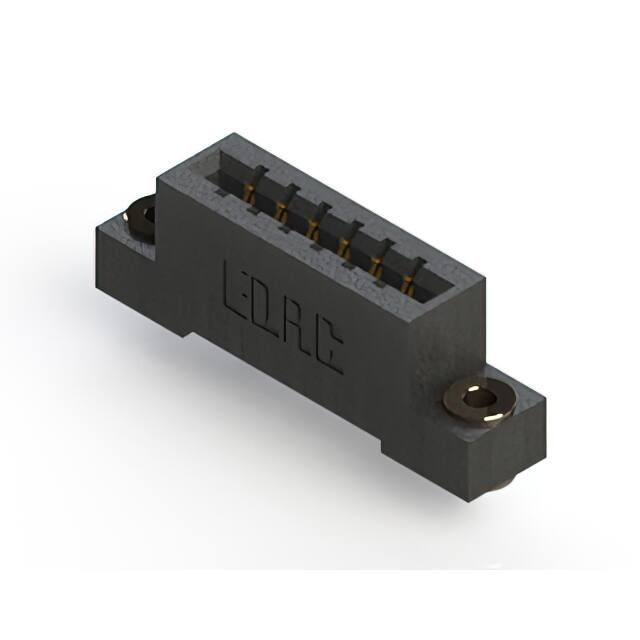

379-006-521-108

Mounting Option 02-.128 (3.25) Dia. Mounting Holes Contact Detail 521-P.C. Tail .025 Sq.(0.64 Sq.) - Tail LG=.150(3.81) .150 [3.81] Contact Spacing x .200 [5.08] Row Spacing ISSUE NUMBER THIS IS A C.A.D. GENERATED DRAWING DO NOT MAKE MANUAL REVISIONS TO MASTER. ORIGINAL 1 .375 9.53 Card Slot Accepts .054 [1.37] to .070 (1.78) Thick P.C. Board .150 3.81 1.040 26.42 1.200 30.48 .330 8.38 Card Slot 1.510 38.35 .350 8.89 .600 15.24 SECTION A-A A .160 4.06 Point of Contact A 379 Series Card Edge Connector Part Number: 379-006-521-102 See Accompanying Page for: • Bend Detail • Mounting Options EDAC INC TORONTO, ONTARIO CANADA YOUR CONNECTION TO QUALITY & SERVICE THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDAC INC.,AND SHALL NOT BE REPRODUCED,OR COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. ACAD REFERENCE NO. J.LEE DRAWN: CHECKED: SCALE: NTS DRAWING NUMBER 379 Assembly 379 ENG MASTER DATE: OCT. 14/09 DATE: SHEET 1 OF 3 ISSUE 1 ISSUE NUMBER THIS IS A C.A.D. GENERATED DRAWING DO NOT MAKE MANUAL REVISIONS TO MASTER. .120 3.05 .095 2.41 .245 6.22 1 .165 4.19 .170 4.32 .375 9.53 .125 [3.18] to .210 [5.33] Outside Tails .125 [3.18] to .185 [4.70] Outside Tails .045 [1.14] to .060 [1.52] Between Tails .045 [1.14] to .060 [1.52] Between Tails 555 Contact Code ORIGINAL 556 Contact Code .125 [3.18] to .210 [5.33] Outside Tails .045 [1.14] to .060 [1.52] Between Tails 560 Contact Code 379 Series Card Edge Connector Contact Bend Detail EDAC INC TORONTO, ONTARIO CANADA YOUR CONNECTION TO QUALITY & SERVICE THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDAC INC.,AND SHALL NOT BE REPRODUCED,OR COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. ACAD REFERENCE NO. J.LEE DRAWN: CHECKED: SCALE: NTS DRAWING NUMBER 379 Assembly 379 ENG MASTER DATE: OCT. 14/09 DATE: SHEET 2 OF 3 ISSUE 1 ISSUE NUMBER THIS IS A C.A.D. GENERATED DRAWING DO NOT MAKE MANUAL REVISIONS TO MASTER. .010 [0.25] Radial Float ORIGINAL 1 .116 2.95 I.D. Floating Eyelets .128 [3.25] x .146 [3.71] Slot .156 [3.96] Dia Through Holes M3-0.5 Metric Threaded Insert #4-40 UNC Threaded Insert .250 6.35 Dia. .005 .13 .348 8.84 Code x01 Code x02 Code x03 Code x04 Code x07 Code x08 379 Series Card Edge Connector Mounting Options EDAC INC TORONTO, ONTARIO CANADA YOUR CONNECTION TO QUALITY & SERVICE THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDAC INC.,AND SHALL NOT BE REPRODUCED,OR COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. ACAD REFERENCE NO. J.LEE DRAWN: CHECKED: SCALE: NTS DRAWING NUMBER 379 Assembly 379 ENG MASTER DATE: OCT. 14/09 DATE: SHEET 3 OF 3 ISSUE 1
