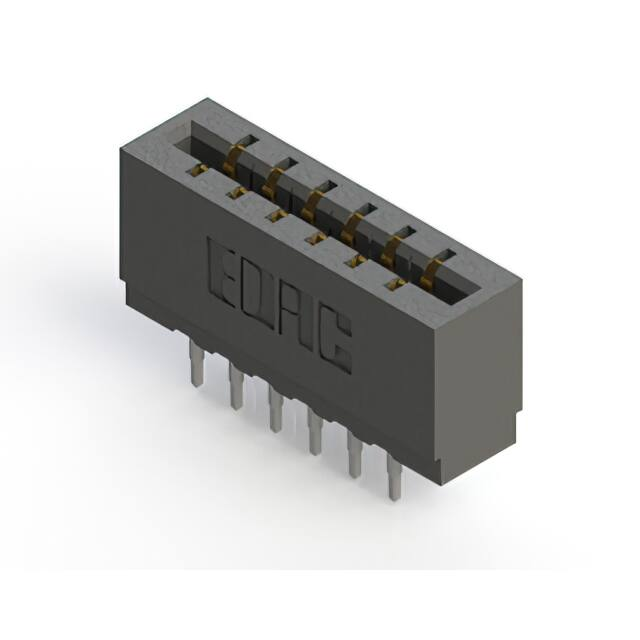

717-012-560-201

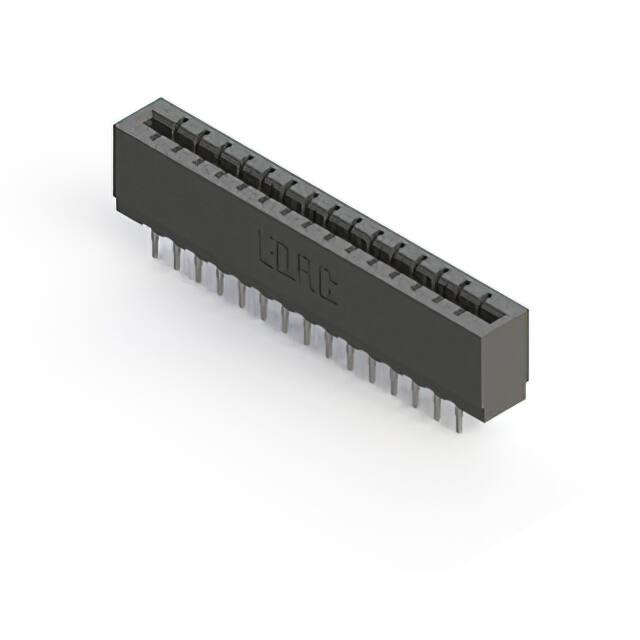

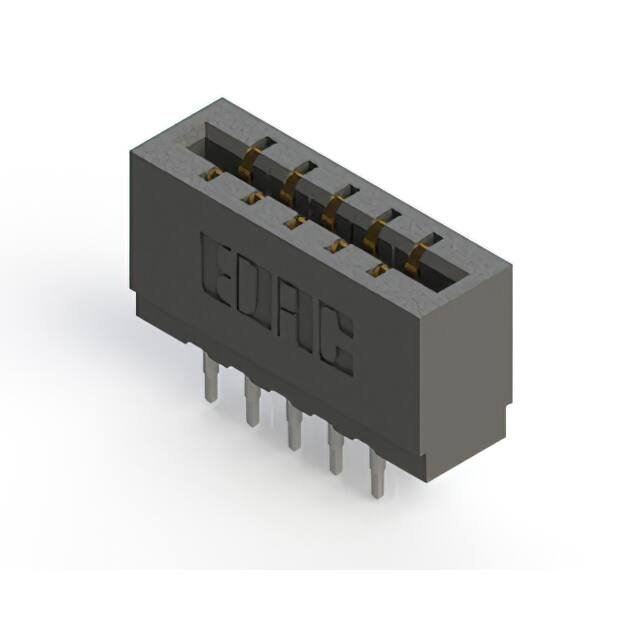

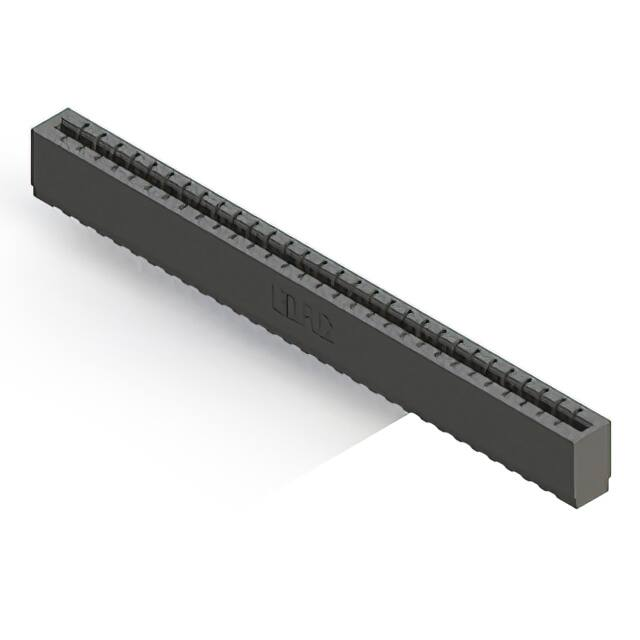

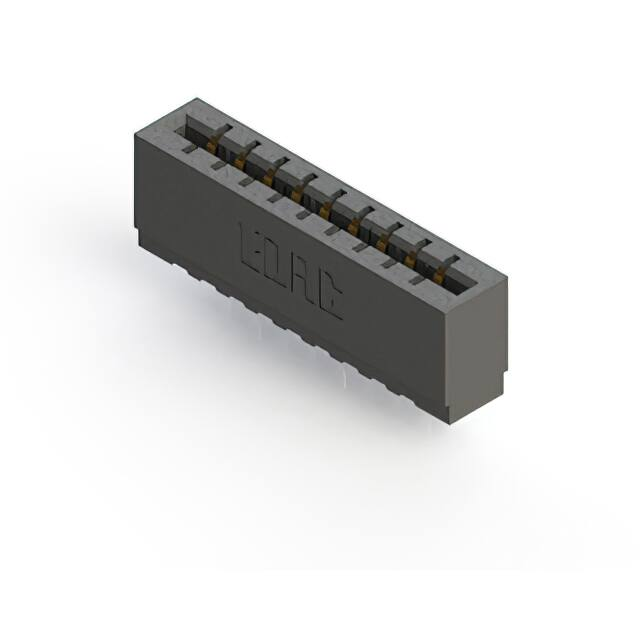

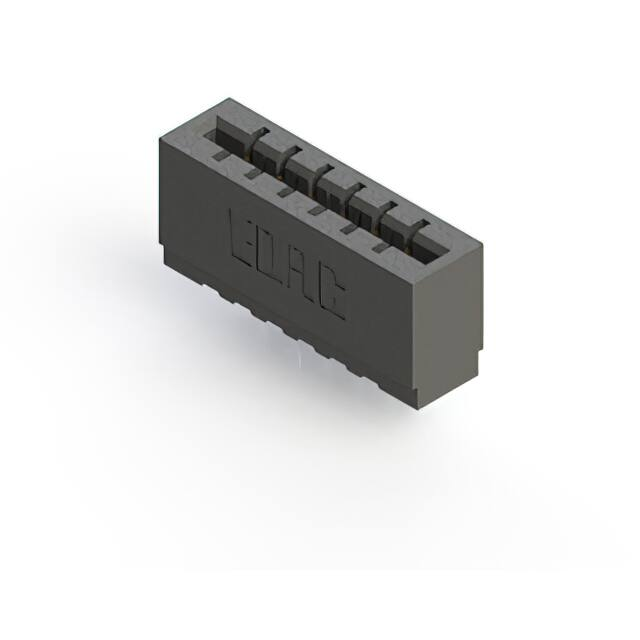

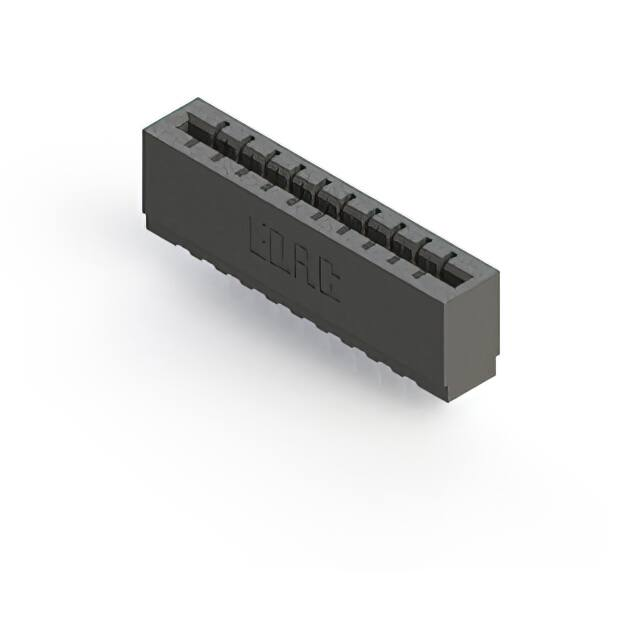

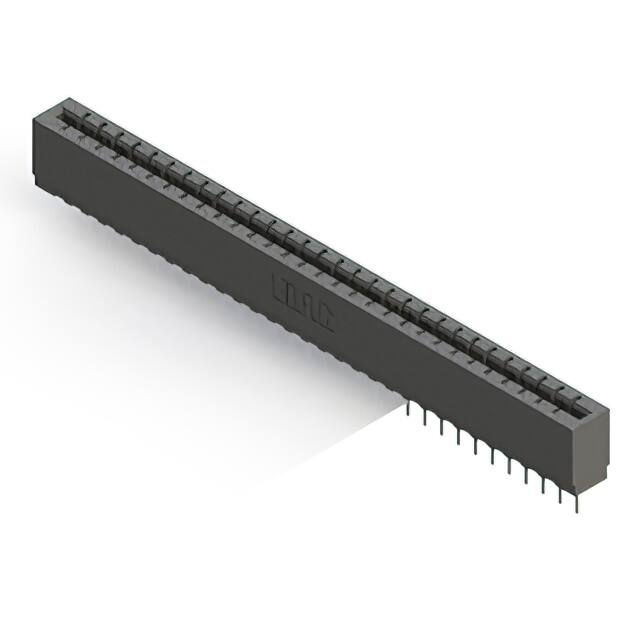

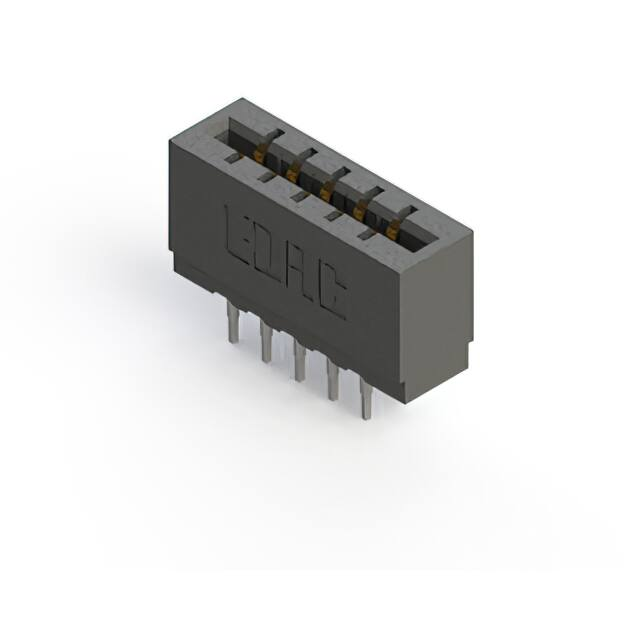

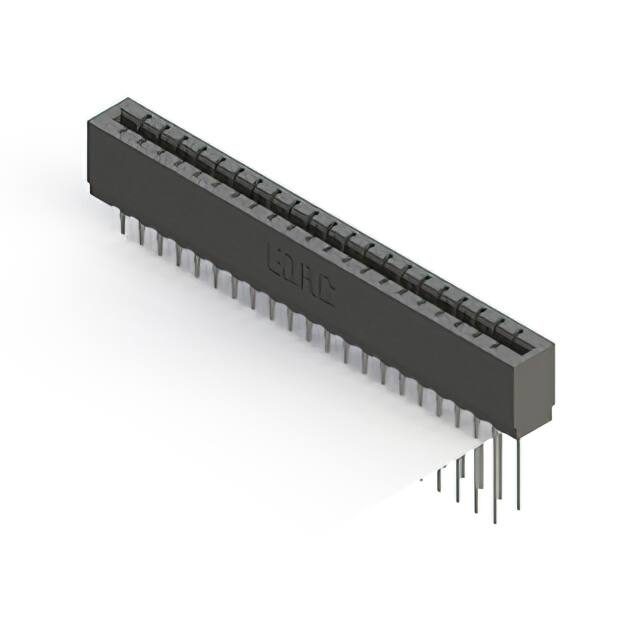

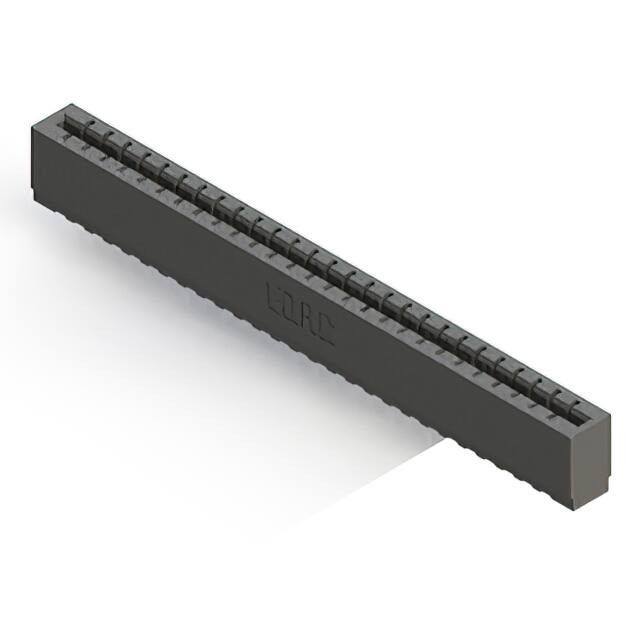

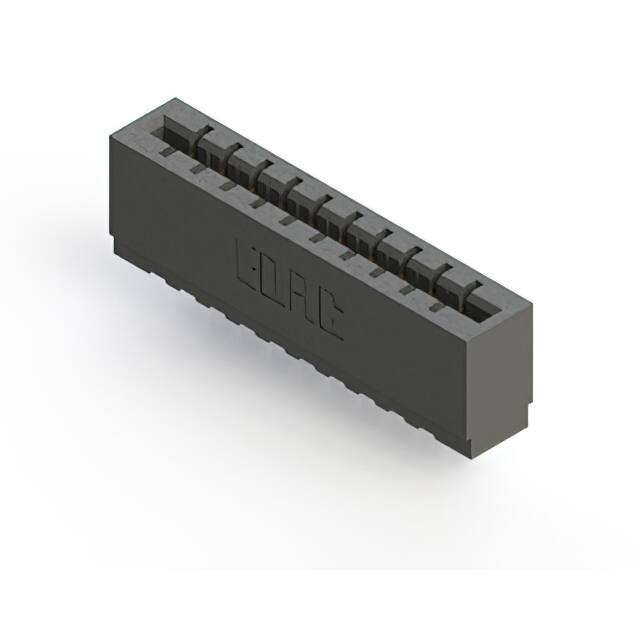

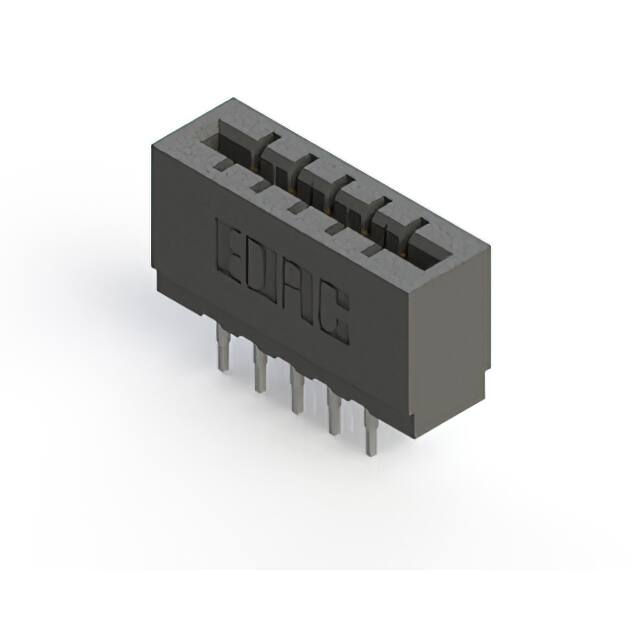

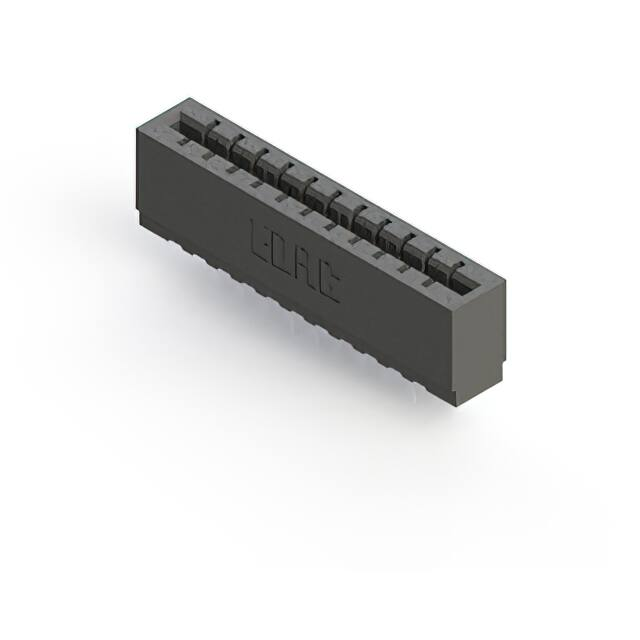

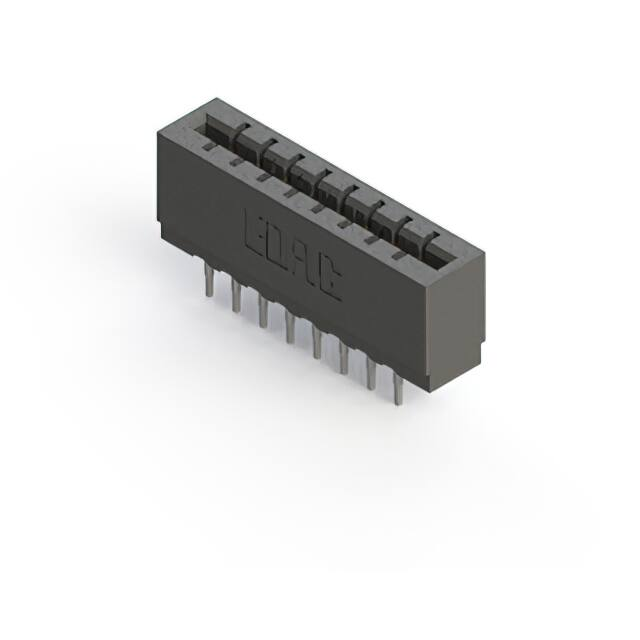

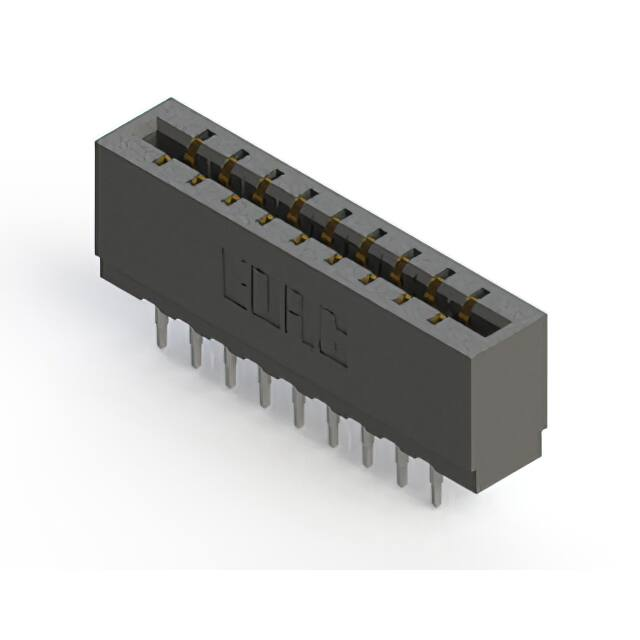

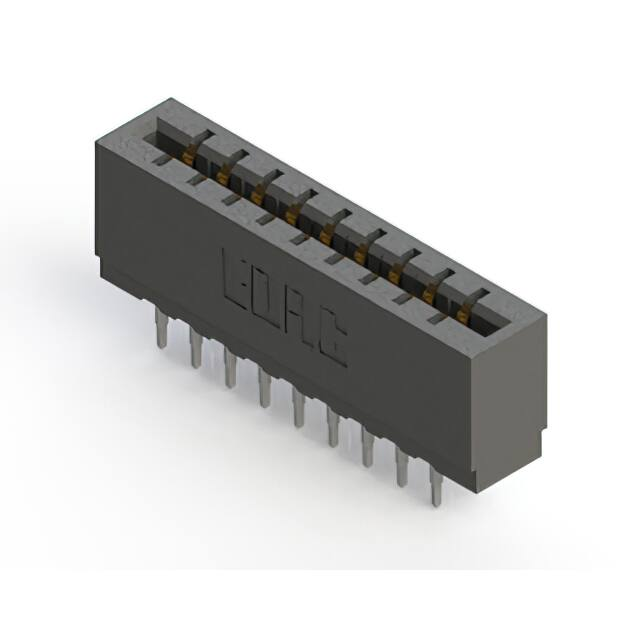

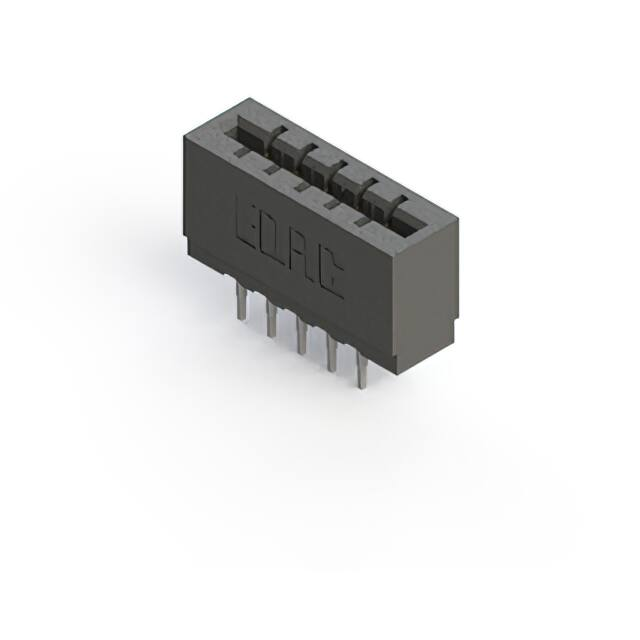

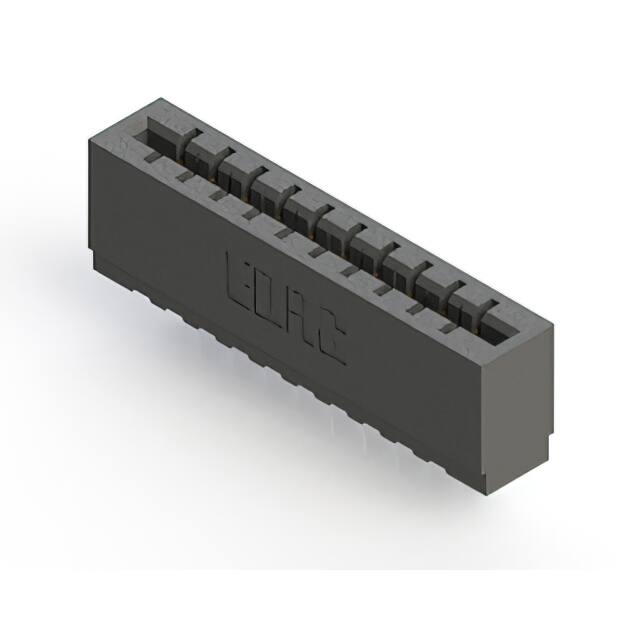

717 SERIES Press-Fit Card Edge Connectors 0.156” (3.96mm) Pitch Features: • • • • • • • • • 0.156” (3.96mm) contact spacing x 0.200” (5.08mm) row spacing Accepts 0.062” (1.57mm) nominal thickness P.C. board Low profile insulator body, 0.550”(13.97mm) Contact termination options include P.C. tail, and 0.025” (0.64mm) square wire wrap Press-fit compliant section for gas tight reliable connection in plated through holes eliminates soldering operations Single or dual row configurations Accepts between contact and in-contact polarizing keys (special features if requested) Tools available for insulator and contact removal. Simple “flat rock” tooling is used for connector installation RoHS Compliant & UL Certified Specifications: Insulator Material UL 94V-0 Thermoplastic Polyester, Black Contact Material Copper Alloy Contact Plating 30µ” Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over Current Rating 3 amps Contact Resistance 10 milliohms maximum Dielectric Withstanding Voltage 1200 V AC rms at sea level between adjacent contacts Insulation Resistance 5000 megaohms minimum Operating Temperature -40°C to +105°C Insertion Force 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge Withdrawal Force 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge Contact insertion into Hole 20 lbs (89 N) maximum Contact Retention in Hole 10 lbs (44 N) minimum Re-Insertability in same Hole 3 Times minimum Example Part Number: 717-044-520-201 Series Total Number of Contacts Contact Code Contact Rows Series: Insulator Color: 717 Thermoplastic Polyester, Green Total Number of Contacts: Contact Rows: 005, 006, . . . . 043 Single Row 010, 012, . . . . 086 Dual Row Contact Code: Description: Contact Point: Tail Length "G": 520 P.C. Tail Regular Point .190 (4.83) 522 P.C. Tail Regular Point .375 (9.53) 525 P.C. Tail High Point .190 (4.83) 540 Wire Wrap Regular Point .560 (14.22) 541 Wire Wrap Regular Point .750 (19.05) 545 Wire Wrap High Point .560 (14.22) 560 Make Before Break (MBB) Contacts Contact Rows: Description: 101 Single Row 201 Dual Row www.edac.net BETWEEN CONTACT POLARIZING KEY P/N 306-240-318 PROPOSED IN-CONTACT POLARIZING KEY P/N 725-240-328 .190 (4.83) Ordering Code Notes: 1) All connector sizes up to 43 contacts single row / 86 contacts dual row are available upon request. 2) Make-Before-Break switching contacts, assembled in specific contact positions, are available upon request. customerservice@edac.net 717 SERIES Press-Fit Card Edge Connectors 0.156” (3.96mm) Pitch SECTIONS "Y" "Y" CONTACT ROWS & INSULATOR OPTIONS "C" "D" .420 (10.67) CARD SLOT .350 (8.89) CARD SLOT ACCEPTS .054(1.37) TO .070 (1.78)THICK P.C. BOARD Single Row Versions May Require Backup Springs Depending upon the Application. .230 (5.84) CONTACT POINT CODE 101 CODE 201 Single Row Versions May Require Backup Springs Depending upon the Application. "Y" .550 (13.97) "Y" "G" MAKE BEFORE BREAK (M.B.B) POINT CONTACTS .025 (0.64) SQUARE P.C. & WIRE WRAP TAILS .156 (3.96) "E" .535 (13.59) .440 (11.18) .200 (5.08) ROW SPACING .080 (2.03) CUT OUT FOR IN-CONTACT POLARIZING KEY .156 (3.96) "E" .040 (1.02) DIA ± .003 (0.08) SEE NOTE BELOW .008 (0.20) DIA .050 (1.27) CUT OUT FOR BETWEEN CONTACT POLARIZING KEY +.000 ( "D" MINUS .012 (0.30) -.015 (0.38) TO OBTAIN OPTIMUM COMPLIANT SECTION PERFORMANCE, DRILL HOLES .0453 ± .001 (1.15 ± 0.03) DIAMETER COPPER PLATE, .001 (25.4 MICRONS) MINIMUM THICKNESS, FOLLOWED BY TIN PLATE TO PROVIDE FINISHED HOLES .040 ± .003 (1.02 ± 0.08) DIAMETER www.edac.net customerservice@edac.net
