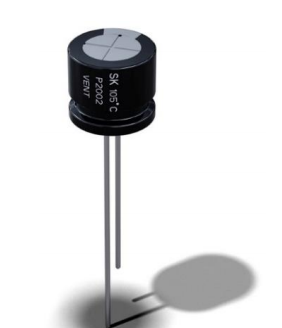

SK220M016C070A

ALUMINUM ELECTROLYTIC CAPACITOR ▪ SK SERIES SK SERIES ▪ 7MM HEIGHT, STANDARD 105°C TYPE KEY FEATURES ▪ ▪ ▪ ▪ ▪ ALUMINUM ELECTROLYTIC CAPACITOR ▪ THT type Endurance: 105°C ▪ 1 000 hours Optimized for high density insertion Low height ▪ 7mm Miniaturized for space critical applications SPECIFICATIONS Items Performance Characteristics Operating Temperature Range -40 ~ +105°C Rated Voltage Range VR 4 ~ 63V DC Surge Voltage VS VS = 1.15∙VR Capacitance Range CR 0.1 ~ 470µF Cap. Tolerance ΔC ±20% (120Hz ▪ 20°C) Leakage Current ≤ 0.01∙CR∙VR or 3µA, whichever is greater ▪ After 2 minutes ILEAK (20°C ▪ VR applied) [ ILEAK (µA) ; CR (µF) ; VR (V) ] Dissipation Factor % VR (V DC) 4 6.3 10 16 25 35 50 tanδ (20°C ▪ 120Hz) tanδ (%) 25 22 20 16 14 12 10 Low Temperature VR (V DC) 4 6.3 10 16 25 35 50 Z ratio Characteristics at Z-25°C/Z+20°C 7 4 3 2 2 2 2 max. 120Hz Z-40°C/Z+20°C 15 8 6 4 4 3 3 63 9 63 2 3 ~ Lifetime Test Test Endurance 105°C (VR applied) Shelf Life 105°C (VR = 0) 1 000 hours ≤ ±20% of initial measured value 6.3 ~ 63 V △C/CR ≤ ±30% of initial measured value 4V tanδ ≤ 200% of initial specified value ILeak ≤ the initial specified value Test 1 000 hours ≤ ±20% of initial measured value 6.3 ~ 63 V △C/CR ≤ ±30% of initial measured value 4V tanδ ≤ 200% of initial specified value ILeak ≤ the initial specified value Before measurement: Restore capacitor to 20°C, apply VR for 30 min according JIS-C-5101-4 MULTIPLIER Kf for RIPPLE CURRENT vs. FREQUENCY CR (µF) / Frequency (Hz) 50/60 100/120 400 1k 10k 50k - 100k CR ≤ 10 10 < CR ≤ 100 100 < CR ≤ 470 0.8 0.8 1 1 1.3 1.23 1.45 1.36 1.65 1.48 1.7 1.53 0.8 1 1.16 1.25 1.35 1.38 CapXon_Ver. 003 – 09/01/2021 1 For further information please contact sales@capxon.org Document Number: SK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ SK SERIES STANDARD RATINGS VR (V) 4 6.3 10 16 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) 22 33 47 68 100 220 330 470 22 33 33 47 47 68 100 100 220 220 330 15 22 33 33 47 47 68 68 100 100 220 220 6.8 10 15 22 22 33 33 47 47 68 100 100 4 4 4 5 5 6.3 6.3 8 4 4 5 4 5 5 5 6.3 6.3 8 8 4 4 4 5 4 5 5 6.3 5 6.3 6.3 8 4 4 4 4 5 4 5 5 6.3 6.3 6.3 8 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) 23 26 35 55 58 65 90 120 31 32 35 40 47 55 65 75 90 120 120 28 35 40 45 47 51 60 68 80 90 105 150 20 30 32 37 42 45 50 61 67 72 95 105 CapXon Part Number SK220M004B070A SK330M004B070A SK470M004B070A SK680M004C070A SK101M004C070A SK221M004E070A SK331M004E070A SK471M004F070A SK220M6R3B070A SK330M6R3B070A SK330M6R3C070A SK470M6R3B070A SK470M6R3C070A SK680M6R3C070A SK101M6R3C070A SK101M6R3E070A SK221M6R3E070A SK221M6R3F070A SK331M6R3F070A SK150M010B070A SK220M010B070A SK330M010B070A SK330M010C070A SK470M010B070A SK470M010C070A SK680M010C070A SK680M010E070A SK101M010C070A SK101M010E070A SK221M010E070A SK221M010F070A SK6R8M016B070A SK100M016B070A SK150M016B070A SK220M016B070A SK220M016C070A SK330M016B070A SK330M016C070A SK470M016C070A SK470M016E070A SK680M016E070A SK101M016E070A SK101M016F070A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 003 – 09/01/2021 2 For further information please contact sales@capxon.org Document Number: SK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ SK SERIES STANDARD RATINGS VR (V) 25 35 50 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) 4.7 6.8 10 10 15 22 22 33 33 47 47 68 100 4.7 6.8 6.8 10 10 15 15 22 22 33 33 47 68 0.1 0.15 0.22 0.33 0.47 0.68 1 1.5 2.2 3.3 4.7 4.7 6.8 6.8 10 10 15 4 4 4 5 5 5 6.3 5 6.3 6.3 8 6.3 8 4 4 5 4 5 5 6.3 5 6.3 6.3 8 8 8 4 4 4 4 4 4 4 4 4 4 4 5 5 6.3 5 6.3 6.3 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) 17 21 30 33 38 45 48 52 60 68 72 75 115 22 24 28 30 35 38 45 50 58 54 68 80 85 1.5 1.8 2.5 3.5 5 7 10 13 19 24 27 29 32 33 35 38 52 CapXon Part Number SK4R7M025B070A SK6R8M025B070A SK100M025B070A SK100M025C070A SK150M025C070A SK220M025C070A SK220M025E070A SK330M025C070A SK330M025E070A SK470M025E070A SK470M025F070A SK680M025E070A SK101M025F070A SK4R7M035B070A SK6R8M035B070A SK6R8M035C070A SK100M035B070A SK100M035C070A SK150M035C070A SK150M035E070A SK220M035C070A SK220M035E070A SK330M035E070A SK330M035F070A SK470M035F070A SK680M035F070A SK0R1M050B070A SKR15M050B070A SKR22M050B070A SKR33M050B070A SKR47M050B070A SKR68M050B070A SK010M050B070A SK1R5M050B070A SK2R2M050B070A SK3R3M050B070A SK4R7M050B070A SK4R7M050C070A SK6R8M050C070A SK6R8M050E070A SK100M050C070A SK100M050E070A SK150M050E070A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 003 – 09/01/2021 3 For further information please contact sales@capxon.org Document Number: SK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ SK SERIES STANDARD RATINGS VR (V) 50 63 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) 22 22 33 0.1 0.15 0.22 0.33 0.47 0.68 1 1.5 2.2 3.3 4.7 4.7 6.8 10 15 22 6.3 8 8 4 4 4 4 4 4 4 4 4 5 5 6.3 6.3 6.3 8 8 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) 60 63 78 1.5 1.8 2.5 3.5 6 7 12 14 19 25 29 33 35 40 55 65 CapXon Part Number SK220M050E070A SK220M050F070A SK330M050F070A SK0R1M063B070A SKR15M063B070A SKR22M063B070A SKR33M063B070A SKR47M063B070A SKR68M063B070A SK010M063B070A SK1R5M063B070A SK2R2M063B070A SK3R3M063C070A SK4R7M063C070A SK4R7M063E070A SK6R8M063E070A SK100M063E070A SK150M063F070A SK220M063F070A See “PACKAGING INFORMATION” to taped or formed products. d± DIMENSIONS ▪ All dimensions in mm ± ± ±a øD F ød a 4 1.5 0.45 1 CapXon_Ver. 003 – 09/01/2021 in 5 2 0.45 1 in 6.3 2.5 0.5 1 4 For further information please contact sales@capxon.org 8 3.5 0.5 1 Document Number: SK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ SK SERIES PRECAUTIONS, GUIDELINES AND PACKAGING INFORMATION Unless otherwise agreed in individual specifications, all products are subject to our “General Precautions and Guidelines” as well as our “Packaging Infor ation” Please refer to the following links in the table. General Precautions & Guidelines Packaging Information 3D Models Reliability Tests DISCLAIMER All product related data (e.g. specification, statements and general information) are subject to change without any notice. It is necessary that the customer observes all product related technical / application information and handling instructions. CapXon products are designed and manufactured according to severe quality and safety standards. Under no circumstance, CapXon warrants that any CapXon product is suitable for the purposes intended for your application, even CapXon knows the application. It is customer's duty and obligation to check and make sure that CapXon products are suitable for the purposes intended and select the correct and proper CapXon product. Customers are requested to perform a sufficient validation and reliability evaluation to assure needed safety level and reliability performance by suitable designs and to apply proper safeguards (e.g. redundancies, protective circuits). Particular operating conditions (ambient temperature, ripple current, voltage, thermal resistance, etc.) as well as storage, production or assembly may affect the performance and the lifetime of the capacitor. Please consult CapXon for lifetime estimation, failure mode considerations or worst-case scenarios according to the product technology, product tolerances / deviations or change of the characteristics of the capacitor due to shipment, storage, handling, production and usage. or aerospace or ilitary application, life‐saving, life‐sustaining, safety critical applications or any application where failure may cause severe personal injury or death, please consult us before design‐in the capacitor in your application. Except for the written expressed warranties, CapXon does not impliedly, by assumption or whatever else, warrant, undertake, promise any other warranty or guaranty for any CapXon product. For further information, please visit our website www.capxongroup.com or contact CapXon directly. CapXon_Ver. 003 – 09/01/2021 5 For further information please contact sales@capxon.org Document Number: SK series
