ALUMINUM ELECTROLYTIC CAPACITOR ▪ SY SERIES
SY SERIES ▪ 7MM HEIGHT, LOW IMPEDANCE 105°C TYPE
KEY FEATURES
▪
▪
▪
▪
▪
ALUMINUM ELECTROLYTIC CAPACITOR ▪ THT type
Endurance: 105°C ▪ 2 000 hours
Miniaturized for space critical applications
Low height ▪ 7mm
Low impedance and high ripple current
SPECIFICATIONS
Items
Operating Temperature Range
Rated Voltage Range
VR
Surge Voltage
VS
Capacitance Range
CR
Cap. Tolerance
ΔC
Leakage Current
ILEAK
(20°C ▪ VR applied)
Dissipation Factor %
(20°C ▪ 120Hz)
Low Temperature
Characteristics at
120Hz
Performance Characteristics
-55 ~ +105°C
6.3 ~ 50V DC
VS = 1.15∙VR
1 ~ 330µF
±20% (120Hz ▪ 20°C)
≤ 0.01∙CR∙VR or 3µA, whichever is greater ▪ After 2 minutes
[ ILEAK (µA) ; CR (µF) ; VR (V) ]
tanδ
VR (V DC)
tanδ (%)
6.3
18
10
16
16
14
25
12
35
12
50
10
Z ratio
max.
VR (V DC)
6.3
10
16
25
35
50
Z-25°C/Z+20°C
2
2
2
2
2
2
Z-55°C/Z+20°C
3
3
3
3
3
3
~
Lifetime Test
Endurance
105°C
(VR applied)
Shelf Life
105°C
(VR = 0)
Test 2 000 hours
△C/CR ≤ ±20% of initial measured value
tanδ ≤ 200% of initial specified value
ILeak ≤ the initial specified value
Test 1 000 hours
△C/CR ≤ ±20% of initial measured value
tanδ ≤ 200% of initial specified value
ILeak ≤ the initial specified value
Before measurement: Restore capacitor to 20°C, apply VR for 30 min
according JIS-C-5101-4
MULTIPLIER Kf for RIPPLE CURRENT vs. FREQUENCY
CR (µF) / Frequency (Hz)
50/60
100/120
400
1k
10k
50k - 100k
1 ≤ CR ≤ 10
10 < CR ≤ 100
100 < CR ≤ 330
0.47
0.52
0.58
0.59
0.65
0.72
0.76
0.8
0.84
0.85
0.89
0.9
0.97
0.97
0.98
1
1
1
CapXon_Ver. 003 – 09/01/2021
1
For further information please contact sales@capxon.org
Document Number: SY series
ALUMINUM ELECTROLYTIC CAPACITOR ▪ SY SERIES
STANDARD RATINGS
VR
(V)
CR
(µF)
Part number shows bulk version with straight leads
øD
(mm)
L
(mm)
Z ▪ Max.
Impedance
+20°C ▪ 100kHz
(mΩ)
33
5
7
1950
47
6.3
7
1870
68
6.3
7
1000
100
6.3
7
820
6.3
120
6.3
7
770
150
6.3
7
660
180
8
7
640
220
8
7
550
330
8
7
390
22
4
7
3630
33
5
7
1900
47
5
7
1300
68
6.3
7
880
10
100
6.3
7
550
120
6.3
7
520
150
8
7
500
180
8
7
490
220
8
7
400
10
4
7
3500
15
4
7
3000
22
5
7
2000
33
6.3
7
1400
47
6.3
7
900
16
68
8
7
650
100
8
7
490
120
8
7
930
150
8
7
950
180
8
7
330
220
8
7
290
10
4
7
3500
22
5
7
1870
33
6.3
7
880
25
47
8
7
700
68
8
7
550
100
8
7
390
150
8
7
350
6.8
4
7
3630
10
5
7
3200
35
22
6.3
7
900
33
8
7
550
47
8
7
500
See “PACKAGING INFORMATION” to taped or formed products
CapXon_Ver. 003 – 09/01/2021
IR ▪ Max.
Ripple Current
+105°C ▪ 100kHz
(mA rms)
CapXon Part Number
90
99
125
144
148
160
171
180
315
63
95
120
144
180
185
207
225
252
60
75
90
120
140
160
180
315
333
360
387
60
99
144
160
180
225
306
63
99
140
180
220
SY330M6R3C070A
SY470M6R3E070A
SY680M6R3E070A
SY101M6R3E070A
SY121M6R3E070A
SY151M6R3E070A
SY181M6R3F070A
SY221M6R3F070A
SY331M6R3F070A
SY220M010B070A
SY330M010C070A
SY470M010C070A
SY680M010E070A
SY101M010E070A
SY121M010E070A
SY151M010F070A
SY181M010F070A
SY221M010F070A
SY100M016B070A
SY150M016B070A
SY220M016C070A
SY330M016E070A
SY470M016E070A
SY680M016F070A
SY101M016F070A
SY121M016F070A
SY151M016F070A
SY181M016F070A
SY221M016F070A
SY100M025B070A
SY220M025C070A
SY330M025E070A
SY470M025F070A
SY680M025F070A
SY101M025F070A
SY151M025F070A
SY6R8M035B070A
SY100M035C070A
SY220M035E070A
SY330M035F070A
SY470M035F070A
2
For further information please contact sales@capxon.org
Document Number: SY series
ALUMINUM ELECTROLYTIC CAPACITOR ▪ SY SERIES
STANDARD RATINGS
VR
(V)
CR
(µF)
Part number shows bulk version with straight leads
øD
(mm)
L
(mm)
Z ▪ Max.
Impedance
+20°C ▪ 100kHz
(mΩ)
1
4
7
3500
2.2
4
7
3500
3.3
4
7
3500
50
4.7
4
7
3500
6.8
5
7
2200
10
6.3
7
920
See “PACKAGING INFORMATION” to taped or formed products
IR ▪ Max.
Ripple Current
+105°C ▪ 100kHz
(mA rms)
CapXon Part Number
60
60
60
60
80
135
SY010M050B070A
SY2R2M050B070A
SY3R3M050B070A

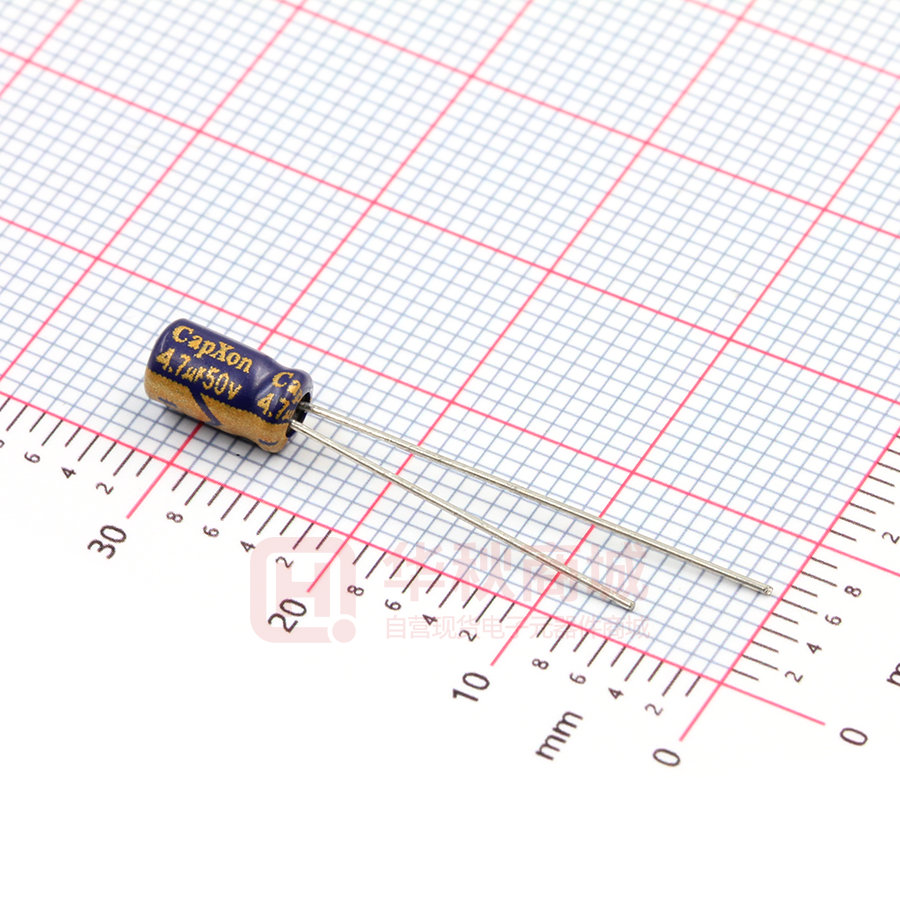

SY4R7M050B070A
SY6R8M050C070A
SY100M050E070A
±0.
d±0.02
DIMENSIONS ▪ All dimensions in mm
±0.
±a
øD
F
ød
a
4
1.5
0.45
1
mi n.
5
2
0.45
1
mi n.
6.3
2.5
0.5
1
8
3.5
0.5
1
PRECAUTIONS, GUIDELINES AND PACKAGING INFORMATION
Unless otherwise agreed in individual specifications, all products are subject to our “General Precautions
and Guidelines” as well as our “Packaging Information”. Please refer to the following links in the table.
General Precautions
& Guidelines
CapXon_Ver. 003 – 09/01/2021
Packaging Information
3D Models
3
For further information please contact sales@capxon.org
Reliability Tests
Document Number: SY series
ALUMINUM ELECTROLYTIC CAPACITOR ▪ SY SERIES
DISCLAIMER
All product related data (e.g. specification, statements and general information) are subject to change without any notice. It is necessary that the customer
observes all product related technical / application information and handling instructions.
CapXon products are designed and manufactured according to severe quality and safety standards. Under no circumstance, CapXon warrants that any
CapXon product is suitable for the purposes intended for your application, even CapXon knows the application. It is customer's duty and obligation to check
and make sure that CapXon products are suitable for the purposes intended and select the correct and proper CapXon product. Customers are requested to
perform a sufficient validation and reliability evaluation to assure needed safety level and reliability performance by suitable designs and to apply proper
safeguards (e.g. redundancies, protective circuits).
Particular operating conditions (ambient temperature, ripple current, voltage, thermal resistance, etc.) as well as storage, production or assembly may affect
the performance and the lifetime of the capacitor. Please consult CapXon for lifetime estimation, failure mode considerations or worst-case scenarios according to the product technology, product tolerances / deviations or change of the characteristics of the capacitor due to shipment, storage, handling,
production and usage.
or aerospace or military application, life‐saving, life‐sustaining, safety critical applications or any application where failure may cause severe personal injury
or death, please consult us before design‐in the capacitor in your application.
Except for the written expressed warranties, CapXon does not impliedly, by assumption or whatever else, warrant, undertake, promise any other warranty
or guaranty for any CapXon product.
For further information, please visit our website www.capxongroup.com or contact CapXon directly.
