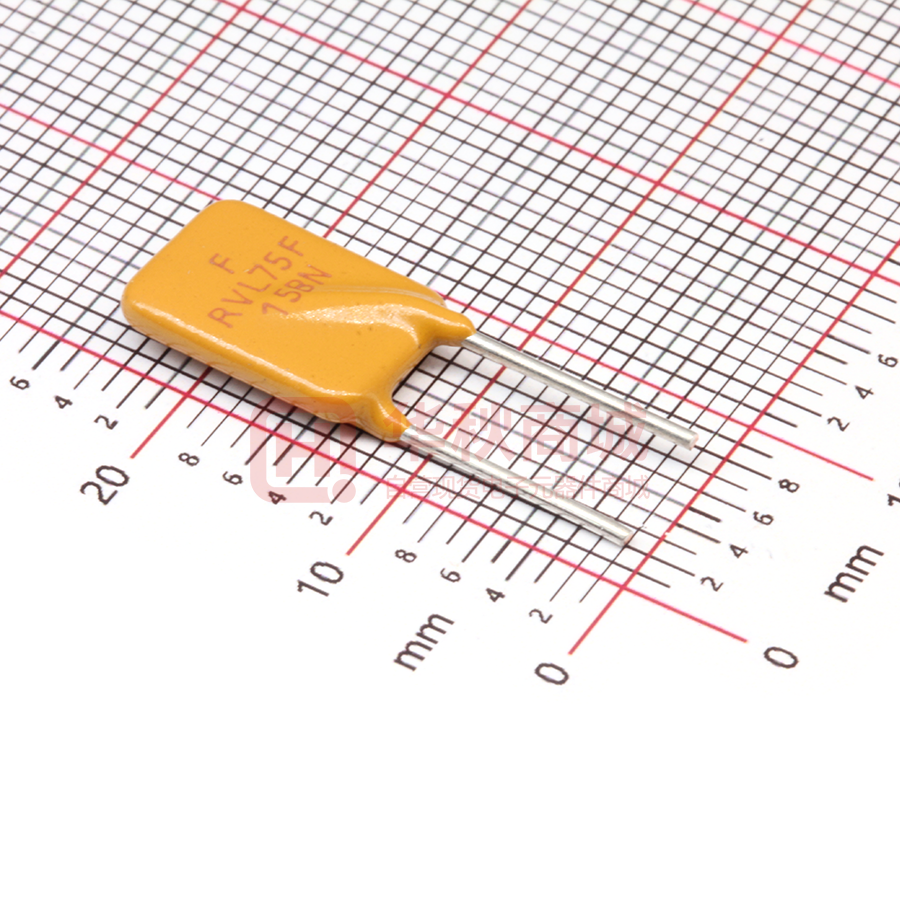

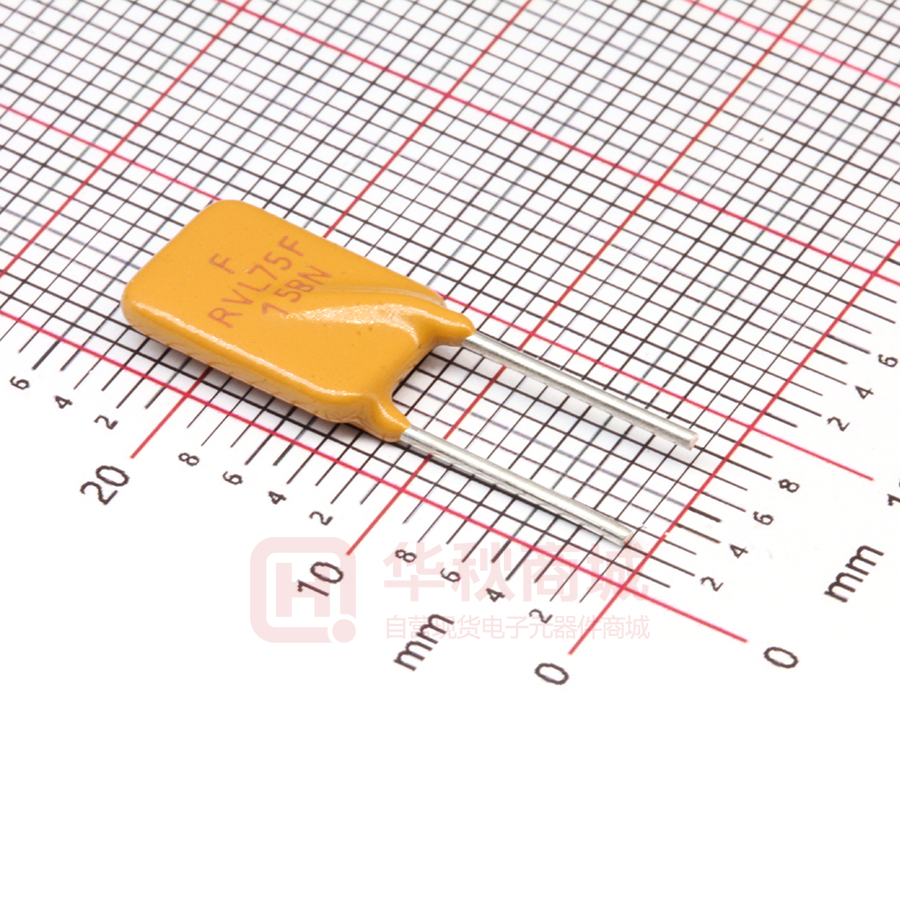

FRVL075-120F

FUZETEC TECHNOLOGY CO., LTD. NO. PQ28-122E Product Specification and Approval Sheet Version A0 Page 1/4 Radial Leaded PTC Resettable Fuse : FRVL Series 1. Summary (a) (b) (c) (d) (e) (f) (g) RoHS Compliant (Lead Free) product Applications : Wide variety of electronic equipment Product Features : Solid state, Radial leaded product ideal for up to 120VAC/DC Operation Current : 0.10A~3.75A Maximum Operating Voltage : 120VAC/DC Maximum Interrupt Voltage : 135VAC/DC Temperature Range : -40℃ to 85℃ 2. Agency Recognition UL : C-UL: TÜ V : File No. E211981 *File No. E211981 File No. R50122733 *FRVL040-120F~FRVL070-120F and FRVL090-120F~FRVL130-120F C-UL In Process. 3. Electrical Characteristics (23℃) Part Number FRVL010-120F FRVL017-120F FRVL020-120F FRVL025-120F FRVL030-120F FRVL040-120F FRVL050-120F FRVL065-120F FRVL070-120F FRVL075-120F FRVL090-120F FRVL100-120F FRVL110-120F FRVL125-120F FRVL130-120F FRVL135-120F FRVL160-120F FRVL185-120F FRVL200-120F FRVL250-120F FRVL300-120F FRVL375-120F Resistance Hold Trip Max.Time Max. Max. Oper. Max. Int. Typ Current Current to Trip Current RMIN R1MAX IT, A at 5XIH,S IMAX, A Pd, W Ohms Ohms 0.10 0.17 0.20 0.25 0.30 0.40 0.50 0.65 0.75 0.75 0.90 1.00 1.10 1.25 1.35 1.35 1.60 1.85 2.00 2.50 3.00 3.75 0.20 0.34 0.40 0.50 0.60 0.80 1.00 1.30 1.50 1.50 1.80 2.00 2.20 2.50 2.70 2.70 3.20 3.70 4.20 5.00 6.00 7.50 10.0 10.0 9.0 7.5 8.5 6.5 6.0 5.7 6.3 15.0 7.2 15.0 8.2 20.0 9.6 20.0 11.4 12.6 36.0 15.6 19.8 24.0 2.0 2.0 2.0 3.0 3.0 3.0 3.0 5.0 5.0 7.5 5.0 10.0 8.0 12.5 10.0 13.5 12.0 12.0 20.0 15.0 17.0 20.0 Voltage VI-MAX, VAC/DC 135 Power IH, A Voltage VMAX, VAC/DC 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 0.84 0.84 1.08 1.08 1.44 1.44 1.56 1.68 1.80 2.64 1.80 2.64 2.28 2.88 2.64 3.12 3.12 3.36 4.32 4.44 4.56 4.80 3.00 2.00 1.83 1.25 0.88 0.55 0.50 0.31 0.25 0.25 0.20 0.18 0.15 0.11 0.12 0.11 0.09 0.08 0.08 0.05 0.04 0.03 7.50 7.00 4.40 3.00 2.10 1.29 1.17 0.72 0.60 0.69 0.47 0.47 0.38 0.33 0.30 0.30 0.22 0.19 0.21 0.13 0.10 0.08 135 135 135 135 135 135 135 135 135 135 135 135 135 135 135 135 135 135 135 135 135 NOTE : Specification subject to change without notice. 2019/9/18 NO. FUZETEC TECHNOLOGY CO., LTD. PQ28-122E Product Specification and Approval Sheet Version A0 Page 2/4 IH=Hold current-maximum current at which the device will not trip at 23℃ still air. IT=Trip current-minimum current at which the device will always trip at 23℃ still air. V MAX=Maximum voltage device can withstand without damage at its rated current. I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX). Pd=Typical power dissipated from device when in tripped state in 23℃ still air environment. RMIN=Minimum device resistance at 23℃. R1MAX=Maximum device resistance at 23℃, 1 hour after tripping . Physical specifications: Lead material: FRVL010-120F Tin plated copper clad steel, 24AWG. FRVL017-120F Tin plated copper, 24AWG. FRVL020-120F~FRVL070-120F and FRVL090-120F Tin plated copper, 22AWG. FRVL075-120F and FRVL100-120F~FRVL375-120F Tin plated copper, 20AWG. Soldering characteristics:MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement. 4. Production Dimensions (millimeter) Fig.1 Fig.2 Fig.3 Fig.4 FRVL010-120F~FRVL017-120F FRVL020-120F~FRVL090-120F FRVL110-120F~FRVL375-120F FRVL075-120F ~FRVL200-120F Lead S ize :24AWG Lead Size :22AWG Φ 0.51 mm Diameter Φ 0.65 mm Diameter Lead Size :20AWG Φ 0.81 mm Diameter Φ 0.81 mm Diameter Part Number Lead Size : 20AWG A B C D E F Maximum Maximum Typical Minimum Maximum Typical Fig. FRVL010-120F 1 7.9 13.0 5.1 7.6 3.8 2.2 FRVL017-120F 1 7.9 13.0 5.1 7.6 3.8 2.2 FRVL020-120F 2 7.9 13.0 5.1 7.6 3.8 2.2 FRVL025-120F 2 7.9 13.0 5.1 7.6 3.8 2.2 FRVL030-120F 2 7.9 13.0 5.1 7.6 3.8 2.2 FRVL040-120F 2 8.2 14.2 5.1 7.6 3.8 2.2 FRVL050-120F 2 9.2 14.9 5.1 7.6 3.8 2.2 FRVL065-120F 2 9.7 14.9 5.1 7.6 3.8 2.2 FRVL070-120F 2 10.6 15.5 5.1 7.6 3.8 2.2 FRVL075-120F 4 10.9 17.0 5.1 7.6 4.1 2.2 FRVL090-120F 2 11.9 15.9 5.1 7.6 3.8 2.2 FRVL100-120F 4 11.5 20.1 5.1 7.6 4.1 2.2 FRVL110-120F 3 13.3 18.3 5.1 7.6 4.1 2.2 FRVL125-120F 4 14.0 21.7 5.1 7.6 4.1 2.2 FRVL130-120F 3 15.5 20.6 5.1 7.6 4.1 2.2 FRVL135-120F 4 16.3 21.7 5.1 7.6 4.1 2.2 FRVL160-120F 3 17.5 22.5 5.1 7.6 4.1 2.2 NOTE : Specification subject to change without notice. 2019/9/18 NO. FUZETEC TECHNOLOGY CO., LTD. PQ28-122E Product Specification and Approval Sheet Version A0 Page 3/4 FRVL185-120F 3 19.9 24.9 5.1 7.6 4.1 2.2 FRVL200-120F 4 23.5 27.9 10.2 7.6 4.1 2.2 FRVL250-120F 3 22.5 27.5 10.2 7.6 4.1 2.2 FRVL300-120F 3 25.5 30.0 10.2 7.6 4.1 2.2 FRVL375-120F 3 29.5 34.0 10.2 7.6 4.1 2.2 5. Thermal Derating Curve FRVL Series Precent of Rated Hold and Trip Current 200% 150% 100% 50% 0% -40 -20 0 20 40 60 80 Ambient Temperature (C) 6. Typical Time-To-Trip at 23℃ A=FRVL010-120F A BCDE F G H I J K LM N O P Q 1000 B=FRVL017-120F C=FRVL020-120F D=FRVL025-120F 100 E=FRVL030-120F F=FRVL040-120F H=FRVL065-120F I=FRVL070-120F J=FRVL090-120F K=FRVL110-120F L=FRVL130-120F Time-to-trip (S) G=FRVL050-120F 10 1 M=FRVL160-120F N=FRVL185-120F 0.1 O=FRVL250-120F P=FRVL300-120F Q=FRVL375-120F 0.01 0.1 1 10 100 Fault current (A) NOTE : Specification subject to change without notice. 2019/9/18 NO. FUZETEC TECHNOLOGY CO., LTD. PQ28-122E Product Specification and Approval Sheet Version A0 Page 4/4 R=FRVL075-120F S=FRVL100-120F T=FRVL125-120F U=FRVL135-120F V=FRVL200-120F 7. Material Specification Lead material： FRVL010-120F Tin plated copper clad steel, 24 AWG. FRVL017-120F Tin plated copper, 24 AWG. FRVL020-120F~FRVL070-120F and FRVL090-120F Tin plated copper, 22AWG. FRVL075-120F and FRVL100-120F~FRVL375-120F Tin plated copper, 20AWG. Soldering characteristics:MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement 8. Part Numbering and Marking System Part Numbering System Part Marking System FRVL □ □ □ ─ □ □ □ F RoHS Compliant / Lead Free Voltage Rating F RVL10F 91AB F RVL Fuzetec Logo □ □ F Current Rating Example □ □ □ □ RoHS Compliant / Lead Free Part Identification Product Family Date Code/Lot Number Note: Font on Marking may look slightly different due to fine turnings of each Marking printer. Warning: - Each product should be carefully evaluated and tested for their suitability of application. - Operation beyond the specified maximum rating or improper use may result in damage and possible electrical arcing and/or flame. - PPTC device are intended for occasional overcurrent protection. Application for repeated overcurrent condition and/or prolonged trip are not anticipated. - Avoid contact of PPTC device with chemical solvent, including some inert material such as silicone based oil, lubricant and etc. Prolonged contact will damage the device performance. - Additional protection mechanism are strongly recommended to be used in conjunction with the PPTC device for protection against abnormal or failure conditions. - Avoid use of PPTC device in a constrained space such as potting material, housing and containers where have limited space to accommodate device thermal expansion and/or contraction. NOTE : Specification subject to change without notice. 2019/9/18
