CESD923NC5VB

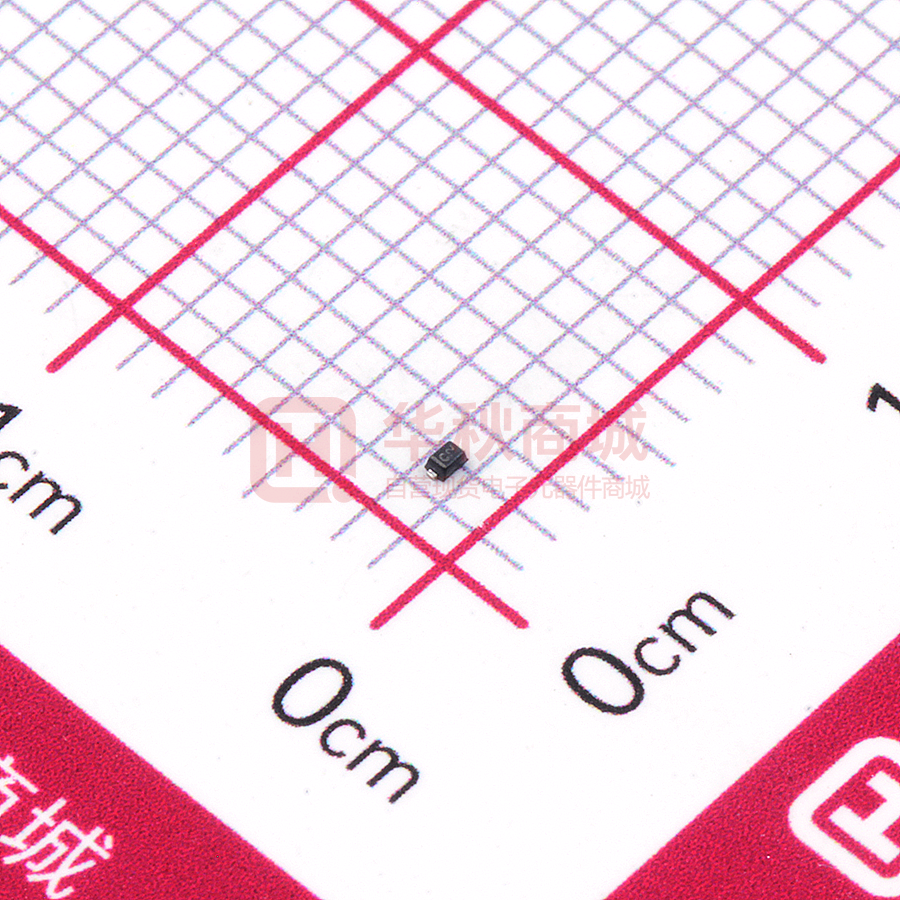

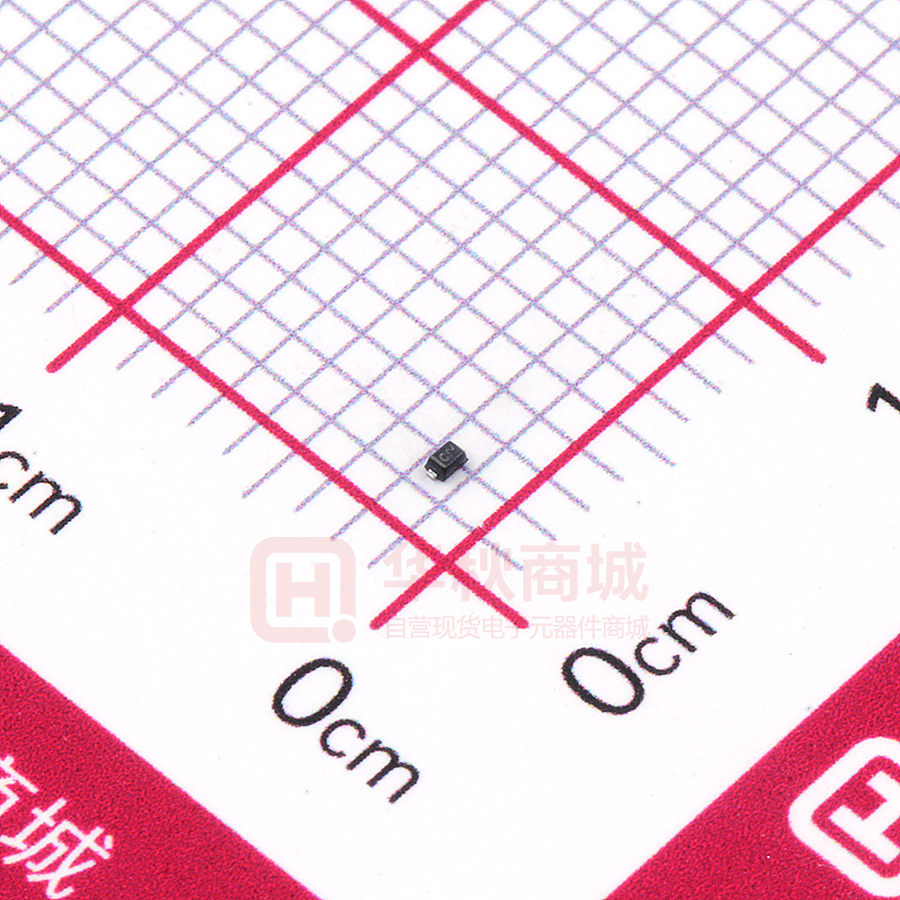

CESD923NC5VB CREATEK Microelectronics ESD Protection Diode in SOD-923 Features ■ 100 Watts peak pulse power (tp = 8/20μs) ■ Tiny SOD923 package 1 ■ Bidirectional configurations ■ Protects one I/O port 1 ■ Low clamping voltage 2 ■ Low Leakage current ■ ESD-immunity acc. IEC 61000-4-2 ±30KV contact 2 ±30KV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 8A (8/20μs) Mechanical Data Applications ■ Case: SOD923 (plastic package). Lead free; RoHS compliant ■ Computers and peripherals ■ Molding Compound Flammability Rating: UL 94 V-0 ■ Notebook ■ Terminals: High temperature soldering guaranteed: 260 °C/10 sec. at terminals ■ Portable electronics ■ Communication systems ■ Cellular handsets and accessories ■ Audio and video equipment Absolute Maximum Ratings Ratings at 25 °C, ambient temperature unless otherwise specified Symbol Value Unit ESD Air Discharge per IEC 61000-4-2 Parameter VESD ± 30 kV ESD Contact Discharge per IEC 61000-4-2 VESD ± 30 kV Peak pulse power 8/20 µs waveform PPPM 100 W Peak pulse current 8/20 µs waveform IPPM 8 A TJ - 55 to + 125 °C TSTG - 55 to + 150 °C Operating Temperature Storage Temperature Electrical Characteristics (TA = 25 °C unless otherwise specified) Parameter Test Conditions Reverse Stand-Off Voltage Max. Unit VRWM 5 V Synbol Min. Typ. Max. Reverse current at VR = 5 V IR 1 µA Max. Clamping voltage at IPP = 8 A, Acc. IEC 61000-4-5 VC 13 V Min. Reverse Breakdown Voltage at IR = 1 mA VBR Capacitance Rev. 1.0 at VR = 0 V ; f = 1 MHz CD 6.0 6.8 V 15 pF www.crea-tek.com 1 CESD923NC5VB CREATEK Microelectronics Typical Characteristics (Tamb = 25 °C unless otherwise specified) Fig.1 Peak Pulse Power Rating Curve Fig.2 Pulse Derating Curve % of Rated Power (PPP) or IPP Peak Pulse Power –PPP(KW) 10 1 100W 0.1 0.01 0.1 1 10 100 110 100 1000 80 60 40 20 0 0 Pulse Duration tp (μs) 100 125 100%IPP , 8μS 150 100% 90% 30ns 80 50%IPP, 20μS -t e 60 Percent of IPP Percent of IPP 75 Fig.4 Pulse Waveform-ESD(IEC61000-4-2) 100 40 20 0 50 Ambient Temperature—TA(℃) Fig.3 Pulse Waveform-8/20μs 120 25 60ns 10% 5 0 10 15 20 25 30 tr 0.7 to 1ns 0 30 60 Time (ns) Time (μs) Package Dimensions A Dim C A D F B Rev. 1.0 G E millmeters min max 0.34 0.40 B 0.07 0.17 C 0.55 0.65 D 0.75 0.85 E 0.95 1.05 F 0.05 0.15 G 0.15 0.25 www.crea-tek.com 2 CESD923NC5VB CREATEK Microelectronics Part number system CES D923 NC 5V B Product series (ESD) Package (SOD-923) Capacitance type (Normal capacitance) Working voltage (5V) Directional (Bidirectional) Ordering information Order code Package Packaging option Base quantity Packaging specification CESD923NC5VB SOD-923 Tape and reel 8000pcs / reel EIA STD RS-481 Revision history Date Revision 23-May-2016 1.0 Rev. 1.0 Changes Initial release www.crea-tek.com 3 CESD923NC5VB CREATEK Microelectronics CAUTION / WARNING Information in this document is believed to be accurate and reliable. However, CREATEK does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Users should independently evaluate the suitability of and test each product selected for their own applications, and CREATEK assumes no liability whatsoever relating to the choice, selection or use of the CREATEK products and services described herein. CREATEK reserves the right to change or update, without notice, any information contained in this publication; to change, without notice, the design, construction, processing, or specification of any product; and to discontinue or limit production or distribution of any product. Information in this document supersedes and replaces all information previously supplied. Products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or malfunction of an CREATEK product can reasonably be expected to result in personal injury, death or severe property or environmental damage. CREATEK accepts no liability for inclusion and/or use of CREATEK products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from national authorities. Resale of CREATEK products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by CREATEK for the CREATEK product or service described herein and shall not create or extend in any manner whatsoever, any liability of CREATEK. CREATEK expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. CREATEK only obligations are those in the CREATEK Standard Terms and Conditions of Sale and in no case will CREATEK be liable for any incidental, indirect, or consequential damages arising from the sale, resale, use, or misuse of its products. Specifications are subject to change without notice t © Copyright 2009,CREATEK Microelectronics ® is a registered trademark of CREATEK Microelectronics All rights reserved Rev. 1.0 www.crea-tek.com 4
