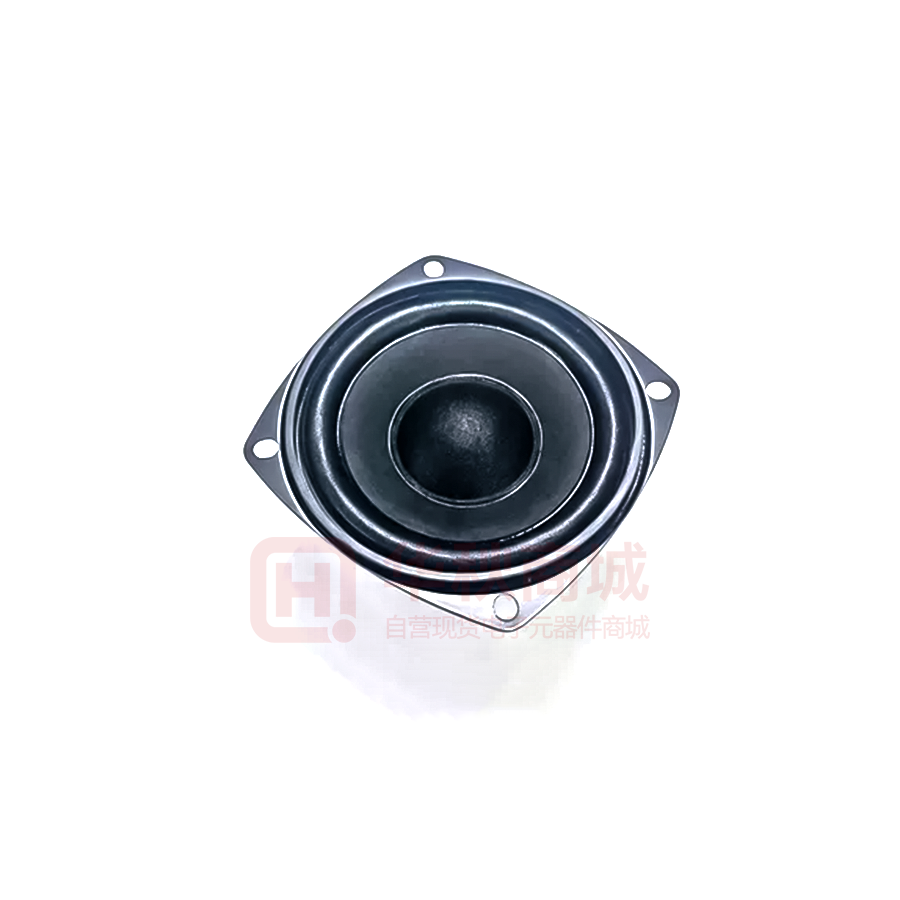

SP780104-4

4 3 2 1 Part Number: DRAWN SP780104-4 8/4/2016 CJ CHECKED 8/4/2016 P.D. Description: APPROVED Dynamic Speaker 8/4/2016 J.S. D D This document contains data proprietary to DB Unlimited. Any use or reproduction, in any form, without prior written permission of DB Unlimited is prohibited. All terms and conditions can be found at www.dbunlimitedco.com Top View Side View 39.20 78.60 Bottom View 84.00 1.00 4.70 0.30 0.30 C C 1.00 0.30 50.00 78.60 70.00 4 - 5.20 x 4.40 B A B Items Specifications Conditions Sound Pressure Level 104 dB (@ 10cm) Resonant Frequency 118 Hz Frequency Range 228 ~ 15,000 Hz Nominal Power 5 W Max. Power 8 W Impedance 4 NOTES Cone Material Paper 1) All dimensions are in mm unless otherwise noted Mount Type Frame Mount Storage Temperature -25 ~ +55 C 3) All parts meet RoHS Operating Temperature -25 ~ +55 4) Subject to change or redrawn without notice Weight 122 C g 4 REVISION HISTORY REV 1 DESCRIPTION DATE APPROVED Released from Engineering 10/21/2013 J.S. Updated to new template 8/4/2016 J.S. 2) All tolerances are 3 2 0.5 mm unless otherwise noted 1 A
