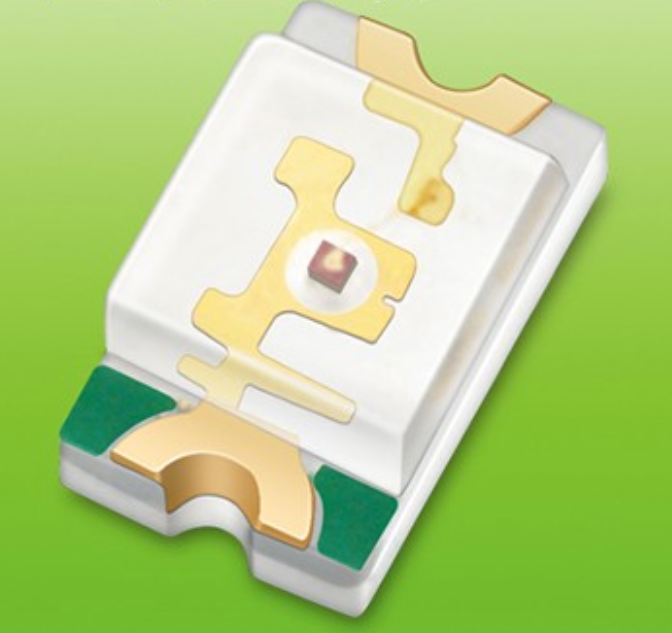

TJ-S1615RGBZJ06YJY-A3

TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 承 認 書 Specification For Approval Customer: (客戶) Description: (產品描述) Part number:(產品型號) Date: LED(SMD)0603RGB TJ-S1615RGBZJ06YJY-A3 (日期) Approved By: (客戶承認) Prepared By:(我司承認) Approval 核准 Check Design 審核 製作 Sales 業務 Customer Service Hotline：400-676-8616 TEL：0769-8662 5999 0769-8200 2226 E-MIAL∶Yzl@togialed.com FAX：0769-8200 2227 WEB：www.togialed.com TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Features 1.6mmⅹ1.5mm SMD LED, 0.6mm thickness Low power consumption Wide view angle Package: 4000pcs/reel RoHS Compliant Applications Ideal for back light and indicator Various colors and lens types available Package outlines Recommend Pad Layout 1.60 [0.06"] 4 3 0.50 [0.02"] 1 1.60 [0.06"] 2 1.50 [0.06"] CHIP 0.60 [0.02"] 1.10 [0.04"] 0.90 [0.04"] 2.60 [0.10"] 3.00° 0.70 [0.03"] 0.30[ 0.01"] 4 3 2 1 2 4 3 ATTENTION B OBSERVE PRECAUTIONS FOR HANDLING G ELECTROSTATIC SENSITIVE DEVICES 1 R Part No. ＴＪ－Ｓ１６１５ＲＧＢＺＪ０６ＹＪＹ－Ａ３ Emitted color Dice Material Red AlGaInP Green InGaN/GaN Blue InGaN/GaN Notes: All dimensions are in millimeters (inches); Tolerances are 0.1mm (0.004inch) unless otherwise noted. Lens color Water transparent TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Absolute Maximum Ratings (Ta=25℃) Value Parameter Symbol Unit R G B 72 111 111 Power dissipation Pd mW Forward current If 30 mA Reverse voltage Vr 5 V Operating temperature Top -40 ~+80 ℃ Storage temperature Tstg -40 ~+85 ℃ Peak pulsing current (1/8 duty f=1kHz) Ifp 125 mA Electro-Optical Characteristics (Ta=25℃) Parameter Test Condition Value Symbol Wavelength at peak emission If=20mA λp Spectral half bandwidth If=20mA △λ Dominant wavelength If=20mA λd Forward voltage If=20mA Vf Unit R G B R G B R G B R G B R G B Min Typ Max ------620 515 460 1.8 2.8 2.8 80 400 80 632 520 465 18 35 25 ------- ------630 530 470 2.4 3.4 3.4 ---- 200 800 200 mcd nm nm nm V Luminous intensity If=20mA Iv Viewing angle at 50% Iv If=10mA 2θ1/2 -- 120 -- Deg Vr=5V Ir -- -- 10 A Reverse current TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Optical characteristic curves (Red) Intensity vs. (%) Relative Intensity Relative Forward Current vs. Forward Voltage Forward (V) Voltage Wavelength Forward (mA) Current Directive Characteristics TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Optical Characteristic Curves (Green) Intensity vs. (%) Relative Intensity Relative Forward Current vs. Forward Voltage Forward (V) Voltage Wavelength Forward (mA) Current Directive Characteristics TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Optical characteristic curves (Blue) Intensity vs. (%) Relative Intensity Relative Forward Current vs. Forward Voltage Forward (V) Voltage Wavelength Forward (mA) Current Directive Characteristics TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Reflow Profile  Reflow Temp/Time 300 (℃ ) 10 S Max. 260℃ Max. 250 230℃ 4℃ /S Max. 200 150~180℃ 4℃ /S Max. Temperature 150 60~120 S 100 30~50 S 50 25℃ 0 50 100 150 200 Time Notes: 250 300 (sec) 1. We recommend the reflow temperature 245℃ (±5℃).the maximum soldering temperature should be limited to 260℃. 2. Don’t cause stress to the epoxy resin while it is exposed to high temperature. 3. Number of reflow process shall be 2 times or less. Soldering iron Basic spec is  5sec when 320℃ (±20℃). If temperature is higher, time should be shorter (+10℃ -1sec). Power dissipation of iron should be smaller than 20W, and temperatures should be controllable .Surface temperature of the device should be under 350℃. Rework 1. Customer must finish rework within 5 sec under 340℃. 2. The head of iron cannot touch copper foil 3. Twin-head type is preferred. Correct( ) Mistake( )  Avoid rubbing or scraping the resin by any object, during high temperature, for example reflow solder etc. TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Test circuit and handling precautions  Test circuit + V - R LED  Handling precautions 1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 It is recommended to store the products in the following conditions: Humidity: 60% R.H. Max. Temperature: 5℃~30℃ 2.2 Shelf life in sealed bag: 12 month at ＜5℃~30℃ and ＜30% R.H. after the package is opened, the products should be used within a week or they should be keeping to stored at≦20 R.H. with zip-lock sealed. 3. Baking It is recommended to baking before soldering when the pack is unsealed after 72hrs. The Conditions are as followings: 3.1 60±3℃ x (12~24hrs) and ＜5%RH, taped reel type 3.2 100±3℃ x (45min~1hr), bulk type 3.3 130±3℃ x (15~30min), bulk type TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Test Items and Results of Reliability Test Item Test Conditions Standard Test Method Note Number of Test Reflow Soldering Ta=260±5℃,Time=10±2S JB/T 10845-2008 3times 0/22 Salt Atmosphere Ta=35±3℃,PH=6.5～7.2 GB/T 2423.17-2008 24hrs 0/22 Temperature Cycling -40±5℃ 30±1min ↑→(25℃/5±1min)↓ 100±5℃ 30±1min GB/T 2423.22-2012 100cycles 0/22 Ta=-40±5℃～100±5℃, 15±1min dwell GB/T 2423.22-2012 100cycles 0/22 High Humidity High Temp. Ta=30±5℃～65±5℃, 90±5%RH,24hrs/1cycle Cycling GB/T 2423.4-2008 10cycles 0/22 High Humidity High Temp. Ta=85±5℃,ψ(%)=85±5%RH Storage Life GB/T 2423.3-2006 1000hrs 0/22 Thermal Shock High Temperature Storage Life Ta=100±5℃,non-operating GB/T 2423.2-2008 1000hrs 0/22 Low Temperature Storage Life Ta=-40±5℃,non-operating GB/T 2423.1-2008 1000hrs 0/22 -- 1000hrs 0/22 GB/T 2423.3-2006 500hrs 0/22 GB/T 2423.1-2008 1000hrs 0/22 Life Test Ta=26±5℃,@20mA, ψ(%)=25%RH～55%RH High Humidity High Temp. Ta=85±5℃,@20mA, ψ(%)=85%RH Operating Life Low Temperature Operating Life Ta=-20±5℃,@20mA TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Series SMD Chip LED Lamps Packaging Specifications  Feeding Direction  Dimensions of Reel (Unit: mm) Feeding Direction RoHS 57.54 [2.27"] 13.30 [0.52"] 颜色标签 Lable 178.50 [7.03"] 9.40 [0.37"] Dimensions of Tape (Unit: mm) 2.00 [0.08"] 1.75 [0.07"] A 0.23 [0.01"] 1.00 [0.04"] 1.50 [ 0.06"] 5.25 [0.21"] 4.00 [0.16"] 8.00 [0.31"]  0.93 [0.04"] 4.00 [0.16"]  1.78 [0.07"] A Arrangement of Tape Empty parts (Min.20pcs) Loaded parts (LED:4000pcs) Empty parts (Min.40pcs) Feeding Direction Conclusion parts (Min.100mm) Introduction parts (Min.300mm) Notes: 1. Empty component pockets are sealed with top cover tape; 2. The maximum number of missing lamps is two; 3. The cathode is oriented towards the tape sprocket hole in accordance with ANSI/EIA RS-481 specifications. 4. 4,000pcs/Reel. TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Series SMD Chip LED Lamps Packaging Specifications  Packaging specifications Moisture-proof bag 颜色标签 Reel(4,000PCS) RoHS RoHS Lable Lable Ro HS La La ble ble HS Ro Outside box Maximums four inside boxes Inside box Maximums ten reels Notes: Reeled products (numbers of products are 4,000pcs) packed in a seal off moisture-proof bag along with a desiccant one by one, ten moisture-proof bag of maximums (total maximum number of products are 40,000pcs) packed in an inside box (about size: 240x 220x 120mm) and four inside boxes of maximums are put in the outside box (about size: 460mm x 246mm x 250mm) Together with buffer material, and it is packed. (Part No., Lot No., quantity should appear on the label on the moisture-proof bag, part No. And quantity should appear on the label on the cardboard box.) The number of the loading steps of outside box (cardboard box) has it to three steps.
