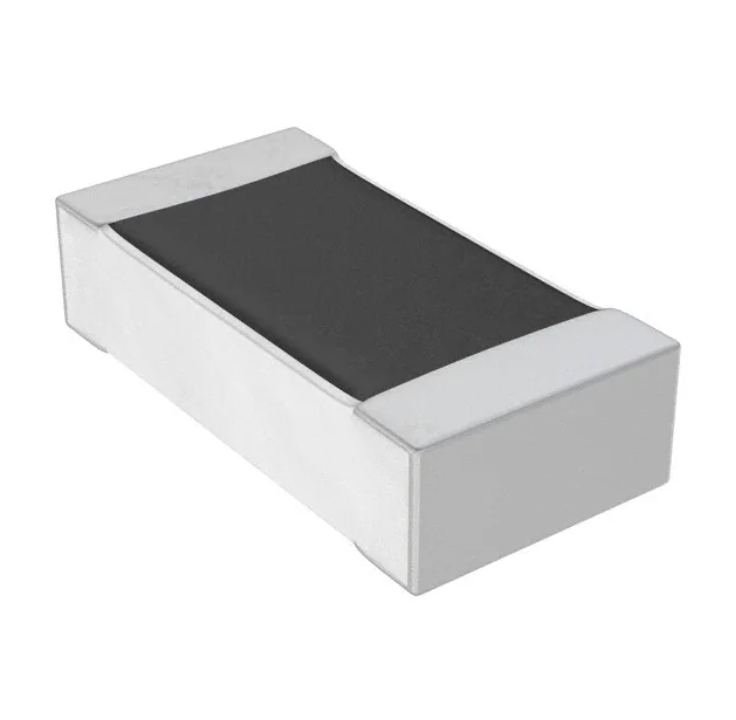

FMF25FPJR003-LH

信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co.,Taoyuan Ltd. 33860, Taiwan, R.O.C. No.220-1, Sec. 2, Nanshan Rd., Lujhu, Tel.：886-3-3224471 Fax：886-3-3212216 SPECIFICATION FOR APPROVAL DATE: CUSTOMER: PART NAME: Anti-Surge Lead Free &. Halogen Free Chip Resistors CUSTOMER'S DWG. NO. CUSTOMER'S PART NO. PDC PART NO. FNF SERIES APPROVED DESCRIPTION. DESCRIPTION ACTION RESULT " ˇ" CUSTOMER'S SIGNATURE NOTE FULL APPROVED CONDITIONAL APPROVED REJECTED OUR ACTION SIGNATURE PREPARED BY Jenny Tseng CHECKED BY Tony Chou APPROVED BY Byron Tsai Edition : F N F - R e v .14.0.I27 CUSTOMER SIGNATURE FOR ACCEPTANCE Serial Number : I PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors 1. Features ………………………………………..……………..…….2 2. Applications…..…..………………………………..………………. 2 3. Dimension and construction ………………………..……………..2 4. Power Derating Curve …..…………………………….…………..3 5. Rating ……………………………………………………………….3 6. Part Number ………………………………..………………………4 7. Resistance Marking / Soldering 8. Reliability Performance…………………………………………….6 9. Packing ………………………………………………….…………..9 9.1 Peel Strength of Top Cover Tape……………………………….9 9.2 Tape Packaging Dimensions……………………………………9 9.3 Reel Dimensions………………………………………………....10 ………………………………..4 10. Storage / Handling ……………………………………….…………..10 Prosperity Dielectrics Co., Ltd. 1/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors 1. Features      High reliability and compact size. Suitable for withstanding surge voltage. Suitable for lead free soldering. RoHS compliant & Halogen Free. Meet AEC-Q200 2. Applications      Power supply. Automotive industry. Digital meter, Consumer electronics, M/B. LED Lighting. Industry control board. 3.Dimension and Construction Type Unit：mm T L W C D FNF03 1.60±0.10 0.80±0.10 0.30±0.20 0.30±0.20 0.45±0.10 FNF05 2.00±0.10 1.25±0.10 0.40±0.20 0.40±0.20 0.50±0.10 FNF06 3.10±0.10 1.60±0.10 0.50±0.25 0.50±0.25 0.55±0.10 FNF12 3.10±0.10 2.60±0.10 0.50±0.25 0.50±0.25 0.55±0.10 FNF20 5.00±0.20 2.50±0.20 0.60±0.25 0.60±0.25 0.60±0.10 FNF25 6.40±0.20 3.20±0.20 0.60±0.25 0.90±0.25 0.60±0.15 Prosperity Dielectrics Co., Ltd. 2/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors 4.Power Derating Curve Operating Temperature Range: -55 to +155 deg.C 5.Rating Type Size Power Max. Max. Resistance Temperature Rating RCWV Overload Tolerance at 70℃ Voltage FNF03 0603 1/10W 50V 100V FNF05 0805 1/8W 150V 300V FNF06 1206 1/4W 200V 400V ±10%(K) ±15%(L) FNF12 1210 1/3W 200V 400V FNF20 2010 3/4W 200V 400V FNF25 2512 1W 200V 400V Resistance Standard Range Resistance Coefficient ( ppm/℃) Min. Max. Values ±100 1Ω 1MΩ E24 ±5%(J) ±20%(M) Note：RCWV＝(P×R)1/2 or Max. RCWV listed above, whichever is lower. RCWV：Working Voltage (V)，P：Rated Power (W)，R：Resistance Value (Ω) Prosperity Dielectrics Co., Ltd. 3/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors 6.Part Number Type Size Tolerance FNF 03 :0603 J :±5% 05 :0805 Packing Watt Paper Tape： -: K :±10% 0603.0805 As 06 :1206 L :±15% 1206.1210 Rating 12 :1210 M :±20% T : 5Kpcs Info R Value Special (GM) Code XXX ” Null ” : Standard 3 digit -M : 20 :2010 V : 10Kpcs Meet 25 :2512 W : 20Kpcs AEC-Q200 Plastic Tape： 2010.2512 P : 4Kpcs X : 8Kpcs Y : 16Kpcs Example： FNF25JP-104-M 2512 size, tolerance 5%, plastic tape, 1W, 1 MΩ, Aec-Q200. FNF06KT-104 Peak Power(W) 1206 size, tolerance 10%, paper tape, 1/4W, 100 KΩ, standard. 2512 FNF Surge Performance 2010 10000.0 1210 1206 1000.0 0805 0603 100.0 10.0 1.0 100us 1ms 10ms 100ms 1s Surge Duration(Sec) Prosperity Dielectrics Co., Ltd. 4/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors 7.Marking/Soldering Resistance value identify： E24 ±5%：3 Digits marking with underline to identify the resistance value 0603/0805/1206/1210/2010/2512 301 1 301 → 30 x 10 = 300Ω Soldering Reference： Recommend Solder Pad Dimensions： Type W D L FNF03 0.90 1.00 3.00 FNF05 1.30 1.15 3.50 FNF06 1.80 1.30 4.70 FNF12 3.00 1.30 4.70 FNF20 3.00 1.50 6.80 FNF25 3.70 1.60 7.60 Prosperity Dielectrics Co., Ltd. Unit:mm 5/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors 8. Reliability Performance (AEC-Q200) * Normal test items for standard product. Test Item Test Method (AEC-Q200. IEC 60115) Specification *DC Resistance J：± 5% K：±10% L：±15% M：±20% AEC-Q200 TABLE 7.1 IEC 60115-1 / JIS C 5201-1 , Clause 4.5 Measure the resistance Value. High Temperature Exposure (Storage) *Temperature Cycling ∆R≦ ±(3%+0.1Ω) 1000 hrs. @ T=125℃. Unpowered. Measurement at 24 ±2 hours after test conclusion. ∆R≦ ±(1%＋0.1Ω) No mechanical damage. Moisture Resistance AEC-Q200 TABLE 7.3 ∆R≦ ±(1%+0.1Ω) AEC-Q200 TABLE 7.4 1000 Cycles (-55°C to +125°C). Measurement at 24±2 hours after test conclusion. AEC-Q200 TABLE 7.6 Test 65℃/80~100%RH/10Cycles. Measurement at 24±2 hours after test conclusion. (t=24hrs/cycle). Biased Humidity ∆R≦ ±(5%+0.1Ω) AEC-Q200 TABLE 7.7 1000 hours 85℃/85%RH. 10% of operating power. Measurement at 24 ±2 hours after test conclusion. Operational Life ∆R≦ ±(5%+0.1Ω) AEC-Q200 TABLE 7.8 Test 1000hr @ TA=125℃ at specified rated power. Measurement at 24±2 hours after test conclusion. External Visual No visual damage and refer AEC-Q200 TABLE 7.9 PDC marking code. Inspect device construction, marking and workmanship. Physical Dimension Within the spec. AEC-Q200 TABLE 7.10 Verify physical dimensions to the applicable device detail specification. Mechanical Shock Within product specification AEC-Q200 TABLE 7.13 tolerance and no visible Test Peak value:100g's,Wave:Hail-sine, damage. Duration:6ms,Velocity:12.3ft/sec. Prosperity Dielectrics Co., Ltd. 6/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors Test Item Vibration Test Method (AEC-Q200. IEC 60115) Specification No mechanical damage. AEC-Q200 TABLE 7.14 5 g's for 20 min., 12 cycles each of 3 orientations. Test from 10-2000 Hz. *Resistance to ∆R≦ ±(1%＋0.1Ω) Solder Heat AEC-Q200 TABLE 7.15 Solder dipping @ 270℃±5℃ for 10sec.±1sec. No mechanical damage. Thermal Shock ∆R≦ ±(1%＋0.1Ω) No mechanical damage. ESD ∆R≦ ±(3%＋0.1Ω) *Solder Ability Over 95% of termination AEC-Q200 TABLE 7.16 -55 to 155℃/ dwell time 15min/ Max transfer time 20sec/ 300cycles. AEC-Q200-002 Test contact min. 1KV. AEC-Q200 TABLE 7.18 must be covered with a)Baking 155℃ 4H, dipping 235℃ 5s solder. b)Steam 1H, dipping 215℃ 5s c)Steam 1H, dipping 260℃ 7s Flammability Refer UL-94. AEC-Q200 TABLE 7.20 UL-94 V-0 or V-1 are acceptable *Board Flex Terminal Strength ∆R≦ ±(1%＋0.1Ω) AEC-Q200 TABLE 7.21 Bending 2mm 2512.2010.1210.1206, No mechanical damage. 3mm 0805.0603. No mechanical damage AEC-Q200 TABLE 7.22 Force 1 Kg for 60 seconds. *Short Time ∆R≦ ±(2%＋0.1Ω) Overload IEC 60115-1, Clause 4.13 *Load Life Humidity IEC 60115-1, Clause 4.24 ∆R≦ ±(3%+0.1Ω) 5 × Rated power for 5 seconds 40±2℃ with relative humidity 90% ~ 95% D.C. rated voltage for 1.5 hours ON 30 minutes OFF. Cycle repeated 1000 hours. Prosperity Dielectrics Co., Ltd. 7/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors Test Item *Temperature Coefficient of Resistance (TCR) Test Method (AEC-Q200. IEC 60115) Specification Within the spec. IEC 60115-1, Clause 4.8 T1 T2 Test temperature： 25℃~ -55℃ 25℃~ +155℃ TCR(ppm/℃) = (R2-R1)/R1×1 / (T2-T1)×106 *Load Life ∆R≦ ±(3%+0.1Ω) IEC 60115-1, Clause 4.25 Rated voltage for 1.5 hours for followed by a pause 0.5 hour at 70±2℃. Cycle repeated 1000 hours. *Insulation Resistance Between termination and IEC 60115-1, Clause 4.6 coating must over 1000MΩ Test voltage：100±15V Prosperity Dielectrics Co., Ltd. 8/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors 9. PACKAGING 9.1 Peel Strength of Top Cover Tape The peel speed shall be about 300 mm/min The peel force of top cover tape shall between 0.1 to 0.7N 9.2 Tape Packaging Dimensions unit:mm Size A B W F E P1 P2 P0 D 0603 1.10±0.20 1.90±0.20 8.00±0.30 3.50±0.05 1.75±0.10 4.00±0.10 2.00±0.05 4.00±0.10 1.50+0.10/-0 0805 1.65±0.20 2.40±0.20 8.00±0.30 3.50±0.05 1.75±0.10 4.00±0.10 2.00±0.05 4.00±0.10 1.50+0.10/-0 1206 2.00±0.20 3.60±0.20 8.00±0.30 3.50±0.05 1.75±0.10 4.00±0.10 2.00±0.05 4.00±0.10 1.50+0.10/-0 1210 3.00±0.20 3.60±0.20 8.00±0.30 3.50±0.05 1.75±0.10 4.00±0.10 2.00±0.05 4.00±0.10 1.50+0.10/-0 2010 2.80±0.20 5.50±0.20 12.00±0.30 5.50±0.05 1.75±0.10 4.00±0.10 2.00±0.05 4.00±0.10 1.50+0.10/-0 2512 3.50±0.20 6.70±0.20 12.00±0.30 5.50±0.05 1.75±0.10 4.00±0.10 2.00±0.05 4.00±0.10 1.50+0.10/-0 Prosperity Dielectrics Co., Ltd. 9/10 FNF-REV.14.0.I27 PDC FNF series. (AEC-Q200) Anti-Surge Thick-film Lead Free Chip Resistors 9.3 Reel Dimensions unit:mm Size 0603 0805 1206 1210 2010 2512 Packaging Q’ty A N C D B G T 5kpcs/Reel 178.0±2.0 60.0±0.5 13.0±0.5 20(Min.) 2.0±0.5 10.0±1.5 14.9max. 10kpcs/Reel 254.0±2.0 100.0±1.0 13.5±0.5 20(Min.) 2.0±0.5 10.0±1.5 14.9max. 20kpcs/Reel 330.0±2.0 100.0±1.0 13.5±0.5 20(Min.) 2.0±0.5 10.0±1.5 14.9max. 4kpcs/Reel 178.0±2.0 60.0±0.5 13.0±0.5 20(Min.) 2.0±0.5 13.8±1.5 16.7max. 8kpcs/Reel 254.0±2.0 100.0±0.5 13.5±0.5 20(Min.) 2.0±0.5 13.8±1.5 20.0max. 16kpcs/Reel 330.0±2.0 100.0±1.0 13.5±0.5 20(Min.) 2.0±0.5 13.8±1.5 20.0max. 10. Storage &. Handling … Products are recommended to be used up within one year as ensured shelf life. Check solder ability in case shelf life extension is needed. … To store products with following condition: Temperature:5 to 40℃；Humidity: 20 to 70% relative humidity. Precaution for use： The AEC-Q200 series resistors is mainly used on general automotive equipment without safety considerations. Please contact our company in advanced if you intend to use resistor for designing the equipment which may damage itself and the safety of third party. If necessary, please consider to add the protect circuit in devising process and obtaining fully safety evaluation. The contents of the acknowledgment is only used for our parent company, marketing subsidiaries and official marketing agents who purchase our products. Not applicable for the other nonofficial channels. Prosperity Dielectrics Co., Ltd. 10/10 FNF-REV.14.0.I27 PDC
