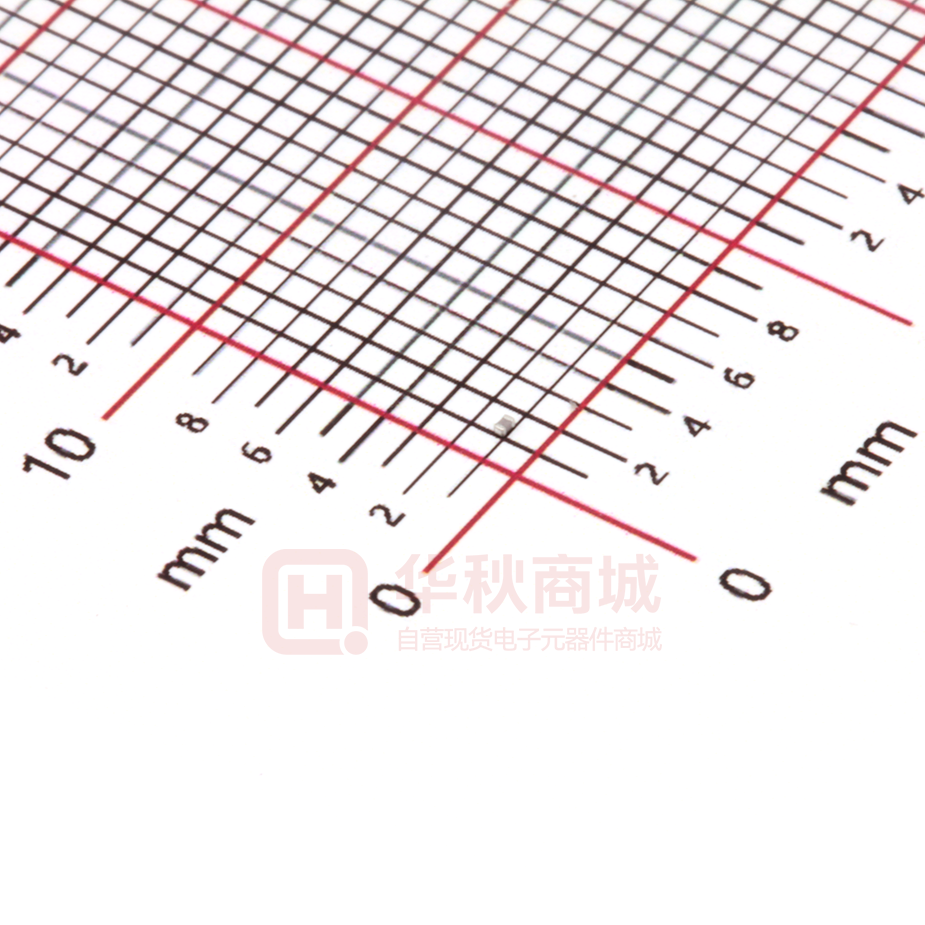

RF03N0R3A250CT

Multilayer Ceramic Capacitors Approval Sheet MULTILAYER CERAMIC CAPACITORS Microwave Series (RF) 01005 to 1111 Sizes (6.3V to 1500V) NP0 Dielectric Halogen Free & RoHS Compliance *Contents in this sheet are subject to change without prior notice. Page 1 of 16 ASC_Ultra HQ_Low ESR_(RF)_014AC_AS Sep. 2017 Multilayer Ceramic Capacitors Approval Sheet 1. INTRODUCTION MLCC consists of a conducting material and electrodes. To manufacture a chip-type SMT and achieve miniaturization, high density and high efficiency, ceramic condensers are used. WTC RF series MLCC is used at high frequencies generally have a small temperature coefficient of capacitance, typical within the ±30ppm/°C required for NP0 (C0G) classification and have excellent conductivity internal electrode. Thus, WTC RF series MLCC will be with the feature of low ESR and high Q characteristics. 2. FEATURES 3. APPLICATIONS a. b. c. d. a. High Q and low ESR performance at high frequency. Ultra low capacitance to 0.1pF. Can offer high precision tolerance to ±0.05pF. Quality improvement of telephone calls for low power loss and better performance. b. c. Telecommunication products & equipments: Mobile phone, WLAN, Base station. RF module: Power amplifier, VCO. Tuners. 4. HOW TO ORDER RF 15 N 100 J 500 C T Series Size Dielectric Capacitance Tolerance Rated voltage Termination Packaging Two significant digits followed by no. of zeros. And R is in place of decimal point. A=±0.05pF B=±0.1pF C=±0.25pF D=±0.5pF F=±1% G=±2% J=±5% RF=Ultra High Q 02=01005(0402) N=NP0 & Low ESR 03=0201 (0603) 15=0402 (1005) 18=0603 (1608) 11=0505 (1414) 21=0805 (2012) 22=1111 (2828) Page 2 of 16 eg.: 0R5=0.5pF 1R0=1.0pF 100=10x100 =10pF Two significant C=Cu/Ni/Sn digits followed by no. of zeros. And R is in place of decimal point. T=7” reeled G= 13” reeled 6R3=6.3 VDC 100=10 VDC 250=25 VDC 500=50 VDC 101=100 VDC 201=200 VDC 251=250 VDC 501=500 VDC 152=1500 VDC ASC_Ultra HQ_Low ESR_(RF)_014AC_AS Sep. 2017 Multilayer Ceramic Capacitors Approval Sheet 5. EXTERNAL DIMENSIONS Size Inch (mm) L (mm) W (mm) 01005 (0402) 0.40±0.02 0.20±0.02 0.20±0.02 0201 (0603) 0.60±0.03 0.30±0.03 0402 (1005) 1.00±0.05 0.50±0.05 1.60±0.10 0.80±0.10 0603 (1608) 1.60 0.80 +0.15/-0.10 +0.15/-0.10 0805 (2012) 0505 (1414) 1111 (2828) T (mm)/Symbol L Remark MB (mm) V # 0.10±0.03 0.30±0.03 L # 0.15±0.05 0.50±0.05 N # 0.25+0.05/-0.10 0.80±0.07 S T W MB MB 0.40±0.15 0.50±0.10 H Fig. 1 The outline of MLCC 2.00±0.15 1.25±0.10 0.60±0.10 A 2.00±0.20 1.40 +0.38/-0.25 2.79 +0.51/-0.25 1.25±0.20 0.85±0.10 T 1.40±0.38 1.15±0.15 J # 0.25+0.25/-0.13 2.79±0.38 ≤ 1.78 G # 0.38±0.25 0.50±0.20 # Reflow soldering only is recommended. 6. GENERAL ELECTRICAL DATA Dielectric NP0 Size 01005, 0201, 0402, 0505, 0603, 0805, 1111 Capacitance* 0.1pF to 1000pF Capacitance tolerance Cap≤5pF: A (±0.05pF ), B (±0.1pF), C (±0.25pF) 5pF
