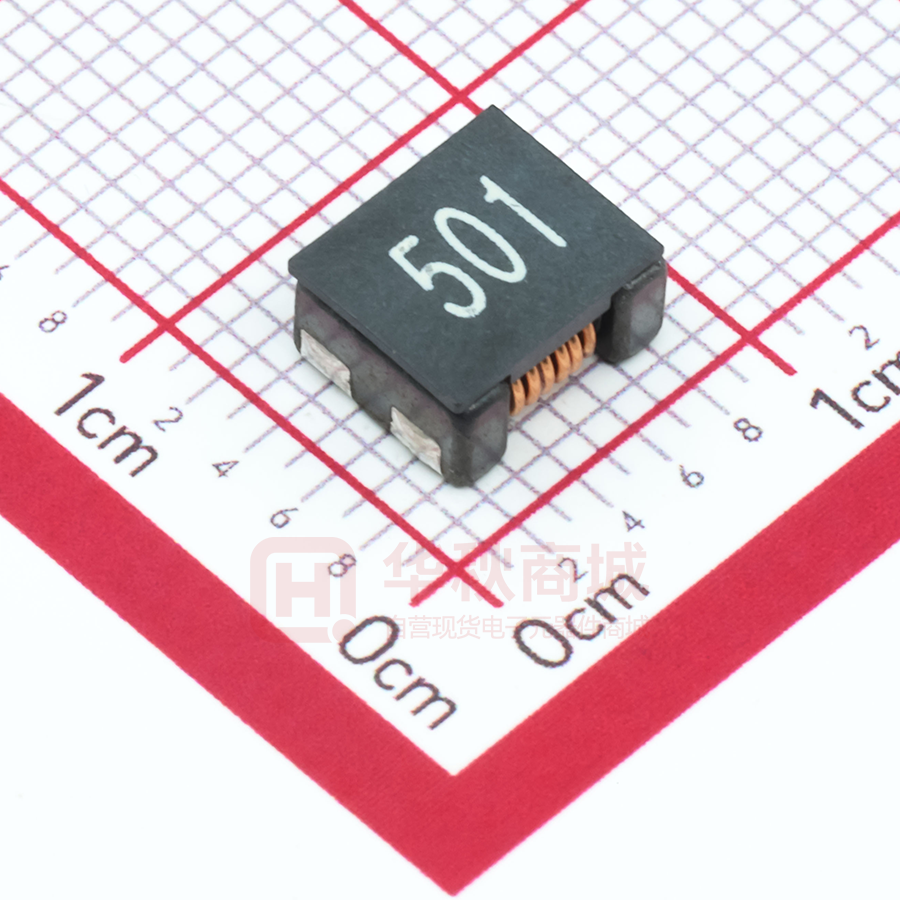

SMW7060S501NTT

SMW7060S701NTT DIMENSION . （ UNIT ：mm） A 7.0±0.5 B C D E 6.0±0.5 3.8Max 3.5Typ 1.5±0.2 F 1.5±0.2 G 1.75±0.2 CIRCUIT DIAGRAM ELECTRICAL CHARACTERISTIC Ω P P/N Z( ) @100MHz Min Typ RDC (Ω) Max Rated Current (A) Max IR (MΩ) Min Rated Voltage (V) Max MARK SMW7060S101NTT 100 140 10 9.0 10 125 101 SMW7060S301NTT 225 300 10 5.0 10 125 301 SMW7060S501NTT 275 350 10 5.0 10 125 501 SMW7060S601NTT 500 700 15 4.0 10 125 601 SMW7060S701NTT 500 700 15 4.0 10 125 701 SMW7060S102NTT 800 1020 17 3.0 10 80 102 Rev.01 Page 1 of 3 www. sunltech.com SMW7060S701NTT MATERIAL LIST NO. ITEM DESCRIPTION SUPPLIER 1 CORE FERRITE SINCORES OR EQ 2 WIRE 2UEW P180 ELEKTRISOLA OR EQ 3 胶带 DM 胶带 HENGRENXIN OR EQ 4 SOLDER Sn Cu SHENMAO OR EQ 5 EPOXY ME-5890 PENGNO OR EQ 6 INK 黑色 BON MARK 五.编带规格/TAPING SPECFICATIONS 16 12 后導帶 前導帶 200m/m COMPONENTS 400m/m Transparent carrier and cover tape Adhesive strength of cover tape is 20 to 120 gf The conduction band direction ° 80 165~1 Rev.01 Page 2 of 3 www. sunltech.com SMW7060S701NTT RELIABILITY TESTING ℃ ( Contain Heating coil ) Operating Temperature - 30 to + 100 Appearance Inspection No external defects by visual inspection Terminal Strength After soldering , between copper plaet and terminals of coils , push in two directions of X , Y with standing 10N(1.02kg) for10+/-2 sec. Terminal should not peel off. ( Refer to figure at right ) Heat endurance of reflow Refer to figure soldering Insulating resistance Over 100 MΩ at 100V D.C . between wire and core . Dielectric Strength Apply at 0.5KV 3mA for 1 minute between wire and core . Temperature characteristics Inductance coefficient ( 0~2,000 ) × 10 / Humidity characteristics Inductance deviation within ± 10% , after 96 hours in 90~95% relative humidity at 40 ± 2 ℃( - 30 ~ + 100 ℃ ) ℃ and 1 hours drying under normal condition . A test is made under the above mentioned condition , and it is kept for 2 hours in the normal IR Reflow profile Temperature ℃ 300 250 Soldering 255 ℃ 200 150 preheating Natural cooling 100 50 Time 1 to 4 min 10 sec more than 2 min Temperature and humidity . After that , no mechanical and electrical defect should be found . Rev.01 Page 3 of 3 www. sunltech.com
