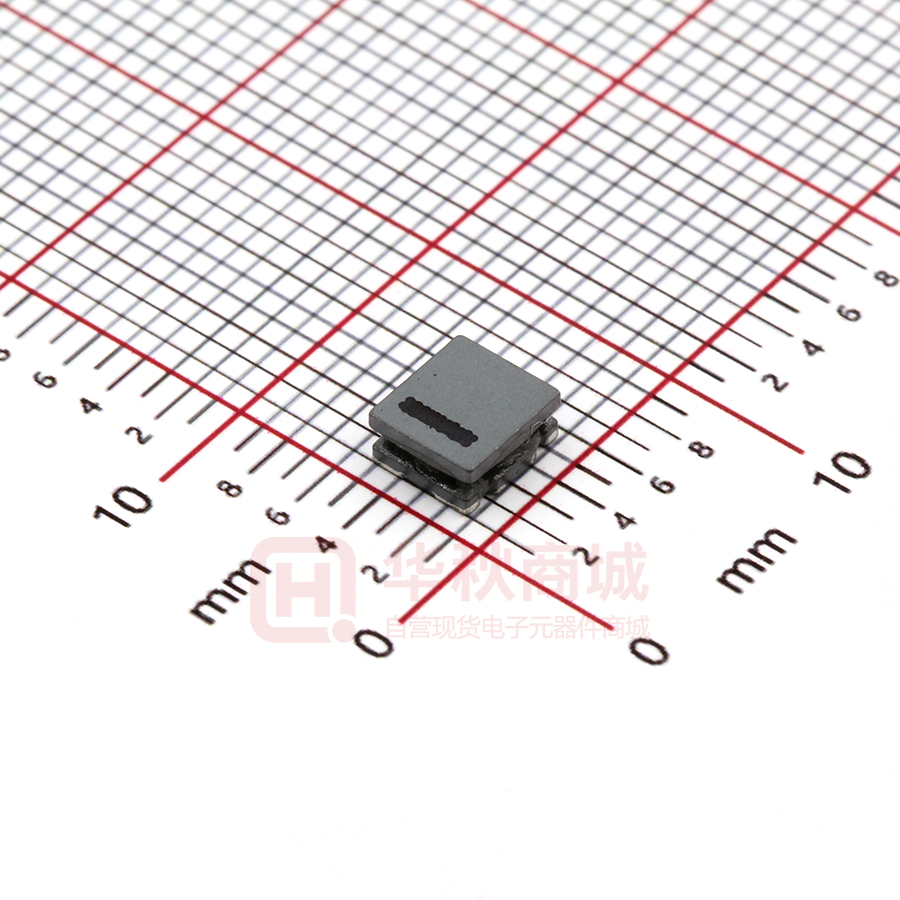

SMW5045S102LTT

SMW5045S102LTT PACKING DIMENSIONS (mm) 2 １ 4 5045 Dimensions A B C D E 5.0 ± 0.3 4.5 ± 0.3 2.5 Max. 1.6± 0.3 1.4 ± 0.3 3 EXPLANATION OF PART NUMBERS 1 2 3 4 5 6 7 8 S M (1) W 5 0 4 5S 1 (2) 9 10 11 0 (3) 2 L (1) Product name (2) Shapes and dimensions (3) Impedance【 at 100MHz】 101:100Ω ELECTRICAL CHARACTERISTICS Z(Ω) P/N SMW5045S102LTT Point1-Point2 point3-point4 Impedance at 100MHz 1000 Typ. Rated current Idc(A) [ Max ] 3 DCR (Ω) ±40% 0.024 Rated Withstand Voltage Voltage Vdc Vdc (V)Typical (V)Typical 50 125 Insulation Resistance IR (MΩ)Min. 10 Operating temperature : -40 to +85℃ Storage temp. and humidity : -40 to +85℃ ,70%RH max Typical Heat Rating DC Current would cause an approximately △T of 40℃ If Use Wave soldering is there will be some risk. Re-flow soldering temperatures below 240 degrees, there will be unwitting risk Solder standard according to IPC-A-610D 8.2.1 Chip Components - Bottom Only Terminations Rev.01 Page 1 of 7 www. sunltech.com SMW5045S102LTT 、 PERFORMANCE CURVES Recommended Footprint(mm) Electrical Performance Rev.01 Page 2 of 7 www. sunltech.com SMW5045S102LTT Mechanical Performance Rev.01 Page 3 of 7 www. sunltech.com SMW5045S102LTT 、 Enviromental Performance (Product shall be solderd on the glass-epoxy substrate (t=1.6mm) Terminal to be Tested When measuring and suppling the voltage, the following terminal is applied. Rev.01 Page 4of 7 www. sunltech.com SMW5045S102LTT Reel Dimension & Tape Dimension Rev.01 Page 5of 7 www. sunltech.com SMW5045S102LTT 、 Packaging Information Rev.01 Page 6of 7 www. sunltech.com SMW5045S102LTT Soldering and Mounting Rev.01 Page 7of 7 www. sunltech.com
