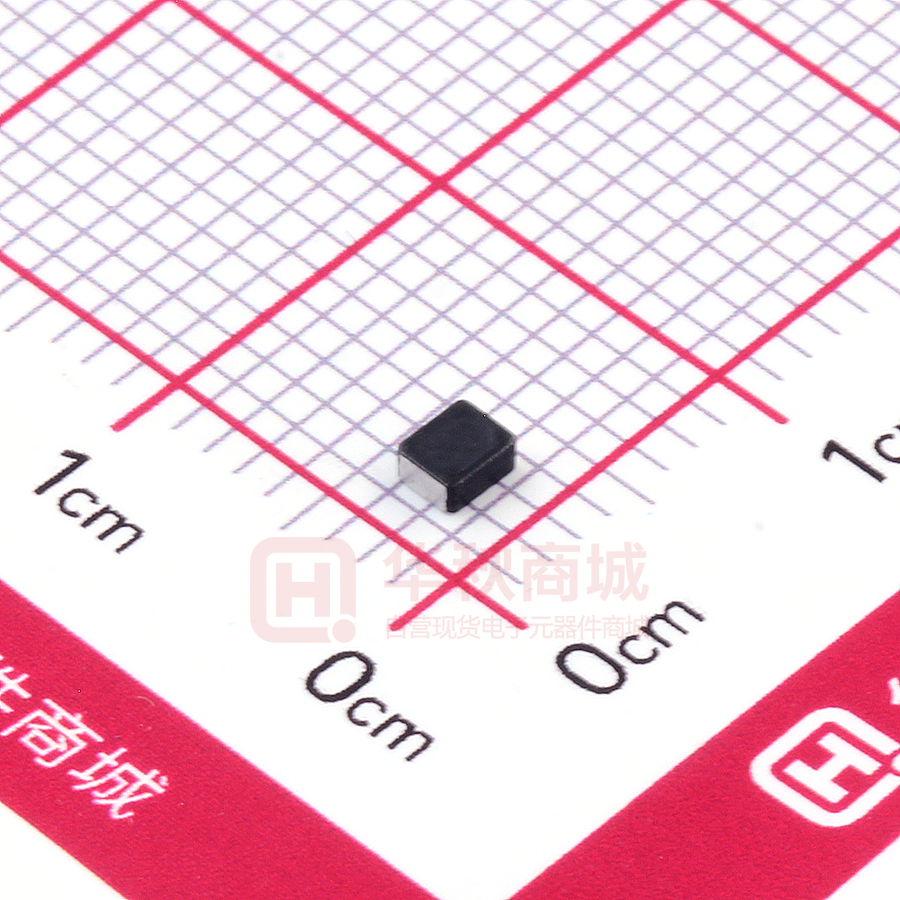

MCS25GD-R47MMP

SPECIFICATION FOR APPROVAL ※This is a RoHS and REACH compliant product whose related documents are available on request. ※Graphic is only for dimensionally application. 1. PART NUMBERING IDENTIFICATION MCS 25GD - □□□ □ MP CONTROL NO. TOLERANCE INDUCTANCE DIMENSIONS PRODUCT SYMBOL 2. MECHANICAL DIMENSION UNIT: mm DIM. TOL. M1 2.5 ±0.2 M2 2.0 ±0.2 M3 1.2 MAX. M4 0.6 ±0.3 3. ELECTRICAL SPECIFICATION Part number Inductance (uH) ±20% DC Resistance DC Resistance (mΩ) (mΩ) Typical MAX. Irms (A) Typical Irms (A) MAX. I sat (A) Typical I sat (A) MAX. MCS25GD-R47MMP 0.47 21 25 4.6 4.18 5.3 4.95 MCS25GD-R68MMP 0.68 29 35 3.7 3.36 5.0 4.63 MCS25GD-1R0MMP 1.0 41 49 3.5 3.18 4.4 4.04 MCS25GD-1R5MMP 1.5 64 77 2.5 2.27 3.2 2.91 MCS25GD-2R2MMP 2.2 85 98 2.27 2.06 3.0 2.73 MCS25GD-3R3MMP 3.3 125 150 2.0 1.80 2.1 1.80 MCS25GD-4R7MMP 4.7 196 235 1.61 1.40 1.9 1.58 (1). Test Freq: 1MHz, 1V (2). All test referenced to 26℃ ambient. (3). Operating Temperature range: -40℃ to +125℃ (4). Storage Temperature range: -50℃ to +125℃ (5). Isat means that DC current will cause a 30% inductance reduction from initial value. (6). Irms means that DC current will cause coil temp. rising to 40℃ whichever is smaller. Rev.D P1 SPECIFICATION FOR APPROVAL 4. ELECTRICAL CURVE
