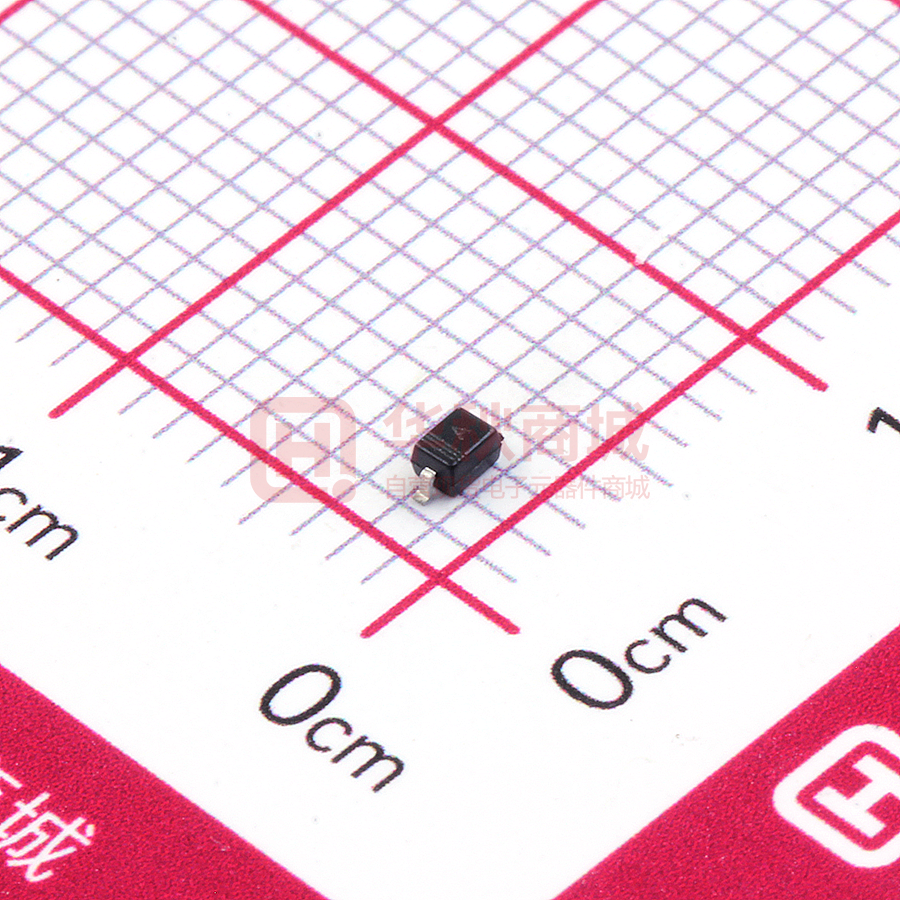

1SS355
Features
• Small plastic package suitable
PINNING
DESCRIPTION
PIN
for surface mounted design
• High reliability with high surge
current handling capability
1
Cathode
2
Anode
2
1
Top View
Simplified outline SOD-323 and symbol
Applications
• High speed switching
MARKING:A
Absolute Maximum Ratings (Ta = 25 C)
O
Parameter
Symbol
Value
Unit
Peak Reverse Voltage
VRM
90
V
Reverse Voltage
VR
80
V
IF(AV)
100
mA
Peak Forward Current
IFM
225
mA
Surge Forward Current (1 s)
IFSM
500
mA
Tj
150
O
Tstg
- 55 to + 150
O
Symbol
Max.
Unit
Forward Voltage
at IF = 100 mA
VF
1.2
V
Reverse Current
at VR = 80 V
IR
0.1
µA
Capacitance between Terminals
at VR = 0.5 V, f = 1 MHz
CT
3
pF
Reverse Recovery Time
at VR = 6 V, IF = 10 mA, RL = 100 Ω
trr
4
ns
Average Rectified Forward Current
Junction Temperature
Storage Temperature Range
C
C
Electrical Characteristics (Ta = 25 C)
O
Parameter
www.yongyutai.com
PAGE 1
1SS355
Typical Characteristics
Reverse Characteristics
Forward Characteristics
1m
1
Forward Current, A
0.1m
C
C
C
C
Ta=125 C
Reverse current, A
Ta=125
Ta=75
Ta=25
Ta=-25
100m
10m
1m
100
10
Ta=75 C
1
100n
Ta=25 C
10n
10
1n
0
0.4
1.2
0.8
0
Forward Voltage, V
Reverse Voltage, V
Capacitance between terminals
characteristics
Reverse Recovery Time Characteristics
3
10
VR=6V
Reverse Recovery Time (ns)
CT (pF)
120
80
40
2
1
0.2
Irr=1/10IR
2
1
0.1
0
4
8
12
14
0
10
20
30
Forward Current (mA)
Reverse Voltage, VR ( V )
Surge Current Characteristics
Reverse Recovery Time Measurement Circuit
Pulse
Single Pulse
20
0.01 F
DUT
PULSE GENERATOR
OUTPUT 50
50
10
5k
Surge Current (A)
100
SAMPLING
OSCILLOSCOPE
2
1
0.1
1
10
100
1000
10000
Pulse Width: Tw (ms)
www.yongyutai.com
PAGE 2
1SS355
PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
www.yongyutai.com
SOD-323
PAGE 3
