WSB5546N
WSB5546N
0.2A, Schottky Barrier Diode
Http://www.sh-willsemi.com
Features
Low reverse current
0.2A Average rectified forward current
Standard products are Pb-free and Halogen-free

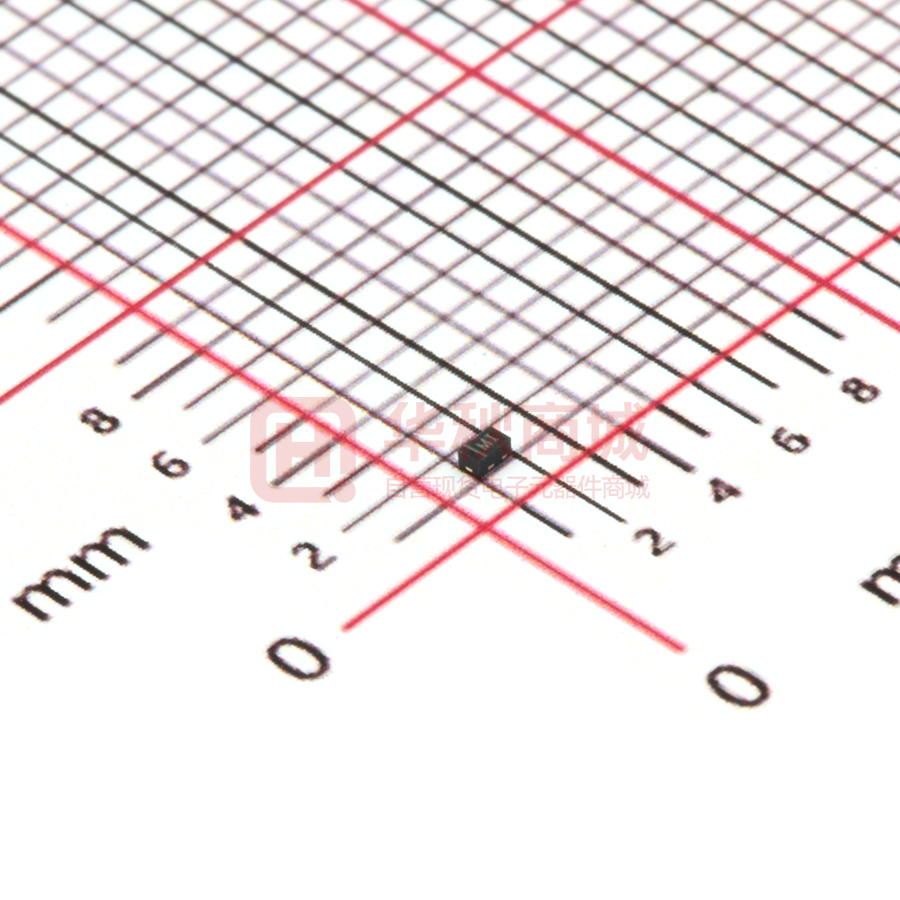

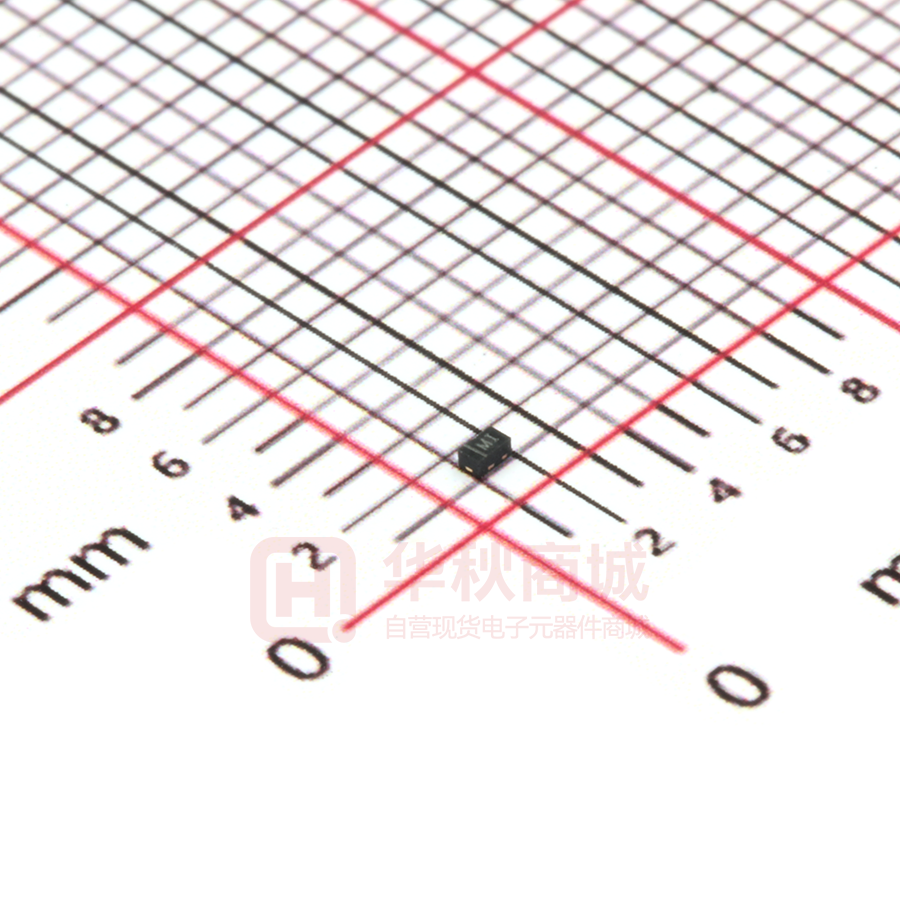

DFN1006-2L
Circuit
Marking
Absolute maximum ratings
Parameter
Symbol
Value
Unit
Reverse voltage (repetitive peak)
VRM
40
V
Reverse voltage (DC)
VR
40
V
Average rectified forward current
IO
0.2
A
IFSM
3
Peak forward current
(1)
A
TJ
150
O
Operating temperature
Topr
-40 ~ 150
O
C
Storage temperature
Tstg
-55 ~ 150
O
C
Junction temperature
C
Electronics characteristics (TA=25oC)
Parameter
Forward voltage
Symbol
Condition
Min.
Typ.
Max.
Unit
VF
IF=0.2A
-
0.51
0.60
V
VR=10V
-
-
0.5
uA
VR=40V
-
-
1
uA
(2)
Reverse current
IR
Junction capacitance
CJ
VR=4V, F=1MHz
-
17
-
pF
Rθ(j-a)
Junction to ambient
-
-
500
K/W
Thermal resistance
Order Informations
Device
WSB5546N-2/TR
Package
Marking
DFN1006-2L
M*
(3)
Shipping
10000/Reel&Tape
Note 1: Pulse Width=8.3ms, Single half-sine Pulse;
Note 2: Pulse Width
