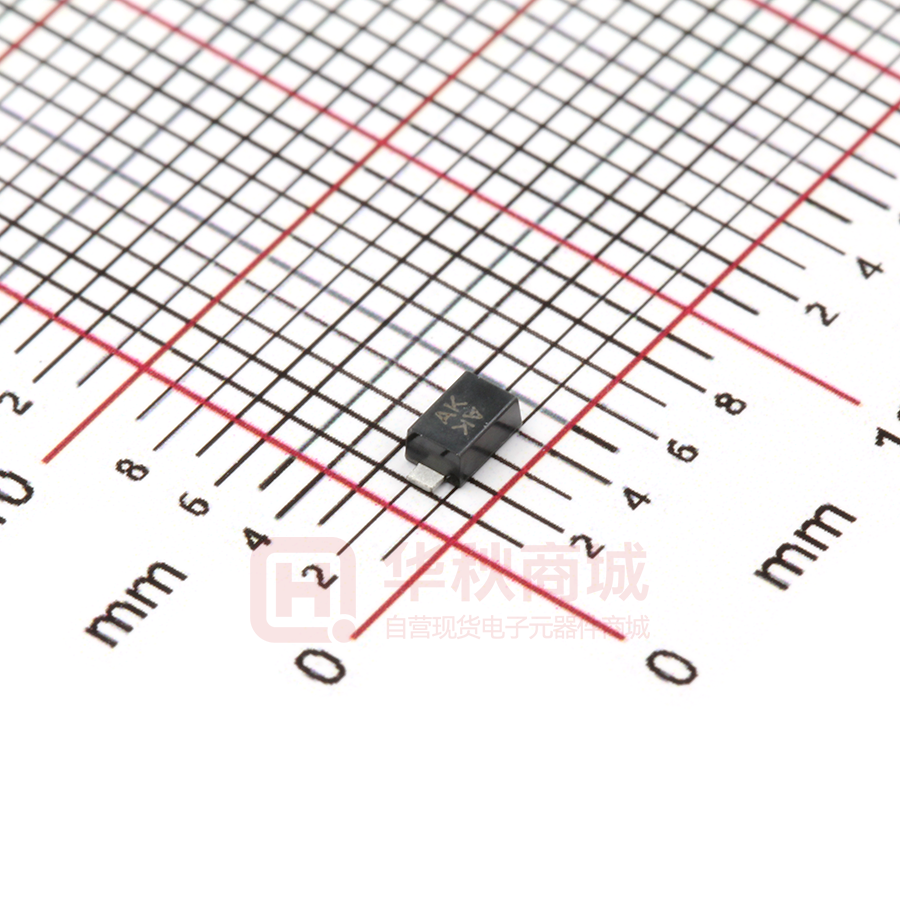

SJD12C6.5L01

SJD12A(C)XXL01 SERIES Electrostatic Discharged Protection Devices (ESD) Data Sheet Description The SJD12A(C)XXL01 series are designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low zener impedance and fast response time. Because of its small size, it is ideal for use in cellular phones, portable device, business machines, power supplies and many other industrial/consumer applications. Features ● ● ● ● ● ● ● ● ● ● ● IEC61000-4-2 ESD 30KV Air,30KV contact compliance SOD-123S surface mount package Protects one I/O line Peak power dissipation of 1000W under 8/20μs waveform Working voltage: 5V~170V Low leakage current Solid-state silicon avalanche technology Lead Free/RoHS compliant Solder reflow temperature: Pure Tin-Sn, 260~270℃ Flammability rating UL 94V-0 Meets MSL level 1, per J-STD-020 SJD12AXXL01 Applications ● ● ● ● ● ● Personal digital assistants (PDA) Cellular handsets & Accessories Portable devices Portable instrumentation Handhelds and notebooks Digital cameras SJD12CXXL01 Pin Configuration Maximum Ratings Rating Symbol Value Unit Peak pulse power (tp=10/1000μs waveform) PPP 200 W Peak pulse power (tp=8/20μs waveform) PPP 1000 W ESD voltage (Contact discharge) ±30 VESD ESD voltage (Air discharge) Storage & operating temperature range Revision:ESD- SJD12A(C)XXL01 SERIES-001(A2) kV ±30 TSTG ,TJ 1/6 -55~+150 ℃ http://brightking.yageo.com SJD12A(C)XXL01 SERIES Electrical Characteristics (TJ=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM UNI BI VRWM(V) VBR MIN.(V) VBR MAX.(V) IT(mA) VC(V) IPP(A) IR(μA) SJD12A(C)05L01 KE AE 5.0 6.40 7.00 10 9.2 21.8 800 SJD12A(C)06L01 KG AG 6.0 6.67 7.37 10 10.3 19.4 800 SJD12A(C)6.5L01 KK AK 6.5 7.22 7.98 10 11.2 17.9 500 SJD12A(C)07L01 KM AM 7.0 7.78 8.60 10 12.0 16.7 200 SJD12A(C)7.5L01 KP AP 7.5 8.33 9.21 1 12.9 15.5 100 SJD12A(C)08L01 KR AR 8.0 8.89 9.83 1 13.6 14.7 50 SJD12A(C)8.5L01 KT AT 8.5 9.44 10.40 1 14.4 13.9 20 SJD12A(C)09L01 KV AV 9.0 10.00 11.10 1 15.4 13.0 10 SJD12A(C)10L01 KX AX 10.0 11.10 12.30 1 17.0 11.8 5 SJD12A(C)11L01 KZ AZ 11.0 12.20 13.50 1 18.2 11.0 3 SJD12A(C)12L01 LE BE 12.0 13.30 14.70 1 19.9 10.1 1 SJD12A(C)13L01 LG BG 13.0 14.40 15.90 1 21.5 9.3 1 SJD12A(C)14L01 LK BK 14.0 15.60 17.20 1 23.2 8.6 1 SJD12A(C)15L01 LM BM 15.0 16.70 18.50 1 24.4 8.2 1 SJD12A(C)16L01 LP BP 16.0 17.80 19.70 1 26.0 7.7 1 SJD12A(C)17L01 LR BR 17.0 18.90 20.90 1 27.6 7.3 1 SJD12A(C)18L01 LT BT 18.0 20.00 22.10 1 29.2 6.9 1 SJD12A(C)20L01 LV BV 20.0 22.20 24.50 1 32.4 6.2 1 SJD12A(C)22L01 LX BX 22.0 24.40 26.90 1 35.5 5.7 1 SJD12A(C)24L01 LZ BZ 24.0 26.70 29.50 1 38.9 5.2 1 SJD12A(C)26L01 ME CE 26.0 28.90 31.90 1 42.1 4.8 1 SJD12A(C)28L01 MG CG 28.0 31.10 34.40 1 45.4 4.4 1 SJD12A(C)30L01 MK CK 30.0 33.30 36.80 1 48.4 4.2 1 SJD12A(C)33L01 MM CM 33.0 36.70 40.60 1 53.3 3.8 1 SJD12A(C)36L01 MP CP 36.0 40.00 44.20 1 58.1 3.5 1 SJD12A(C)40L01 MR CR 40.0 44.40 49.10 1 64.5 3.1 1 SJD12A(C)43L01 MT CT 43.0 47.80 52.80 1 69.4 2.9 1 Revision:ESD- SJD12A(C)XXL01 SERIES-001(A2) 2/6 http://brightking.yageo.com SJD12A(C)XXL01 SERIES Electrical Characteristics (TJ=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM UNI BI VRWM(V) VBR MIN.(V) VBR MAX.(V) IT(mA) VC(V) IPP(A) IR(μA) SJD12A(C)45L01 MV CV 45.0 50.00 55.30 1 72.7 2.8 1 SJD12A(C)48L01 MX CX 48.0 53.30 58.90 1 77.4 2.6 1 SJD12A(C)51L01 MZ CZ 51.0 56.70 62.70 1 82.4 2.5 1 SJD12A(C)54L01 NE DE 54.0 60.00 66.30 1 87.1 2.3 1 SJD12A(C)58L01 NG DG 58.0 64.40 71.20 1 93.6 2.3 1 SJD12A(C)60L01 NK DK 60.0 66.70 73.70 1 96.8 2.1 1 SJD12A(C)64L01 NM DM 64.0 71.10 78.60 1 103.0 2.0 1 SJD12A(C)70L01 NP DP 70.0 77.80 86.00 1 113.0 1.8 1 SJD12A(C)75L01 NR DR 75.0 83.30 92.10 1 121.0 1.7 1 SJD12A(C)78L01 NT DT 78.0 86.70 95.80 1 126.0 1.6 1 SJD12A(C)85L01 NV DV 85.0 94.40 104.00 1 137.0 1.5 1 SJD12A(C)90L01 NX DX 90.0 100.00 111.00 1 146.0 1.4 1 SJD12A(C)100L01 NZ DZ 100.0 111.00 123.00 1 162.0 1.3 1 SJD12A(C)110L01 PE EE 110.0 122.00 135.00 1 177.0 1.2 1 SJD12A(C)120L01 PG EG 120.0 133.00 147.00 1 193.0 1.1 1 SJD12A(C)130L01 PK EK 130.0 144.00 159.00 1 209.0 1.0 1 SJD12A(C)150L01 PM EM 150.0 167.00 185.00 1 243.0 0.8 1 SJD12A(C)160L01 PP EP 160.0 178.00 197.00 1 259.0 0.8 1 SJD12A(C)170L01 PR ER 170.0 189.00 209.00 1 275.0 0.8 1 Revision:ESD- SJD12A(C)XXL01 SERIES-001(A2) 3/6 http://brightking.yageo.com SJD12A(C)XXL01 SERIES Typical Characteristics Curves Figure 1. Peak Pulse Power Rating Curve Figure 2. 10/1000μs Pulse Waveforms 150 IPPM - Peak Pulse Current, %IRSM PPP - Peak Pulse Power (W) 10000 1000 100 10 0.1 10 100 1000 tP-Pulse Duration (µs) 50 10/1000µs Waveform as defined by R.E.A tr Waveform Parameters: tr=8µs td=20µs 70 60 50 40 td=t|IPP/2 20 10 10 15 3.0 4.0 90 80 70 60 50 40 30 20 10 0 5 2.0 t-Time (ms) 100 Peak value Ipp 80 30 1.0 Figure 4. Power Derating Curve 90 0 td 0 Peak Power Dissipation (%) 110 100 % of Peak Power Current Half Value IPPM (IPPM/2) 10000 Figure 3. 8/20μs Pulse Waveforms 0 Peak Value IPPM 100 0 1 TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM tr=10µs 20 25 30 0 t-Time (μs) 25 50 75 100 125 150 175 TA-Ambient Temperature (℃) Figure 5. Capacitance vs. Reverse Voltage 1000 Capacitance (pF) Measured @Zero Bias 100 10 1 0.1 Measured @50% VRWM 10 100 Reverse Voltage (V) Revision:ESD- SJD12A(C)XXL01 SERIES-001(A2) 1000 4/6 http://brightking.yageo.com SJD12A(C)XXL01 SERIES Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) 20-40 seconds Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature Revision:ESD- SJD12A(C)XXL01 SERIES-001(A2) 8 minutes max. 5/6 http://brightking.yageo.com SJD12A(C)XXL01 SERIES Dimensions (SOD-123S) Dimension Symbol E B A 1.00 (2X) F 1.10 (2X) G Max. Min. Max. A 3.50 3.90 0.138 0.154 B 2.60 3.00 0.102 0.118 C 0.75 1.10 0.030 0.043 D 1.60 2.00 0.063 0.079 E 2.00 Recommended Soldering Pad Layout Inches Min. D C Millimeters 0.80Typ. 0.031Typ. F 0.90 1.40 0.035 0.055 G 0.18 0.22 0.007 0.009 Packaging Tape P0 P1 P2 K W B F E øD0 øD1 A t Reel D2 D Revision:ESD- SJD12A(C)XXL01 SERIES-001(A2) W1 Symbol Dimension (mm) W 8.00±0.30 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.50±0.10 D1 Φ1.00±0.05 E 1.75±0.10 F 3.50±0.10 A 2.00±0.10 B 3.95±0.10 K 1.40±0.12 t 0.23±0.10 D Φ178.0±2.0 D2 Φ13.0 W1 9.5 Quantity: 3000PCS 6/6 http://brightking.yageo.com
