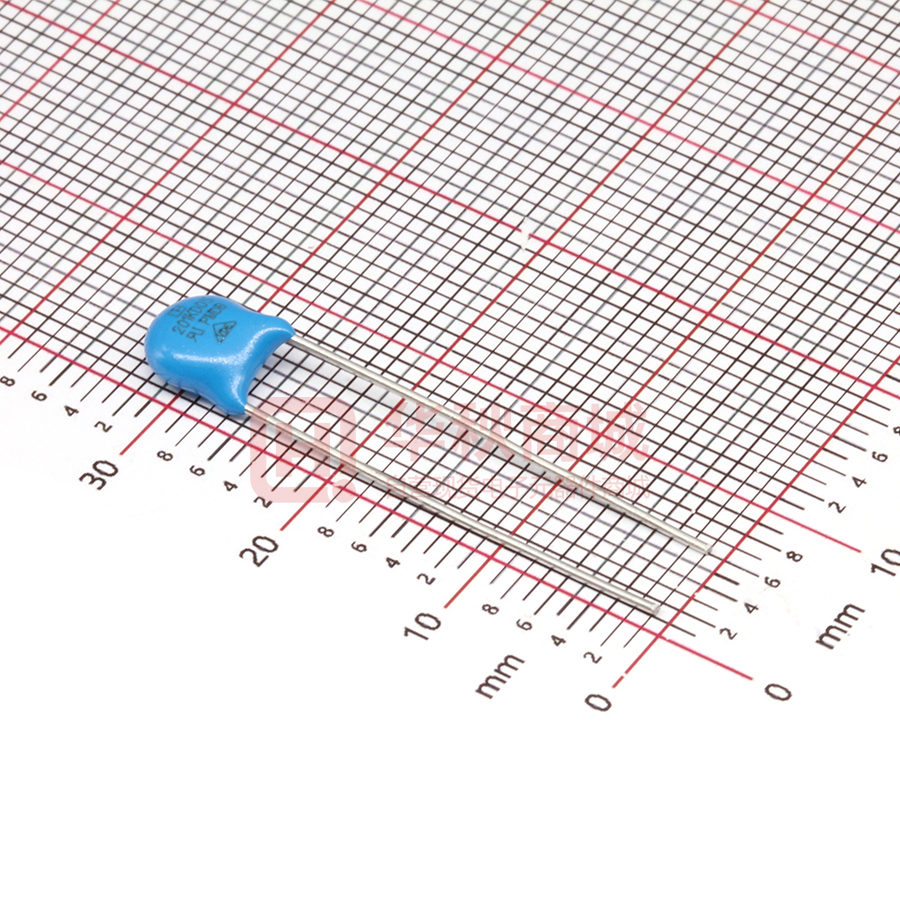

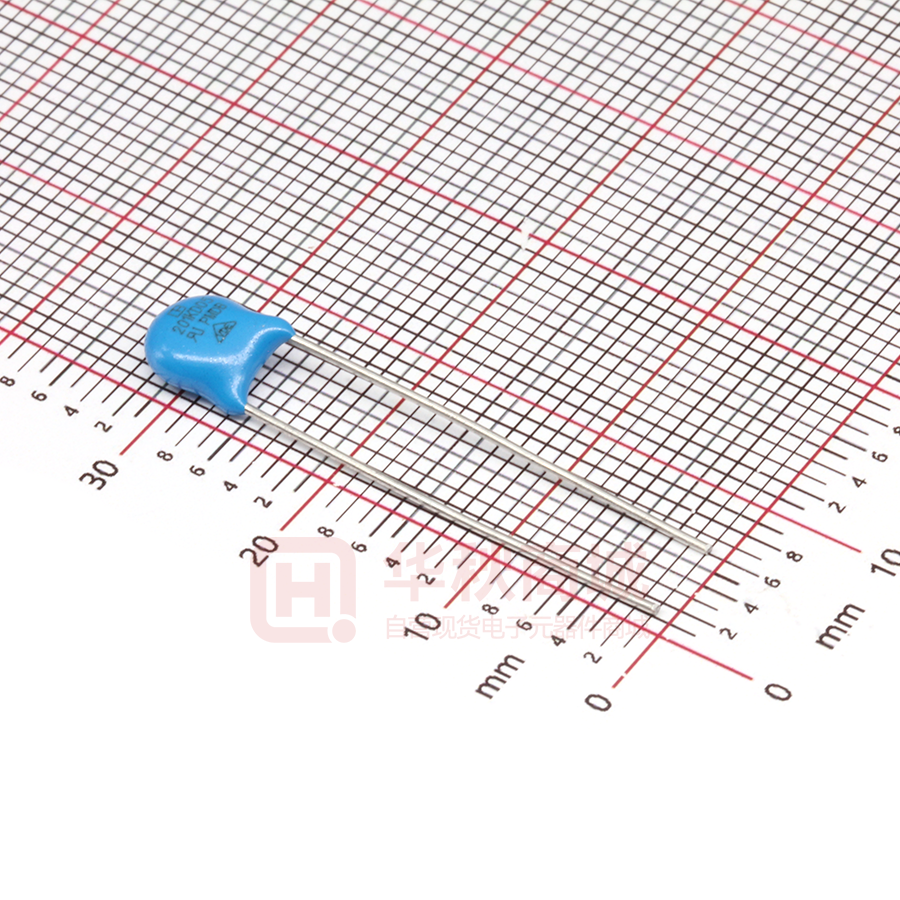

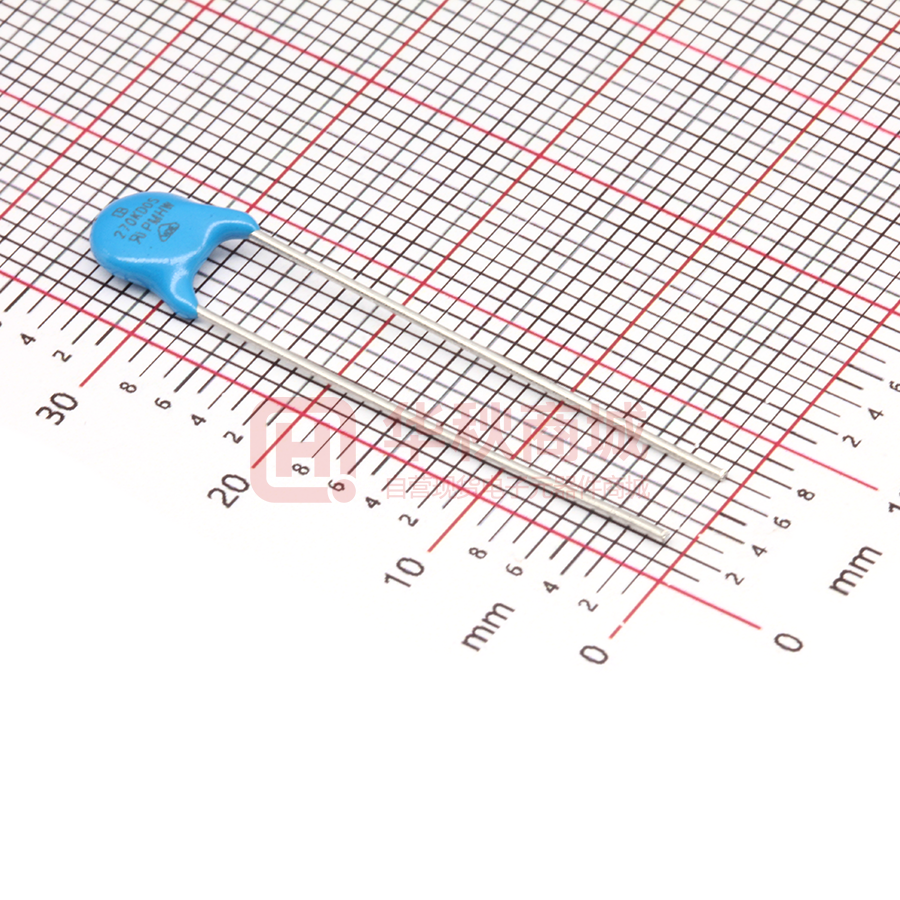

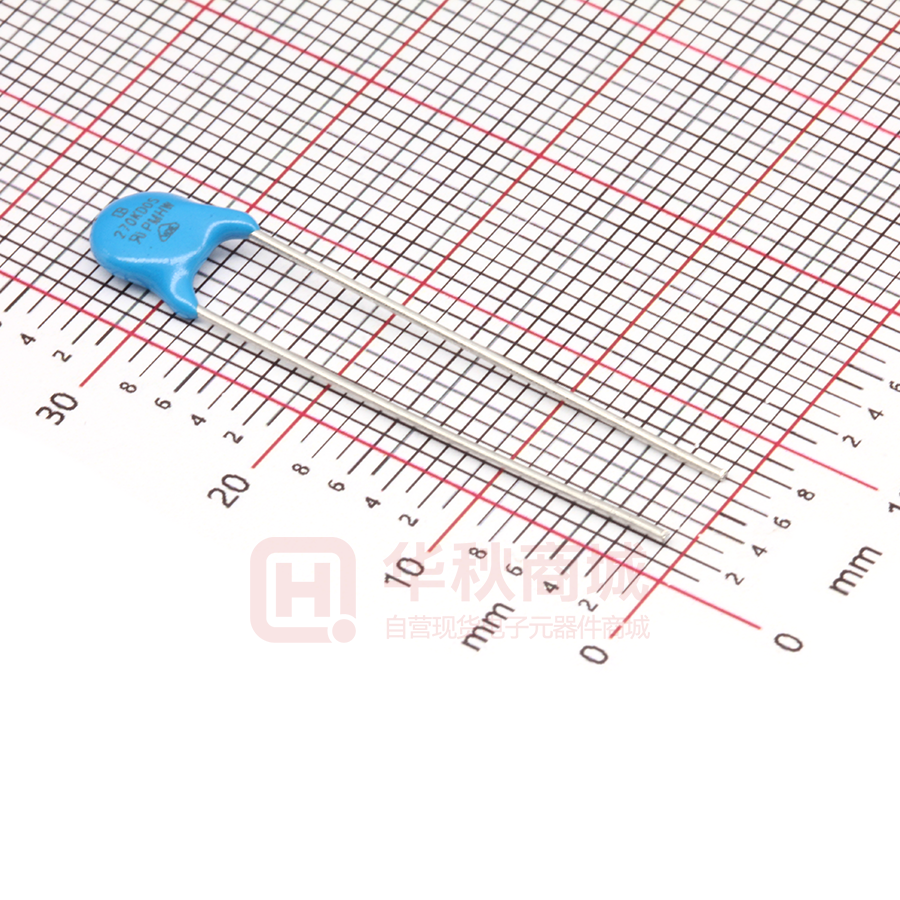

201KD05

5Φ SERIES Metal Oxide Varistors (MOV) Data Sheet Features ■ ■ ■ ■ ■ Wide operating voltage (V1mA) range from 18V to 750V Fast responding to transient over-voltage Large absorbing transient energy capability Low clamping ratio and no follow-on current Meets MSL level 1, per J-STD-020 ■ Operating Temperature：-40℃ ~ +105℃ ■ Storage Temperature：-40℃ ~ +125℃ ■ Safety certification：UL、CSA、VDE Applications ■ Transistor, diode, IC, thyristor or triac semiconductor protection ■ Surge protection in consumer electronics ■ Surge protection in industrial electronics ■ Surge protection in electronic home appliances, gas and petroleum appliances ■ Relay and electromagnetic valve surge absorption Part Number Code 4 7 1 K D 0 5 J O TR Packing No suffix: Bulk TB: Tape & Box & P0=12.7mm TR: Tape & Reel & P0=12.7mm Tolerance K: ±10% Type D: Disk Varistor Voltage 180: 18V 101: 100V Revision: MOV-5Φ SERIES-001(A5) Surge Series No suffix: Standard type J: High Surge type Lead Shape No suffix: Straight leads O: Outside crimped leads F: Y Kinked leads Element Diameter 05 2 / 12 http://brightking.yageo.com 5Φ SERIES Dimensions D D T D H1 H1 H T K≤3.0 L1 L1 F L d1 d K≤3.0 d e d F O Type F Type Table 1 Table 2 Unit: mm Unit: mm Symbol Dimension Model T e Model T e H 5.5~10.0 180K 1.5~4.5 1.3 221K 2.0~4.5 1.9 H1 8.0~13.0 220K 1.6~4.6 1.4 241K 2.1~4.6 2.0 L(min.) 20.0 270K 1.6~4.7 1.6 271K 2.1~4.9 2.2 L1(min.) 15.0 330K 1.7~4.9 1.5 301K 2.2~5.0 2.3 D 5.0~7.5 390K 1.6~4.8 1.6 331K 2.2~5.1 2.3 F(±0.8) 5.0 470K 1.7~4.9 1.7 361K 2.4~5.2 2.5 T Table 2 560K 1.8~5.0 1.9 391K 2.5~5.4 2.6 e(±0.8) Table 2 680K 1.9~5.2 2.2 431K 2.7~5.7 2.8 d(±0.05) 0.6 820K 1.6~4.1 1.6 471K 2.8~6.0 3.0 d1(±0.4) 1.2 101K 1.9~4.3 1.8 511K 2.9~6.2 3.2 121K 1.9~4.5 2.0 561K 3.1~6.5 3.4 151K 1.7~4.8 1.6 621K 3.3~6.5 3.7 181K 1.8~4.3 1.7 681K 3.5~6.8 4.0 201K 1.9~4.4 1.8 751K 3.8~6.9 4.1 Revision: MOV-5Φ SERIES-001(A5) 3 / 12 http://brightking.yageo.com 5Φ SERIES Electrical Characteristics Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage Withstanding Surge Current Maximum Energy (10/1000μs) Rated Power Typical Capacitance (Reference) Standard High Surge VAC(V) VDC(V) V1mA(V) IP(A) VC(V) I (A) Standard I (A) High Surge (J) Standard (J) High Surge (W) @1KHz (pf) 180KD05 180KD05J 11 14 18(15~21.6) 1 40 100 250 0.4 0.6 0.01 1400 220KD05 220KD05J 14 18 22(19.5~26) 1 48 100 250 0.5 0.7 0.01 1150 270KD05 270KD05J 17 22 27(24~31) 1 60 100 250 0.6 0.9 0.01 930 330KD05 330KD05J 20 26 33(29.5~36.5) 1 73 100 250 0.8 1.1 0.01 760 390KD05 390KD05J 25 31 39(35~43) 1 80 100 250 0.9 1.2 0.01 640 470KD05 470KD05J 30 38 47(42~52) 1 104 100 250 1.1 1.5 0.01 530 560KD05 560KD05J 35 45 56(50~62) 1 123 100 250 1.3 1.8 0.01 450 680KD05 680KD05J 40 56 68(61~75) 1 145 100 250 1.6 2.2 0.01 370 820KD05 820KD05J 50 65 82(74~90) 5 150 400 800 2.5 4.0 0.1 300 101KD05 101KD05J 60 85 100(90~110) 5 177 400 800 3.0 4.1 0.1 250 121KD05 121KD05J 75 100 120(108~132) 5 210 400 800 4.0 4.9 0.1 210 151KD05 151KD05J 95 125 150(135~165) 5 260 400 800 4.1 6.5 0.1 165 181KD05 181KD05J 115 150 180(162~198) 5 320 400 800 4.9 7.5 0.1 140 201KD05 201KD05J 130 170 200(180~220) 5 355 400 800 6.5 8.5 0.1 125 221KD05 221KD05J 140 180 220(198~242) 5 380 400 800 7.5 9.0 0.1 110 241KD05 241KD05J 150 200 240(216~264) 5 415 400 800 8.0 10.5 0.1 100 271KD05 271KD05J 175 225 270(243~297) 5 475 400 800 8.5 11.0 0.1 95 301KD05 301KD05J 190 250 300(270~330) 5 520 400 800 9.0 12.0 0.1 85 331KD05 331KD05J 210 275 330(297~363) 5 570 400 800 9.5 13.0 0.1 75 361KD05 361KD05J 230 300 360(324~396) 5 620 400 800 10.0 16.0 0.1 70 391KD05 391KD05J 250 320 390(351~429) 5 675 400 800 12.0 17.0 0.1 65 431KD05 431KD05J 275 350 430(387~473) 5 745 400 800 13.0 20.0 0.1 60 471KD05 471KD05J 300 385 470(423~517) 5 810 400 800 15.0 21.0 0.1 55 511KD05 511KD05J 320 415 510(459~561) 5 845 400 800 16.0 22.5 0.1 50 561KD05 561KD05J 350 460 560(504~616) 5 920 400 800 16.8 24.0 0.1 45 621KD05 621KD05J 385 505 620(558~682) 5 1025 400 800 17.7 25.0 0.1 40 681KD05 681KD05J 420 560 680(612~748) 5 1120 400 800 21.0 29.0 0.1 35 751KD05 751KD05J 460 615 750(675~825) 5 1240 400 800 22.4 32.0 0.1 30 Notes: 1. The tolerance of varistor voltage between 18V and 27V is more than 10%. 2. Leakage Current (@83% of V1mA)：IR≤50μA (180K~680K) ; IR≤25μA (820K~751K) Revision: MOV-5Φ SERIES-001(A5) 4 / 12 http://brightking.yageo.com 5Φ SERIES Maximum Surge Current Derating Curve 820KD05 to 751KD05 10000 10000 1000 1000 100 1 10 2 10 102 103 1045 10 106 Max. Surge Current (A) Max. Surge Current (A) 180KD05 to 680KD05 1 100 10 100 1000 0.1 10 10000 180KD05J to 680KD05J 820KD05J to 751KD05J 1000 Max. Surge Current (A) 1000 1 2 10 102 103 1045 10 106 100 10 10000 1 2 10 102 103 104 105 106 1 1 0.1 10 1000 Td (μs) 10000 10 100 Td (μs) 10000 100 10 1023 10 1045 106 10 1 0.1 10 Max. Surge Current (A) 1 2 100 1000 0.1 10 10000 1000 10000 Td (μs) Td (μs) Revision: MOV-5Φ SERIES-001(A5) 100 5 / 12 http://brightking.yageo.com 5Φ SERIES Maximum Leakage Current and Maximum Clamping Voltage Curve Revision: MOV-5Φ SERIES-001(A5) 6 / 12 http://brightking.yageo.com 5Φ SERIES Maximum Leakage Current and Maximum Clamping Voltage Curve Revision: MOV-5Φ SERIES-001(A5) 7 / 12 http://brightking.yageo.com 5Φ SERIES Reliability Items Standard Test conditions / Methods Specifications Gradually applying the force specified and keeping the unit fixed for 10±1 sec. Tensile Strength of Terminals Bending Strength of Terminals IEC60068-2-21 Terminal diameter (mm) 0.5＜d≤0.8 0.8＜d≤1.25 1.25＜d Force (kg) No visible damage 1.0 2.0 4.0 |ΔV1mA/V1mA |≤5% Hold specimen and apply the force specified below to each lead. Bend the specimen to 90°, then return to the original position. Repeat the procedure in the opposite direction. Terminal diameter (mm) 0.5＜d≤0.8 0.8＜d≤1.25 1.25＜d IEC60068-2-21 Force (kg) 0.5 1.0 2.0 Vibration IEC60068-2-6 Frequency range: 10~55 Hz 2 Amplitude: 0.75mm or 98m/s Direction: 3 mutually perpendicular directions, 2hrs each. Solderability IEC60068-2-20 Solder Temp: 245±5℃ Dipping Time: 2±0.5 sec Resistance to Soldering Heat High Temperature Storage Low Temperature Storage Damp Heat, Steady State High Temperature Load No visible damage |ΔV1mA/V1mA |≤5% No visible damage |ΔV1mA/V1mA |≤5% Solder Temp: 260±5℃ Dipping Time: 10±1 sec Ambient Temp: 125±2℃ Duration: 1000±24hrs At least 95% of terminal electrode is covered by new solder No visible damage |ΔV1mA/V1mA |≤5% No visible damage |ΔV1mA/V1mA |≤5% Ambient Temp: -40±2℃ No visible damage Duration: 1000±24hrs |ΔV1mA/V1mA |≤5% IEC60068-2-78 The test is divided into two groups . a. 40±2℃ , 90~95% RH for 1344±24hrs b. 40±2℃ , 90~95% RH,at 10%VDC ,1344±24 hrs No visible damage |ΔV1mA/V1mA|≤10% Insulation Resistance≧100MΩ MIL-STD-202 Ambient Temp: 105±2℃ Method 108 Load: Max. Allowable Voltage In AC. IEC60068-2-20 IEC60068-2-2 IEC60068-2-1 Duration: 1000±24hrs |ΔV1mA/V1mA|≤10% The conditions shown below shall be repeated 5 cycles Temperature Cycle IEC60068-2-14 Temperature (℃) Period (minutes) 1 -40±3 30±3 No visible damage 2 Room temperature 5±3 |ΔV1mA/V1mA |≤5% 3 125±3 30±3 4 Room temperature 5±3 8/20µS waveform,10 surge currents, unipolar, interval 8/20uS IEC61051-1 Surge Life 30secs,amplitude corresponding to max. surge current derating curves for 20µS. 10/1000µS waveform,10 surge currents, unipolar, interval 10/1000µS IEC61051-1 Surge Life Voltage Proof Step 2mins,amplitude corresponding to max. surge current No visible damage △Vb(1mA)≦±10% No visible damage |ΔV1mA/V1mA |≤10% derating curves for 1000µS. IEC61051-1 Revision: MOV-5Φ SERIES-001(A5) Metal balls method, 2500Vac 1 min. 8 / 12 No visible damage http://brightking.yageo.com 5Φ SERIES Soldering Recommendation Lead-free Wave Soldering Recommendation 300 Maximum Wave 265℃ Preheating Soldering Cooling Temperature (℃) 250 200 150 100 50 0 0 0.5 1 1.5 2 2.5 3 3.5 4 Time (minutes) Item Conditions Peak Temperature 265℃ Dipping Time 10 seconds (max.) Soldering 1 time Recommendation Reworking Conditions with Soldering Iron Item Conditions Temperature of Soldering Iron-tip 360℃ (max.) Soldering Time 3 seconds (max.) Distance from Varistor 2mm (min.) Marking Code ① Brightking Logo ② Varistor Voltage ① ③ UL Accreditation Logo XXXKDXXX ② ③ ④ XXX Y VDE Revision: MOV-5Φ SERIES-001(A5) ⑤ ⑥ ⑦ ④ VDE Accreditation Logo ⑤“J”is High Surge Code, no“J”is Standard Surge ⑥ Disk Size ⑦ Internal control code 9 / 12 http://brightking.yageo.com 5Φ SERIES Taping Dimensions P P2 h B W0 W H0 W2 D0 I F P1 P0 W1 t P2 h P B W0 W H0 W2 D0 I F P1 P0 W1 t Revision: MOV-5Φ SERIES-001(A5) 10 / 12 Symbol Dimension (mm) P 12.7±1.0 P0 12.7±0.3 P1 3.85±0.7 P2 6.35±1.3 F 5.0±0.8 h 0±2 W 18.0±1.0 W0 12.0±1.0 W1 9.0±0.5 W2 3.0max H0 16.0±1.0 I 2.0max D0 4.0±0.2 t 0.6±0.3 B 32max Symbol Dimension (mm) P 12.7±1.0 P0 12.7±0.3 P1 3.85±0.7 P2 6.35±1.3 F 5.0±0.8 h 0±2 W 18.0±1.0 W0 12.0±1.0 W1 9.0±0.5 W2 3.0max H0 16.0±1.0 I 2.0max D0 4.0±0.2 t 0.6±0.3 B 32max http://brightking.yageo.com 5Φ SERIES Taping Dimensions P2 P h B W0 W H2 W2 D0 I F P1 P0 W1 t Symbol Dimension (mm) P 12.7±1.0 P0 12.7±0.3 P1 3.85±0.7 P2 6.35±1.3 F 5.0±0.8 h 0±2 W 18.0±1.0 W0 12.0±1.0 W1 9.0±0.5 W2 3.0max H2 20.0±2.0 I 2.0max D0 4.0±0.2 t 0.6±0.3 B 32max Quantity Packaging Dimensions (Unit: mm) Quantity In bulk for Terminals Untrimmed Products 1000pcs/bag 4bags/box 5M ax . (180K~751K) 16 130 Max. 250 Max. 1000pcs/bag 4bags/box (180K~751K) 11 / 12 http://brightking.yageo.com 5M ax . 16 In bulk for Terminals Trimmed Products 66 Max. 252 Max. Revision: MOV-5Φ SERIES-001(A5) 5Φ SERIES Quantity Packaging Dimensions (Unit: mm) Quantity Tape & Box & P0=12.7mm 0M ax . 1500pcs/box (180K~391K) 25 60 Max. 1000pcs/box 340 Max. (431K~751K) Tape & Reel & P0=12.7mm 5M ax . 2000pcs/reel (180K~391K) 36 60 Max. 365 Max. 1500pcs/reel (431K~751K) 55 Max. 30±1 Φ365 Max. Storage Condition of Products (I) Storage Conditions : 1.Storage Temperature : -10℃ ~ +40℃ 2.Relative Humidity : ≦80%RH 3.Keep away from corrosive atmosphere and sunlight. (II) Period of Storage : 1 year Revision: MOV-5Φ SERIES-001(A5) 12 / 12 http://brightking.yageo.com
