VHF060303HQ6N8JT

厂商：
FH(风华)
封装：
0201
描述：

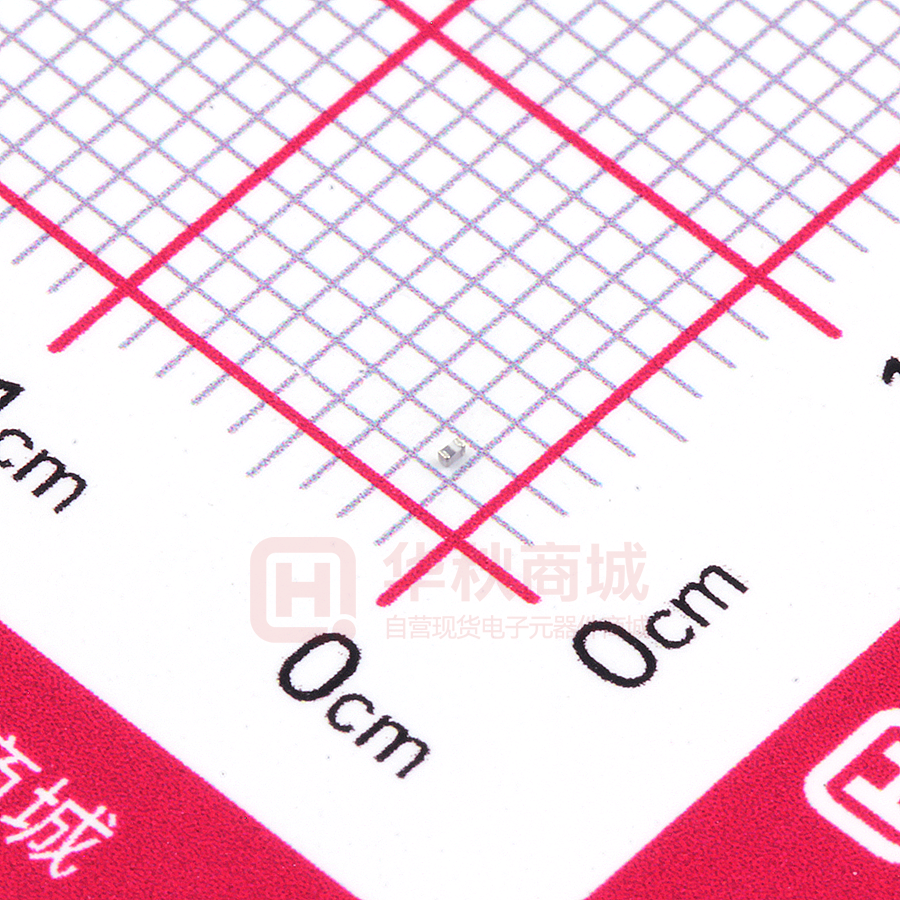

高频电感 6.8nH ±5% 500mΩ 300mA 0.30mm 0.60 x 0.30mm 0201

数据手册：

下载VHF060303HQ6N8JT.pdf

立即购买

详情介绍
数据手册
价格&库存

VHF060303HQ6N8JT 数据手册

CHIP HIGH FREQUENCY INDUCTORS CHIP HIGH FREQUENCY INDUCTORS OPEARATING TEMP. 0603 1005 :-55 125 1608 2012 :-40 +85 FEATURES High self-resonant frequency. Multilayer monolithic construction yields high reliability Excellent solderability and heat resistance for either wave or reflow soldering. APPLICATIONS PHS PDA Portable telephone Pagers PHS and PDA Miscellaneous high-frequency circuits EMI countermeasure in high frequency circuits ORDERING CODE H 201209 VHF 47N (L Product Code J T W T) (mm) Material Code Dimensions VHF 060303 100505 160808 201209 Very High Frequency Inductors 1N0 10N R10 H HQ 0.6 0.3 0.3 1.0 0.5 0.5 1.6 0.8 0.8 2.0 1.2 0.9 (nH) Inductance N R 1.0 10 100 Tolerance S D J K M 0.3nH 0.5nH 5% 10% 20% Packaging Style T Tape&Reel B Bulk 0.0(nH) 0.0( H) SHAPE AND DIMENSIONS unit mm(inch) L Part No . L 060303 W (0201) T D 100505 (0402) 0.6 (0.024 1.0 (0.040 160808 1.6 (0603) (0.063 201209 2.0 (0805) (0.079 W 0.03 0.3 0.001) (0.012 0.15 0.5 0.006) (0.020 0.2 0.8 0.008) (0.031 0.2 1.2 0.008) (0.047 1 T 0.03 0.001) 0.15 0.006) 0.2 0.008) 0.2 0.008) 0.3 (0.012 0.5 (0.020 0.8 (0.031 0.9 (0.035 D 0.03 0.001) 0.15 0.006) 0.2 0.008) 0.2 0.008) 0.15 (0.006 0.25 (0.010 0.3 (0.01 0.5 (0.020 0.05 0.002) 0.10 0.004) 0.2 0.008) 0.3 0.012) 0603 TYPE Part No. Inductance (nH) Q (Min) Test Fre. (MHz) Q Frequency (MHz) 500 800 1800 2000 2400 SRF (MHz)Min ( DC R )Max Ir(mA) Max VHF060303H0N6 -T 0.6 4 100 11 15 28 34 39 10000 0.10 500 VHF060303H0N8 -T 0.8 4 100 10 15 27 34 38 10000 0.10 500 VHF060303H1N0 -T 1.0 4 100 9 13 24 30 34 10000 0.11 470 VHF060303H1N2 -T 1.2 4 100 9 13 24 30 34 10000 0.12 450 VHF060303H1N5 -T 1.5 4 100 10 14 24 30 34 10000 0.13 430 VHF060303H1N8 -T 1.8 4 100 10 14 24 30 33 10000 0.16 390 VHF060303H2N0 -T 2.0 4 100 9 13 23 29 32 10000 0.17 380 VHF060303H2N2 -T 2.2 4 100 9 13 22 28 31 8800 0.19 360 VHF060303H2N4 -T 2.4 4 100 9 13 22 29 32 8300 0.20 350 VHF060303H2N7 -T 2.7 4 100 10 14 23 29 31 7700 0.21 340 VHF060303H3N0 -T 3.0 4 100 10 14 24 31 33 7200 0.22 330 VHF060303H3N3 -T 3.3 4 100 10 14 23 29 31 6700 0.23 320 VHF060303H3N6 -T 3.6 4 100 9 13 21 27 29 6400 0.25 310 VHF060303H3N9 -T 3.9 4 100 10 14 24 29 32 6000 0.27 300 VHF060303H4N3 -T 4.3 4 100 9 13 22 27 29 5700 0.30 280 VHF060303H4N7 -T 4.7 4 100 10 15 23 29 30 5300 0.30 280 VHF060303H5N1 -T 5.1 4 100 9 13 20 26 27 5000 0.33 270 VHF060303H5N6 -T 5.6 4 100 11 15 22 28 29 4600 0.36 260 VHF060303H6N2 -T 6.2 4 100 10 13 20 25 26 4200 0.38 250 VHF060303H6N8 -T 6.8 4 100 10 14 21 26 25 3900 0.39 250 VHF060303H7N5 -T 7.5 4 100 9 13 20 26 26 3600 0.41 240 VHF060303H8N2 -T 8.2 4 100 10 13 19 24 24 3400 0.45 230 VHF060303H9N1 -T 9.1 4 100 11 12 17 22 22 3200 0.48 220 VHF060303H10N -T 10 4 100 10 13 18 22 21 2900 0.51 220 VHF060303H12N -T 12 4 100 11 14 19 23 20 2700 0.68 190 VHF060303H15N -T 15 4 100 10 14 15 18 14 2300 0.71 180 VHF060303H18N -T 18 4 100 9 15 12 13 - 2100 0.81 170 VHF060303H22N -T 22 4 100 10 15 10 - - 1800 1.00 150 VHF060303H27N -T 27 4 100 10 15 - - - 1800 1.35 120 VHF060303H33N -T 33 4 100 10 15 - - - 1700 1.47 110 VHF060303H39N -T 39 4 100 10 12 - - - 1500 1.72 100 VHF060303H47N -T 47 4 100 10 12 - - - 1300 1.90 100 VHF060303H56N -T 56 4 100 10 9 - - - 1100 2.27 80 VHF060303H68N -T 68 4 100 10 9 - - - 1100 2.66 80 VHF060303H82N -T 82 4 100 10 8 - - - 1000 3.37 70 VHF060303HR10 -T 100 4 100 10 - - - - 900 3.74 60 VHF060303HR12 -T 120 4 100 9 - - - - 800 4.00 50 2 CHIP HIGH FREQUENCY INDUCTORS 0603 TYPE Inductance (nH) Part No. Q (Min) Q Frequency (MHz) Test Fre. (MHz) SRF (MHz)Min ( DC R )Max Ir(mA) Max 500 800 1800 2000 13 500 23 31 54 56 2400 65 10000 0.06 600 0.7 13 500 23 31 54 56 65 10000 0.06 550 -T 0.8 13 500 23 31 54 56 65 10000 0.07 550 VHF060303HQ1N0 -T 1.0 13 500 23 31 54 56 65 10000 0.08 520 VHF060303HQ1N1 -T 1.1 13 500 18 25 45 46 55 10000 0.11 440 VHF060303HQ1N2 -T 1.2 13 500 18 24 43 43 52 10000 0.12 440 VHF060303HQ1N4 -T 1.4 13 500 18 23 39 40 47 10000 0.12 430 VHF060303HQ1N5 -T 1.5 13 500 18 23 39 40 46 10000 0.12 420 VHF060303HQ1N6 -T 1.6 13 500 18 23 39 40 46 10000 0.13 410 VHF060303HQ0N6 T 0.6 VHF060303HQ0N7 -T VHF060303HQ0N8 VHF060303HQ1N8 -T 1.8 13 500 18 23 39 40 46 10000 0.15 380 VHF060303HQ2N0 -T 2.0 13 500 16 23 38 38 44 10000 0.20 360 VHF060303HQ2N2 -T 2.2 13 500 16 23 38 39 43 10000 0.20 350 VHF060303HQ2N4 -T 2.4 13 500 16 22 36 37 42 10000 0.22 330 VHF060303HQ2N6 -T 2.6 13 500 16 21 34 34 39 9400 0.22 320 VHF060303HQ2N7 -T 2.7 13 500 16 21 34 34 39 9200 0.23 300 VHF060303HQ3N0 -T 3.0 13 500 16 21 34 34 39 5600 0.26 280 VHF060303HQ3N3 -T 3.3 13 500 17 22 34 35 40 8100 0.30 270 VHF060303HQ3N6 -T 3.6 13 500 15 22 33 34 39 7700 0.38 240 VHF060303HQ3N9 -T 3.9 13 500 15 21 33 34 38 7400 0.42 230 VHF060303HQ4N3 -T 4.3 13 500 15 20 32 33 37 6800 0.44 220 VHF060303HQ4N7 -T 4.7 13 500 15 21 33 34 38 6200 0.45 220 VHF060303HQ5N1 -T 5.1 13 500 16 21 34 35 38 5900 0.46 210 VHF060303HQ5N6 -T 5.6 13 500 15 20 33 33 37 5500 0.46 210 22 VHF060303HQ6N2 -T 6.2 13 500 17 34 34 37 5100 0.48 210 VHF060303HQ6N8 -T 6.8 13 500 16 21 32 32 35 4900 0.50 200 VHF060303HQ7N5 -T 7.5 13 500 15 20 31 32 34 4700 0.50 200 VHF060303HQ8N2 -T 8.2 13 500 15 20 31 31 34 4300 0.56 190 VHF060303HQ9N1 -T 9.1 13 500 15 19 30 30 32 4100 0.72 170 VHF060303HQ10N -T 10 13 500 15 19 28 28 31 3800 0.80 160 VHF060303HQ12N -T 12 13 500 15 19 27 27 28 3400 0.80 160 18 0.85 160 VHF060303HQ15N -T 15 13 500 14 24 23 23 2600 VHF060303HQ18N -T 18 13 500 14 18 23 23 22 2300 1.00 140 VHF060303HQ22N -T 22 13 500 14 18 22 22 20 1900 1.20 130 VHF060303HQ27N -T 27 13 500 14 18 15 12 8 1800 1.60 120 14 VHF060303HQ33N -T 33 13 300 13 8 4 - 1800 2.20 110 VHF060303HQ39N -T 39 11 300 13 14 6 - - 1600 2.30 100 VHF060303HQ47N -T 47 11 300 13 14 - - - 1500 2.60 100 56 11 300 12 12 - - - 1400 2.80 80 VHF060303HQ56N -T VHF060303HQ68N -T 68 11 300 12 10 - - - 1200 3.20 80 VHF060303HQ82N -T 82 10 300 11 9 - - - 1100 3.80 70 VHF060303HQR10 -T 100 10 300 11 9 - 1000 4.00 60 120 9 300 11 7 - 1000 5.00 50 VHF060303HQR12 -T - 3 - 1005TYPE Part No. Inductance (nH) Q (Min) Test Fre. (MHz) Q Frequency (MHz) 100 300 500 800 1000 SRF (MHz)Min ( DC R )Max Ir(mA) Max VHF100505H1N0 T 1.0 8 100 11 19 18 34 36 10000 0.1 400 VHF100505H1N1 T 1.1 8 100 11 19 18 34 36 10000 0.1 400 VHF100505H1N2 T 1.2 8 100 11 19 18 34 36 10000 0.1 400 VHF100505H1N3 T 1.3 8 100 11 19 18 34 36 10000 0.1 400 VHF100505H1N5 T 1.5 8 100 11 19 18 34 36 6000 0.1 300 VHF100505H1N6 T 1.6 8 100 11 19 18 32 35 6000 0.1 300 VHF100505H1N8 T 1.8 8 100 11 19 18 30 34 6000 0.1 300 VHF100505H2N0 T 2.0 8 100 10 18 17 29 33 6000 0.2 300 VHF100505H2N2 T 2.2 8 100 10 18 17 29 33 6000 0.2 300 VHF100505H2N4 T 2.4 8 100 10 18 17 29 32 6000 0.2 300 VHF100505H2N7 T 2.7 8 100 10 18 17 29 32 6000 0.2 300 VHF100505H3N0 T 3.0 8 100 10 18 17 29 32 6000 0.2 300 VHF100505H3N3 T 3.3 8 100 10 18 17 29 32 6000 0.2 300 VHF100505H3N6 T 3.6 8 100 10 18 17 28 31 4000 0.2 300 VHF100505H3N9 T 3.9 8 100 10 18 17 28 31 4000 0.2 300 VHF100505H4N3 T 4.3 8 100 10 18 17 28 31 4000 0.2 300 VHF100505H4N7 T 4.7 8 100 10 18 17 28 31 4000 0.2 300 VHF100505H5N1 T 5.1 8 100 10 18 17 28 30 4000 0.3 300 VHF100505H5N6 T 5.6 8 100 10 18 17 28 30 4000 0.3 300 VHF100505H6N2 T 6.2 8 100 10 18 17 27 30 3900 0.3 300 VHF100505H6N8 T 6.8 8 100 10 18 17 27 30 3900 0.3 300 VHF100505H7N5 T 7.5 8 100 10 18 17 27 30 3700 0.4 300 VHF100505H8N2 T 8.2 8 100 10 18 17 27 30 3600 0.4 300 VHF100505H9N1 T 9.1 8 100 10 18 17 27 30 3400 0.4 300 VHF100505H10N T 10 8 100 10 18 17 27 30 3200 0.4 300 VHF100505H12N T 12 8 100 10 18 17 26 29 2700 0.5 300 VHF100505H15N T 15 8 100 10 18 17 26 28 2300 0.5 300 VHF100505H18N T 18 8 100 10 18 17 25 27 2100 0.6 300 VHF100505H20N T 20 8 100 10 18 17 25 26 2000 0.6 300 VHF100505H22N T 22 8 100 10 18 17 25 25 1900 0.6 300 VHF100505H27N T 27 8 100 10 18 17 25 23 1600 0.7 300 VHF100505H33N T 33 8 100 10 18 17 22 22 1300 0.8 200 VHF100505H39N T 39 8 100 10 18 17 22 19 1200 1.0 200 VHF100505H43N T 43 8 100 10 18 17 21 16 1100 1.1 200 VHF100505H47N T 47 8 100 10 18 17 21 16 1000 1.1 200 VHF100505H56N T 56 8 100 10 18 17 18 13 750 1.2 200 VHF100505H68N T 68 8 100 10 18 17 18 9 750 1.4 180 VHF100505H82N T 82 8 100 10 18 17 13 - 750 2.4 150 VHF100505HR10 T 100 8 100 10 18 17 12 - 700 2.6 150 VHF100505HR12 T 120 8 100 10 18 17 - - 600 2.8 150 VHF100505HR15 T 150 8 100 10 18 17 - - 550 3.2 100 VHF100505HR18 T 180 8 100 10 18 - - - 500 3.7 100 VHF100505HR22 T 220 8 100 12 20 - - - 450 4.0 100 VHF100505HR27 T 270 8 100 12 20 - - - 400 4.5 100 VHF100505HR30 T 300 6 50 12 20 - - - 350 7.0 50 VHF100505HR33 T 330 6 50 8 16 - - - 350 7.0 50 VHF100505HR36 T 360 6 50 8 - - - - 300 7.5 50 4 CHIP HIGH FREQUENCY INDUCTORS 1608TYPE Part No. Inductance (nH) Q (Min) Test Fre. (MHz) 100 Q Frequency (Mhz) 300 500 800 1000 SRF (MHz)Min ( DC R )Max Ir(mA) Max VHF160808H1N0S 1.0 8 100 14 20 30 35 50 10000 0.05 500 VHF160808H1N2S 1.2 8 100 14 20 30 35 50 10000 0.10 500 VHF160808H1N5S 1.5 8 100 14 22 37 38 68 10000 0.10 400 VHF160808H1N8S 1.8 8 100 14 21 33 35 61 9800 0.12 400 VHF160808H2N2S 2.2 8 100 14 26 40 39 60 7600 0.20 400 VHF160808H2N7S 2.7 8 100 12 23 27 37 47 7000 0.20 400 VHF160808H3N3S 3.3 8 100 12 23 27 36 47 6200 0.20 400 VHF160808H3N9S 3.9 8 100 12 25 28 38 47 5600 0.25 400 VHF160808H4N7S 4.7 8 100 12 26 30 38 49 4800 0.30 400 VHF160808H5N6S 5.6 8 100 12 26 29 35 34 4600 0.30 400 VHF160808H6N8S 6.8 8 100 12 23 27 35 40 4200 0.35 400 VHF160808H8N2J 8.2 8 100 12 22 26 33 39 3600 0.35 400 VHF160808H10NJ 10 8 100 13 25 31 38 45 3200 0.40 300 VHF160808H12NJ 12 8 100 13 24 28 35 39 2800 0.40 300 VHF160808H15NJ 15 8 100 13 22 27 34 40 2600 0.45 300 VHF160808H18NJ 18 8 100 13 24 28 35 38 2400 0.60 300 VHF160808H22NJ 22 8 100 15 27 32 38 43 2000 0.60 300 VHF160808H27NJ 27 8 100 14 26 29 36 44 1900 0.80 300 VHF160808H33NJ 33 8 100 14 26 29 35 34 1600 0.80 300 VHF160808H39NJ 39 8 100 14 22 25 28 28 1400 1.00 300 VHF160808H47NJ 47 8 100 15 25 29 30 25 1200 1.00 200 VHF160808H56NJ 56 8 100 17 28 31 31 25 1000 1.00 200 VHF160808H68NJ 68 8 100 17 22 24 25 15 900 1.00 200 VHF160808H82NJ 82 8 100 17 23 24 22 13 800 1.00 200 VHF160808HR10J 100 8 100 17 25 27 24 17 700 1.40 200 VHF160808HR12J 120 8 100 15 24 23 600 1.60 150 VHF160808HR15J 150 8 13 19 500 1.80 150 VHF160808HR18JT 180 8 100 100 13 19 500 1.80 150 VHF160808HR22JT 220 8 50 15 350 2.40 200 VHF160808HR27JT 270 8 50 16 350 2.60 150 VHF160808HR33JT 330 8 50 16 350 2.80 150 5 2012TYPE Part No. Inductance Q Test Fre. (nH) (Min) (MHz) SRF Q Frequency (MHz) (MHz)Min 100 300 500 800 1000 DC R ( )Max Ir(mA) Max VHF201209H1N5S 1.5 8 100 10 23 46 54 85 6000 0.10 600 VHF201209H1N8S 1.8 8 100 13 24 46 55 85 6000 0.10 600 VHF201209H2N2S 2.2 8 100 13 25 46 53 85 6000 0.10 600 VHF201209H2N7S 2.7 8 100 13 25 42 45 76 6000 0.10 600 VHF201209H3N3S 3.3 8 100 15 28 48 52 85 6000 0.13 600 VHF201209H3N9S 3.9 8 100 15 28 49 55 85 5400 0.15 600 VHF201209H4N7S 4.7 8 100 15 28 48 53 85 4500 0.20 400 VHF201209H5N6S 5.6 8 100 16 30 44 45 78 4000 0.23 400 VHF201209H6N8S 6.8 8 100 16 30 40 45 69 3650 0.25 400 VHF201209H8N2J 8.2 8 100 16 28 42 45 69 3000 0.28 400 VHF201209H10NJ 10 8 100 16 28 43 45 71 2500 0.30 300 VHF201209H12NJ 12 8 100 16 28 43 45 50 2450 0.35 300 VHF201209H15NJ 15 8 100 18 30 43 43 56 2000 0.40 300 VHF201209H18NJ 18 8 100 18 26 40 42 59 1750 0.45 300 VHF201209H22NJ 22 8 100 17 31 45 45 59 1700 0.50 300 VHF201209H27NJ 27 8 100 17 31 45 45 54 1550 0.55 300 VHF201209H33NJ 33 8 100 18 27 41 40 44 1350 0.60 300 VHF201209H39NJ 39 8 100 19 31 42 31 20 1300 0.70 300 VHF201209H47NJ 47 8 100 20 24 33 31 29 1200 0.80 300 VHF201209H56NJ 56 8 100 21 34 43 35 25 1150 0.80 300 VHF201209H68NJ 68 8 100 19 28 37 29 1000 0.85 300 VHF201209H82NJ 82 8 100 19 29 30 27 850 0.90 300 VHF201209HR10J 100 8 100 13 27 36 600 1.00 300 VHF201209HR12J 120 8 100 19 27 500 1.20 300 VHF201209HR15K 150 8 100 19 27 500 1.50 300 VHF201209HR18K 180 8 100 19 25 400 1.80 300 VHF201209HR22K 220 8 100 19 22 350 1.80 300 6 CHIP HIGH FREQUENCY INDUCTORS 7

下载 PDF

VHF060303HQ6N8JT

物料型号：文档中列出了多种型号的叠唇片式高频电感，例如VHF060303HON6.-T、VHF100505H1NO.T等。

器件简介：这些电感具有高自谐振频率、高可靠性、优良的焊接性和耐焊性，适合于回流焊和波峰焊。

引脚分配：文档中没有明确提供引脚分配信息，但通常这类电感为无引脚的表面贴装元件。

参数特性： - 工作温度范围：不同型号的电感有不同的工作温度范围，如0603和1005型号为-55~125°C，1608和2012型号为-40~+85°C。 - 电感量：提供了不同型号的电感量范围，如0.3nH至120nH。 - 品质因数Q：列出了不同型号在特定测试频率下的最小品质因数Q值。 - 自谐振频率(SRF)：提供了不同型号的最小自谐振频率。 - 直流电阻(DCR)：列出了不同型号的最大直流电阻值。 - 额定电流(Ir)：提供了不同型号的最大额定电流。

功能详解：这些电感主要用于各种高频回路，如手机、PHS、PDA等设备中的高频电路，并用于抑制高频噪声，作为EMI对策。

应用信息：适用于PHS PDA、便携电话、各种高频回路和EMI对策。

封装信息：提供了不同型号的尺寸信息，如0603、1005、1608、2012和2019，以及它们的长宽高尺寸。
