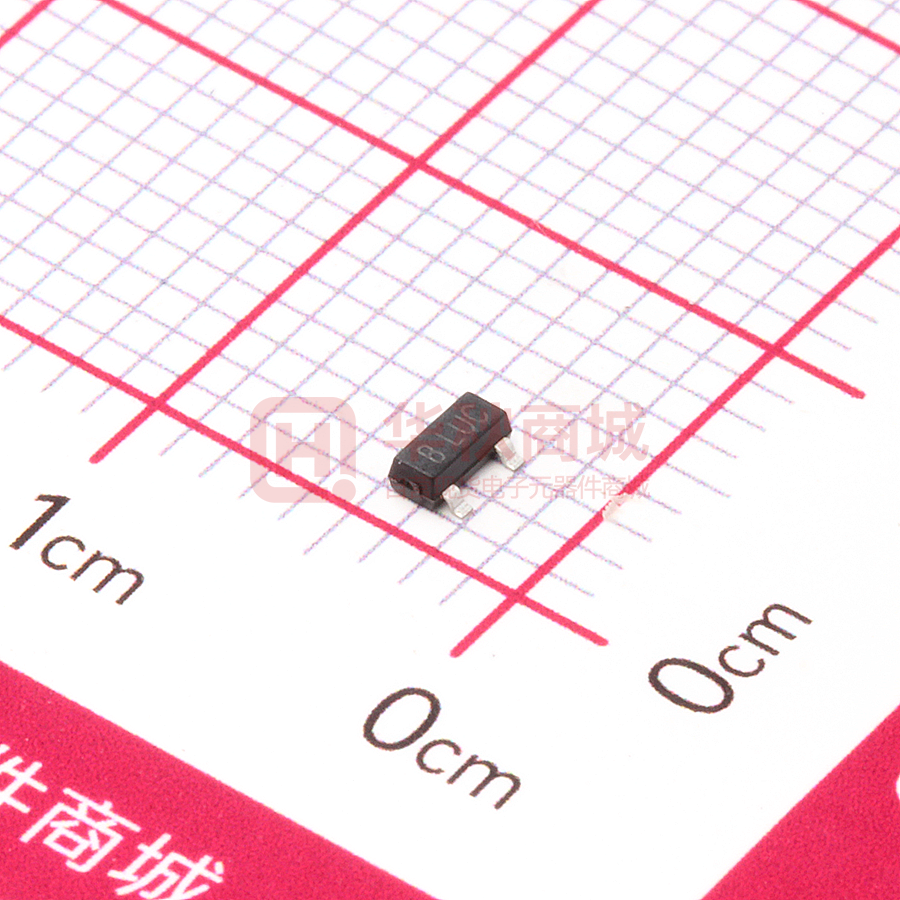

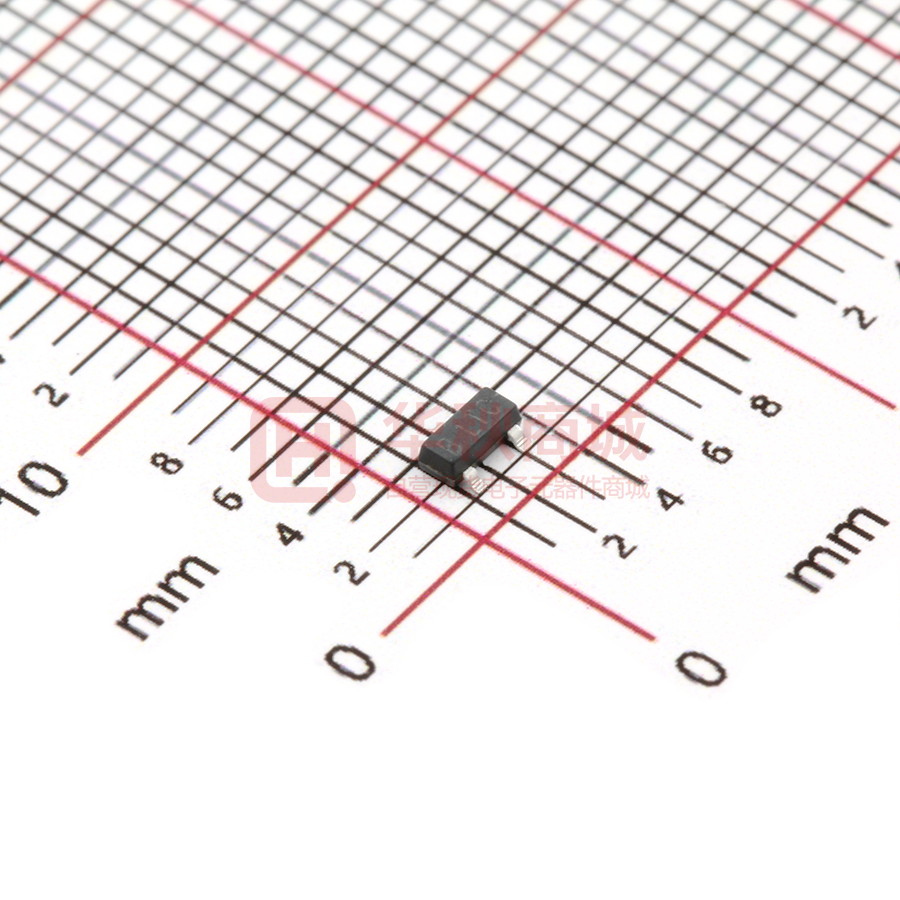

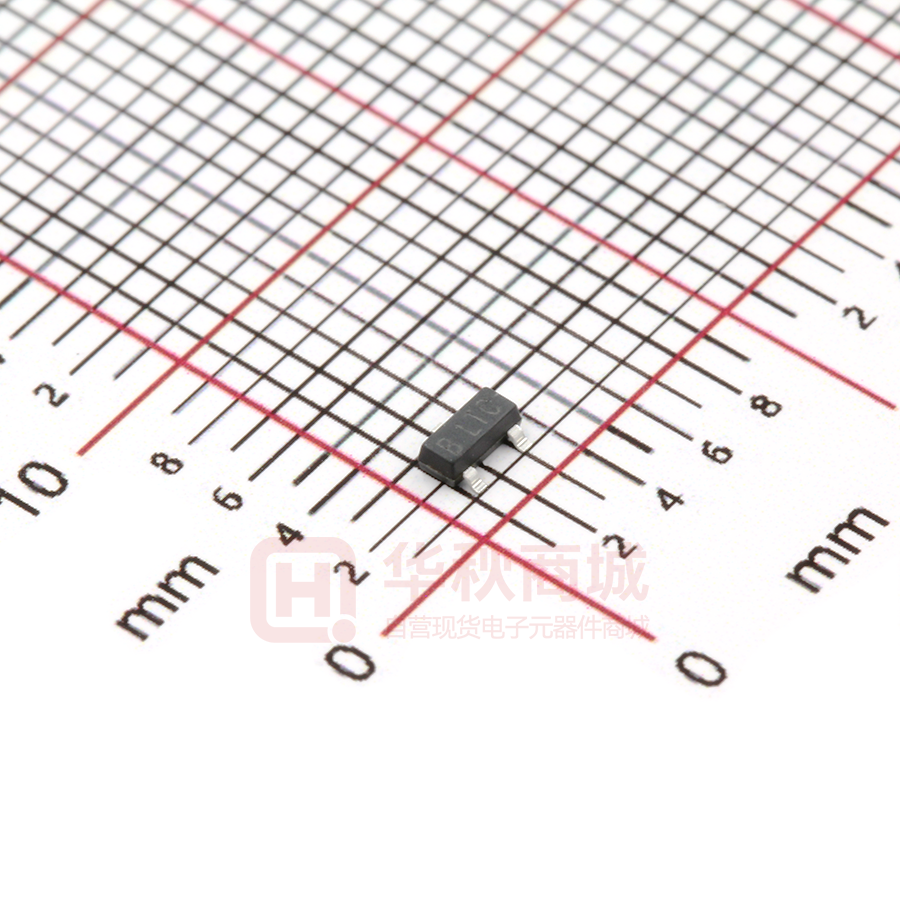

UDT23A12L02

UDT23AXXL02 SERIES Electrostatic Discharged Protection Devices (ESD) Data Sheet Description Brightking’s UDT23AXXL02 series are ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by electrostatic discharge (ESD), cable discharge events(CDE) and electrical fast transients(EFT).The series has a typical capacitance of only 0.8pF. This means it can be used on circuits operating in excess of 3GHz without signal attenuation. Features ● ● ● ● ● ● ● ● ● ● ● ● IEC61000-4-2 ESD 30KV Air, 30KV contact compliance SOT-23 surface mount package Protects two high speed data line Peak power dissipation of 400W under 8/20μs waveform Working voltage: 3.3V, 5V, 12V, 15V and 24V Low leakage current Ultra low capacitance and clamping voltage Solid-state silicon avalanche technology Lead Free/RoHS compliant Solder reflow temperature: Pure Tin-Sn, 260~270℃ Flammability rating UL 94V-0 Meets MSL level 1, per J-STD-020 3 1 2 Pin Configuration Applications ● ● ● ● HDMI interface protection Mobile display digital interface RF/Antenna circuits USB 2.0 & Firewire ports ● GaAs photodetector protection ● HBT power Amp protection ● Infiniband transceiver protection Maximum Ratings Rating Symbol Value Unit PPP 400 W Peak pulse power (tp=8/20μs waveform) ESD voltage (Contact discharge) ±30 VESD ESD voltage (Air discharge) Storage & operating temperature range Revision:ESD-UDT23AXXL02 SERIES-001(A2) kV ±30 TSTG ,TJ 1/6 -55~+150 ℃ http://brightking.yageo.com UDT23AXXL02 SERIES Electrical Characteristics (TJ=25℃) UDT23A03L02 (Marking: B LSC) Parameter Reverse stand-off voltage Reverse breakdown voltage Symbol Condition Min. Typ. VRWM VBR IBR=1mA VR=3.3V each I/O pin Reverse leakage current IR Clamping voltage (tp=8/20μs) VC Peak Pulse Current (tp=8/20μs) IPP Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Symbol Condition Max. Unit 3.3 V 4 V IPP=1A 20 μA 10 V 19 A 0.8 pF UDT23A05L02 (Marking: B LTC) Parameter Reverse stand-off voltage Reverse breakdown voltage Min. Typ. VRWM VBR IBR=1mA VR=5V each I/O pin IPP=1A Reverse leakage current IR Clamping voltage (tp=8/20μs) VC Peak Pulse Current (tp=8/20μs) IPP Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Symbol Condition Max. Unit 5 V 6 V 5 μA 12 V 17 A 0.8 pF UDT23A12L02 (Marking: B LUC) Parameter Reverse stand-off voltage Reverse breakdown voltage Min. Typ. VRWM VBR IBR=1mA VR=12V each I/O pin IPP=1A Reverse leakage current IR Clamping voltage (tp=8/20μs) VC Peak Pulse Current (tp=8/20μs) IPP Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Symbol Condition Max. Unit 12 V 13.3 V 1 μA 25 V 10 A 0.8 pF UDT23A15L02 (Marking: B LWC) Parameter Reverse stand-off voltage Reverse breakdown voltage Typ. VRWM VBR Reverse leakage current IR Clamping voltage (tp=8/20μs) VC Peak Pulse Current (tp=8/20μs) IPP Off state junction capacitance CJ Revision:ESD-UDT23AXXL02 SERIES-001(A2) Min. IBR=1mA VR=15V each I/O pin IPP=1A 0Vdc,f=1MHz Between I/O pins and GND 2/6 Max. Unit 15 V 16.7 V 0.8 1 μA 30 V 8 A pF http://brightking.yageo.com UDT23AXXL02 SERIES Electrical Characteristics (TJ=25℃) UDT23A24L02 (Marking: B LXC) Parameter Symbol Reverse stand-off voltage Condition Min. Typ. Max. Unit 24 V VRWM Reverse breakdown voltage VBR IBR=1mA 26.7 V Reverse leakage current IR VR=24V each I/O pin 1 μA Clamping voltage (tp=8/20μs) VC IPP=1A 48 V Peak Pulse Current (tp=8/20μs) IPP 6 A Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND 0.8 pF Typical Characteristics Curves Figure 1. Power Derating Curve Figure 2. Pulse Waveforms 110 100 100 % of Peak Power Current Peak Power Dissipation (%) 90 80 70 60 50 40 30 20 10 0 tr Peak value Ipp 90 80 70 60 50 40 30 td=t|IPP/2 20 10 0 25 50 75 100 125 150 0 175 0 5 10 15 20 25 30 t-Time (μs) TA-Ambient Temperature (℃) Figure 3. Non-Repetitive Peak Pulse vs. Pulse Time Figure 4. Forward Voltage vs. Forward Current 10000 6 5 Forward Voltage (V) PPP - Peak Pulse Power (W) Waveform Parameters: tr=8µs td=20µs 1000 100 4 3 2 Waveform Parameters: tr=8µs tb=20µs 1 10 0.1 0 1 10 100 1000 tP-Pulse Duration (µs) Revision:ESD-UDT23AXXL02 SERIES-001(A2) 10000 0 1 2 3 4 5 6 7 Peak Pulse Current (A) 3/6 http://brightking.yageo.com UDT23AXXL02 SERIES Applications Information HDMI Tx0- Rx0- Tx0+ Rx0+ Tx1- Rx1- Tx1+ Rx1+ Tx2- Rx2- Tx2+ Rx2+ TC- RC- TC+ RC+ UDT23AXXL02 CEC CEC SCL SCL Vcc 5V Vcc 5V SDA SDA HPD HPD UDT26A05L05 Revision:ESD-UDT23AXXL02 SERIES-001(A2) 4/6 http://brightking.yageo.com UDT23AXXL02 SERIES Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature Revision:ESD-UDT23AXXL02 SERIES-001(A2) 20-40 seconds 8 minutes max. 5/6 http://brightking.yageo.com UDT23AXXL02 SERIES Dimensions (SOT-23) E F Dimension A G 2 Symbol 1 B C H I 3 J D 0.8 (3X) 0.9 (3X) 1.9 0.95 1.8 Recommended Soldering Pad Layout Millimeters Inches Min. Max. Min. Max. A 0.08 0.18 0.003 0.007 B 0.15 - 0.006 - C - 0.13 - 0.005 D 0.89 1.09 0.035 0.043 E 2.80 3.05 0.110 0.120 F 1.90 0.075 G 0.95 0.037 H 1.19 1.40 0.047 0.055 I 2.10 2.49 0.083 0.098 J 0.35 0.50 0.014 0.020 Packaging Tape P0 P1 P2 K F B W E øD0 B0 A0 øD1 t A Reel D2 D Revision:ESD-UDT23AXXL02 SERIES-001(A2) W1 Symbol Dimension (mm) W 8.00±0.30 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ1.00±0.05 E 1.75±0.10 F 3.50±0.10 A 3.10±0.10 A0 2.10±0.10 B 2.75±0.10 B0 0.65±0.10 K 1.10±0.10 t 0.20±0.05 D Φ178.0±2.0 D2 Φ13.0 W1 9.5 Quantity: 3000PCS 6/6 http://brightking.yageo.com
