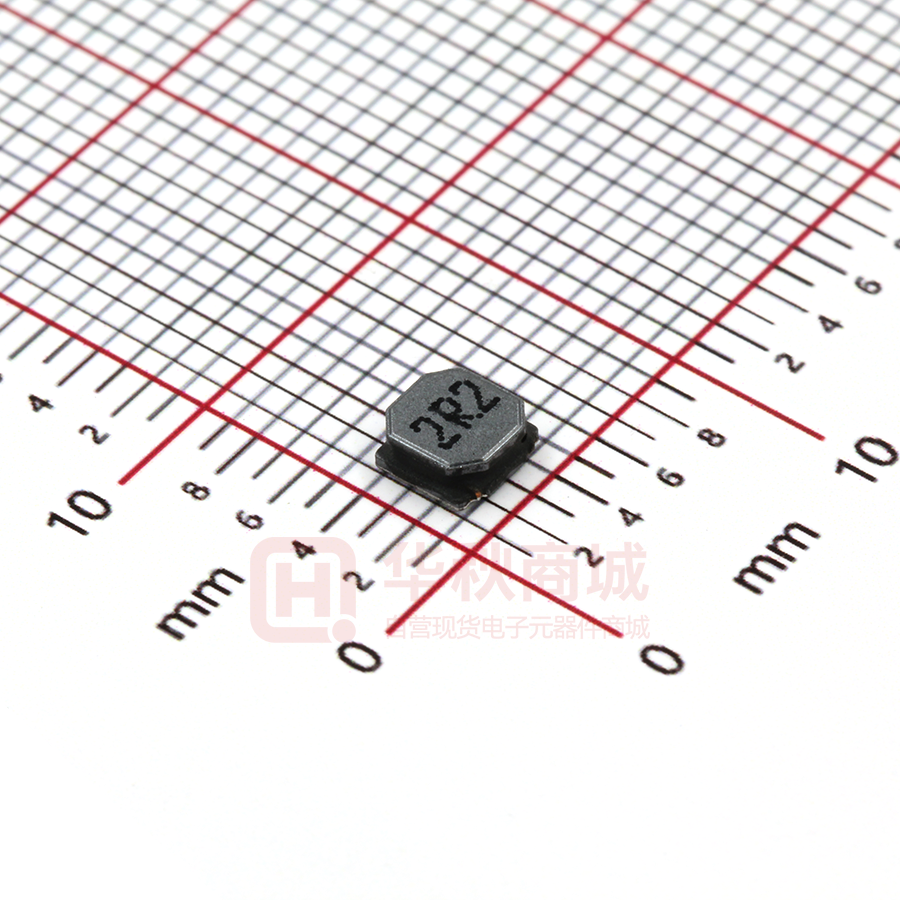

CSME0418D-2R2M-LRH

SPECIFICATION FOR APPROVAL CUSTOMER CUST. PART NO. CUST. DOC. REV. DESCRIPTION SAMPLE LOT NO. PART NO. DOC. REV. DATE POWER CHOKE(RoHS+H.F.) CSME0418D-XXXX-LRH ORIG 8/16/’17 Once you approve this part, please sign and return this page to the following marked location. Customer Signature:___________________ Date:_________________ □This part currently development section. □Production line can produce this series of products. ■Sales Office-Headquarter No. 566-1, Kao-Shi Rd., Yangmei, Taoyuan 32668, Taiwan TEL: +886-3-475-3355 FAX: +886-3-485-4959 □Yong Zhou Plant Tao-Yuan Rd., Fenghuang Park, Lengshuitan District, Yongzhou, Hunan 425000, P.R.C. TEL: +86-746-8610-180 FAX: +86-746-8610-181 □Sales Office-Dong Guan,China No.638,Mei Jing West Road Xiniupo Administrative Zone Dalang Town,Dong Guan City,GuangDong Province,China. TEL: +86-769-8555-0979 FAX: +86-769-8555-0972 TESTED BY CHECKED BY APPROVED BY Zhikai Deng Tieqiao Gong Shengjun Zhou PROSPERITY DIELECTRICS CO., LTD. TABLE OF CONTENTS INDEX Page ■ Engineering Change Notice - Record ……………………….. 2 ■ Part Number Identification …………………..….……………. 3 ■ Mechanical Dimension …………….………………………….. 3 ■ Structure …………………………………………..…...………… 3 ■ Material List …………………………………………..…...…….. 3 ■ Electrical Characteristics …………….…………..………..… 4 ■ Reliability Performance ……………………..……..………….. 5 ■ Reflow Chart …………………………………………..………… 6 ■ Packaging ………………………………………………………… 7 ■ Test Report …………..…………………………………..……… Rev.A P1 Prosperity Dielectrics Co., Ltd. SPECIFICATION FOR APPROVAL CUSTOMER CUSTOMER P/N REV. SPL. LOT NO. PART NAME PART NO. REV. DATE OF ISSUE POWER CHOKE (RoHS+H.F.) CSME0418D-XXXX-LRH ORIG Q'TY 0 PCS 8/16/’17 ENGINEERING CHANGE NOTICE - RECORD REVISION NO. ORIG Rev.A REVISION DESCRIPTION P2 Prosperity Dielectrics Co., Ltd. AUTHOR DATE Zhikai Deng 8/16/’17 REMARK SPECIFICATION FOR APPROVAL ※This is a RoHS and REACH compliant product whose related documents are available on request. ※Graphic is only for dimensionally application. 1. PART NUMBER IDENTIFICATION CSME 0418 D - □□□ □ - LRH RoHS+H.F. TOLERANCE INDUCTANCE TERMINAL TYPE DIMENSION PRODUCT CODE 2. MECHANICAL DIMENSION UNIT : mm DIM. TOL. M1 4.0 ±0.2 M2 4.0 ±0.2 M3 1.85 MAX. M4 3.3 ±0.2 M5 1.0 ±0.2 M6 2.1 REF 3. STRUCTURE 4. MATERIAL LIST NO Rev.A PARTS MATERIAL 1 DRUM CORE Ni-Zn FERRITE CORE 2 WIRE POLYURETHANE ENAMELED COPPER WIRE 3 ADHESIVE EPOXY RESIN MAGNETIC POWDER 4 PLATING ELECTRODES PLATING: Ag 10-20 um Ni 1-3 um Sn 3-7 um 5 OUTER ELECTRODES TOP SURFACE SOLDER COATING Sn99%、 Ag0.3%、Cu0.7% P3 Prosperity Dielectrics Co., Ltd. SPECIFICATION FOR APPROVAL 5. ELECTRICAL CHARACTERISTICS Part Number. Mark Inductance (uH) DCR (mΩ) ±20%. Isat (A) MAX. Irise (A) MAX. CSME0418D-1R0N-LRH 1R0 1.0 27 4.00 3.20 CSME0418D-1R5N-LRH 1R5 1.5 37 3.30 2.40 CSME0418D-2R2M-LRH 2R2 2.2 42 3.00 2.20 CSME0418D-3R3M-LRH 3R3 3.3 55 2.30 2.00 CSME0418D-4R7M-LRH 4R7 4.7 70 2.00 1.70 CSME0418D-6R8M-LRH 6R8 6.8 98 1.60 1.45 CSME0418D-100M-LRH 100 10 150 1.30 1.20 CSME0418D-150M-LRH 150 15 210 1.10 0.85 CSME0418D-220M-LRH 220 22 290 0.90 0.72 CSME0418D-330M-LRH 330 33 480 0.70 0.55 CSME0418D-101M-LRH 101 100 1450 0.42 0.28 □TOLERANCE：M:±20%、N:±30% ※ INDUCTANCE：@100KHz,1.0V ※ TEST MACHINE： HIOKI3532-50 OR EQUIVALENT ※ DC RESISTANCE： HIOKI 3540 OR EQUIVALENT ※ ISAT / IRISE： HP4284+42841A OR EQUIVALENT ※ OPERATING TEMPERATURE： -40℃ ~ +125℃. ※ INDUCTANCE DROPS NO MORE THAN 30% OF INITIAL VALUE AT ISAT. ※ TEMPERATURE RISES：△ t< 40℃ AT IRMS. ※ MSL：LEVEL 1. Rev.A P4 Prosperity Dielectrics Co., Ltd. SPECIFICATION FOR APPROVAL 6. RELIABILITY PERFORMANCE 6-1.Storage Temperature range：-40℃～ ＋105℃ 6-2.Operating temperature range：-40℃ ～ ＋125℃ (Including coil’s self temperature rise) 6-3.External appearance：No external defects can be found in the visual inspection. 6-4.Electrode strength：No electrode detachment should be found when the device is pushed in two directions of X and Y with the force of 10.0N for 60±2 seconds after soldering between copper plate and the electrodes. (Refer to figure at right) 6-5.Vibration test：Inductance deviation is within ±10.0% after 1 hour sweeping vibration in each three directions, namely, forward and backward, up and down,right and left. The frequency is 10～55～10Hz and the amplitude of 1 minute cycle is 1.5mm PP. 6-6.Humidity test：Inductance deviation is within ±5.0% after 96±4 hours test under the condition of relative humidity of 90～95% and temperature of 60±2℃,and 1 hour storage under room ambient conditions after the device is wiped with dry cloth. Rev.A P5 Prosperity Dielectrics Co., Ltd. SPECIFICATION FOR APPROVAL 7. TYPICAL RoHS REFLOW PROFILE *Temperature on surface of circuit board The products may be exposed to reflow soldering process of above profile up to two times. Rev.A P6 Prosperity Dielectrics Co., Ltd. SPECIFICATION FOR APPROVAL 8. PACKAGING 8-1 OUTER PACKING 3 KPCS/REEL;9 KPCS/INNER BOX;27 KPCS/OUTER BOX 8-2 CARRIER TAPE DIMENSIONS UNIT : mm ITEM W A0 B0 K0 P F E D0 D1 P0 P2 T DIM 12.0 +0.30 -0.10 4.35 4.35 1.95 8.00 5.50 1.75 1.50 1.50 4.00 2.00 0.30 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 +0.1 +0.1 ±0.1 ±0.1 ±0.05 TOLE 8-3 TAPING DIMENSIONS 8-4 Reel Dimensions Rev.A P7 Prosperity Dielectrics Co., Ltd.
