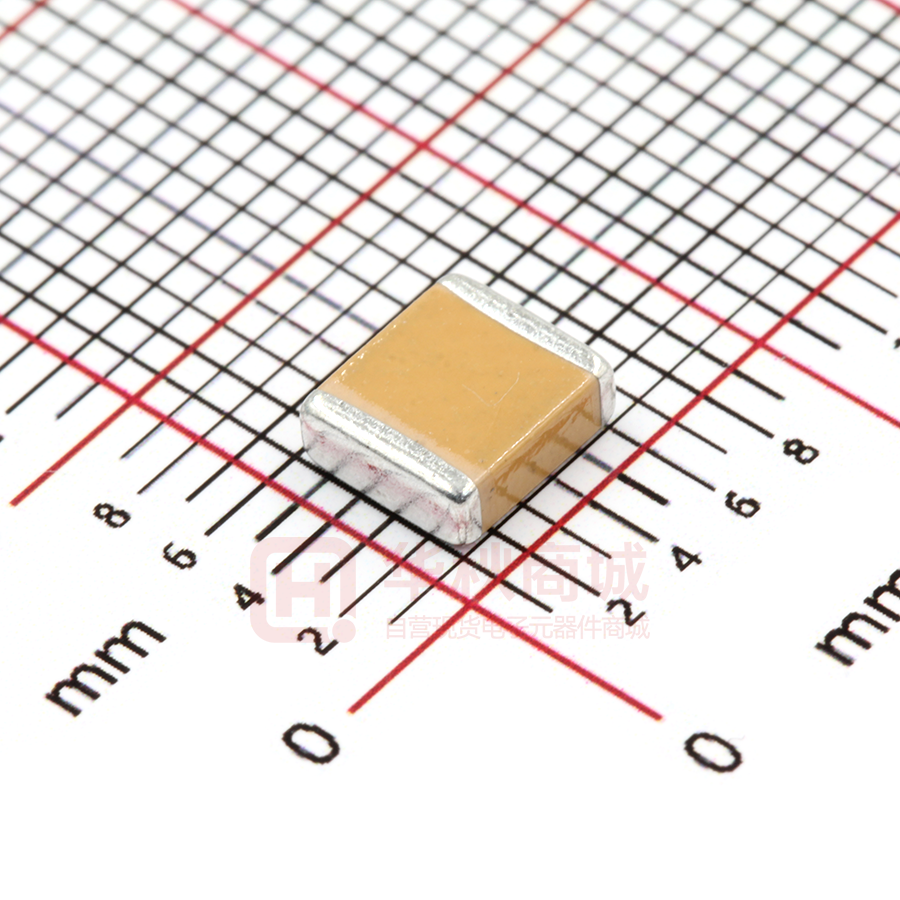

FJ55X222K302EFG

信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.566-1, Kaoshi Rd., Yangmei, Taoyuan 32668, Taiwan (R.O.C.) Tel : 886-3-4753355 Fax : 886-3-4854959 Messrs. : Date : 一般共用 2019/11/11 APPROVAL SHEET Product Name : Anti-Arcing High Voltage Multilayer Ceramic Chip Capacitors Part No. : FJ Series Description : Size 1206~2225, C0G/X7R, 1000V~4000V PREPARED BY APPROVED BY 信昌電子陶瓷股份有限公司 PROSPERITY DIELECTRICS CO., LTD. 桃園市楊梅區高獅路 566-1 號 Tel : 03-4753355 ext : Contactor : http://www.pdc.com.tw Fax : 03-4854959 Mobile : DCM-003-8.1 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.566-1, Kaoshi Rd., Yangmei, Taoyuan 32668, Taiwan (R.O.C.) Tel : 886-3-4753355 Fax : 886-3-4854959 SPECIFICATION FOR Product Name : Anti-Arcing High Voltage Multilayer Ceramic Chip Capacitors Part No. : FJ Series Description : Size 1206~2225, C0G/X7R, 1000V~4000V SPEC. No. : FJ-000-000-07 DATE : 2019/11/11 DRAWN BY CHECEKED BY APPROVED BY Jane Hsiao Yvens Chou Joseph Ling DCM-003-8.2 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 1. INTRODUCTION PDC FJ Series green type capacitors are manufactured by using environmental friendly material without lead or cadmium. These capacitors feature series connection of multi-layer capacitor units in a MLCC to realize high voltage performance. This special design can distribute voltage gradients throughout the entire capacitor, so as to prevent short circuit failure. It is a safety design for LCD back-lighting inverter application. 2. FEATURES 3. APPLICATIONS a. Special interior design offers high voltage rating in a given case size. b. High reliability and stability. c. Anti-Arcing. d. RoHS compliant. a. b. c. d. e. f. DC to DC converter. High voltage coupling/DC blocking. Back-lighting inverters. LAN/WLAN interface. Modem. Power supplies. 4. HOW TO ORDER FJ PDC Family Table 1 31 X Size 102 K 202 Rated Voltage Table 6 Dielectric Capacitance Tolerance Table 2 Table 3 Table 4 Table 5 E C G Control Packaging Thickness Code Table 7 Table 8 Table 9 Table 1 PDC Family Table 6 Code Description Code Description Code Description Code Description FJ Anti-Arcing high voltage application with ≥1KVdc 102 1000VDC 202 2000VDC 402 4000VDC 152 1500VDC 302 3000VDC Table 2 Size Code Description Code Description Code Description 31 1206 (3216) 43 1812 (4532) 55 2220 (5750) 32 1210 (3225) 46 1825 (4563) 56 2225 (5763) 42 1808 (4520) 52 2211 (5728) Rated Voltage Table 7 Code Table 3 Packaging Type Description Code Description Dielectric Material Characteristics B Bulk T Tray package Code Description Code Description E Tape and 7” Reel, Embossed Tape P Tape and 7” Reel, Paper Tape N C0G X X7R K Tape and 10” Reel, Embossed Tape D Tape and 10” Reel, Paper Tape L Tape and 13” Reel, Embossed Tape G Tape and 13” Reel, Paper Tape Table 4 Capacitance Rule Code Table 8 Thickness Description Code Description Code Description Code Description Code Description Code Description R47 0.47pF 102 102=10x102=1000pF A 0.60 ± 0.10 mm I 1.25 ± 0.20 mm Q 0.50 +0.02/-0.05 mm 0R5 100 0.5pF 100=10x100=10pF 104 106 104=10x104=100nF 106=10x106=10µF B C 0.8+0.15/-0.10 mm J K 1.15 ± 0.15 mm 0.50 ± 0.20 mm R S 3.10 ± 0.30 mm 1.25 ± 0.10 mm D 1.40 ± 0.15 mm L 0.30 ± 0.03 mm T 0.85 ± 0.10 mm Table 5 Tolerance 0.80 ± 0.07 mm E 1.60 ± 0.20 mm M 0.95 ± 0.10 mm U 0.50 ± 0.10 mm Code Description Code Description Code Description F 2.00 ± 0.20 mm N 0.50 ± 0.05 mm V 0.20 ± 0.02 mm A ±0.05 pF H ±3 % Q ±0.03 pF G 2.50 ± 0.30 mm O 3.50 ± 0.20 mm X 0.80 ± 0.10 mm B ±0.10 pF J ±5 % Z -20% ~ +80% H 2.80 ± 0.30 mm P 1.60+0.3/-0.10 mm Z 0.25 ± 0.03 mm C ±0.25 pF K ±10 % D ±0.50 pF L 0% ~ +10% Table 9 F ±1 % M ±20 % Code Description G ±2 % N -5% ~ +10% G RoHS Compliant I -10% ~ 0% P ±0.02 pF E Soft Termination Special Control Code Specification No. : FJ-000-000-07 ~1~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 5. EXTERNAL DIMENSIONS Size Inch (mm) L (mm) W (mm) Code / T (mm) MB (mm) 1206(3216) 3.30±0.30 1.60±0.20 0.60±0.20 1210(3225) 3.30±0.40 2.50±0.30 0.75±0.35 1808(4520) 4.50 +0.50/-0.30 2.00±0.25 L 0.75±0.35 See No.4 Reference Table 8 1812(4532) 4.50 +0.50/-0.30 3.20±0.40 1825(4563) 4.50 +0.50/-0.30 6.30±0.40 2211(5728) 5.70±0.40 2.80±0.30 0.85±0.35 2220(5750) 5.70±0.40 5.00±0.40 0.85±0.35 2225(5763) 5.70±0.40 6.30±0.40 0.85±0.35 T 0.75±0.35 W 0.75±0.35 MB MB Fig. 5.1 The outline of MLCC 6. GENERAL ELECTRICAL DATA Dielectric Size Rated voltage (WVDC) Capacitance range Capacitance tolerance Tan δ C0G X7R 1206, 1210, 1808, 1812, 1825, 2220, 2225 1206, 1210, 1808, 1812, 1825, 2211, 2220, 2225 1000V, 1500V, 2000V, 3000V, 4000V 1000V, 1500V, 2000V, 3000V, 4000V 1.5pF ~ 10nF 100pF ~ 220nF Reference to Table 5 Reference to Table 5 Cap. Rang Cap.1000pF 1.0±0.2Vrms, 1.0MHz±10% 1.0±0.2Vrms, 1.0KHz±10% 1.0±0.2Vrms, 1.0KHz±10%, at 25°C ambient temperature ≥100GΩ or RxC≥500Ω-F, whichever is smaller Termination ≥10GΩ or RxC≥100Ω-F, whichever is smaller -55°C to +125°C ±30ppm/°C ±15% Cu or Ag/Ni/Sn or Au (lead-free termination) Specification No. : FJ-000-000-07 ~2~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE 7-1. C0G Dimension Cap.(pF) Code 1.5 1R5 1.8 1R8 2.2 2R2 2.7 2R7 3.3 3R3 3.9 3R9 4.7 4R7 5.0 5R0 5.6 5R6 6.8 6R8 8.2 8R2 10 100 12 120 15 150 18 180 22 220 27 270 33 330 39 390 47 470 56 560 68 680 82 820 100 101 120 121 150 151 180 181 220 221 270 271 330 331 390 391 470 471 560 561 680 681 820 821 1000 102 1200 122 1500 152 1800 182 2200 222 1206 1000V 1500V 2000V C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E C E E E E E E E E E E E E E E E E E E E E E E 3000V E E E E E E E E E E E E 1210 1000V 1500V 2000V 3000V G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G Specification No. : FJ-000-000-07 ~3~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-1. C0G Dimension 1808 1812 1825 Cap.(pF) Code 1000V 1500V 2000V 3000V 4000V 1000V 1500V 2000V 3000V 4000V 1000V 1500V 2000V 3000V 1.5 1R5 1.8 1R8 2.2 2R2 D D D D D 2.7 2R7 D D D D D 3.3 3R3 D D D D D 3.9 3R9 D D D D D 4.7 4R7 D D D D D 5.0 5R0 D D D D D 5.6 5R6 D D D D D 6.8 6R8 D D D D D 8.2 8R2 D D D D D 10 100 D D D D D F F F F F F F F F 12 120 D D D D D F F F F F F F F F 15 150 D D D D D F F F F F F F F F 18 180 D D D D D F F F F F F F F F 22 220 D D D D F F F F F F F F F F 27 270 D D D D F F F F F F F F F F 33 330 D D D D F F F F F F F F F 39 390 D D D D F F F F F F F F F 47 470 D D D D F F F F F F F F 56 560 D D D D F F F F F F F F 68 680 D D D D F F F F F F F F 82 820 D D D D F F F F F F F F 100 101 D D D F F F F F F F F F 120 121 D D D F F F F F F F F F 150 151 D F F F F F F F F F F F 180 181 D F F F F F F F F F F F 220 221 D F F F F F F F F F F F 270 271 F F F F F F F F F F F F 330 331 F F F F F F F F F F F F 390 391 F F F F F F F F F F F F 470 471 F F F F F F F F F F F F 560 561 F F F F F F F F F F F 680 681 F F F F F F F F F F G 820 821 F F F F F F G F F F G 1000 102 F F F F F F G F F F G 1200 122 F F F F F F F F F 1500 152 F F F F F F F G G 1800 182 F F F F F F F G G 2200 222 F F F F F G G 2700 272 F G G F G G 3300 332 F G G F G G 3900 392 G G G G 4700 472 G G G G 5600 562 G G 6800 682 G 8200 822 G 10000 103 G Specification No. : FJ-000-000-07 ~4~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-1. C0G Dimension 2220 2225 Cap.(pF) Code 1000V 1500V 2000V 3000V 4000V 1000V 1500V 2000V 3000V 4000V 1.5 1R5 1.8 1R8 2.2 2R2 2.7 2R7 3.3 3R3 3.9 3R9 4.7 4R7 5.0 5R0 5.6 5R6 6.8 6R8 8.2 8R2 10 100 F F F F F F F F 12 120 F F F F F F F F 15 150 F F F F F F F F 18 180 F F F F F F F F 22 220 F F F F F F F F 27 270 F F F F F F F F F F 33 330 F F F F F F F F F F 39 390 F F F F F F F F F F 47 470 F F F F F F F F F F 56 560 F F F F F F F F F F 68 680 F F F F F F F F F F 82 820 F F F F F F F F F F 100 101 F F F F F F F F F F 120 121 F F F F F F F F F 150 151 F F F F F F F F F 180 181 F F F F F F F F F 220 221 F F F F F F F F F 270 271 F F F F G F F F F 330 331 F F F G G F F F F 390 391 F F F G F F F F 470 471 F F F G F F F F 560 561 F F F G F F F F 680 681 F F F G F F F F 820 821 F F F G F G G G 1000 102 F F F G F G G G 1200 122 G G G G F G G G 1500 152 G G G G F G G G 1800 182 G G G F G G G 2200 222 G G G F G G G 2700 272 G G G F G G G 3300 332 G G G F G G G 3900 392 G G G F G G 4700 472 G G G F G G 5600 562 G G G G 6800 682 G G G G 8200 822 G G G G 10000 103 G G G G 12000 123 Specification No. : FJ-000-000-07 ~5~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension Cap.(pF) 1206 1210 Code 1000V 1500V 2000V 2500V 1000V 1500V 100 101 C C C 120 121 C C C 150 151 C C 180 181 C C 220 221 C C C G G 270 271 C C C G 330 331 C C C 390 391 C C C 470 471 C C C 560 561 C C C 680 681 C C C C 820 821 C C C 1000 102 C C C 1200 122 C E 1500 152 C E 1800 182 C 2200 222 2700 3300 1808 2000V 1000V 1500V 2000V 3000V 4000V C D D D D F C D D D D F G D D D D F G G D D D D F G G G D D D F F G G G D D D F F G G G D D D F F G G G D D D F F G G G D D D F F C G G G D D D F F C G G G D D D F F E G G G D F F F E G G G D F F F E E G G G D F F F C E E G G G D F F F 272 C E E G G G D F F F 332 C E E G G G D F F F 3900 392 C G G G D F F 4700 472 C G G G D F F 5600 562 C G G G F F F 6800 682 C G G G F F F 8200 822 C G G G F 10000 103 C G F 12000 123 E G F 15000 153 E G F 18000 183 E G F 22000 223 E G F 27000 273 G F 33000 333 G F 39000 393 G F 47000 473 G F 56000 563 68000 683 F Specification No. : FJ-000-000-07 ~6~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension Cap.(pF) 1812 1825 Code 1000V 1500V 2000V 3000V 4000V 1000V 1500V 2000V 3000V 4000V 270 271 F F F F F F 330 331 F F F F F F 390 391 F F F F F F 470 471 F F F F F F 560 561 F F F F F F 680 681 F F F F F F 820 821 F F F F F 1000 102 F F F F F F F F F F F 1200 122 F F F F G F F F F G 1500 152 F F F F G F F F F G 1800 182 F F F G G F F F F G 2200 222 F F F G F F F F 2700 272 F F F G F F F F 3300 332 F F F G F F F F 3900 392 F F F G F F F F 4700 472 F F F F F F F 5600 562 F G G F F F G 6800 682 F G G F F F G 8200 822 F G G F F F G 10000 103 F G G F F F G 12000 123 F F G G H 15000 153 F F G G H 18000 183 G F G G H 22000 223 G F G G 27000 273 G F H H 33000 333 G F H H 39000 393 G F H H 47000 473 G F H H 56000 563 G F 68000 683 G F 82000 823 G G 100000 104 G G Specification No. : FJ-000-000-07 ~7~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension Cap.(pF) Code 2211 2220 1000V 1500V 2000V 2225 3000V 4000V 3000V 4000V 1000V 1500V 2000V 3000V 270 271 F F F F 330 331 F F F F 390 391 F F F F 470 471 F F F F 560 561 F F F F 680 681 F F F F F 4000V 820 821 F F 1000 102 F F F F F F F F F F F F F 1200 122 G G F F F F G F F F F G 1500 152 G G F F F F G F F F F G 1800 182 G G F F F F G F F F F G 2200 222 G F F F F F F F F 2700 272 G F F F F F F F F 3300 332 G F F F F F F F F 3900 392 F F F F F F F F 4700 472 F F F F F F F F 5600 562 F F F F F F F G 6800 682 F F F G F F F G 8200 822 F G G G F F F G 10000 103 F G G G F F F G 12000 123 F G G H F G G G 15000 153 F G G H F G G G 18000 183 F H H H F G G H 22000 223 F H H F G G 27000 273 F H H F G G 33000 333 F H H F G G 39000 393 F H H F G H 47000 473 F H H F G H 56000 563 F H H F G H 68000 683 G F G 82000 823 G F G 100000 104 G G G 120000 124 G H 150000 154 H H 180000 184 H H 220000 224 H H Specification No. : FJ-000-000-07 ~8~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS No. 1. Item Visual and Dimensions Test Condition Requirements * No remarkable defect. * Dimensions to confirm to individual specification sheet. --- 2. Capacitance Q/D.F. 3. (Dissipation Factor) * Shall not exceed the limits given in the detailed spec. * Class I : C0G Cap.≤1000pF, 1.0±0.2Vrms, 1MHz±10%. Cap.>1000pF, 1.0±0.2Vrms, 1KHz±10%. * Class II : X7R 1.0±0.2Vrms, 1KHz±10%. Dielectric Rated Vol.(V) Class I (C0G) All Class II (X7R) All Q/D.F. Remark Q≥1000 Cap.≥30pF Q≥400+20C Cap.500 500Vdc 60 sec. * Solder temperature : 235±5°C for (1206~1210). Solderability * Solder temperature : 245±5°C for (1808~2225). * Dipping time : 2±0.5 sec. Dielectric Strength Rated Vol.(V) Condition =630 1.2 times of UR 1000≤V≥5000V 1.0 times of UR T.C. Capacitance Change C0G Within ±30ppm/°C X7R Within ±15% Dielectric Requirements Class I ≥100GΩ or RxC≥500Ω-F, whichever is smaller Class II ≥10GΩ or RxC≥100Ω-F, whichever is smaller * 75% min. coverage of all metalized area. * No evidence of damage or flashover during test. * Duration : 1 to 5 sec. * Charge and discharge current less than 50mA. * Solder temperature : 260±5°C. * Dipping time : 10±1 sec. * Preheating : 120 to 150°C for 1 minute before Resistance immerse the capacitor in a eutectic solder. 8. to Soldering * Before initial measurement (Class II only) : Perform Heat 150 +0/-10°C for 1 hr and then set for 48±4 hrs at room temp. * Measurement to be made after keeping at room temp. for 24±2 hrs (Class I) or 48±4 hrs (Class II). * No remarkable damage. * Cap. Change : C0G : Within ±2.5% or ±0.25pF, whichever is larger. X7R : Within ±7.5%. * Q/D.F. & I.R. : To meet the initial requirement. * 25% max. leaching on each edge. * Conduct the five cycles according to the temperatures and time. 9. Temperature Cycle Step Temp.(°C) Time(min.) 1 Min. operating temp. +0/-3 30±3 2 Room temp. 2~3 3 Max. operating temp. +3/-0 30±3 4 Room temp. 2~3 * Before initial measurement (Class II only) : Perform 150 +0/-10°C for 1 hr and then set for 48±4 hrs at room temp. * Measurement to be made after keeping at room temp. for 24±2 hrs (Class I) or 48±4 hrs (Class II). * No remarkable damage. * Cap. change : C0G : Within ±2.5% or ±0.25pF, whichever is larger. X7R : Within ±7.5%. * Q/D.F. : C0G : To meet the initial requirement. X7R : D.F.≤150% of initial requirement. * I.R. : To meet the initial requirement. Specification No. : FJ-000-000-07 ~9~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS No. Item Test Condition Requirements * Test temp. : 40±2°C. Humidity * Humidity : 90~95%RH. 10. (Damp Heat) * Test time : 500 +24/-0 hrs. Steady State * Measurement to be made after keeping at room temp. for 24±2 hrs (Class I) or 48±4 hrs (Class II). * No remarkable damage. * Cap. change : C0G : Within ±5.0% or ±0.5pF, whichever is larger. X7R : Within ±12.5%. * Q/D.F. : C0G : Cap.>30pF, Q≥350; 10pF≤Cap.≤30pF, Q≥275+2.5C; Cap.
