7805
Rev.F Sep.-2018
描述
/
DATA SHEET
Descriptions

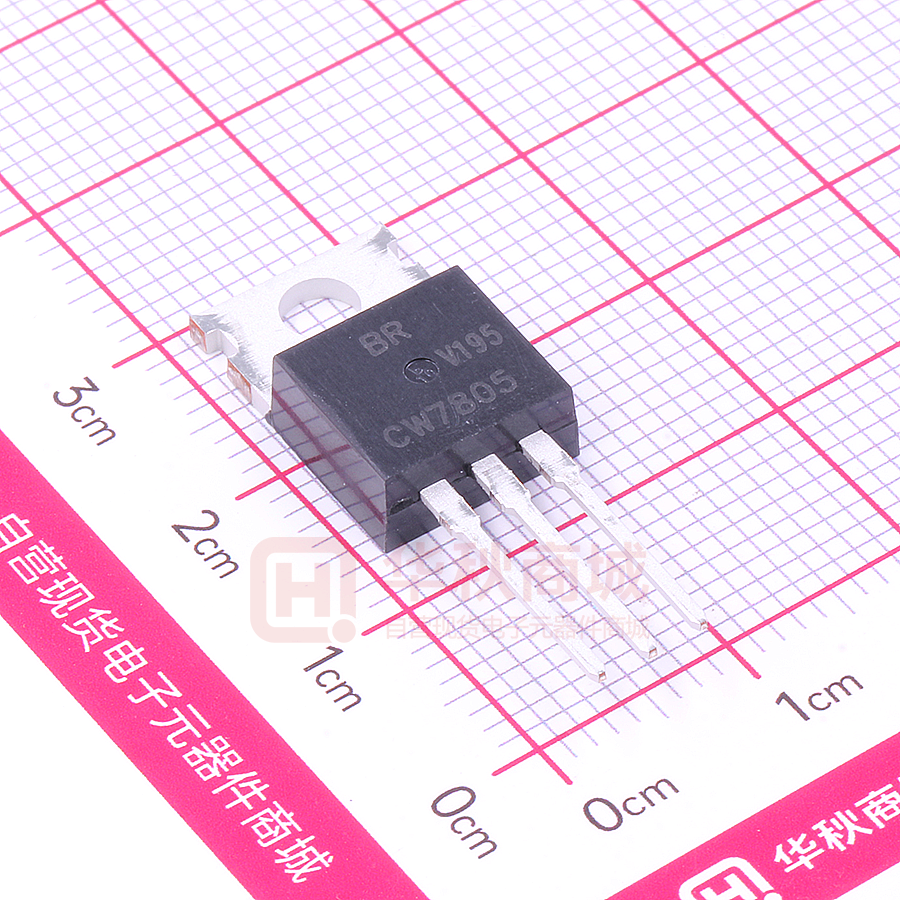

TO-220 塑封封装电压调整器。Voltage Regulator in a TO-220 Plastic Package.
特征
/ Features
三端稳压调整器,输出电流高达 1.5A,内设过热保护和短路限制。
3-Terminal regulators ,output current up to 1.5A, internal thermal overload protection and short-circuit
limiting.
用途
/
Applications
电压调整器。
Voltage Regulator.
内部等效电路/应用电路
引脚排列
1
2
/
Equivalent Circuit or Application Circuit
/ Pinning
3
PIN1:IN
印章代码
PIN 2:GND
PIN 3:OUT
/ Marking
见印章说明。See Marking Instructions
http://www.fsbrec.com
1/6
7805
Rev.F Sep.-2018
极限参数
/
DATA SHEET
Absolute Maximum Ratings(Ta=25℃)
参数
Parameter
符号
Symbol
VI
数值
Rating
35
单位
Unit
V
Thermal Resistance Junction-ambient
RθJA
62.5
℃/W
Thermal Resistance Junction-case
RθJC
5.0
℃/W
TJ
150
℃
Operating Junction Temperature Range
TOPR
0~125
℃
Storage temperature range
Tstg
-65~150
℃
Input voltage
Junction Temperature
电性能参数 / Electrical Characteristics(Ta=25℃,Vi=10V,Io=500mA,unless otherwise specified)
参数
Parameter
符号
Symbol
Output Voltage
VO
VLoad
Load Regulation
△
Line Regulation
△
VLine
Quiescent Current
Iq
Iq
Quiescent Current Change
Output Voltage Drift
Output Noise Voltage
Supply Voltage Rejection
△
Vo/△T
△
eN
SVR
测试条件
Test Conditions
Tj=25℃
Vi=7V-20V
Po≤15W
Io=5mA-1A
Tj=25℃
Io=5mA-1.5A
单位
Unit
4.8
5.0
5.2
V
4.75
5.0
5.25
V
100
mV
50
mV
Tj=25℃
Io=250mA-750mA
Tj=25℃
Vi=7V-25V
3.0
100
mV
Tj=25℃
Vi=8V-12V
1.0
50
mV
Tj=25℃
8.0
mA
Vi=7V-25V
0.8
mA
Io=5mA-1A
0.5
mA
Io=5mA
-1.1
B=10Hz-100KHz
Tj=25℃
Vi=8V-18V
f=120Hz
Tj=25℃
Dropout Voltage
Vd
Io=1A
Output Resistance
Ro
f=1KHz
Short Circuit Current
Isc
Vi=35V
Short Circuit Peak Current
Iscp
Tj=25℃
http://www.fsbrec.com
最小值 典型值 最大值
Min
Typ
Max
Tj=25℃
mV/℃
40
62
μV/Vo
dB
2.0
V
17
mΩ
0.75
A
2.2
A
2/6
7805
Rev.F Sep.-2018
电参数曲线图
DATA SHEET
/ Electrical Characteristic Curve
http://www.fsbrec.com
3/6
7805
Rev.F Sep.-2018
外形尺寸图
DATA SHEET
/ Package Dimensions
http://www.fsbrec.com
4/6
7805
Rev.F Sep.-2018
印章说明
/
DATA SHEET
Marking Instructions
BR
****
CW7805
说明:
BR:
为公司代码
CW7805:
为型号代码
****:
为生产批号代码,随生产批号变化。
Note:
BR:
Company Code.
CW7805:
Product Type.
****:
Lot No. Code, code change with Lot No.
http://www.fsbrec.com
5/6
7805
Rev.F Sep.-2018
DATA SHEET
波峰焊温度曲线图(无铅)
/
Temperature Profile for Dip Soldering(Pb-Free)
说明:
Note:
1、预热温度 25~150℃,时间 60~90sec;
1.Preheating:25~150℃, Time:60~90sec.
2、峰值温度 255±5℃,时间持续为 5±0.5sec;
2.Peak Temp.:255±5℃, Duration:5±0.5sec.
3、焊接制程冷却速度为 2~10℃/sec.
3. Cooling Speed: 2~10℃/sec.
耐焊接热试验条件
/
温度:270±5℃
包装规格
散件包装
Time:10±1 sec
Units 包装数量
Dimension
包装尺寸
(unit:mm3)
Units/Bag
只/袋
Bags/Inner Box
袋/盒
Units/Inner Box
只/盒
Inner Boxes/Outer Box
盒/箱
Units/Outer Box
只/箱
Bag 袋
Inner Box 盒
Outer Box 箱
200
10
2,000
5
10,000
135×190
237×172×102
560×245×195
Units/Tube
只/套管
Tubes/Inner Box
套管/盒
Units/Inner Box
只/盒
Inner Boxes/Outer Box
盒/箱
Units/Outer Box
只/箱
Tube 套管
Inner Box 盒
Outer Box 箱
50
20
1,000
5
5,000
532×31.4×5.5
555×164×50
575×290×180
/ TUBE
Package Type
封装形式
使用说明
Temp:270±5℃
/ BULK
TO-220/F
TO-220/F
时间:10±1 sec.
/ Packaging SPEC.
Package Type
封装形式
套管包装
Resistance to Soldering Heat Test Conditions
Units 包装数量
Dimension
包装尺寸
(unit:mm3)
/ Notices
http://www.fsbrec.com
6/6
