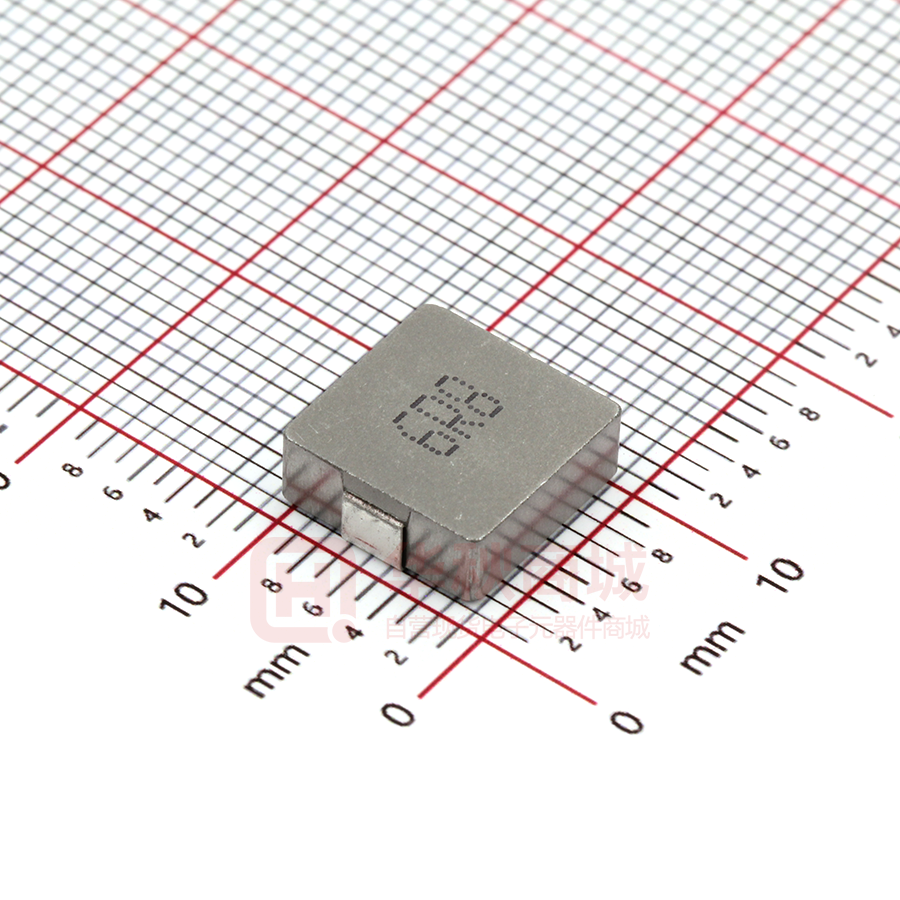

MCS1040-6R8MY1

信 昌 電 子 陶 瓷 股 份 有 限 公 司 PROSPERITY DIELECTRICS CO., LTD. SPECIFICATION FOR APPROVAL CUSTOMER CUST. PART NO. CUST. DOC. REV. DESCRIPTION SAMPLE LOT NO. PART NO. DOC. REV. DATE MOLDING POWER CHOKE(RoHS+H.F.) S202112-0075 MCS1040-XXXMY1 A 2022/02/09 Once you approve this part, please sign and return this page to the following marked location. Customer Signature:___________________ Date:_________________ □This part currently development section. □Production line can produce this series of products. ■Sales Office-Headquarter No. 566-1, Kao-Shi Rd., Yangmei, Taoyuan 32668, Taiwan TEL: +886-3-475-3355 FAX: +886-3-485-4959 □ShenZhen Plant 2nd Floor,No. 16,Daxing 1st Road,Bu Chung Community,Shajing Street,Bao'an District,Shenzhen TEL: +86-755-2720-8041 □Sales Office-Dong Guan,China No.638,Mei Jing West Road Xiniupo Administrative Zone Dalang Town,Dong Guan City,GuangDong Province,China. TEL: +86-769-8555-0979 FAX: +86-769-8555-0972 ISSUE BY CHECKED BY APPROVED BY Jones Weng Gillian Nan Albert Tsao TABLE OF CONTENTS INDEX Page ■ Engineering Change Notice – Record ……….…………… 2 ■ Part Number Identification …..……………………………… 3 ■ Mechanical Dimension …..………………….…………..…… 3 ■ Marking …...…………………………………………………….. 3 ■ Electrical Specification ……………………………………….. 4 ■ Reliability Performance ………………………….…………… 5 ■ Reflow Chart ……………………………………………………. 6 ■ Packing ………….…………………………………………………. 7 ■ Test Report ………………………...…………………………… P1 SPECIFICATION FOR APPROVAL CUSTOMER CUSTOMER P/N REV. SPL. LOT NO. PART NAME PART NO. MOLDING POWER CHOKE(RoHS+H.F.) REV. MCS1040-XXXMY1 A S202112-0075 DATE OF ISSUE Q'TY 02/09/’22 0 PCS ENGINEERING CHANGE NOTICE – RECORD REVISION NO. A REVISION DESCRIPTION P2 AUTHOR DATE Jones Weng 2/09/’22 REMARK SPECIFICATION FOR APPROVAL ※This is a RoHS and REACH compliant product whose related documents are available on request. ※Graphic is only for dimensionally application. 1. PART NUMBERING IDENTIFICATION MCS 1040 - □□□ □ Y1 CONTROL NO. TOLERANCE INDUCTANCE DIMENSIONS PRODUCT SYMBOL 2. MECHANICAL DIMENSION UNIT: mm DIM. TOL. M1 11.15 ±0.35 M2 10.0 ±0.3 M3 4.0 MAX. M4 3.0 ±0.5 M5 2.0 ±0.5 3. MARKING PAD 3-1. Marking Direction: On the left and right of PAD, font facing up. 3-2. ex: 1R0 Stands for Marking1.0μH P3 SPECIFICATION FOR APPROVAL 4. ELECTRICAL SPECIFICATION Part number Inductance (uH) ±20% DC Resistance (mΩ) Typical DC Resistance (mΩ) MAX. Rated Current (A) Typical I sat (A) Typical MCS1040-R68MY1 MCS1040-1R0MY1 MCS1040-1R5MY1 MCS1040-2R2MY1 MCS1040-3R3MY1 MCS1040-4R7MY1 MCS1040-6R8MY1 MCS1040-100MY1 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10.0 2.4 3.0 3.8 6.7 10.8 17.0 22.5 27.0 2.7 3.3 4.2 7.0 11.8 20.0 25.0 30.0 22.0 18.0 16.0 12.0 10.0 8.5 6.5 7.5 30.0 28.0 21.0 18.0 16.0 15.0 9.0 8.5 TEST INSTRUMENT: Zentech3302 / Zentech16502 NOTE: 1. Test Freq.: 100KHz, 1.0V 2. All test Data is referenced to 25℃ ambient. 3. Typical Heat Rating DC Current would cause an approximately △T of 40℃. 4. Typical Saturation DC Current would cause Lo to drop approximately 30%. 5. Operation Temperature Range: -25℃ ~ +125℃. 6. Storage Temperature Range: -20℃ ~ +40℃(
