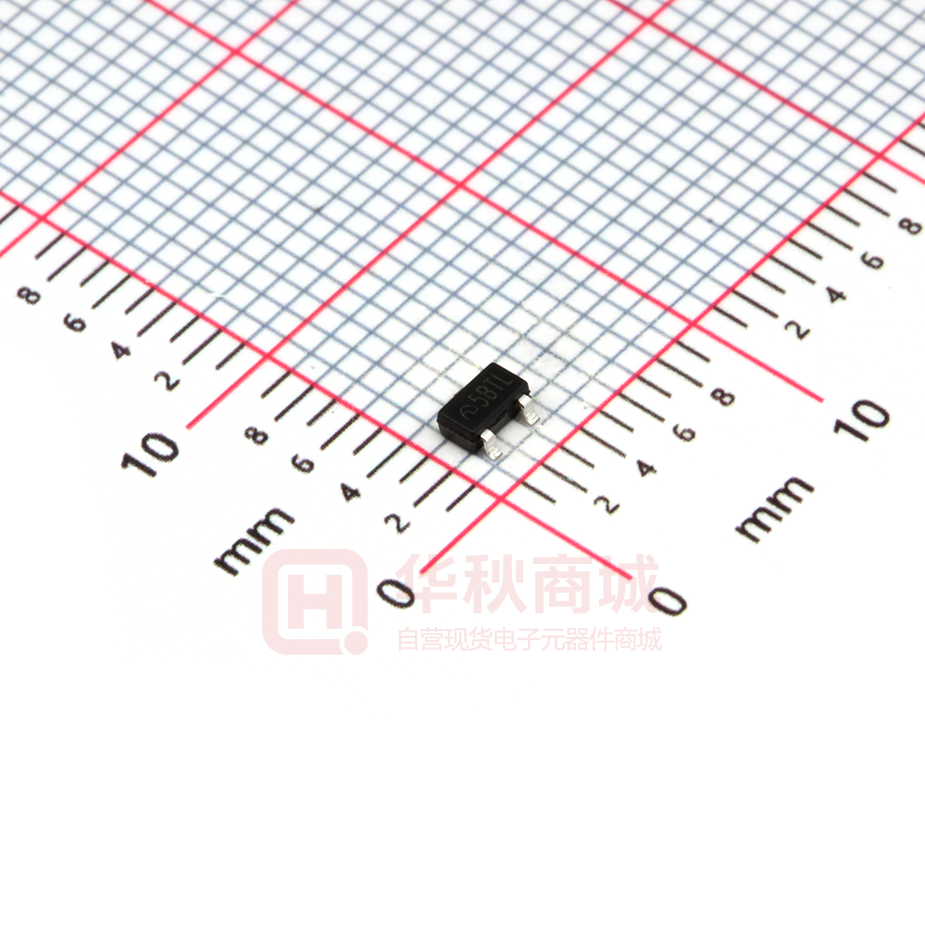

ME6206A25M3G

ME6206 Low power consumption, Low ESR Cap.Compatible ME6206 Series General Description Features ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies .The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors .The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin. Selection Guide          Highly Accurate：±2% Output voltage range：1.5V~5.0V ( selectable in 0.1V steps) Low power consumption：8uA(TYP.) Large output current：300mA (VIN＝4.3V,VOUT＝3.3V) Input voltage: up to 6 V Dropout voltage： 0.2V at 100mA and 0.40V at 200mA Excellent Input Stability Be available to regulator and reference voltage Packages:SOT23-3，SOT89-3，SOT23，TO-92 Typical Application        Battery powered equipment Communication tools Mobile phones Portable games Portable AV systems Cameras, Video systems Reference voltage sources Typical Application Circuit V18 Product Supply Current ME6206A 8 uA ME6206K 180 uA www.microne.com.cn Page 1 of 14 ME6206 Pin Configuration Pin Assignment ME6206Axx/ ME6206Kxx Pin M3 P P1 X T SOT23-3 SOT89-3 SOT89-3 SOT23 TO-92 1 1 2 1 2 3 1 3 2 3 Name Function 1 VSS Ground 2 3 VOUT Output 3 2 VIN Input The difference of printing on the chip between P and P1 is : P: , P1: Absolute Maximum Ratings Parameter Symbol Description Units Input Voltage VIN 6.5 V Output Current Iout 500 mA Output Voltage Vout Vss-0.3 ~ Vout+0.3 V SOT23-3 Pd 300 mW SOT89-3 Pd 500 mW SOT23 Pd 300 mW TO-92 Pd 500 mW Operating Ambient Temperature TOpr -25 ~ +125 ℃ Storage Temperature Tstg -40 ~ +125 ℃ Power Dissipation V18 www.microne.com.cn Page 2 of 14 ME6206 Block Diagram ME6206A15 O (VIN=Vout+1V,Cin=Cout=1uF,Ta=25 C Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 100 120 mA Load Regulation ∆VOUT VIN=Vout+1V, 1mA≤IOUT≤80mA 10 20 mV Dropout Voltage (Note 3) Vdif1 IOUT =20mA 180 200 mV Vdif2 IOUT =50mA 360 380 mV Supply Current ISS VIN=Vout+1V 7 15 μA ∆VOUT IOUT =10mA Vout+1V ≤VIN≤5V 0.1 0.2 %/V 45 47 dB 20 50 mA Line Regulations ∆VIN •VOUT Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz Short Circuit Current Ishort Vin=Vout(T)+1.5V Vout=Vss Over Current Protection I limit 300 mA ME6206A18 (VIN=Vout+1V,Cin=Cout=1uF,Ta=25OC Unless otherwise stated) PARAMETER V18 SYMBOL CONDITION www.microne.com.cn MIX TYP MAX UNIT Page 3 of 14 ME6206 Output Voltage VOUT(E) (Note 2) Input Voltage VIN Maximum Output Current IOUT (max) VIN=Vout+1V Load Regulation ∆VOUT Dropout Voltage (Note 3) Supply Current V 6 V 120 150 mA VIN=Vout+1V, 1mA≤IOUT≤80mA 12 27 mV Vdif1 IOUT =20mA 180 200 mV Vdif2 IOUT =50mA 360 380 mV ISS VIN=Vout+1V 7 15 μA IOUT =10mA Vout+1V ≤VIN≤5V 0.1 0.2 %/V 45 47 dB 25 50 mA ∆VIN •VOUT Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz Short Circuit Current Ishort Vin=Vout(T)+1.5V Vout=Vss Over Current Protection X 0.98 VOUT(T) (Note 1) X 1.02 ∆VOUT Line Regulations IOUT=10mA, VIN=Vout+1V I limit 400 mA ME6206A21 O (VIN=Vout+1V,Cin=Cout=1uF,Ta=25 C Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 200 300 mA Load Regulation ∆VOUT VIN=Vout+1V, 1mA≤IOUT≤80mA 10 20 mV Dropout Voltage (Note 3) Vdif1 IOUT =50mA 100 130 mV Vdif2 IOUT =100mA 200 230 mV Supply Current ISS VIN=Vout+1V 7 15 μA ∆VOUT IOUT =10mA Vout+1V ≤VIN≤5V 0.1 0.2 %/V 45 47 dB 20 50 mA Line Regulations ∆VIN •VOUT Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz Short Circuit Current Ishort Vin=Vout(T)+1.5V Vout=Vss Over Current Protection I limit V18 450 www.microne.com.cn mA Page 4 of 14 ME6206 ME6206A28 (VIN=Vout+1V,Cin=Cout=1uF,Ta=25OC Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 300 350 mA Load Regulation ∆VOUT VIN=Vout+1V 1mA≤IOUT≤100mA 14 28 mV Dropout Voltage (Note 3) Vdif1 IOUT =80mA 180 200 mV Vdif2 IOUT =200mA 380 400 mV Supply Current ISS VIN=Vout+1V 8 15 μA IOUT =40mA Vout+1V ≤VIN≤6V 0.03 0.2 %/V 50 52 dB 30 60 mA Line Regulations ∆VOUT ∆VIN •VOUT Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz Short Circuit Current I short Vin=Vout(T)+1.5V Vout=Vss Over Current Protection I limit 500 mA ME6206A30 O (VIN=Vout+1V,Cin=Cout=1uF,Ta=25 C Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 300 350 mA Load Regulation ∆VOUT VIN=Vout+1V 1mA≤IOUT≤100mA 14 28 mV Dropout Voltage (Note 3) Vdif1 IOUT =80mA 180 mV Vdif2 IOUT =200mA 380 mV Supply Current ISS VIN=Vout+1V 8 15 μA ∆VOUT IOUT =40mA Vout+1V ≤VIN≤6V 0.03 0.2 %/V 50 52 dB 30 60 mA Line Regulations ∆VIN •VOUT Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz Short Circuit Current I short Vin=Vout(T)+1.5V Vout=Vss V18 www.microne.com.cn Page 5 of 14 ME6206 Over Current Protection I limit 500 mA ME6206A33 (VIN=Vout+1V,Cin=Cout=1uF,Ta=25OC Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 300 350 mA Load Regulation ∆VOUT VIN=Vout+1V 1mA≤IOUT≤100mA 14 28 mV Dropout Voltage (Note 3) Vdif1 IOUT =80mA 180 200 mV Vdif2 IOUT =200mA 380 400 mV Supply Current ISS VIN=Vout+1V 9 15 μA ∆VOUT IOUT =40mA Vout+1V ≤VIN≤6V 0.03 0.2 %/V Line Regulations ∆VIN •VOUT Power Supply Ripple Rejection Ratio PSRR Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz 50 52 dB Short Circuit Current I short Vin=Vout(T)+1.5V Vout=Vss 30 60 mA Over Current Protection I limit 500 mA ME6206K33 (VIN=Vout+1V,Cin=Cout=1uF,Ta=25OC Unless otherwise stated) PARAMETER SYMBOL CONDITION MIX TYP MAX UNIT Output Voltage VOUT(E) (Note 2) IOUT=10mA, VIN=Vout+1V X 0.98 VOUT(T) (Note 1) X 1.02 V Input Voltage VIN 6 V Maximum Output Current IOUT (max) VIN=Vout+1V 300 350 mA Load Regulation ∆VOUT VIN=Vout+1V 1mA≤IOUT≤100mA 14 28 mV Dropout Voltage (Note 3) Vdif1 IOUT =80mA 180 200 mV Vdif2 IOUT =200mA 380 400 mV Supply Current ISS VIN=Vout+1V 180 500 μA ∆VOUT IOUT =40mA Vout+1V ≤VIN≤6V 0.03 0.2 %/V Vin= [Vout+1]V +1Vp-pAC IOUT =10mA,f=1kHz 50 52 dB Line Regulations Power Supply Ripple Rejection Ratio V18 ∆VIN •VOUT PSRR www.microne.com.cn Page 6 of 14 ME6206 Short Circuit Current Over Current Protection I short Vin=Vout(T)+1.5V Vout=Vss I limit 30 500 60 mA mA Note : 1. VOUT (T) ：Specified Output Voltage 2.VOUT (E) ：Effective Output Voltage ( le. The output voltage when “VOUT (T)+1.0V”is provided at the Vin pin while maintaining a certain Iout value.) 3.Vdif ：VIN1 –VOUT (E)’ VIN1 ：The input voltage when VOUT(E)’ appears as input voltage is gradually decreased. VOUT (E)’=A voltage equal to 98% of the output voltage whenever an amply stabilized Iout {VOUT (T)+1.0V} is input. V18 www.microne.com.cn Page 7 of 14 ME6206 Type Characteristics （1） Output Current VS. Output Voltage（VIN=Vout+1, Ta = 25 °C） ME6206A18PG ME6206A21M3G Output current VS.Output voltage 2 1.9 1.8 1.7 1.6 Output voltage(V) Output Voltage(V) Output CurrentVS.Output Voltage 1.5 1.4 1.3 1.2 1.1 1 2.40 2.30 2.20 2.10 2.00 1.90 1.80 0 50 100 150 200 250 0 300 50 100 150 200 250 300 Output current(mA) Output Current(mA) ME6206A28PG ME6206A30PG Output CurrentVS.Output Voltage Output CurrentVS.Output Voltage 4 3 Output Voltage （ V） Output Voltage(V) 3.8 2.9 2.8 2.7 2.6 3.6 3.4 3.2 3 2.8 2.6 2.4 2.2 2.5 2 0 50 100 150 200 250 300 Output Current(mA) 0 50 100 150 200 250 300 Output Current（mA） ME6206A33PG Output CurrentVS.Output Voltage 4.3 Output Voltage （ V） 4.1 3.9 3.7 3.5 3.3 3.1 2.9 2.7 2.5 2.3 0 50 100 150 200 250 300 Output Current（mA） V18 www.microne.com.cn Page 8 of 14 ME6206 （2）Input Voltage VS. Output Voltage（Ta = 25 °C） ME6206A18PG ME6206A21M3G Input voltage VS.Output voltage Input VoltageVS.Output Voltage 2 1.8 Output voltage(V) Output Voltage(V) 1.6 1mA 1.4 1.2 1 10mA 0.8 0.6 100mA 0.4 0.2 0 0.5 1.5 2.5 3.5 4.5 5.5 2.4 2.1 1.8 1.5 1.2 0.9 0.6 0.3 0.0 1mA 10mA 100mA 0.5 6.5 1.5 2.5 Input Voltage(V) 4.5 5.5 6.5 5.5 6.5 Input voltage(V) ME6206A28PG ME6206A30PG Input VoltageVS.Output Voltage Input VoltageVS.Output Voltage 3.5 3.6 3 Output Voltage(V) 3.2 Output Voltage(V) 3.5 2.8 2.4 1mA 2 1.6 1.2 10mA 0.8 1mA 2.5 2 10mA 1.5 1 100mA 0.5 0.4 100mA 0 0 0.5 1.5 2.5 3.5 4.5 5.5 6.5 0.5 Input Voltage(V) 1.5 2.5 3.5 4.5 Input Voltage(V) ME6206A33PG Input VoltageVS.Output Voltage 4 Output Voltage(V) 3.6 3.2 2.8 1mA 2.4 2 10mA 1.6 1.2 0.8 0.4 100m A 0 0.5 1.5 2.5 3.5 4.5 5.5 6.5 Input Voltage(V) V18 www.microne.com.cn Page 9 of 14 ME6206 （3）Output Current VS. Dropout Voltage（VIN=Vout+1V,Ta = 25 °C） ME6206A18PG ME6206A21M3G Output voltage VS.Dropout voltage Output Current VS.Droput Voltage 600 Dropout voltage(mV) Droput Voltage(mV) 1000 900 800 700 600 500 400 300 200 100 0 500 400 300 200 100 0 0 50 100 150 200 250 0 50 100 150 Output voltage(V) Output Current(mA) ME6206A28PG 250 200 250 ME6206A30PG Output Current VS.Droput Voltage Output Current VS.Droput Voltage 450 450 400 400 Droput Voltage(mV) Droput Voltage(mV) 200 350 300 250 200 150 100 50 350 300 250 200 150 100 50 0 0 0 50 100 150 200 250 Output Current(mA) 0 50 100 150 Output Current(mA) ME6206A33PG Output Current VS.Droput Voltage 450 Droput Voltage(mV) 400 350 300 250 200 150 100 50 0 0 50 100 150 200 250 Output Current (mA) V18 www.microne.com.cn Page 10 of 14 ME6206 （4）Input Voltage VS. Supply Current（Ta = 25 °C） ME6206A18PG ME6206A21M3G Input Voltage VS.Supply Current 9 7 8 6 Supply Current(uA) Supply Current(uA) Input Voltage VS. Supply Current 7 6 5 4 3 5 4 3 2 2 1 1 0 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 0 0.5 1 1.5 2 2.5 Input Voltage(V) ME6206A28PG 4.5 5 5.5 6 6.5 ME6206A30PG Input Voltage VS. Supply Current Input Voltage VS. Supply Current 8 8 7 7 Supply Current(uA) Supply Current(uA) 3 3.5 4 Input Voltage(V) 6 5 4 3 2 1 6 5 4 3 2 1 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 0.5 Input Voltage(V) 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 Input Voltage(V) ME6206A33PG Input Voltage VS. Supply Current 7 Supply Current(uA) 6 5 4 3 2 1 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 Input Voltage(V) V18 www.microne.com.cn Page 11 of 14 ME6206 Packaging Information ● SOT89-3 ● SOT23-3 V18 www.microne.com.cn Page 12 of 14 ME6206 ● SOT23 ● TO-92 V18 www.microne.com.cn Page 13 of 14 ME6206      V18 The information described herein is subject to change without notice. Nanjing Micro One Electronics Inc is not responsible for any problems caused by circuits or diagrams described herein whose related industrial properties, patents, or other rights belong to third parties. The application circuit examples explain typical applications of the products, and do not guarantee the success of any specific mass-production design. Use of the information described herein for other purposes and/or reproduction or copying without the express permission of Nanjing Micro One Electronics Inc is strictly prohibited. The products described herein cannot be used as part of any device or equipment affecting the human body, such as exercise equipment, medical equipment, security systems, gas equipment, or any apparatus installed in airplanes and other vehicles, without prior written permission of Nanjing Micro One Electronics Inc. Although Nanjing Micro One Electronics Inc exerts the greatest possible effort to ensure high quality and reliability, the failure or malfunction of semiconductor products may occur. The user of these products should therefore give thorough consideration to safety design, including redundancy, fire-prevention measures, and malfunction prevention, to prevent any accidents, fires, or community damage that may ensue. www.microne.com.cn Page 14 of 14
