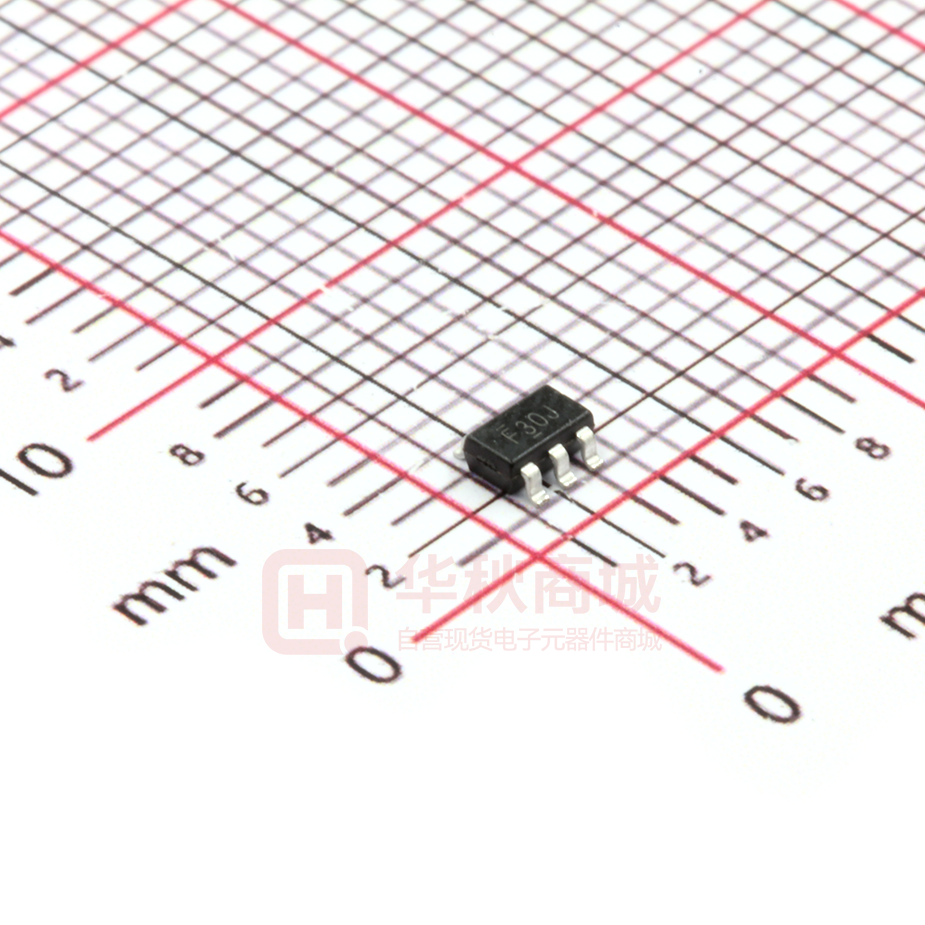

LC1465CB5ATR33

LC1465CB5ATR33

  • 厂商:

    LEADCHIP(岭芯)

  • 封装:

    SOT23-5

  • 描述:

    500mA高PSRR,线性调节器

  • 数据手册
  • 价格&库存
LC1465CB5ATR33 数据手册
LC1465 500mA High PSRR, Linear Regulator FEATURES DESCRIPTION LC1465 series are a group of positive voltage output, low power consumption, low dropout voltage regulators. It can provide foldback short-circuit protection and output current limit function. LC1465 can provide output value in the range of 1.0V~4.5V every 0.1V step. It also can be customized on command. LC1465 can also work under a wide input voltage ranging from 2V to 7V. LC1465 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. LC1465 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%.  Input voltage range: 2 – 7V  Output voltage range: 1.0V~4.5V (customized on command every 0.1V step)  Low power consumption: 35uA (Typ.)  Low output noise (47uVRMS)  Shutdown mode: 0.1uA  Low dropout voltage: 300mV@300mA (Vout=3.3V) 500mV@500mA (Vout=3.3V)  High ripple rejection:70dB@1KHz (Typ.)  Low temperature coefficient: ±100ppm/C  Excellent line regulation: 0.05%/V  Build-in chip enable circuit  Highly accurate: ±2%  Output current limit 800mA@Vout=3.3V  Fold-back short circuit current 250mA@Vout=3.3V APPLICATIONS LC1465 is available in TSOT-23, SOT-23-3, SOT-235 and SOT89-3 packages which are lead free.      TYPICAL APPLICATION Power source for cellular phones and various kind of PCSs Battery Powered equipment Power Management of MP3, PDA, DSC, Mouse, PS2 Games Voltage Reference Regulation after Switching Power ELECTRICAL CHARACTERISTICS Vout Vin Vin 1uF LC1465 CE Vss Vout 1uF CE NOTE: Input capacitor (Cin=1uF) and Output capacitor (Cout=1uF) are recommended in all application circuit. www.leadchip.com 1 Your final power solution LC1465 ORDERING INFORMATION LC1465 □ 1 □ 2 □ 3 □ 4 Code PIN CONFIGURATION Product Classification F: Product Code X: Output Voltage Description Temperature&Rohs: C:-40~85C ,Pb Free Rohs Std. Package type: B3A: TSOT-23 B3:SOT-23-3 B5A:SOT-23-5(A) C3B:SOT-89-3(B) Packing type: TR:Tape&Reel (Standard) Output voltage: e.g. 15=1.5V 18=1.8V 44=4.4V 1 □ 2 □ 3 □ 4 □ LC1465CB3ATR□□ YW: Date Code Product Classification F: Product Code X: Output Voltage LC1465CB3TR□□ YW: Date Code MARKING DESCRIPTON Product Classification ̅ : Product Code X: Output Voltage F/AD: Product Code X: Output Voltage Code (for SOT23-3, SOT23-5) Vout Code Vout Code Vout Code 1.0V 0 2.3V 3 3.6V 6 1.1V 1 2.4V 4 3.7V 7 1.2V 2 2.5V 5 3.8V 8 1.3V 3 2.6V 6 3.9V 9 1.4V 4 2.7V 7 4.0V 0 1.5V 5 2.8V 8 4.1V 1 1.6V 6 2.9V 9 4.2V 2 1.7V 7 3.0V 0 4.3V 3 1.8V 8 3.1V 1 4.4V 4 1.9V 9 3.2V 2 4.5V 5 2.0V 0 3.3V 3 2.1V 1 3.4V 4 2.2V 2 3.5V 5 LC1465CB5ATR□□ YW: Date Code Product Classification LC1465CC3BTR□□ AD: Product Code XX: Output Voltage B: Package LL: Lot No. B: Fab Code YW: Date Code Vss Ground Pin Vin Supply Voltage Input Vout Output Voltage CE Chip Enable NC No Connection XX: Output Voltage (for SOT89-3). ”18”stands for 1.8V, ”28” stands for 2.8V, and “2 ̅ ” stands for 2.85V. Y: The Year of manufacturing,”1” stands for year 2011,”2” stands for year 2012, and ”8” stands for year 2018. W: The week of manufacturing. ”A” stands for week 1,”Z” stands for week 26,” A ” stands for week 27,” Z ” stands for week 52. www.leadchip.com 2 Your final power solution LC1465 ABSOLUTE MAXIMUM RATING Parameter Value Max Input Voltage Operating Junction Temperature(Tj) Output Current Ambient Temperature(Ta) TSOT-23 SOT-23-3 Power Dissipation SOT-23-5 SOT-89-3 Storage Temperature(Ts) Lead Temperature & Time 8V 125C 500mA -40C –85C 250mW 250mW 250mW 500mW -40C -150C 260C,10S Note: Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. RECOMMENDED WORK CONDITIONS Item Min Recommended Max. Unit Input Voltage Range 2 7 V Ambient Temperature* -40 85 C *The operation ambient temperature range is verified on several test samples. Not a test condition for volume production whose test is only performed under 25C. ELECTRICAL CHARACTERISTICS (Test Conditions: Cin=1uF,Cout=1uF,TA=25C, unless otherwise specified. ) LC1465, For Arbitrary Output Voltage Symbol Parameter Vin Input Voltage Output Voltage Vout Iout (Max.) Vdrop Vout>1.5V Vout
LC1465CB5ATR33 价格&库存

很抱歉,暂时无法提供与“LC1465CB5ATR33”相匹配的价格&库存,您可以联系我们找货

免费人工找货
LC1465CB5ATR33
  •  国内价格
  • 5+0.43962
  • 20+0.40083
  • 100+0.36204
  • 500+0.32325
  • 1000+0.30515
  • 2000+0.29222

库存:0
