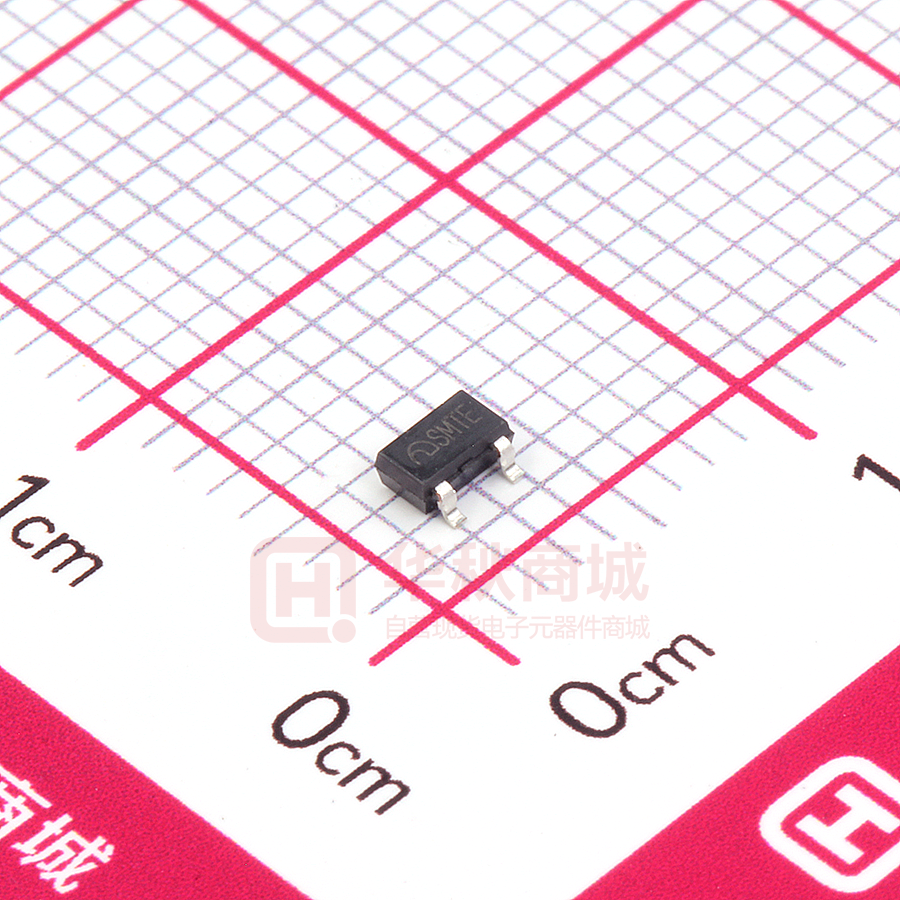

ME6211A25M3G-N

ME6211 High Speed LDO Regulators, High PSRR, Low noise, ME6211 Series General Description Features The ME6211 series are highly accurate, low noise,  Maximum Output Current: 500mA （VIN＝4.3V,VOUT＝3.3V） CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very  Dropout Voltage: 100mV@ IOUT =100mA fast turn-on times, the ME6211 series is ideal for  Operating Voltage Range: 1.2V～6.0V today’s cutting edge mobile phone. Internally the  Highly Accuracy: ±1％ ME6211 includes a reference voltage source, error  Low Power Consumption: 30uA（TYP.） amplifiers, driver transistors, current limiters and phase  Standby Current: 0.1uA（TYP.） compensators. The ME6211’s current limiters' foldback  High Ripple Rejection: 70dB@1KHz（ME6211C33） circuit also operates as a short protect for the output  Low output noise: 50uVrms current limiter and. the output pin. The ME6211 series is  Line Regulation: 0.05％（TYP.） also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies.The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. Typical Application Package  Mobile phones  3-pin SOT89-3，SOT23-3  Cordless phones, radio communication equipment  4-pin SOT343R，FBP1*1-4  Portable games  5-pin SOT23-5，SOT353  Cameras, Video cameras  6-pin DFN2*2-6  Reference voltage sources  Battery powered equipment V24 www.microne.com.cn Page 1 of 25 ME6211 Typical Application Circuit VOUT VIN CIN 1uF CL 1uF VSS Fig1. ME6211A series VIN VOUT CL 1uF VSS CIN 1uF CE NC Fig2. ME6211C series VIN CIN 1uF VOUT CL 1uF VSS CE NC Fig3. ME6211H series V24 www.microne.com.cn Page 2 of 25 ME6211 Selection Guide ME 62 11 X XX X G-N New Version Environment mark Package M3:SOT23-3 M5:SOT23-5 P:SOT89-3 R4:SOT343R R5:SOT353 N6:DFN6 U4:FBP4 Output Voltage 08:0.8V 12:1.2V 18:1.8V …… 33:3.3V 50:5.0V Version or Function Product Type Product Series Microne product series product function Output voltage Package Enable the internal connection of high 1.2V SOT89-3 ME6211C33M5G-N Enable can be set 3.3V SOT23-5 ME6211C33R4G-N Enable can be set 3.3V SOT343R ME6211C33U4AG-N Enable can be set 3.3V FBP1*1-4 (0.37) ME6211C36U4AG-N Enable can be set 3.6V FBP1*1-4 (0.37) ME6211C25N6AG-N Enable can be set 2.5V DFN2*2-6(0.75) ME6211H15M5G-N Enable connected to a low 1.5V SOT23-5 ME6211A12PG-N NOTE: At present ,there are fourteen kinds of voltage value： 0.8V、1.0、1.2V、1.5V、1.8V、2.1V、2.5V、2.7V、2.8V、2.9V、3.0V、3.3V、3.6V、5.0V。 If you need other voltage and package, please contact our sales staff。 V24 www.microne.com.cn Page 3 of 25 ME6211 Pin Configuration 5 1 2 4 1 3 SOT89-3 2 3 3 1 SOT23-5/SOT353 4 1 6 2 5 3 4 SOT23-3 3 2 1 DFN2*2-6 2 SOT343R FBP1*1-4 Pin Assignment ME6211AXXG Pin Number M3 P P1 SOT23-3 SOT89-3 SOT89-3 1 1 2 3 Pin Name Functions 2 VSS Ground 3 1 VOUT Output 2 3 VIN Power Input The difference of printing on the chip between P and P1 is : P： ME6211AXXG-DS Pin Number , P1： Pin Name Functions 1 VIN Power Input 2 VOUT Output 3 VSS Ground SOT23-3 ME6211CXXG/ ME6211HXXG Pin Number Pin Name Functions 4 VIN Power Input 2 2 VSS Ground 1 1 3 CE ON / OFF Control 4 5,6 - - NC No Connect 5 4 3 1 VOUT Output SOT343R SOT23-5/SOT353 DFN2*2-6 1 3 4 2 2 3 V24 FBP1*1-4 www.microne.com.cn Page 4 of 25 ME6211 Block Diagram Absolute Maximum Ratings Parameter Symbol Ratings Units Input Voltage VIN 6.5 V Output Current IOUT 600 mA Output Voltage VOUT Vss-0.3 ~ VIN +0.3 V CE Pin Voltage VCE Vss-0.3 ~ VIN +0.3 V Power Dissipation Thermal resistance (Junction to air) SOT23-3 0.54 SOT23-5 0.60 SOT353 0.45 DFN2*2-6 PD 1.32 SOT89-3 1.25 SOT343R 0.45 FBP1*1-4 0.5 SOT23-3 230 SOT23-5 210 SOT353 270 DFN2*2-6 θJA 95 SOT89-3 100 SOT343R 270 FBP1*1-4 250 W ℃/W Operating Ambient Temperature Range TOPR -40 ~ +85 ℃ Storage Temperature Range TSTG -55 ~ +150 ℃ Junction temperature TJ -40 ~ +150 ℃ V24 www.microne.com.cn Page 5 of 25 ME6211 Electrical Characteristics ME6211C08 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC , unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 250 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 7 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 600 mV VDIF2 IOUT =200mA 850 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Line Regulation Output noise Ripple Rejection Rate PSRR VIN = [VOUT +1]V+1Vp-pAC %/V 1.0 V 0.5 50 IOUT=10mA, 1kHZ 70 IOUT=100mA,10kHZ 62 V uVrms dB O ME6211C10 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25 C ,unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 300 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 5 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 400 mV VDIF2 IOUT =200mA 650 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.035 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Line Regulation Output noise Ripple Rejection Rate V24 PSRR VIN = [VOUT +1]V+1Vp-pAC www.microne.com.cn %/V 1.0 V 0.5 50 IOUT=10mA, 1kHZ 70 IOUT=100mA,10kHZ 62 V uVrms dB Page 6 of 25 ME6211 ME6211C12 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC ,unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 300 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 8 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 280 mV VDIF2 IOUT =200mA 500 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.03 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Line Regulation Output noise Ripple Rejection Rate PSRR VIN = [VOUT +1]V +1Vp-pAC %/V 1.0 V 0.5 50 IOUT=10mA, 1kHZ 70 IOUT=100mA,10kHZ 62 V uVrms dB ME6211C15 (VIN= VOUT+1V, VCE = VIN, CIN=CL=1uF, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 300 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 9 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 200 mV VDIF2 IOUT =200mA 400 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Shut up CE “Low” Voltage VCEL Start down EN IOUT =40mA， 300Hz~50kHz Line Regulation Output noise Ripple Rejection Rate V24 PSRR VIN = [VOUT +1]V+1Vp-pAC %/V 1.0 V 0.5 V 50 uVrms IOUT=10mA, 1kHZ 70 dB IOUT=100mA, 10kHZ 62 dB www.microne.com.cn Page 7 of 25 ME6211 ME6211C18 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 300 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 9 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 200 mV VDIF2 IOUT =200mA 400 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Line Regulation Output noise Ripple Rejection Rate PSRR VIN = [VOUT +1]V+1Vp-pAC %/V 1.0 V 0.5 50 IOUT=10mA, 1kHZ 70 IOUT=100mA,10kHZ 62 V uVrms dB ME6211C25 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 400 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 9 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 110 mV VDIF2 IOUT =200mA 220 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA Line Regulation ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.04 CE“High”Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Output noise Ripple Rejection Rate Short-circuit Current V24 PSRR ISHORT VIN=[VOUT+1]V+1Vp-pAC 1.0 V 0.5 50 IOUT=10mA, 1kHZ 70 IOUT=100mA, 10kHZ 62 IOUT=200mA, 10kHZ 62 VIN= VOUT+1V, VCE＝VIN, VOUT＝0V www.microne.com.cn %/V 60 Page 8 of 25 V uVrms dB mA ME6211 ME6211C28 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 450 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 7 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 110 mV VDIF2 IOUT =200mA 220 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA Line Regulation ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.04 CE“High”Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Output noise Ripple Rejection Rate Short-circuit Current PSRR ISHORT VIN=[VOUT+1]V+ 1Vp-pAC %/V 1.0 V 0.5 50 IOUT=10mA,1kHZ 70 IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VCE＝VIN, VOUT＝0V V uVrms dB 65 mA ME6211C30 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 500 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 8 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 100 mV VDIF2 IOUT =200mA 210 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Line Regulation Output noise Ripple Rejection Rate Short-circuit Current V24 PSRR ISHORT VIN = [VOUT +1]V +1Vp-pAC 1.0 V 0.5 50 IOUT=10mA,1kHZ 70 IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VCE＝VIN, VOU＝0V www.microne.com.cn %/V 65 Page 9 of 25 V uVrms dB mA ME6211 ME6211C33 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 500 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 9 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 120 mV VDIF2 IOUT =200mA 260 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-byCurrent ICEL VCE＝0V 0.1 1.0 μA Line Regulation ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Output noise Ripple Rejection Rate Short-circuit Current PSRR ISHORT VIN = [VOUT +1]V +1Vp-pAC %/V 1.0 V 0.5 50 IOUT=10mA,1kHZ 70 IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VCE＝VIN, VOUT＝0V V uVrms dB 70 mA ME6211C33 （SOT343R，FBP1*1-4L，SOT353） (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 400 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 9 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 120 mV VDIF2 IOUT =200mA 260 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Stand-byCurrent ICEL VCE＝0V 0.1 1.0 μA Line Regulation ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA，300Hz~50kHz Output noise Ripple Rejection Rate Short-circuit Current V24 PSRR ISHORT VIN = [VOUT +1]V +1Vp-pAC 1.0 V 0.5 50 IOUT=10mA,1kHZ 70 IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VCE＝VIN, VOUT＝0V www.microne.com.cn %/V 70 Page 10 of 25 V uVrms dB mA ME6211 ME6211C36 (VIN= VOUT+1V,VCE = VIN,CIN=CL=1uF,Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 400 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 8 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 100 mV VDIF2 IOUT =200mA 200 mV Supply Current ISS VIN= VOUT+1V 40 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA， 300Hz~50kHz Line Regulation Output noise Ripple Rejection Rate PSRR Short-circuit Current ISHORT VIN = [VOUT +1]V +1Vp-pAC %/V 1.0 V 0.5 50 IOUT=10mA,1kHZ 70 IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VCE＝VIN, VOUT＝0V V uVrms dB 100 mA ME6211C50 (VIN= VOUT+1V，VCE = VIN，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 500 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 8 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 100 mV VDIF2 IOUT =200mA 200 mV Supply Current ISS VIN= VOUT+1V 40 60 μA Stand-by Current ICEL VCE＝0V 0.1 1.0 μA ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down EN IOUT =40mA， 300Hz~50kHz Line Regulation Output noise Ripple Rejection Rate V24 PSRR VIN = [VOUT IOUT=10mA,1kHZ www.microne.com.cn %/V 1.0 V 0.7 V 50 uVrms 70 dB Page 11 of 25 ME6211 +1]V +1Vp-pAC Short-circuit Current ME6211A30 ISHORT IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VCE＝VIN, VOUT＝0V 100 mA (VIN= VOUT+1V，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 500 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 8 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 100 mV VDIF2 IOUT =200mA 210 mV Supply Current ISS VIN= VOUT+1V 30 Line Regulation ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 %/V EN IOUT =40mA， 300Hz~50kHz 50 uVrms Output noise Ripple Rejection Rate Short-circuit Current ME6211A33 PSRR ISHORT VIN = [VOUT +1]V +1Vp-pAC IOUT=10mA,1kHZ 70 IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VCE＝VIN, VOUT＝0V 60 μA dB 65 mA (VIN= VOUT+1V，CIN=CL=1uF，Ta=25OC,unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 500 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 9 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 120 mV VDIF2 IOUT =200mA 260 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Line Regulation ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.1 1.0 %/V Output noise EN IOUT =40mA， 300Hz~50kHz 50 Ripple Rejection Rate Short-circuit Current V24 PSRR ISHORT VIN =[VOUT+1]V +1Vp-pAC IOUT=10mA,1kHZ 70 IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VOUT＝0V www.microne.com.cn 70 Page 12 of 25 uVrms dB mA ME6211 ME6211A25 (VIN= VOUT+1V，CIN=CL=1uF，Ta=25OC,unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.99 VOUT (T) (Note 1) X 1.01 V Maximum Output Current IOUTMAX VIN= VOUT+1V 400 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 9 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 80 mV VDIF2 IOUT =200mA 180 mV Supply Current ISS VIN= VOUT+1V 30 60 μA Line Regulation ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.1 1.0 %/V Output noise EN IOUT =40mA，300Hz~50kHz 50 Ripple Rejection Rate Short-circuit Current PSRR ISHORT VIN = [VOUT +1]V +1Vp-pAC IOUT=10mA,1kHZ 70 IOUT=100mA,10kHZ 62 IOUT=200mA,10kHZ 62 VIN= VOUT+1V, VOUT＝0V uVrms dB 60 mA ME6211H15 (VIN= VOUT+1V，VCE = GND，CIN=CL=1uF，Ta=25OC, unless otherwise noted) Parameter Symbol Conditions Min. Typ. Max. Units Output Voltage VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.98 VOUT (T) (Note 1) X 1.02 V Maximum Output Current IOUTMAX VIN= VOUT+1V 300 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 9 mV Dropout Voltage (Note 3) VDIF1 IOUT =100mA 200 mV VDIF2 IOUT =200mA 400 mV Supply Current ISS VIN= VOUT+1V 30 60 μA ICEL VCE＝VIN 0.1 1.0 μA Line Regulation ∆VOUT ∆VIN • VOUT IOUT =30mA VOUT+1V ≤VIN≤6.5V 0.05 CE “High” Voltage VCEH Shut down CE “Low” Voltage VCEL Start up Output noise EN IOUT =40mA，300Hz~50kHz Ripple Rejection Rate PSRR Stand-by Current VIN = [VOUT +1]V+1Vp-pAC IOUT=10mA,1kHZ %/V 1.0 V 0.4 V 50 uVrms 70 dB Note ： 1. VOUT (T) ：Specified Output Voltage 2.VOUT (E) ：Effective Output Voltage ( le. The output voltage when “VOUT (T)+1.0V”is provided at the Vin pin while maintaining a certain Iout value.) 3.VDIF：VIN1 –VOUT (E)’ VIN1 ：The input voltage when VOUT(E)’ appears as input voltage is gradually decreased. VOUT (E)’=A voltage equal to 98% of the output voltage whenever an amply stabilized Iout {VOUT (T)+1.0V} is input. V24 www.microne.com.cn Page 13 of 25 ME6211 Type Characteristics （1）Output CurrentVS.Output Voltage（VIN=Vout+1, Ta = 25 °C） ME6211C33M5G ME6211C30M5G Output CurrentVS.Output Voltage Output CurrentVS.Output Voltage 3.4 4 3.35 Output Voltage(V) 3.8 Output Voltage(V) 3.3 3.25 3.2 3.15 3.1 3.6 3.4 3.2 3 2.8 2.6 3.05 2.4 2.2 3 0 100 200 300 400 500 600 0 100 200 Output Current(mA) ME6211C28M5G 400 500 600 ME6211C18M5G Output CurrentVS.Output Voltage Output CurrentVS.Output Voltage 4 2 3.6 1.9 Output Voltage(V) Output Voltage(V) 300 Output Current(mA) 3.2 2.8 2.4 1.8 1.7 1.6 1.5 2 0 100 200 300 400 500 0 600 100 200 300 400 500 600 Output Current(mA) Output Current(mA) （2）Input VoltageVS.Output Voltage（Ta = 25 °C） ME6211C33M5G ME6211C30M5G Input Voltage VS.Output Voltage Input Voltage VS.Output Voltage 3.8 3.5 3 Output Voltage(V) Output Voltage(V) 3.4 1mA 2.6 50mA 2.2 1.8 1mA 2.5 50mA 2 100mA 100mA 1.5 1.4 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 Input Voltage(V) V24 3 1.5 2 2.5 3 3.5 4 4.5 5 5.5 Input Voltage(V) www.microne.com.cn Page 14 of 25 6 6.5 ME6211 ME6211C28M5G ME6211C18M5G Input Voltage VS.Output Voltage Input Voltage VS.Output Voltage 1.9 Output Voltage(V) Output Voltage(V) 3.2 2.8 1mA 2.4 2 50mA 1.6 100mA 1.8 1.7 1mA 1.6 1.5 50mA 1.4 1.3 100mA 1.2 1.2 1.1 1.5 2.5 3.5 4.5 5.5 6.5 1.5 2.5 3.5 Input Voltage(V) 4.5 5.5 6.5 400 500 Input Voltage(V) （3）Output Current VS.Droput Voltage（VIN=Vout+1V,Ta = 25 °C） ME6211C33M5G ME6211C30M5G Output Current VS.Droput Voltage 800 700 700 Droput Voltage(mV) Droput Voltage(mV) Output Current VS.Droput Voltage 800 600 500 400 300 200 600 500 400 300 200 100 100 0 0 0 100 200 300 400 0 500 100 200 300 Output Current(mA) Output Current(mA) ME6211C28M5G ME6211C18M5G Output Current VS.Droput Voltage Output Current VS.Droput Voltage 700 1200 Droput Voltage(mV) Droput Voltage(mV) 600 500 400 300 200 100 1000 800 600 400 200 0 0 0 100 200 300 400 500 100 200 300 400 Output Current(mA) Output Current(mA) V24 0 www.microne.com.cn Page 15 of 25 500 ME6211 （4）Input Voltage VS. Supply Current（Ta = 25 °C） ME6211C33M5G ME6211C30M5G Supply Current VS.Input Voltage Supply Current VS.Input Voltage 100 Supply Current(uA) Supply Current(uA) 100 80 60 40 20 80 60 40 20 0 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 Input Voltage(V) Input Voltage(V) ME6211C28M5G ME6211C18M5G Supply Current VS.Input Voltage Supply Current VS.Input Voltage 100 Supply Current(uA) Supply Current(uA) 100 80 60 40 20 80 60 40 20 0 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 Input Voltage(V) Input Voltage(V) （5）PSRR ME6211C18M5G ME6211C28M5G 90 90 Vin=2.8V,Vout=1.8V Cin=none,Cout=1uF 70 60 50 40 30 Iout=1mA Iout=10mA Iout=150mA Iout=300mA 20 10 Vin=3.8V,Vout=2.8V Cin=none,Cout=1uF 80 RR, RIPPLE REJECTION(dB) RR, RIPPLE REJECTION(dB) 80 70 60 50 40 30 Iout=1mA Iout=10mA Iout=150mA Iout=300mA 20 10 0 0 0.1 1 10 100 1000 10000 V24 0.1 1 10 100 1000 FREQUENCY [kHz] FREQUENCY [kHz] www.microne.com.cn Page 16 of 25 10000 ME6211 （6）Temperature vs. Output Voltage ME6211C25 V24 www.microne.com.cn Page 17 of 25 ME6211 Packaging Information  Package Type：SOT23-3 DIM Millimeters Inches Min Max Min Max A 1.05 1.45 0.0413 0.0571 A1 0 0.15 0.0000 0.0059 A2 0.9 1.3 0.0354 0.0512 A3 0.6 0.7 0.0236 0.0276 b 0.25 0.5 0.0098 0.0197 c 0.1 0.25 0.0039 0.0098 D 2.8 3.1 0.1102 0.1220 E 2.6 3.1 0.1023 0.1220 E1 1.5 1.8 0.0591 0.0709 e 0.95(TYP) L 0.25 L1 0.0374(TYP) 0.6 0.0098 0.59(TYP) θ 0 c1 0.0232(TYP) 8° 0.2(TYP) V24 0.0236 www.microne.com.cn 0.0000 8° 0.0079(TYP) Page 18 of 25 ME6211  Package Type：SOT89-3 DIM Millimeters Inches Min Max Min Max A 1.4 1.6 0.0551 0.063 b 0.32 0.52 0.0126 0.0205 b1 0.4 0.58 0.0157 0.0228 c 0.35 0.45 0.0138 0.01772 D 4.4 4.6 0.1732 0.1811 D1 1.55(TYP) 0.061(TYP) D2 1.75(TYP) 0.0689(TYP) e1 3(TYP) 0.1181(TYP) E 2.3 2.6 0.0906 0.1023 E1 3.94 4.4 0.1551 0.1732 E2 1.9(TYP) 0.0748(TYP) e 1.5(TYP) 0.0591(TYP) L 0.8 θ 1.2 45° V24 0.0315 0.0472 45° www.microne.com.cn Page 19 of 25 ME6211  Package Type：SOT343R DIM Millimeters Inches Min Max Min Max A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 b1 0.350 0.500 0.014 0.020 b2 0.075 0.175 0.003 0.007 c 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.1 1.4 0.0433 0.0551 E1 2.1 2.5 0.0827 0.0984 e 0.65TYP e1 1.200 L 0.026TYP 1.400 0.047 0.525TYP 0.055 0.021TYP L1 0.260 0.460 0.010 0.018 θ 0.000 8° 0 8° c1 0.2TYP V24 www.microne.com.cn 0.0079TYP Page 20 of 25 ME6211  Package Type：FBP1*1-4 DIM Millimeters Inches Min Max Min Max A 0.335 0.410 0.013 0.016 D 0.950 1.100 0.037 0.043 E 0.950 1.100 0.037 0.043 D1 0.370 0.470 0.015 0.019 E1 0.370 0.470 0.015 0.019 k 0.170MIN 0.007MIN b 0.160 0.260 0.060 0.010 C 0.010 0.090 0.000 0.004 e 0.600 0.700 0.024 0.028 L1 0.185 0.255 0.007 0.010 L2 0.03REF L3 0.185 V24 0.001REF 0.255 www.microne.com.cn 0.007 0.010 Page 21 of 25 ME6211  Package Type：SOT23-5 Millimeters Inches DIM Min Max Min Max A 1.05 1.45 0.0413 0.0570 A1 0 0.15 0 0.0059 A2 0.9 1.3 0.0354 0.0511 B 0.25 0.5 0.0098 0.0196 C 0.10 0.23 0.0039 0.0090 D 2.82 3.05 0.1110 0.1200 E 2.60 3.05 0.1023 0.1200 E1 1.50 1.75 0.0590 0.0688 e 0.95REF 0.0374REF e1 1.90REF 0.0748REF L 0.10 0.60 0.0039 0.0236 a0 00 300 00 300 V24 www.microne.com.cn Page 22 of 25 ME6211  Package Type：SOT353 Millimeters Inches DIM Min Max Min Max A 0.9 1.1 0.035 0.043 A1 0.0 0.10 0.00 0.004 A2 0.9 1.0 0.035 0.039 B 0.15 0.35 0.006 0.014 C 0.08 0.15 0.003 0.006 D 2.0 2.2 0.079 0.087 E 2.15 2.45 0.085 0.096 E1 1.15 1.35 0.045 0.096 e 0.65 REF 0.026 REF e1 1.20 1.4 0.047 L 0.26 0.46 0.01 0.018 a0 00 80 00 80 V24 www.microne.com.cn 0.055 Page 23 of 25 ME6211  Package Type：DFN2*2-6 DIM Millimeters Inches Min Max Min Max A 0.7 0.8 0.0276 0.0315 A1 0 0.05 0 0.002 A2 0.203(TYP) 0.008(TYP) b 0.2 0.35 0.0078 0.0138 D 1.9 2.1 0.0748 0.0827 E 1.9 2.1 0.0748 0.0827 E1 0.5 0.9 0.0197 0.0354 e 0.65(TYP) 0.0256(TYP) L 0.25 0.426 0.0098 0.0168 K 0.2 一 0.0079 一 D1 1 1.45 0.0393 0.0571 V24 www.microne.com.cn Page 24 of 25 ME6211  The contents of this document will be updated with the product's improvement without prior notice. Please consult our sales staff before using this document to ensure that you are using the latest ve  The application circuit examples described in this document are only used to indicate the  Please use this product within the limits stated in this document. We will not be responsible for  The products described in this document are not allowed to be used in equipment or devices that affect the human body without the written permission of our company, including but not limited to: health equipment, medical equipment, disaster prevention equipment, fuel control equipment, automobile equipment, a  Although our company has always been committed to improving product quality and reliability, semiconductor products have a certain probability of malfunction or wrong work. To prevent personal injury or property damage caused by such accidents, please pay full attention to safety design, for example: Alternate design, fire protection design, and prevention of wrong  When exporting this product or this document overseas, you should abide by applicable import  Copying or reprinting part or all of this document in any form without the permission of our company is strictly prohibited. V24 www.microne.com.cn Page 25 of 25
