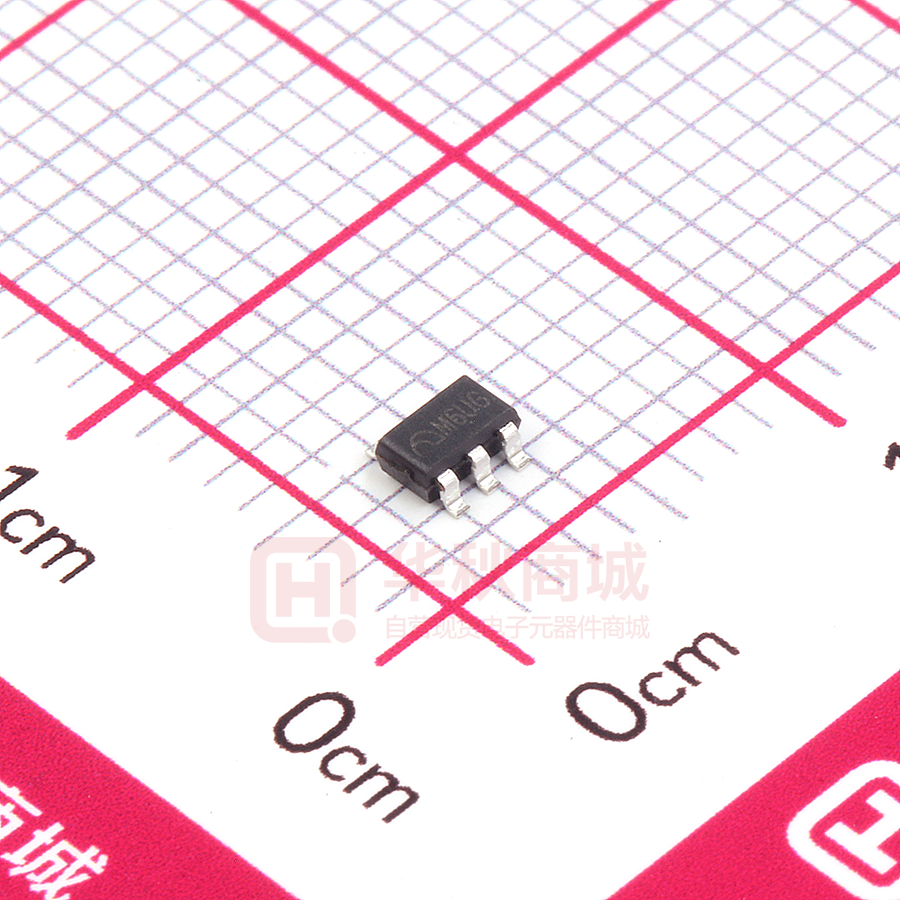

ME2139FM5G

ME2139 ULTRA-SMALL PACKAGE PWM/PFM SWITCHING CONTROL STEP-UP SWITCHING REGULATOR General Description Features The ME2139 series is a CMOS step-up switching regulator which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM/PFM switching control circuit. With an external low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current. The ME2139 series switches its operation to the PFM control circuit whose duty ratio is 15 % with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.        Package Applications ● 5-pin SOT23-5  MP3 players, digital audio players  Digital cameras, GPS, wireless transceiver  Portable devices V05 Low voltage operation: Start-up is guaranteed from 0.9 V(IOUT =1 mA ) Duty ratio: Built-in PWM/PFM switching control circuit 15 to 78 % . oscillator frequency：1.0MHz External parts: coil, diode, capacitor, and transistor Output voltage range：
