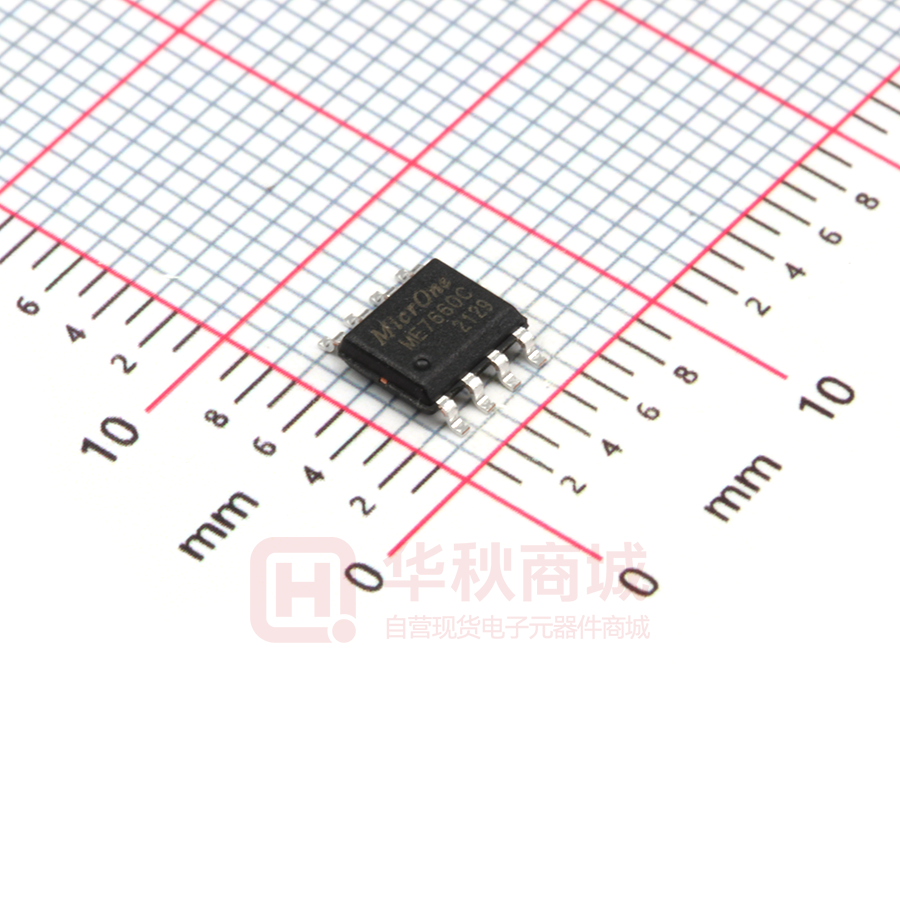

ME7660CS1G

ME7660C ME7660C Charge Pump DC-DC Voltage Converter ME7660C is a charge pump dc-to-dc voltage converter using AL-gate CMOS technology and optimization design. It converters a +2.5V to +10V input to a corresponding -2.5V to -10V output using only two external capacitors, eliminating inductors and their associated cost, size and EMI. The on-board oscillator operates at a nominal frequency of 10KHz. Operation below 10 KHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to ground. Selection Guide Features • Converts +5V Logic supply to + 5V； • Wide input voltage range: 2.5V~10V； • Efficient voltage conversion: 99.9%； • Good power efficiency: 98%； • Low power supply: 40uA @5V input； • Easy to use: only two external capacitors required； • Compatible with RS232 negative powersupply standard； • High ESD protection: up to 3kV； • No Dx diode needed for high voltage operation； • Package : SOP8, DIP8。 Applications • LCD Display Module； • Specially designed LCD display module； • Instrument product。 V02 www. microne. com. cn Page 1 of 9 ME7660C Pin Configuration Pin Assigment ME7660C PIN Number SOP8 1 2 3 4 5 6 7 8 DIP8 1 2 3 4 5 6 7 8 PIN NAME NC CAP+ GND CAP Vout Low Voltage OSC V+ FUNCTION No connection Connecting external capacitor(+) pin Ground pin Connecting external capacitor(-) pin Voltage output pin Low voltage selection pin Connecting oscillation capacitor pin Power supply pin Block Diagram V02 www. microne. com. cn Page 2 of 9 ME7660C Absolute Maximum Ratings PARAMETER Input voltage LV PIN input voltage OSC PIN input voltage LV PIN input voltage Output Short Duration (Vsupply ≤5.5V) ContinuousTotal SOP8 Power Dissipation（TA DIP8 ≤75℃） Operating Ambient Temperature Storage Temperature Soldering temperature and time SYMBAL VIN VLX VOSC ILV RATINGS +10.5V -0.3～(V++0.3)（if V+5.5V） 20（if V+>3.5V） UNITS V V µA ∞ Pd 470 mW Pd 730 mW TOpr -40~+85 ℃ Tstg -65~+150 ℃ Tsolder 260℃, 10s Electrical Characteristics(V+=5V,COSC=0) Symbol Item Conditions Min Typ Max Unit I+ V+H + VL Supply Current Supply Voltage, High Supply Voltage, Low RL=∞ LV Open LV to GND IOUT=20mA TA=25℃ IOUT=5mA V+=3V TA=25℃ Pin 7 open RL=5kΩ RL=∞ — 3.5 2.5 40 — — 100 10 3.5 µA V V ROUT FOSC PEFF VOUTEFF Output Resistance Oscillator Frequency Power Efficiency Voltage Conversion Efficiency — 95 98 70 Ω 120 Ω 10 98 99.9 — — — kHz % % Test Circuits V02 www. microne. com. cn Page 3 of 9 ME7660C Type Characteristics Operation ME7660C together with two external capacitors C1、C2 complement a voltage Inverter. Capacitor C1 is charged to a voltage V+, for the first half cycle when switches S1 and S3 are closed ( while switches S2 and S4 are open during this half cycle); During the second half cycle of operation, switches S2 and S4 are + closed, with S1 and S3 open, thereby shifting capacitor C2 negatively to -V . The voltage regulator portion of the chip is an integral part of the anti-latch-up circuitry. Its inherent voltage drop can degrade operation at low voltages. To improve low-voltage operation, the LV pin should be connected to GND, disabling the regulator. For supply voltages greater than 3.5V, the LV terminal must be left open to ensure latch-up-proof operation. V02 www. microne. com. cn Page 4 of 9 ME7660C Theoretical Power Efficiency Considerations In theory, a capacitive charge pump can approach 100% efficiency if certain conditions are met: 1、 The drive circuitry consumes no power. 2、 The output switches have extremely low ON resistance and no offset when operation. 3、 The impedances of the pump and reservoir capacitors are negligible at the pump frequency. Notes: 1、Supply voltage should not exceed maximum rating; 2、Do not connect LV terminal to GND for supply voltages greater than 3.5V; + 3、Do not short circuit the output to V supply for voltages above 5.5V for extended periods; 4、Polarized capacitors should be connected as the figure above. Typical Application Above figure is the basic application circuit to provide a negative supply from -2.5V~ -10V while a positive supply from +2.5V ~ +10V is ME7660C may be paralleled to reduce output resistance (see the above figure) Rout=Rout(of ME7660C)/n(number of devices) + available. When V =+5V, the output resistance is about 70Ω; The output voltage is –4V while the load current is 10mA. ME7660C may be cascaded as shown above to ME7660C may be cascaded as shown above to produce larger negative output voltage (-10V). produce larger negative output voltage (-15V). However, The output resistance is approximately two However, The output resistance is approximately two of a single chip resistance. of a single chip resistance. V02 www. microne. com. cn Page 5 of 9 ME7660C To increase the conversion efficiency, the oscillator frequency may be lowered by connecting a capacitor from pin 7 and pin 8 as shown above. This reduces the switching losses. However, lowering the oscillator frequency will cause an undesirable increase in the impedance of the pump ME7660C may be applied to achieve positive voltage multiplication using the circuit shown in the above figure and reservoir capacitors. So, the values of C1 and C2 should be increased by the same factor that the In above figure, C1、C3 are the pump and reservoir capacitors respectively for Since the switches that allow the charge pumping the operation are bi-directional, the charge transfer generation of the negative voltage; C2、C4 are can be performed backwards as easily as the pump and reservoir capacitors respectively forwards. for the multiplied positive voltage. When +5V transforming –5V to +5V. The only problem hear is supply is provided, +9V and -5V can be that the internal clock and switch-drive section will generated. not operate until some positive voltage has been In the above figure, ME7660C generated. An initial inefficient pump, as show in left figure, could be used to start this circuit up, after which it will bypass the other (D1 and D2 in left figure would never turn on),or else the diode and resistor show dotted in above figure can used to “force” the internal regulator on. V02 www. microne. com. cn Page 6 of 9 ME7660C In some applications due to noise, it may be desirable to increase the oscillator frequency. This can be achieved by overdriving the oscillator from an external clock as shown in the above figure. The external clock output should connect a 1k Ω resistor to prevent device latch-up. Besides, the pump frequency will be half of the clock frequency because of the internal circuit V02 www. microne. com. cn Page 7 of 9 ME7660C Package Diomensions ● SOP8 ● DIP8 V02 www. microne. com. cn Page 8 of 9 ME7660C · The information described herein is subject to change without notice. · Nanjing Micro One Electronics Inc is not responsible for any problems caused by circuits or diagrams described herein whose related industrial properties, patents, or other rights belong to third parties. The application circuit examples explain typical applications of the products, and do not guarantee the success of any specific mass-production design. · Use of the information described herein for other purposes and/or reproduction or copying without the express permission of Nanjing Micro One Electronics Inc is strictly prohibited. · The products described herein cannot be used as part of any device or equipment affecting the human body, such as exercise equipment, medical equipment, security systems, gas equipment, or any apparatus installed in airplanes and other vehicles, without prior written permission of Nanjing Micro One Electronics Inc. · Although Nanjing Micro One Electronics Inc exerts the greatest possible effort to ensure high quality and reliability, the failure or malfunction of semiconductor products may occur. The user of these products should therefore give thorough consideration to safety design, including redundancy, fire-prevention measures, and malfunction prevention, to prevent any accidents, fires, or community damage that may ensue. V02 www. microne. com. cn Page 9 of 9
