USB 2.0 Standard Connectors
UX Series
Feb.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Meets requirements of USB 2.0 Standard
USB 2.0 certified
■Features
Equal electrical length design(between twisted pairs)
1. Compatible to USB 2.0 Standard
The UX series connectors are cer tified by a
certification organization specified by the USB
Association.
The connectors are able to meet high-speed
transmissions up to 480 Mbps, delivering optimal
PC peripheral connections.
2. Low skew structure
An equal electrical length design between twisted
pairs (contact numbers 2 and 3) for both the
receptacles and the plugs provides for a theoretical
zero skew. (Fig.1)
8dciVXiCd#(
8dciVXiCd#'
3. No heat-shrink tube needed
The wire termination section of the plug is fixed on the
mold. In addition Hirose's unique metal shield
structure allows the over-mold resin to easily flow into
the wire termination section preventing short circuits
from occurring even without using heat shrink tubing.
This feature allows shor tening of the length of
untwisted part resulting in impedance unmatching at
the wire termination sections.
Fig.1
Ideal for the connection of personal computer peripherals
4. Easy to handle plug
The plug is a snap lock type that gives a clear tactile
click, assuring secure connector mating.The over-mold
section also has a thin structure for space saving.
5. Metal shield for SMT or DIP mounting
Metal shields with either SMT or solder dip type are
available to match the PCB design.
Fig.2
6. With or without positioning boss
Versions with or without positioning bosses can be
selected to match the PCB design.
7. Suitable for automatic mounting
A heat resistant tape for vacuum pickup is applied to the
receptacle allowing for the use of automatic mounting
machines. Receptacles without tape are also available.
8. RoHS compliant
All materials and substances used to produce this
product comply with RoHS standards.
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2017.12r
1
UX Series●USB 2.0 Standard Connectors
■Product Specifications
Voltage rating
30V AC
Current rating
1A
Ratings
Item
Specification
Conditions
1.Contact resistance
50mø max.
100mA
2.Insulation resistance
100Mø min.
100V DC
3.Withstanding voltage
No flashover or insulation breakdown
100V AC / 1 minute
4.Capacitance
2pF max.
Measure between adjacent contacts at 1,000 ±10Hz
5.Total insertion/
Insertion force
: 35N max.
Withdrawal force
: 7N min.
withdrawal force
6.Durability
Feb.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
-30 to +75ç (Note1)
Operating temperature range
Measure with an applicable connector.
With corresponding HRS connector.
(mating/unmating)
Contact resistance : 70mø max.
5,000 cycles
Withdrawal force : 3N min.
Frequency 10 to 55Hz, single amplitude of 0.75mm,
7.Vibration
8.Random vibration
No electrical discontinuity of 1µs or longer
No damage, cracks or parts dislocation.
9.Shock
2 hours in each of the 3 axial directions
Frequency 50 to 2,000Hz, 3 directions for 15 minutes each.
Acceleration of 490m/s2, 11ms continuous time, sine half-wave,
3 cycles in each of the 6 directions
10.Heat Shock
Contact resistance : 70mø max.
Temperature : -55ç / +20ç to 35ç / +85ç / +20ç to 35ç
/ 2 to 3 min. / 30 min. / 2 to 3 minutes
Time : 30min.
10 cycles
11.Temperature cycle
Insulation resistance : 10Mø min. (when dry)
7 cycles (168 hours) at -10 to 65ç , humidity of 93 ± 3%
12.Salt spray
Contact resistance : 70mø max.
48 hours, 5% solution of salt water
13.Solderablity
Wet state, solder coverage area 95% min.
Solder temperature 245ç, immersion time 2 to 3 seconds
Note 1 : The term “storage” refers to connectors stored for a long period of time prior to mounting and use.
Materials / Finish
●Receptacle
Part
Insulator
Material
Synthetic resin
Contacts
Copper alloy
Metal shield
Tape for vacuum pickup
Copper alloy
Polyamide
Finish
Color : Black
Contact area : Gold plated
Lead area : Gold plated
Tin alloy plated
---------------
Remarks
UL94V-0
-------------------------------------------
●Plug
Part
Insulator
Material
Synthetic resin
Contacts
Copper alloy
Metal shield
Over-mold (Note1)
Steel
PVC resin (Note2)
Finish
Color : Black
Contact : Gold plated
Wiring side : Tin alloy plated
Tin alloy plated
Color : Black (Note3)
Remarks
UL94V-0
-------------------------------------------
Note 1 : Single over-molded plug is not available as over-mold is created when forming the connector together with harness assembly.
Note 2 : Halogen-free material is also available.
Note 3 : Various colors are available for over-molds and cables. Contact our sales department for details.
2
UX Series●USB 2.0 Standard Connectors
■Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Receptacle
UX 60S C - MB - 5 S T
❶
❷
❸
❺
❹
❻ ❼
●Plug
UX 40 A - MB - 5 P
Feb.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
❶
❷
❽
❹
❺
❻
●Plug harness
UX 40 A - MB - 5 P A - 1000 - 1001
❶
❷
❽
❹
❺
❻
❶ Series name
UX series
❷ Contact termination style
60S : SMT type
❾
40 : Solder termination type
❸ Receptacle shape/type
C : Standard type
❹ Connector type
MB : Type Mini B
❺ Number of contacts
5 : 5 contacts
❻ Contact gender
S : Female P : Male
❼ Metal shield shape
T : SMT type
8 : Solder DIP type
❽ Plug serial symbol
A : Type for thick cable
❾ Type of connector on the opposite-side
A : Standard A
Cable length
1000 : 1000mm(Note 1)
Additional type number
Note 1 : Optional cable lengths of up to 3000mm are available.
Contact our sales department for details.
3
UX Series●USB 2.0 Standard Connectors
●Receptacle - Standard – Shell SMT
Part No.
HRS No.

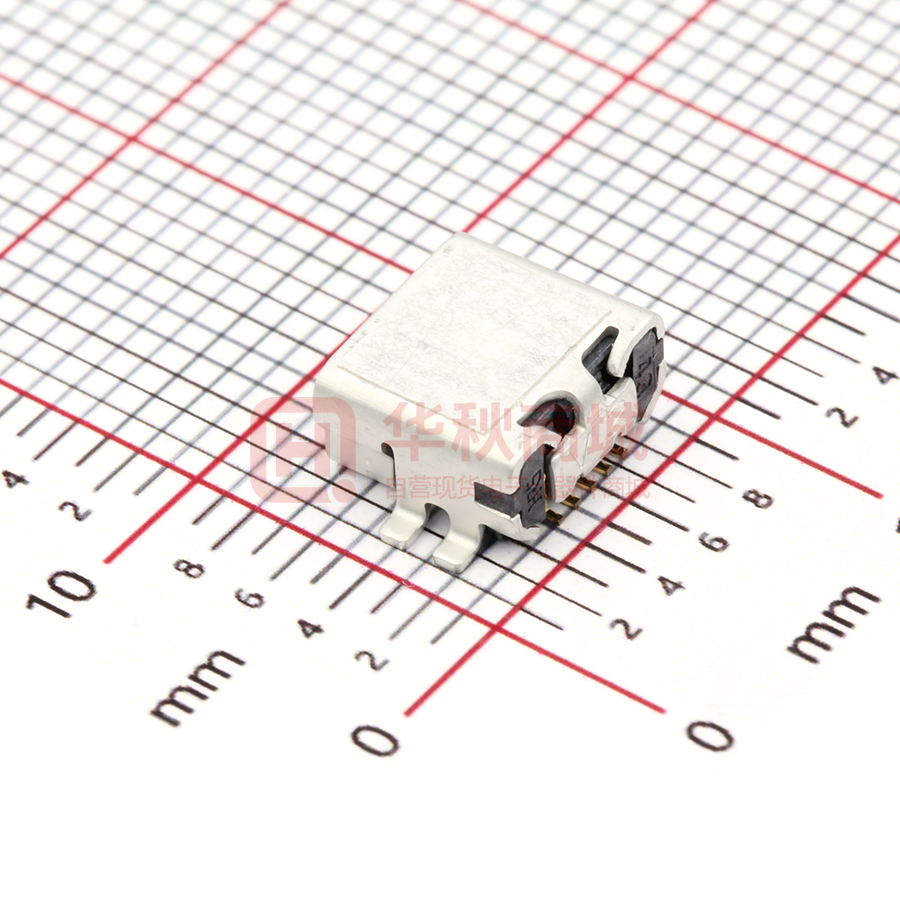

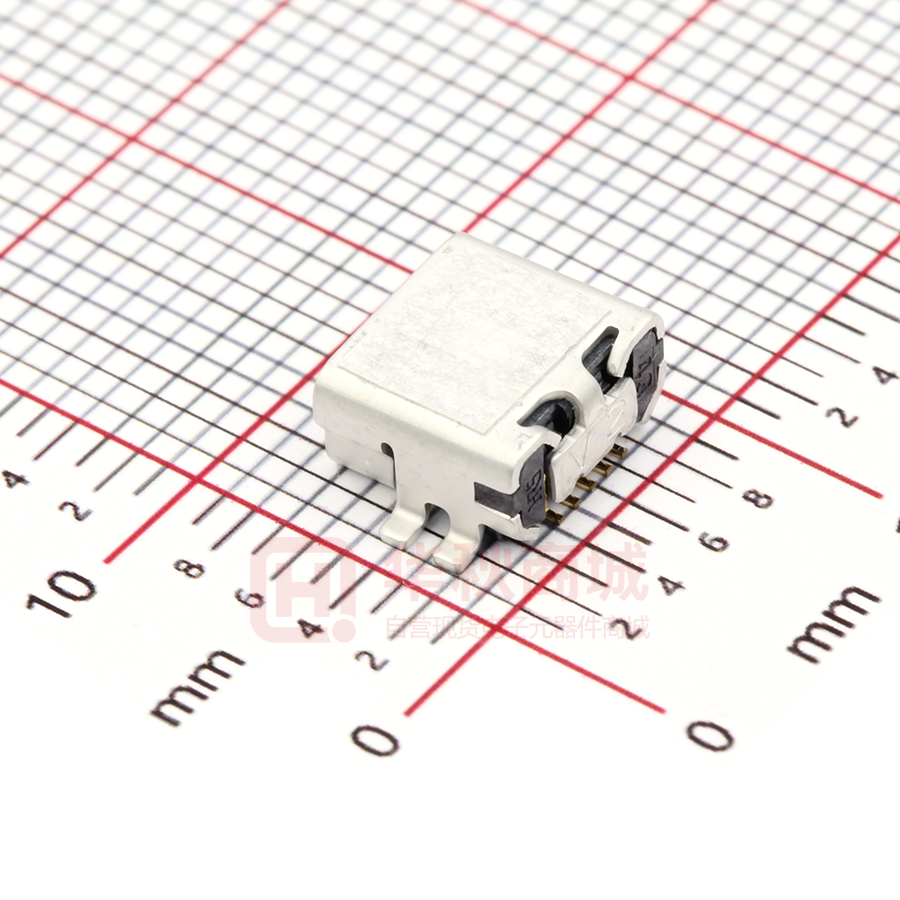

UX60SC-MB-5ST(80)
240-0016-6 80
RoHS
Note 1 : Tape and reel packaging (1,500pcs/reel).
: No conductive traces
Contact
No.1
5.1
1
3.3
Vacuum pick-up area
(1.6)
Contact
No.5
9.8
7.7
7
3
5.9
7.7
10.9
Outline of the
connector
0.8
(0.5)
PCB edge
1.3
1.8
5.4
3.6
2.1
5.6
3.95
1.4
0.8
0.5
0.3
0.8
1.6
0.8
1.6
All dimensions : mm
●Receptacle - Standard - Shell through Hole
Part No.
HRS No.
UX60SC-MB-5S8(80)
240-0020-3 80
RoHS
Note 1 : Tape and reel packaging (1,000pcs/reel).
BRecommended PCB mounting pattern
: No conductive traces
(0.5)
(1.5)
Order by number of reels.
Vacuum pick-up area
(1.6)
Contact
No.1
Contact
No.5
7.7
7
)
ole
.35 ugh h
0
R ro
(Th
0.4
7.7
0.8
1.3
3.7
7.3
(0.5)
3
5.9
3.2
(Through hole)
3.6
(Land)
7.3
0.7(Through hole)
1.1(Land)
0.8
1.6
0.8
R0
1.4
PCB edge
Outline of the
connector
3.9
La
nd
5(
0.8
0.5
.5
0.8
)
1.6 1.6
5.4
3.6
2.1
Feb.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1.6 1.6
0.8
(0.5)
BRecommended PCB mounting pattern
(1.5)
1
Order by number of reels.
0.3
0.8
1.6
2.8
4.2
All dimensions : mm
4
UX Series●USB 2.0 Standard Connectors
■Plug
3
1.2
2.4
CONTACT No.1
CONTACT No.5
Part No.
UX40-MB-5P
UX40A-MB-5P
HRS No.
240-0004-7
240-0005-0
Dimension A
6.2
7.85
(0.5)
(A)
3
(0.75)
1.2
2.4
(2.4)
22.7
B
(0.2)
●Connector unit
14.4
Dimension B
6.95
7.85
Applicable cable(Note)
Ø3.5~4.0
Ø4.1~4.6
RoHS
(Note) The applicable cable diameters show approximate values (they may differ due to the insulation hardness).
■Plug Harness
Part No.
UX40-MB-5PA-1000-2003
HRS No.
240-2003-5
RoHS
1000
(55)
(8.2)
B
(16.2)
(Ø3.9)
(30.9)
(6.5)
(9.5)
Feb.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
7.45
●Assembled state
5
UX Series●USB 2.0 Standard Connectors
Recommended clearance areas
Mated Assembly – Receptacle
Dimensions shown in the illustrations below must be
free of any materials or components, as this may
interfere with the free movement of the ground
contacts.
●Shown for Reference
4.7
5MIN
1MIN
Receptacle
Plug
1.1MIN
0.35MIN
0.4MIN
2.3MIN
(1.5)
Feb.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
All dimensions: mm
Packaging Specifications (JIS C 0806-3)
●Embossed carrier tape dimensions (The diagram
represents a standard type)
(30.4)
.5
(24.4)
)
Ø1
Unreeling direction
24
22.25
11.5
(Ø
1.75
4
2
Unreeling direction
13
12
●Reel Dimensions
0)
38
(Ø
Recommended temperature profile
●Lead-free solder paste
Temperature:(ç)
250
230
170±10ç
80~110S
230ç min.
MAX 50S
200
170
The temperature profile is based on the shown
conditions. In individual applications the temperature
may vary, depending on solder paste type, volume/
thickness and board size/thickness. Consult your
solder paste and equipment manufacturer for specific
recommendations.
200ç min.
MAX 80S
0
Time (Seconds)
Average slope
2ç / sec.
®
6
2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN
TEL: +81-45-620-3526 Fax: +81-45-591-3726
http://www.hirose.com
http://www.hirose-connectors.com
The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use.
The contents of this catalog are current as of date of 12/2017. Contents are subject to change without notice for the purpose of improvements.
