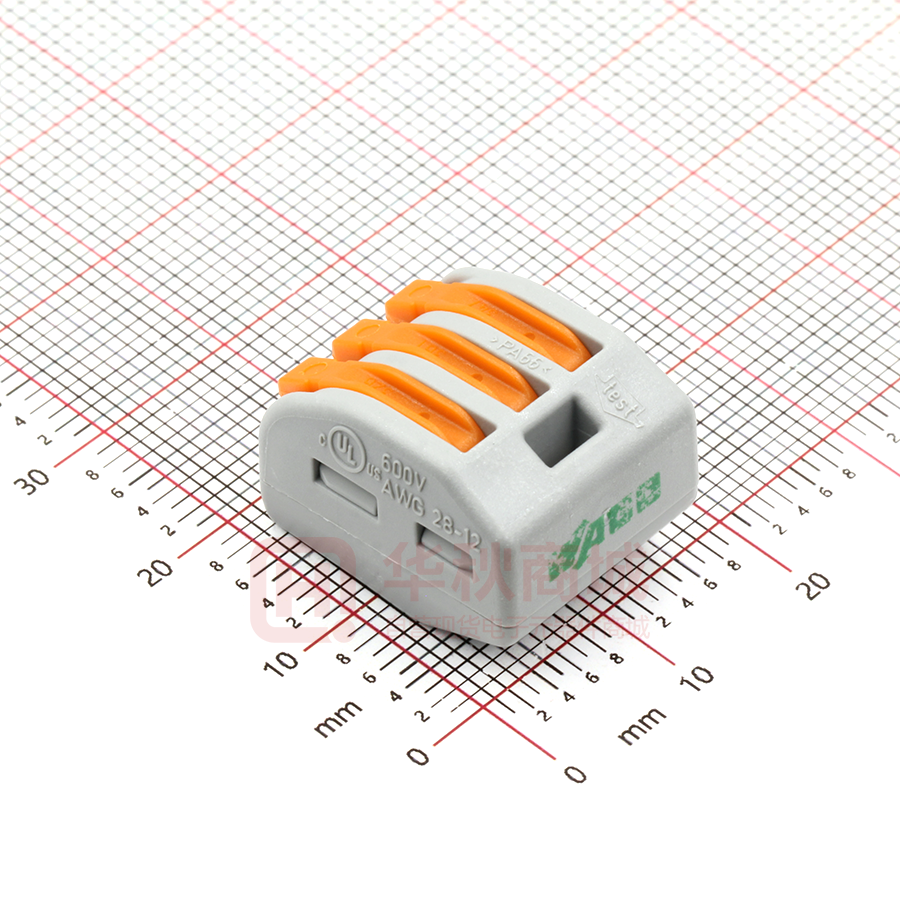

222-413

规格书 | Item number: 222-413 CLASSIC导线连接器; 适于多种导线类型; max. 4 mm²; 3线; 带有操作手柄; 灰色外壳; 工作环境温度：最大40 °C; 2,50 mm²; 灰色 https://www.wago.com/222-413 颜色: 外形尺寸（单位：mm） 灰色 Notes 安全信息1 指对地而言 . 电气参数 Ratings per IEC/EN 额定电气参数依据的标准 EN 60664 额定电压(II/2) 400 V 额定浪涌电压(II/2) 4 kV 额定电流 32 A 图例(额定电气参数) (II / 2) 过电压类别II/污染等级2 . 接线参数 连接点总数 3 Connection 1 电位总数量 1 连接技术 笼式弹簧接线单元(CAGE CLAMP®) 执行类型 操作手柄 可连接导线材料 铜 单股导线 0.08 … 2.5 mm² / 28 … 12 AWG 多股绞合导线 0.08 … 2.5 mm² / 28 … 12 AWG 细多股导线 0.08 … 4 mm² / 28 … 12 AWG 剥线长度 9 … 10 mm / 0.35 … 0.39 inch 接线类型 侧面接线 . . 页码 1/5 Version 12.03.2022 Continued on next page 规格书 | Item number: 222-413 https://www.wago.com/222-413 Geometrical Data 宽度 17 mm / 0.669 inch 高度 14.5 mm / 0.571 inch 深度 20.5 mm / 0.807 inch . 材料参数 Note (material data) Information on material data can be found here 颜色 灰色 UL94阻燃等级 V0 火灾荷载 0.088 MJ 执行器颜色 橙色 重量 4.2 g . Environmental Requirements 允许环境温度(运行时) +40 °C 持续工作温度 85 °C . 商业数据 Product Group 7 (Push Wire Conn.) eCl@ss 10.0 27-14-11-04 eCl@ss 9.0 27-14-11-04 ETIM 7.0 EC000446 ETIM 6.0 EC000446 PU (SPU) 500 (50) 包装类型 Box 原产国 DE GTIN 4017332955676 海关税号 85369010000 . 认证 / 证书 国家具体认证 船级社认证 认证 其他认证信息 认证名称 认证 其他认证信息 认证名称 ENEC 15 UL International Demko A/ S EN 60998 ENEC-01360 ABS American Bureau of Ship­ ping - 18-HG1755093-PDA DNV GL Det Norske Veritas, Ger­ manischer Lloyd EN 60998 TAE000015T LR Lloyds Register EN 60998 04/20013 (E8) . . 页码 2/5 Version 12.03.2022 Continued on next page 规格书 | Item number: 222-413 https://www.wago.com/222-413 UL认证 认证 其他认证信息 认证名称 UL UL International Germany GmbH UL 486C E69654 . 下载 Environmental Product Compliance Compliance Search Environmental Product Compliance 222-413 . 文档 Additional Information Technical Section Bid Text pdf 2142.18 KB 222-413 19.02.2019 xml 3.37 KB 23.01.2019 docx 15.39 KB 222-413 . . CAD/CAE-Data CAD data CAE data 2D/3D Models 222-413 EPLAN Data Portal 222-413 WSCAD Universe 222-413 . ZUKEN Portal 222-413 . 页码 3/5 Version 12.03.2022 Continued on next page 规格书 | Item number: 222-413 https://www.wago.com/222-413 1 相关产品 1.1 可選配件 1.1.1 安装支架 1.1.1.1 安装用附件 Item no.: 222-500 轨装支架; 222系列; 适于DIN-35导轨安装/螺 钉安装; 橙色 . 操作说明 连接导线 Strip conductor to 9 … 10 mm (0.35 … 0.39 inch). Termination: Lift the lever to open the clamping unit and insert a stripped con­ ductor. Then, lower the lever to close the clamp. Custom low-voltage lighting system Connecting pre-wired and pre-fabricated components (e.g., in mobile homes). . 测试 Testing via Profi-LED+ voltage tester (206-806). . 应用 Wiring fine-stranded conductors in juncti­ on boxes. Lighting fixture connection with finestranded wires and power feed . 页码 4/5 Version 12.03.2022 Continued on next page 规格书 | Item number: 222-413 https://www.wago.com/222-413 Compact, lever-operated splicing connec­ tors: They connect up to five stripped, finestranded conductors from 0.08 to 4 mm² (28 … 12 AWG), as well as solid or stranded conductors from up to 2.5 mm² (12 AWG) – without tools! How they work: Pull up one of the orange operating levers to open the clamping unit so that the lever engages and keeps the clamp in its ope­ ned position. Then insert the conductor and push the lever back down, flush with the connector housing. Safety: The lever's specially designed rest positi­ on reliably prevents accidental unclamping of a connected conductor. Application sa­ fety, for any type of conductor (solid, stranded, fine-stranded), is confirmed by approvals like ENEC or UL. ENEC is the European mark for electrical products that demonstrates compliance with European safety standards. The ENEC mark is subjected to the same EN standards as the VDE mark. While the VDE mark is only permitted in Germany, the ENEC mark is accepted in more than 20 European countries. . 变更声明。 敬请关注进一步的产品说明文件！ Current addresses can be found at: w w w.wago.com 页码 5/5 Version 12.03.2022
