ESD0502T5L

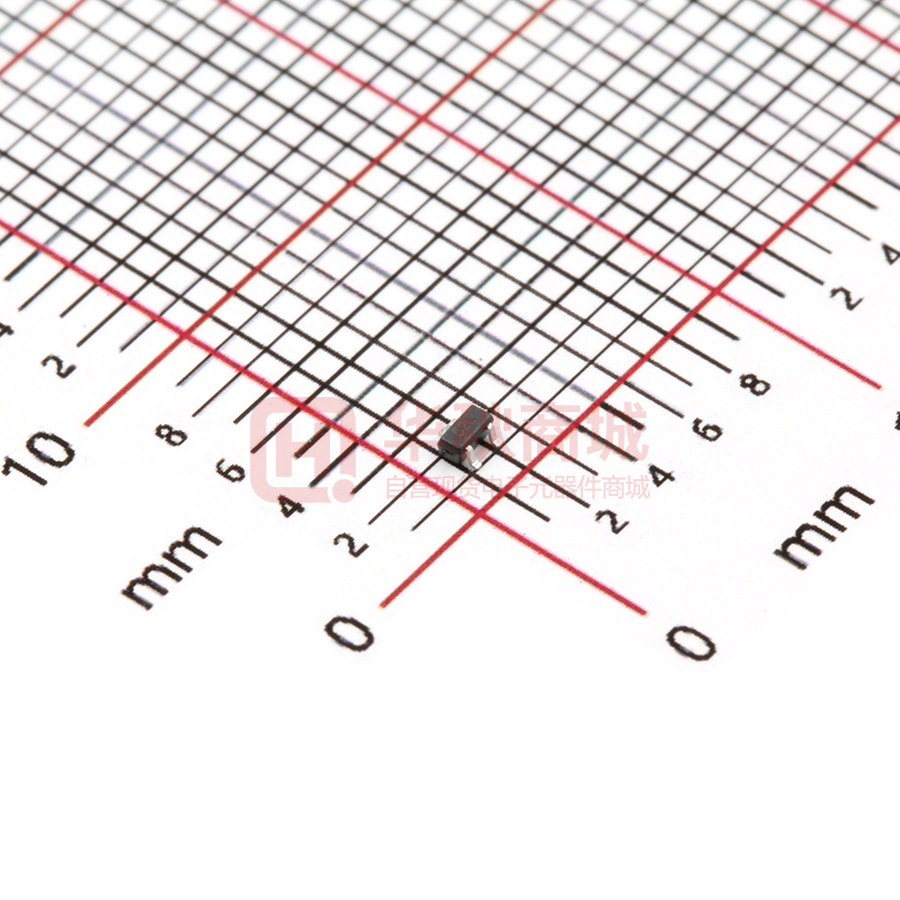

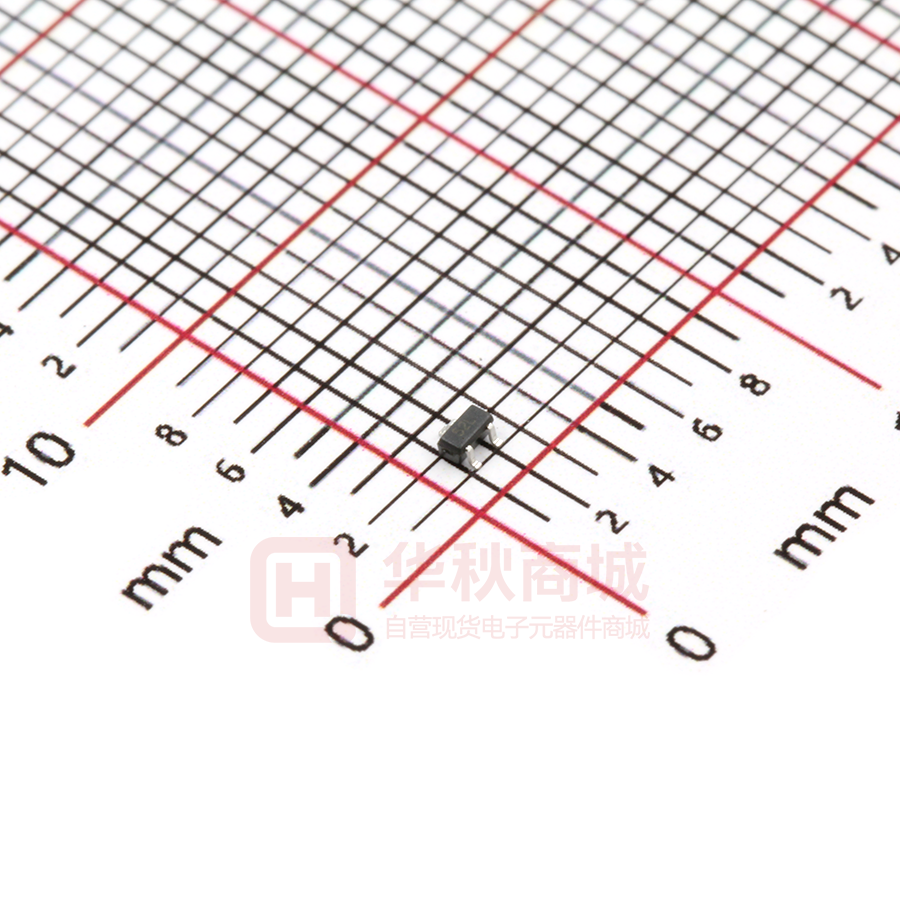

ESD0502T5L Ultra Low Capacitance TVS/ESD Protection Diodes SOT-523 Plastic-Encapsulate TVS/ESD Protection Diodes DESCRIPTION ESD0502T5L is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, ESD0502T5L is designed to protect parasitic-sensitive systems against overvoltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. ESD0502T5L uses small SOT-523 package. Each ESD0502T5L device can protect two high-speed data lines. The combined features of low capacitance, small size and high ESD robustness make ESD0502T5L ideal for high-speed data port and high-frequency line applications. The low clamping voltage of the ESD0502T5L guarantees a minimum stress on the protected IC. Features           Pin Configuration Peak Power Dissipation : 60W (8/20μs) Transient protection for high speed data lines IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) Cable Discharge Event (CDE) Small package (1.6mm0.8mm0.75mm) Protect two data lines Low clamping voltage Low Capacitance : 0.2pF Typical (I/O - I/O) Low leakage current Meets MSL 1 Requirementst Applications       Circuit Diagram Mechanical Characteristics Serial ATA Desktops, Servers and Notebooks PCI Express MDDI Ports USB Data Line Protectioon HDMI Ports  Digital Visual Interfacess (DVI) Package: SOT-523 Flammability Rating: UL 94V-0 Terminal: Matte tin plated. High temperature soldering guaranted: 260℃/10s  Marking: 52L  Packaging: Tape and Reel     Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit PPP 60 W VESD ± 20 ± 20 KV Operating Temperature TOPT −55 to +125 °C Storage Temperature TSTG −55 to +125 °C TL 260(10 sec.) °C Peak Pulse Power(8/20us ) ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Lead Solder Temperature – Maximum (10 Second Duration) http://www.microdiode.com The above data are for reference only. Rev:2024A2 Page :1 ESD0502T5L Ultra Low Capacitance TVS/ESD Protection Diodes Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Parameter Test Condition VRWM Reverse Working Voltage I/O to GND VBR Reverse Breakdown Voltage IT = 1mA Between I/O and GND IR Reverse Leakage Current VRWM = 5V Between I/O and GND 100 nA VF Forward Voltage IT = 10mA Between I/O and GND 1.2 V IPP = 1A, tp = 8/20μs Between I/O and GND 10 V IPP = 4A, tp = 8/20μs Between I/O and GND 15 V VC CT Min Typ Max Units 5.0 V 6.0 V Clamping Voltage VR = 0V, f = 1MHz Between I/O and GND 0.4 0.6 pF VR = 0V, f = 1MHz Between I/O and I/O 0.2 0.3 pF Total Capacitance The above data are for reference only. http://www.microdiode.com Rev:2024A2 Page :2 ESD0502T5L Ultra Low Capacitance TVS/ESD Protection Diodes ELECTRICAL CHARACTERISTICS CURVE The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :3 ESD0502T5L Ultra Low Capacitance TVS/ESD Protection Diodes Outlitne Drawing SOT-523 Package Outline Dimensions Symbol A A1 A2 b1 b2 c D E E1 e e1 L L1 θ Dimensions In Millimeters Min. Max. 0.700 0.900 0.000 0.100 0.700 0.800 0.150 0.250 0.250 0.350 0.100 0.200 1.500 1.700 0.700 0.900 1.450 1.750 0.500 TYP. 0.900 1.100 0.400 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.028 0.035 0.000 0.004 0.028 0.031 0.006 0.010 0.010 0.014 0.004 0.008 0.059 0.067 0.028 0.035 0.057 0.069 0.020 TYP. 0.035 0.043 0.016 REF. 0.010 0.018 0° 8° Suggested Pad Layout Note: 1. Controlling dimension:in/millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purposes only. http://www.microdiode.com Rev:2024A2 Page :4 ESD0502T5L Ultra Low Capacitance TVS/ESD Protection Diodes SOT-523 Tape and Reel SOT-523 Embossed Carrler Tape Packaging Description: SOT-523 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film,adhesive laye,sealant, and anti-static sprayed agent.These reeled parts In standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). SOT-523 Tape Leader and Trailer SOT-523 Reel 3000 pcs http://www.microdiode.com 7 Inch 45,000 pcs 203×203×195 180,000 pcs 438×438×220 Rev:2024A2 Page :5
