Matrix Opto Co., Ltd
-MG630 GaAs Hall Element-

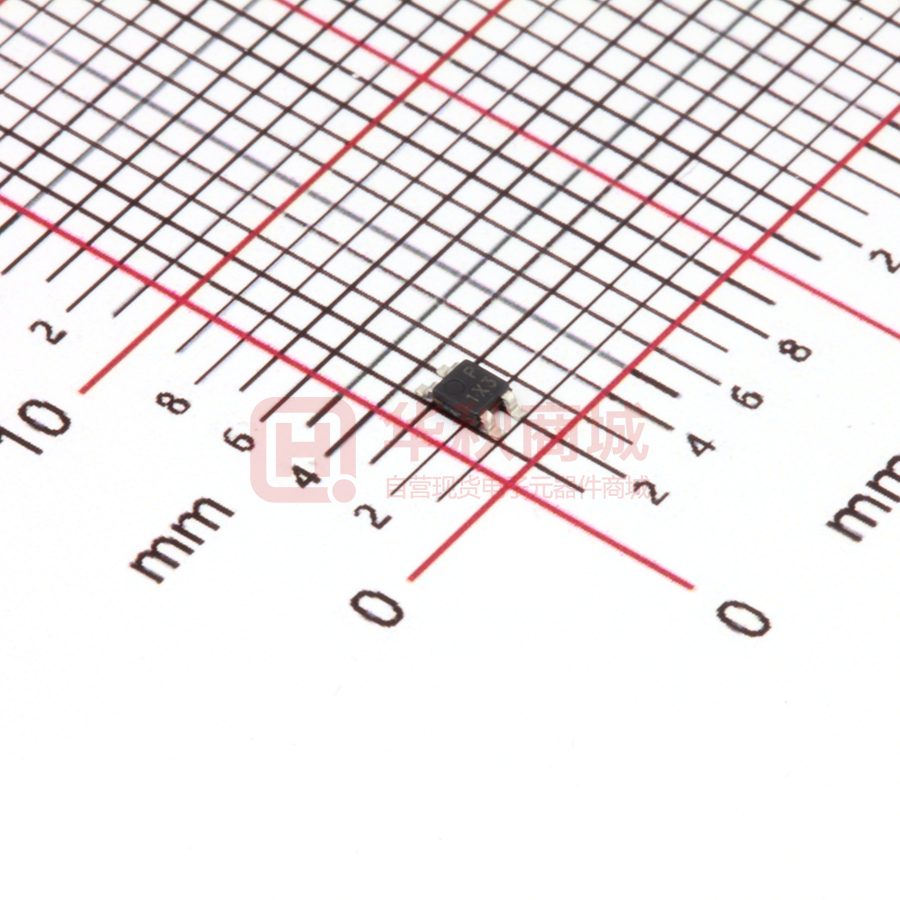

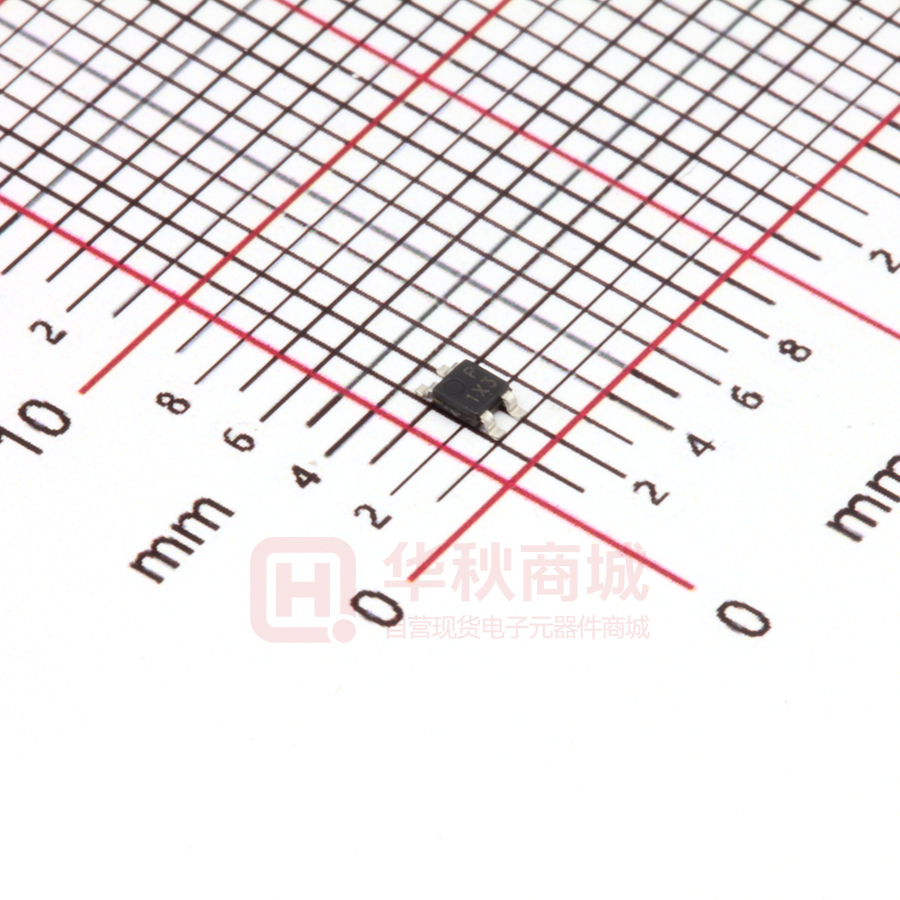

MG630 GaAs Hall Element
Linear GaAs Hall Element with Excellent thermal characteristics
SSOT-4 package
Shipped in Packet-tape Reel (4000pcs devices per Reel)
Dimensional Drawing (Unit MM)
Absolute Maximum Rating
Operating Temperature Range
Storage Temperature Range
Maximum Input Current Icmax
-40℃ ~ 125℃
-40℃ ~ 150℃
11mA
Figure 1. Maximum input current Icmax
Copy Right Reserved
JZWI-DS-003 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto Co., Ltd
-MG630 GaAs Hall Element-
Electrical Characteristics (RT=25℃)
Table 1. Electrical Characteristics of MG630.
Item
Symbol
Hall Voltage
VH
Input Resist.
Rin
Output Resist.
Rout
Offset Voltage
Vos
Temp. Coeffi. of VH
|αVH|
Temp. Coeffi. of Rin
αRin
Linearity of VH
ΔK
Test Condi.
B = 50mT, IC = 5mA
Ta = RT
B = 0mT, IC = 0.1mA
Ta = RT
B = 0mT, IC = 0.1mA
Ta = RT
B = 0mT, IC = 5mA
Ta = RT
B = 50mT, IC = 1mA,
Ta =25℃ ~ 125℃
B = 0mT, IC = 0.1mA,
Ta = 25℃ ~ 125℃
B = 0.1 - 0.5T, IC = 1mA
Ta = RT
Min.
Typ.
Max.
Unit
90
100
110
mV
1000
1250
1500
Ω
1800
2500
3000
Ω
+8
mV
0.06
%/℃
0.3
%/℃
+2
%
-8
-2
Note:
1.
�H = �H−M − �os
In which V
H-M
is the Output Hall Voltage, �H is the Hall Voltage and �os is the offset Voltage
under the identical electrical stimuli.
2.
3.
4.
1
α�H =
�H(��1 )
α�in =
�in(��1 )
Δ� =
1
×
×
� �1 −� �2
� �1 +� �2
2
�H (��2 )−�H(��1 )
��2 −��1
��n ��2 −��� (��1 )
��2 −��1
× 100
�=
× 100
��1 = 25℃, ��2 = 125℃
× 100
�H
�� �
��1 = 25℃, ��2 = 125℃
�1 = 0.5T, B2 = 0.1T
Copy Right Reserved
JZWI-DS-003 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto Co., Ltd
-MG630 GaAs Hall Element-
Characteristic Curves
Figure 2.Input resistance Rin as a function of ambient temperature Ta .
VH- B
700
@RT
Hall Voltage VH [mV]
600
500
I = 5mA
c
400
Vc = 6V
300
200
100
0
0
100
200
300
Magnetic Flux Density B [mT]
Figure 3. Hall voltage VH as a function of magnetic flux density B .
Copy Right Reserved
JZWI-DS-003 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto Co., Ltd
-MG630 GaAs Hall Element-
VH-Ta
140
@50mT
Hall Voltage VH [mV]
120
I = 5mA
c
100
80
Vc = 6V
60
40
20
0
-50
0
50
100
150
Ambient Temperature Ta [celsius]
Figure 4. Hall voltage VH as a function of ambient temperature Ta .
VH - Ic/Vc
160
@50mT
@RT
140
Hall Voltage VH
120
Ic
100
Vc
80
60
40
20
0
0
2
4
6
8
10
Input Current/Voltage Ic/Vc [mA/V]
Figure 5. Hall voltage VH as a function of electrical stimuli Ic/ Vc.
Copy Right Reserved
JZWI-DS-003 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto Co., Ltd
-MG630 GaAs Hall Element-
Reliability Test Terms
Table 2. Reliability Test Terms, Conditions and Duration.
No.
1
Terms
Conditions
Duration
High Temperature Storage
【JEITA EIAJ ED-4701】
(HTS)
Ta =150(0 ~ +10)℃
1000 hrs
【JEITA EIAJ ED-4701】
2
T a=-55℃~150 ℃
Heat Cycle
(HC)
high temp. 30 min
3
4
5
normal temp. -
5 min -
low temp.
30 min
Temp. Humidity Storage
【JEITA EIAJ ED-4701】
(THS)
Ta =85±3 ℃,RH =85±5 %
Reflow Soldering
【JEITA EIAJ ED-4701】
(RS)
260±5 ℃
High Temp. Operating
(HTO)
50 cycles
Ta =125 ℃,Vc =7.5V
1000 hrs
10 sec
1000 hrs
Criteria:
- Variation of Hall Voltage
�H and input/output resistances Rin/out are less than 20%.
- Variation of offset voltage
�os is less than ±16mV.
- Other parameters in Table 1. are still within their ranges stated in Table 1.
Copy Right Reserved
JZWI-DS-003 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto Co., Ltd
-MG630 GaAs Hall Element-
Soldering Conditions
The following conditions should be preserved. Solder ability should be checked by yourself, because it is
depend on solder paste material and other parameters.
Material of solder flux
- Use the resin based flux and refrain from using organic or inorganic acid based and water-soluble one.
Cleansing of solder flux conditions
- Use Ethanol or Isopropyl alcohol as cleansing material.
- Process temperature should be 50 ℃
or less.
- Duration should be 5 min or less.
Hand soldering conditions
- Solder at temperature 300 ℃
for less than 3s.
Soldering conditions
- Temperature in Pre-heating zone should be lower than 150℃.
- Temperature in Soldering zone should be lower than 280℃.
Copy Right Reserved
JZWI-DS-003 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto Co., Ltd
-MG630 GaAs Hall Element-
Precautions for ESD
This product is the device that is sensitive to ESD (Electrostatic Discharge). Handling Hall Elements with
the ESD-Caution mark under the environment in which
- Static electrical charge is unlikely to arise. (Ex; Relative Humidity; over 40%RH).
- Wearing the antistatic suit and wristband when handling the devices.
- Implementing measures against ESD as for containers that directly touch the devices.
Precautions for Storage
- Products should be stored at an appropriate temperature and humidity (5 to 35°C, 40 to 85%RH).
Keep products away from chlorine and corrosive gas.
- Long-term storage may result in poor lead solder ability and degraded electrical performance even
under proper conditions. For those parts, which stored long –term shall be check solder ability before it
is used.
- For storage longer than 2 years, it is recommended to store in nitrogen atmosphere. Oxygen of
atmosphere oxidizes leads of products and lead solder ability get worse.
Precautions for Safety
- Do not alter the form of this product into a gas, powder or liquid through burning, crushing or chemical
processing.
- Observe laws and company regulations when discarding this product.
Copy Right Reserved
JZWI-DS-003 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
