Matrix Opto. Co., Ltd
-MG910M GaAs Hall Element-

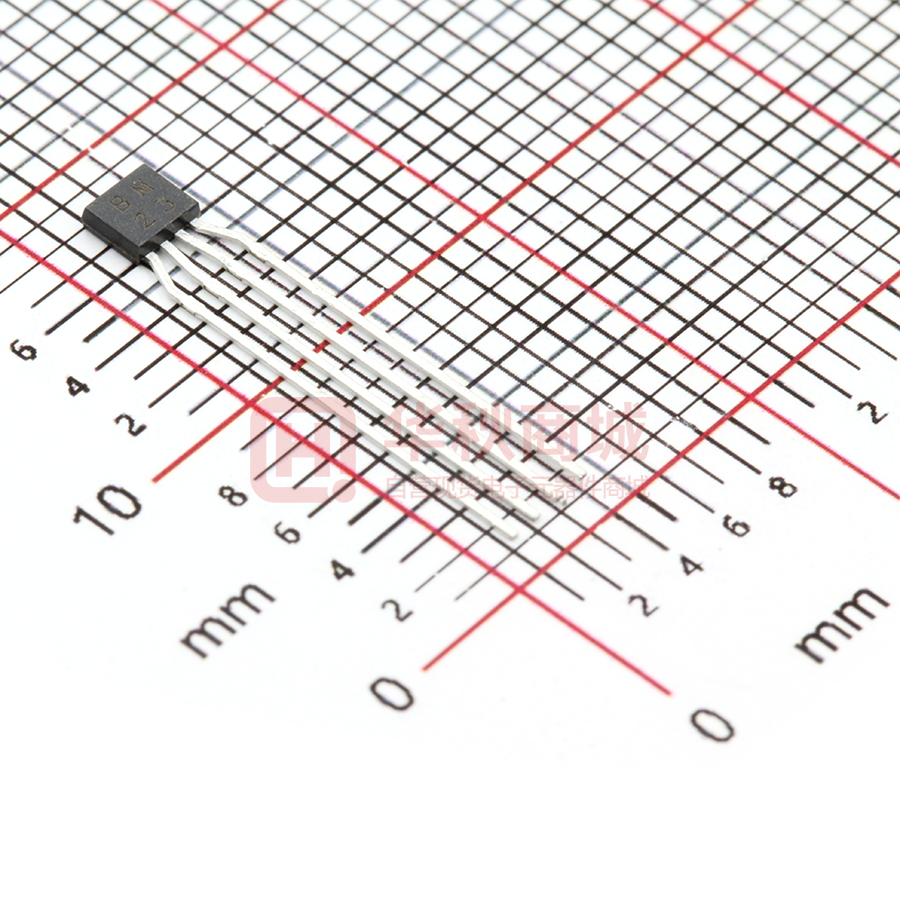

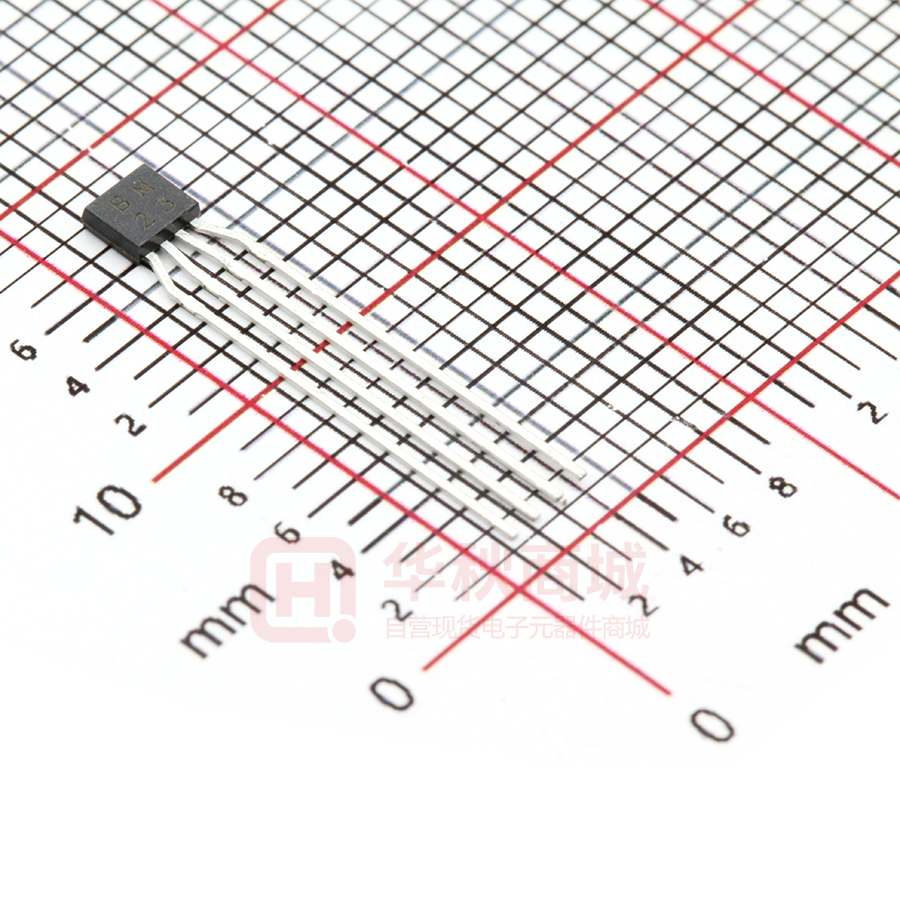

MG910M GaAs Hall Element
Linear GaAs Hall Element
Excellent Thermal Characteristics
Thin-type SIP Package
Shipped in Bulk by Pack (500pcs devices per pack)
Dimensional Drawing (Unit: mm)
Absolute Maximum Rating
Operating Temperature Range
Storage Temperature Range
Maximum Input Current Icmax
-40℃ ~ 125℃
-40℃ ~ 150℃
15mA
Maximum Input Current I cmax [mA]
15.0
14.5
14.0
13.5
13.0
20
40
60
80
100
120
140
Ambient Temperature Ta [celsius]
Figure 1. Maximum input current Icmax
Copy Right Reserved
JZWI-DS-005 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto. Co., Ltd
-MG910M GaAs Hall Element-
Electrical Characteristics (RT=25℃)
Table 1. Electrical Characteristics of MG910M.
Item
Symbol
Hall Voltage
VH
Input/Output Resist.
Rin/out
Offset Voltage
Vos
Temp. Coeffi. of VH
|αVH|
Temp. Coeffi. of Rin
αRin
Linearity of VH
ΔK
Test Condi.
B = 50mT, IC=5mA
Ta = RT
B = 0mT, IC = 0.1mA
Ta = RT
B = 0mT, IC = 5mA
Ta = RT
Min.
Typ.
Max.
Unit
36
45
54
mV
650
750
850
Ω
+5
mV
0.06
%/℃
0.3
%/℃
+2
%
-5
B = 50mT, IC =5mA,
Ta = 25℃ ~ 125℃
B = 0mT, IC =0.1mA,
Ta = 25℃ ~ 125℃
B = 0.1 - 0.5T, IC =5mA
Ta = RT
-2
Note:
1.
𝑽H = 𝑽H−M − 𝑽os
In which V H-M is the Output Hall Voltage, 𝑽H is the Hall Voltage and 𝑽os is the offset Voltage under
the identical electrical stimuli.
2.
1
α𝑽H =
𝑽H (𝑻𝑎1 )
×
𝑽H (𝑻𝑎2 )−𝑽H (𝑻𝑎1 )
𝑻𝑎2 −𝑻𝑎1
× 100
𝑻𝑎1 = 25℃,
3.
α𝑹in =
1
𝑹in (𝑻𝑎1 )
×
𝑹𝐢n (𝑻𝑎2 )−𝑹𝐢𝐧 (𝑻𝑎1 )
𝑻𝑎2 −𝑻𝑎1
× 100
𝑻𝑎1 = 25℃,
4.
Δ𝑲 =
𝑲(𝑩1 )−𝑲(𝑩2 )
𝑲(𝑩1 )+𝑲(𝑩2 )
2
× 100
𝑲=
𝑻𝑎2 = 125℃
𝑻𝑎2 = 125℃
𝑽H
𝑰𝑐 ×𝑩
𝑩1 = 0.5T, B2 = 0.1T
Copy Right Reserved
JZWI-DS-005 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto. Co., Ltd
-MG910M GaAs Hall Element-
Characteristic Curves
Rin - Ta
Input Resistance Rin [ohm]
1200
1000
800
600
400
200
30
60
90
120
150
Ambient Temperature Ta [celsius]
Figure 2. Input resistance Rin as a function of ambient temperature Ta.
VH- B
600
@RT
Hall Voltage VH [mV]
500
400
I = 10mA
c
300
Vc = 6V
200
100
0
0
100
200
300
Magnetic Flux Density B [mT]
Figure 3. Hall voltage VH as a function of magnetic flux density B.
Copy Right Reserved
JZWI-DS-005 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto. Co., Ltd
-MG910M GaAs Hall ElementVH-Ta
120
@50mT
I = 10mA
c
Hall Voltage VH [mV]
100
80
60
Vc = 6V
40
20
0
-50
0
50
100
150
Ambient Temperature Ta [celsius]
Figure 4. Hall voltage VH as a function of ambient temperature Ta.
VH - Ic/Vc
120
@50mT
@RT
100
Hall Voltage VH
80
Vc
60
Ic
40
20
0
0
2
4
6
8
10
Input Current/Voltage Ic/Vc [mA/V]
Figure 5. Hall voltage VH as a function of electrical stimuli Ic/Vc.
Copy Right Reserved
JZWI-DS-005 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto. Co., Ltd
-MG910M GaAs Hall Element-
Reliability Test Terms
Table 2. Reliability Test Terms, Conditions and Duration.
No.
1
Terms
Conditions
Duration
High Temperature Storage
【JEITA EIAJ ED-4701】
(HTS)
Ta =150(0 ~ +10)℃
1000 hrs
【JEITA EIAJ ED-4701】
2
T a=-55℃~150 ℃
Heat Cycle
(HC)
high temp. - normal temp. 30 min - 5 min -
3
4
5
low temp.
30 min
Temp. Humidity Storage
【JEITA EIAJ ED-4701】
(THS)
Ta =85±3 ℃,RH =85±5 %
1000 hrs
【JEITA EIAJ ED-4701】
Resist. to Hand Soldering Heat
(RHSH)
50 cycles
Dipped in the 300±5 ℃
5 sec
solder up to the 1 mm part from the body
High Temp. Operating
(HTO)
Ta =125 ℃,Vc =7.5V
1000 hrs
Criteria:
- Variation of Hall Voltage
𝑽H and input/output resistances Rin/out are less than 20%.
- Variation of offset voltage
𝑽os is less than ±16mV.
- Other parameters in Table 1. are still within their ranges stated in Table 1.
Copy Right Reserved
JZWI-DS-005 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto. Co., Ltd
-MG910M GaAs Hall Element-
Soldering Conditions
The following conditions should be preserved. Solder ability should be checked by yourself, because it is
depend on solder paste material and other parameters.
Material of solder flux
- Use the resin based flux and refrain from using organic or inorganic acid based and water-soluble one.
Cleansing of solder flux conditions
- Use Ethanol or Isopropyl alcohol as cleansing material.
- Process temperature should be 50 ℃
or less.
- Duration should be 5 minutes or less.
Hand soldering conditions
- Apart from the mold resin more than 1mm.
- Solder at temperature 300 ℃
for less than 5s.
Wave soldering conditions
- Temperature in Pre-heating zone should be lower than 150℃.
- Temperature in Soldering zone should be lower than 280℃.
Copy Right Reserved
JZWI-DS-005 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
Matrix Opto. Co., Ltd
-MG910M GaAs Hall Element-
Precautions for ESD
This product is the device that is sensitive to ESD (Electrostatic Discharge). Handling Hall Elements with
the ESD-Caution mark under the environment in which
- Static electrical charge is unlikely to arise (Ex: Relative Humidity over 40%RH).
- Wearing the anti-static suit and wristband when handling the devices.
- Implementing measures against ESD as for containers that directly touch the devices.
Precautions for Storage
- Products should be stored at an appropriate temperature and humidity (5°C to 35°C, 40%RH to
60%RH) after the unsealing of the MBB. Keeping products away from chlorine and corrosive gas.
- For storage longer than 2 years
Products are sealed in MBB with a desiccant. It is recommended to store in nitrogen atmosphere with
MBB sealed. Oxygen and H2O of atmosphere oxidizes leads of products and lead solder ability get
worse.
Precautions for Safety
- Do not alter the form of this product into a gas, powder or liquid through burning, crushing or chemical
processing.
- Observe laws and company regulations when discarding this product.
Copy Right Reserved
JZWI-DS-005 Version 2.0
Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent
any third parties not having the owner’s consent from using in the course of trade identical or similar signs for
goods or services where such use would result in a likelihood of confusion.
