MG610

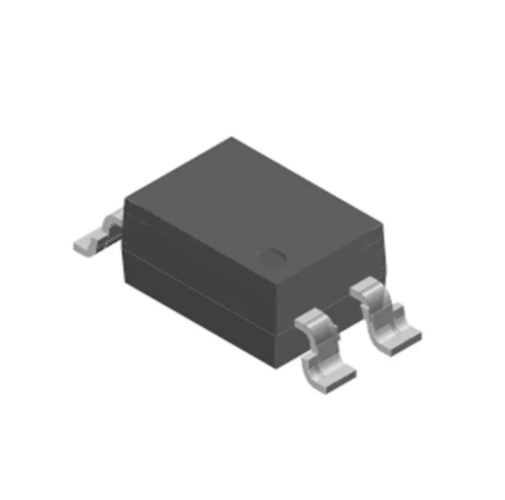

Matrix Opto Co., Ltd -MG610 GaAs Hall Element- MG610 GaAs Hall Element Linear GaAs Hall Element with Excellent thermal characteristics SSOT-4 package Shipped in Packet-tape Reel (4000pcs devices per Reel) Dimensional Drawing (Unit MM) Absolute Maximum Rating Operating Temperature Range Storage Temperature Range Maximum Input Current Icmax -40℃ ~ 125℃ -40℃ ~ 150℃ 13mA Maximum Input Current I cmax [mA] 15.0 14.5 14.0 13.5 13.0 20 40 60 80 100 120 140 Ambient Temperature Ta [celsius] Figure 1. Maximum input current Icmax Copy Right Reserved JZWI-DS-002 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -MG610 GaAs Hall Element- Electrical Characteristics （RT=25℃） Table 1. Electrical Characteristics of MG610. Item Symbol Hall Voltage VH Input/Output Resist. Rin/out Offset Voltage Vos Temp. Coeffi. of VH |αVH| Temp. Coeffi. of Rin αRin Linearity of VH ΔK Test Condi. B = 50mT, IC= 5mA Ta = RT B = 0mT, IC = 0.1mA Ta = RT B = 0mT, IC = 5mA Ta = RT Min. Typ. Max. Unit 36 45 54 mV 650 750 850 Ω +5 mV 0.06 %/℃ 0.3 %/℃ +2 % -5 B = 50mT, IC = 5mA, Ta = 25℃ ~ 125℃ B = 0mT, IC = 0.1mA, Ta = 25℃ ~ 125℃ B = 0.1 - 0.5T, IC = 5mA Ta = RT -2 Note: 1. H = − H−M In which V os H-M is the Output Hall Voltage, H is the Hall Voltage and os is the offset Voltage under the identical electrical stimuli. 2. 3. 4. α α Δ H in 1 = H（ = in （ = 1 1 − 1 + 2 1） × 1） × 2 2 H（ n 2 ）− H（ 2− 2 × 100 − 2− 1 （ 1 = 1） 1） × 100 × 100 H × 1 1 = 25℃, 2 = 125℃ 1 = 25℃, 2 = 125℃ = 0.5T, B2 = 0.1T Copy Right Reserved JZWI-DS-002 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -MG610 GaAs Hall Element- Characteristic Curves Rin - Ta Input Resistance Rin [ohm] 1200 1000 800 600 400 200 30 60 90 120 150 Ambient Temperature Ta [celsius] Figure 2.Input resistance Rin as a function of ambient temperature Ta . VH- B 600 @RT Hall Voltage VH [mV] 500 400 I = 10mA c 300 Vc = 6V 200 100 0 0 100 200 300 Magnetic Flux Density B [mT] Figure 3. Hall voltage VH as a function of magnetic flux density B . Copy Right Reserved JZWI-DS-002 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -MG610 GaAs Hall Element- VH-Ta 120 @50mT I = 10mA c Hall Voltage VH [mV] 100 80 60 Vc = 6V 40 20 0 -50 0 50 100 150 Ambient Temperature Ta [celsius] Figure 4. Hall voltage VH as a function of ambient temperature Ta . VH - Ic/Vc 120 @50mT @RT Hall Voltage VH 100 80 Vc 60 Ic 40 20 0 0 2 4 6 8 10 Input Current/Voltage Ic/Vc [mA/V] Figure 5. Hall voltage VH as a function of electrical stimuli Ic/ Vc. Copy Right Reserved JZWI-DS-002 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -MG610 GaAs Hall Element- Reliability Test Terms Table 2. Reliability Test Terms, Conditions and Duration. No. 1 Terms Conditions Duration High Temperature Storage 【JEITA EIAJ ED-4701】 (HTS) Ta =150（0 ~ +10）℃ 1000 hrs 【JEITA EIAJ ED-4701】 2 T a=-55℃~150 ℃ Heat Cycle (HC) high temp. 30 min 3 4 5 normal temp. - 5 min - low temp. 30 min Temp. Humidity Storage 【JEITA EIAJ ED-4701】 (THS) Ta =85±3 ℃，RH =85±5 % Reflow Soldering 【JEITA EIAJ ED-4701】 (RS) 260±5 ℃ High Temp. Operating (HTO) 50 cycles Ta =125 ℃，Vc =7.5V 1000 hrs 10 sec 1000 hrs Criteria: - Variation of Hall Voltage - Variation of offset voltage H and input/output resistances Rin/out are less than 20%. os is less than ±16mV. - Other parameters in Table 1. are still within their ranges stated in Table 1. Copy Right Reserved JZWI-DS-002 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -MG610 GaAs Hall Element- Soldering Conditions The following conditions should be preserved. Solder ability should be checked by yourself, because it is depend on solder paste material and other parameters. Material of solder flux - Use the resin based flux and refrain from using organic or inorganic acid based and water-soluble one. Cleansing of solder flux conditions - Use Ethanol or Isopropyl alcohol as cleansing material. - Process temperature should be 50 ℃ or less. - Duration should be 5 min or less. Hand soldering conditions - Solder at temperature 300 ℃ for less than 3s. Soldering conditions - Temperature in Pre-heating zone should be lower than 150℃. - Temperature in Soldering zone should be lower than 280℃. Copy Right Reserved JZWI-DS-002 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd -MG610 GaAs Hall Element- Precautions for ESD This product is the device that is sensitive to ESD (Electrostatic Discharge). Handling Hall Elements with the ESD-Caution mark under the environment in which - Static electrical charge is unlikely to arise. (Ex; Relative Humidity; over 40%RH). - Wearing the antistatic suit and wristband when handling the devices. - Implementing measures against ESD as for containers that directly touch the devices. Precautions for Storage - Products should be stored at an appropriate temperature and humidity (5 to 35°C, 40 to 85%RH). Keep products away from chlorine and corrosive gas. - Long-term storage may result in poor lead solder ability and degraded electrical performance even under proper conditions. For those parts, which stored long –term shall be check solder ability before it is used. - For storage longer than 2 years, it is recommended to store in nitrogen atmosphere. Oxygen of atmosphere oxidizes leads of products and lead solder ability get worse. Precautions for Safety - Do not alter the form of this product into a gas, powder or liquid through burning, crushing or chemical processing. - Observe laws and company regulations when discarding this product. Copy Right Reserved JZWI-DS-002 Version 2.0 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion.
