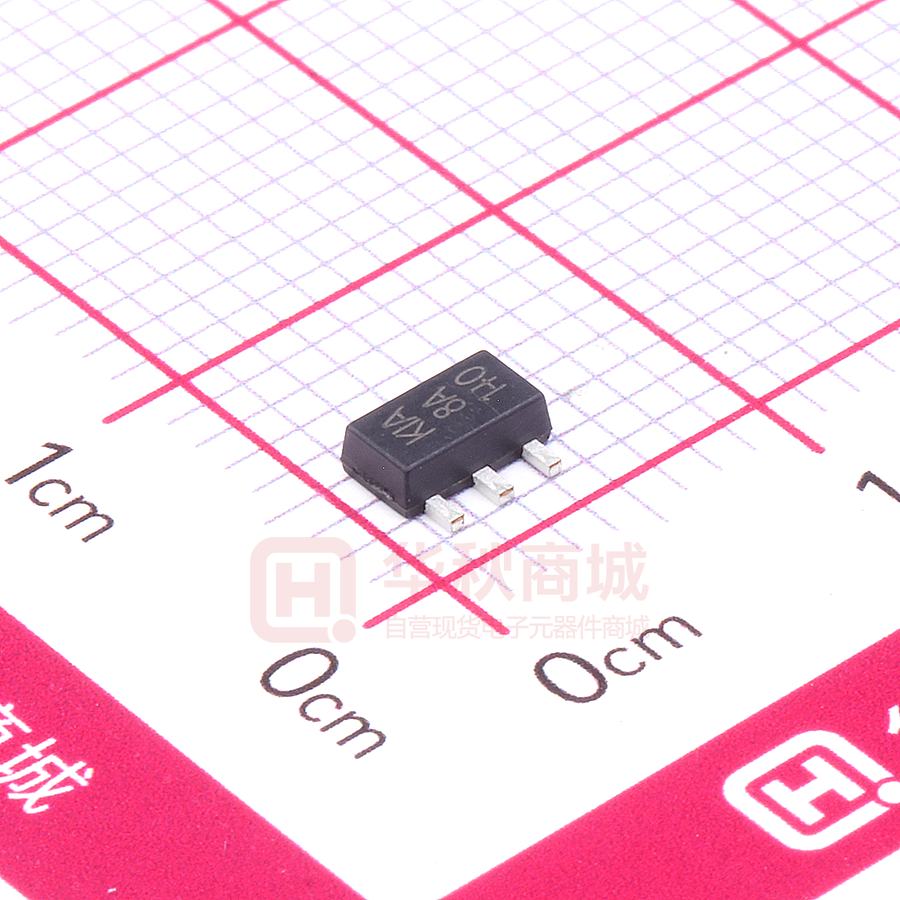

KIA78L05FG

KIA THREE TERMINAL POSITIVE VOLTAGE REGULATORS 5V 78L05 SEMICONDUCTORS 1.Description The KIA78L05 is monolithic fixed voltage regulator integrated circuit.It is suitable for applications that required supply current up to 100mA. 2.Features n Output current up to 100mA n No external part needed n Thermal overload shutdown protection n Short circuit current limiting n SOT89 package 3.Applications n Battery-powered circuitry n Post regulator for switching power supply 4. Pinning information SOT-89 TO-92 1 of 3 Pin Description 1 VOUT 2 GND 3 VIN Rev 1.2 JAN 2015 THREE TERMINAL POSITIVE VOLTAGE REGULATORS 5V KIA 78L05 SEMICONDUCTORS 5. Maximum ratings Parameter Symbol (Ta=25°C,unless otherwise notes) Rating Units Input voltage VIN 30 V Power dissipation PD 500 mW Junction temperature TJ -20~+125 °C Operating temperature TOPR -20~+85 °C Storage temperature TSTG -65~+150 °C 6. Electrical characteristics (VIN=10V,IOUT=40mA,CIN=0.33uF,COUT=0.1uF,TJ=25°C,unless otherwise notes) Parameter Symbol Condition Min Typ Max Unit 4.8 5.0 5.2 V VOUT 7.0V
